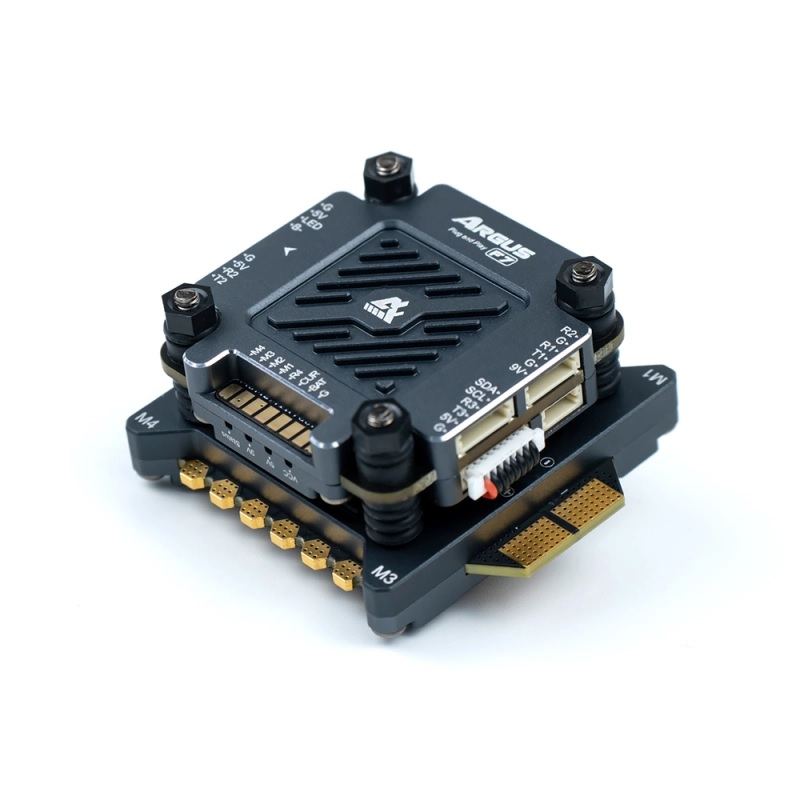

AxisFlying Argus Plug and Play STACK 55A/65A & F7

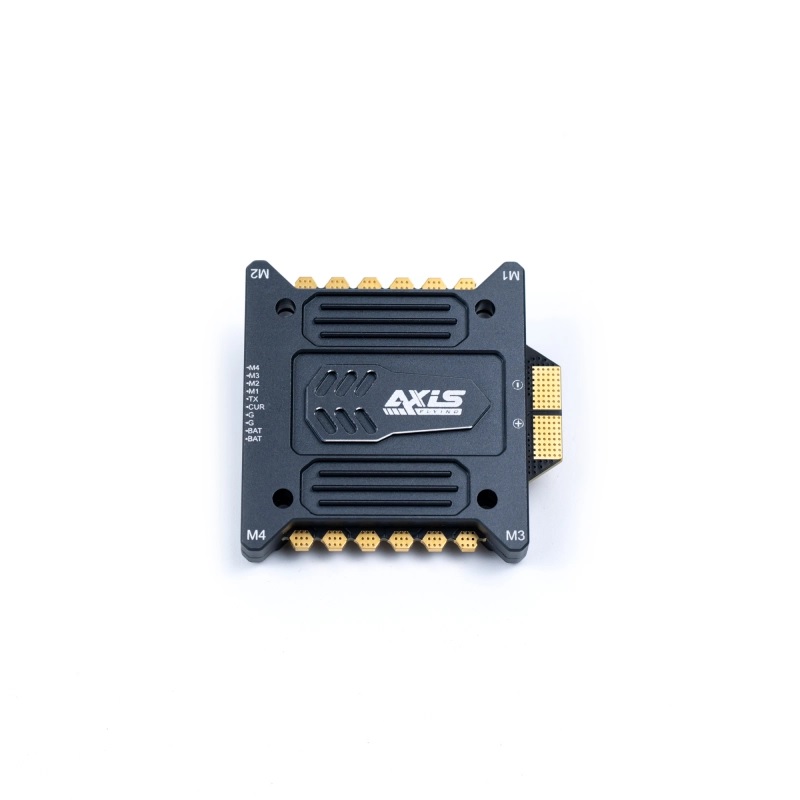

AxisFlying Argus Plug and Play STACK 55A/65A & F7 - Image 2

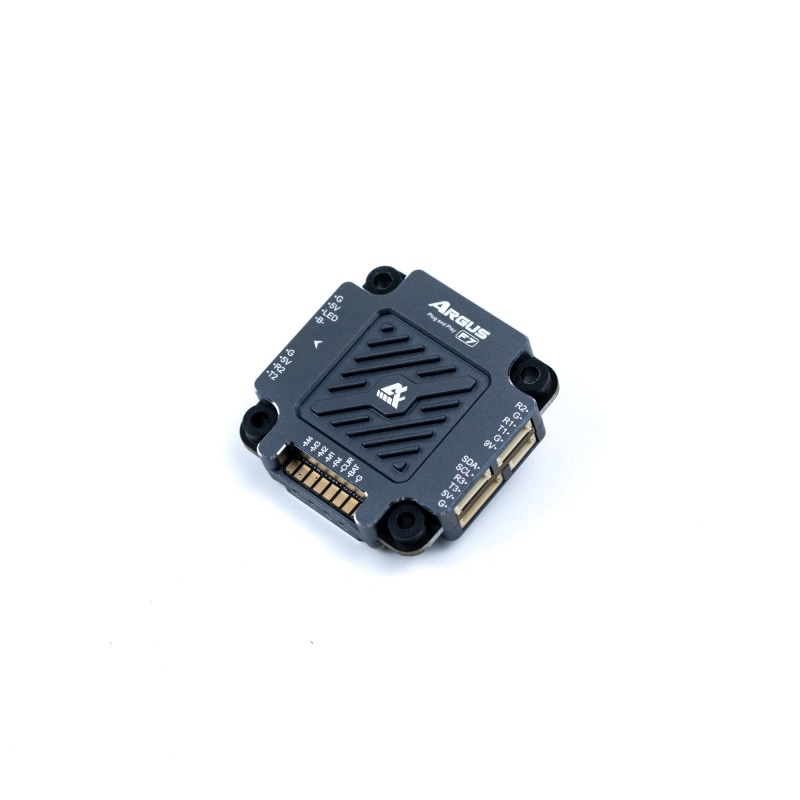

AxisFlying Argus Plug and Play STACK 55A/65A & F7 - Image 3

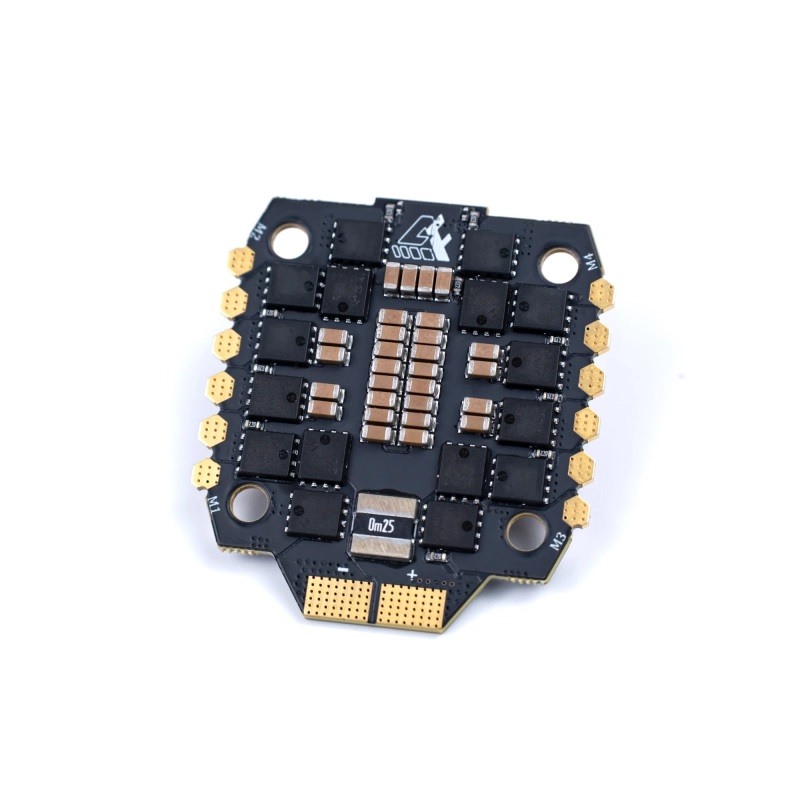

AxisFlying Argus Plug and Play STACK 55A/65A & F7 - Image 4
SKU: DRFC-1924
📋 GST Invoice Available

AxisFlying Argus Plug and Play STACK 55A/65A & F7

₹14,709.00 (Inclusive of all taxes)
Out of Stock

The AxisFlying Argus Plug and Play STACK integrates an F7 flight controller with a 4-in-1 ESC, available in 55A or 65A continuous current ratings. Designed for 3-6S LiPo batteries and pre-flashed with BLHeli_32 firmware, it delivers high-performance control for demanding FPV racing and freestyle drone builds.

Features

  • High-performance F7 flight controller paired with a 4-in-1 ESC in 55A or 65A configurations.
  • Supports 3-6S LiPo battery input for high-power drone applications.
  • Pre-installed BLHeli_32 firmware with DShot1200, Multishot, and OneShot protocol support.
  • Integrated over-current, over-temperature, and short-circuit protection for enhanced durability.
  • Plug-and-play design simplifies wiring and installation for advanced builds.

Out of stock

Description

The AxisFlying Argus STACK is engineered as a unified power and control solution for high-performance FPV drones. The F7 flight controller provides ample processing power and multiple UARTs for complex peripherals like GPS and telemetry, while the 4-in-1 ESC is built on robust BLHeli_32 architecture for smooth, responsive motor control.

With continuous current ratings of 55A or 65A and a high burst capability, this stack is designed to handle aggressive throttle punches and sustained high loads. Integrated capacitors and comprehensive electrical protections ensure stable operation and longevity, even in demanding freestyle and racing environments.

Key Features

  • F7 Flight Controller: High-speed processor with multiple UARTs for expanded peripheral connectivity (GPS, VTX control, telemetry).
  • BLHeli_32 4-in-1 ESC: Offers smooth, low-latency motor control with support for DShot1200, Multishot, and OneShot protocols.
  • Dual Current Ratings: Available in 55A or 65A continuous current versions, both capable of 100A+ burst current.
  • Wide Voltage Input: Compatible with 3S to 6S LiPo battery packs (approx. 9V to 25.2V).
  • Integrated Protection Suite: Features built-in safeguards against over-current, over-temperature, and short-circuit conditions.
  • Noise Suppression: Includes integrated capacitors to minimize electrical noise and ensure clean power delivery to the FC and motors.
  • Plug-and-Play Design: Pre-configured wiring harness simplifies installation and reduces build time.

Applications

  • High-Power Freestyle Drones: Ideal for 5-inch and 6-inch builds requiring robust power delivery for aggressive maneuvers and high-G moves.
  • Competitive FPV Racing: The low-latency ESC response and F7 processing speed are optimized for fast-paced, technical racing circuits.
  • Long-Range & Cinematic Builds: Stable power output and compatibility with GPS modules make it suitable for extended flight time and smooth aerial filming platforms.

Technical Specifications

ComponentF7 Flight Controller & 4-in-1 ESC Stack
ESC FirmwareBLHeli_32 (Pre-installed)
ESC Continuous Current55A or 65A
ESC Burst Current100A
Input Voltage3-6S LiPo (9V - 25.2V)
Supported ProtocolsDShot1200, Multishot, OneShot
ProtectionsOver-current, Over-temperature, Short-circuit
Shipping Weight0.093 kg
Shipping Dimensions12 x 7 x 3 cm

Frequently Asked Questions

What is the difference between the 55A and 65A versions of the Argus stack?

The primary difference is the continuous current rating of the 4-in-1 Electronic Speed Controller (ESC). The 55A version is rated for 55 amps continuous per motor, while the 65A version handles 65 amps. Both share the same 100A+ burst capability and feature set. Choose the 65A variant for builds with extremely high-power motors or for an added margin of thermal headroom.

Is this stack compatible with Betaflight configuration?

Yes, the integrated F7 flight controller is fully compatible with Betaflight firmware. You can connect via USB to configure flight modes, rates, PID tuning, and peripherals through the Betaflight Configurator. The ESC runs BLHeli_32 firmware, which is also configurable via the Betaflight passthrough feature or dedicated BLHeliSuite32 software.

What battery cell count does the Argus stack support?

The AxisFlying Argus STACK supports a wide input voltage range from 3S to 6S LiPo batteries. This corresponds to approximately 9 volts (3S) up to 25.2 volts (6S). Ensure your power wiring and connectors are rated for the high currents this stack can deliver, especially when using 5S or 6S packs.

Does the stack include built-in protection for the ESCs?

Yes, the 4-in-1 ESC incorporates multiple protection mechanisms. These include over-current protection to safeguard against sudden amp spikes, over-temperature protection to prevent thermal damage during sustained high loads, and short-circuit protection on the motor outputs. These features enhance the durability and reliability of the stack in demanding flight conditions.

Package Includes

  • 1 x AxisFlying Argus Plug and Play STACK (F7 FC & 4-in-1 ESC)

Additional Information

Weight 0.093 kg
Dimensions 12 × 7 × 3 cm
