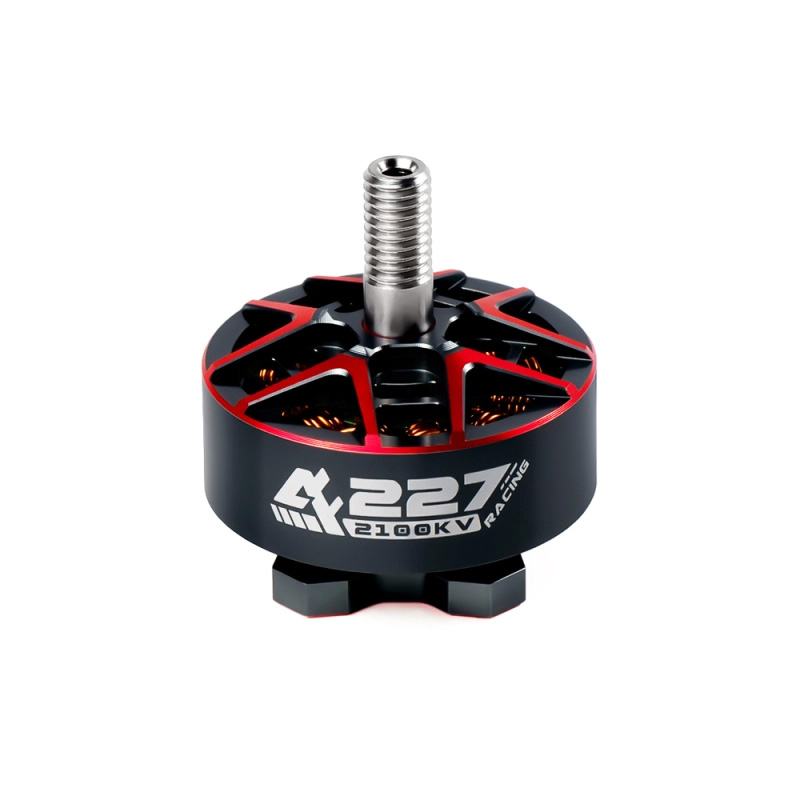

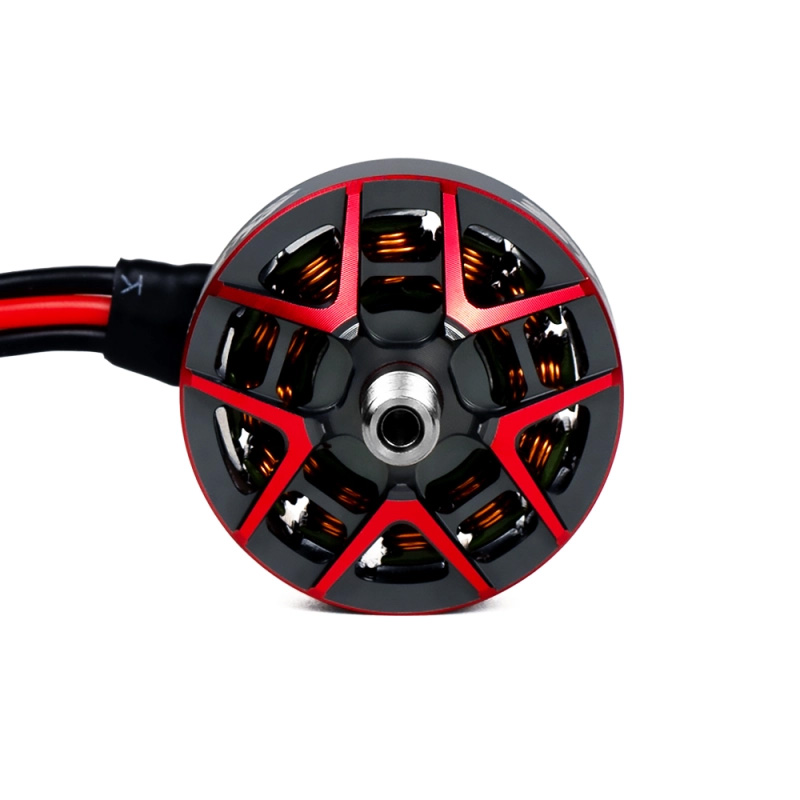

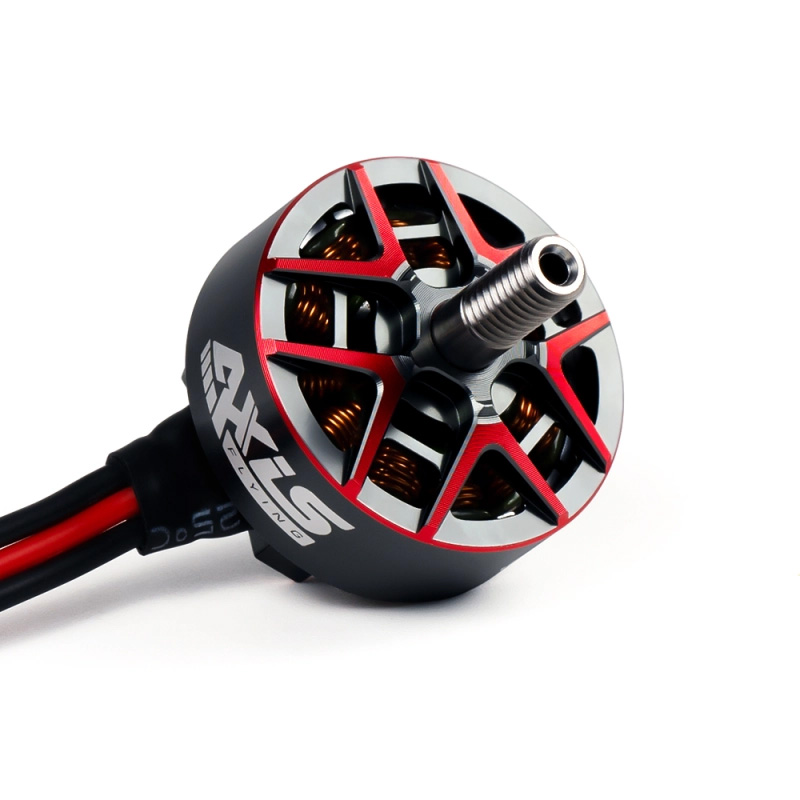

AxisFlying AF2207 Brushless Motor 2100KV - 5 Inch FPV Racing & Freestyle
The AxisFlying AF2207 2100KV brushless motor is engineered for high-performance 5-inch FPV racing and freestyle drones, delivering a peak power of 1189W and a maximum thrust of 1753g for aggressive maneuvers on 6S LiPo power systems.
Features
- 2100KV rating optimized for high-speed 5-inch FPV racing and freestyle builds.
- Delivers a maximum continuous power of 1189.44W and thrust of 1753g for aggressive flight performance.
- Lightweight 34.4g design with a compact φ28 x 32.1mm form factor for easy integration.
- Low 53mΩ internal resistance enhances electrical efficiency and extends flight time.
- 12N14P stator configuration provides smooth torque and reliable power delivery.
Out of stock
The AxisFlying AF2207 brushless motor is a high-performance component designed for the demanding requirements of 5-inch FPV racing and freestyle drones. Its 2100KV rating is specifically tuned to deliver exceptional top-end speed while maintaining sufficient torque for rapid acceleration and recovery in tight corners or during complex freestyle tricks. The motor’s construction prioritizes a high power-to-weight ratio, enabling pilots to achieve aggressive flight profiles without excessive battery drain.
Engineered with a 12N14P stator configuration, the AF2207 ensures smooth, cogging-free operation and consistent power delivery across the throttle range. The low internal resistance of 53mΩ minimizes electrical losses as heat, translating to more efficient power transfer from the battery to the propeller and contributing to longer flight durations. This motor is rated for 6S LiPo operation, making it compatible with high-voltage setups common in competitive and advanced freestyle builds.
Additional Information
| Weight | 0.34 kg |
|---|---|
| Dimensions | 13 × 9 × 7 cm |
