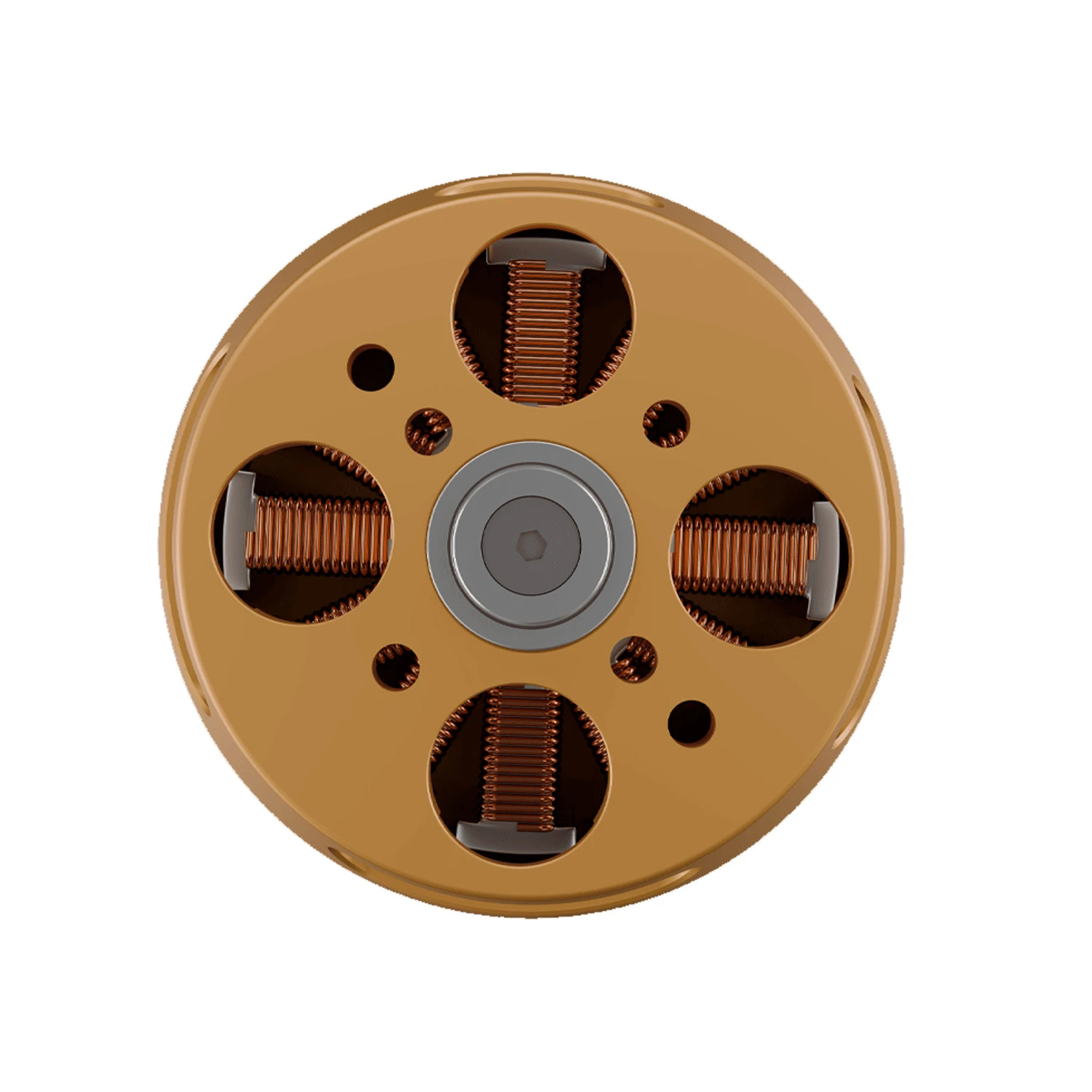

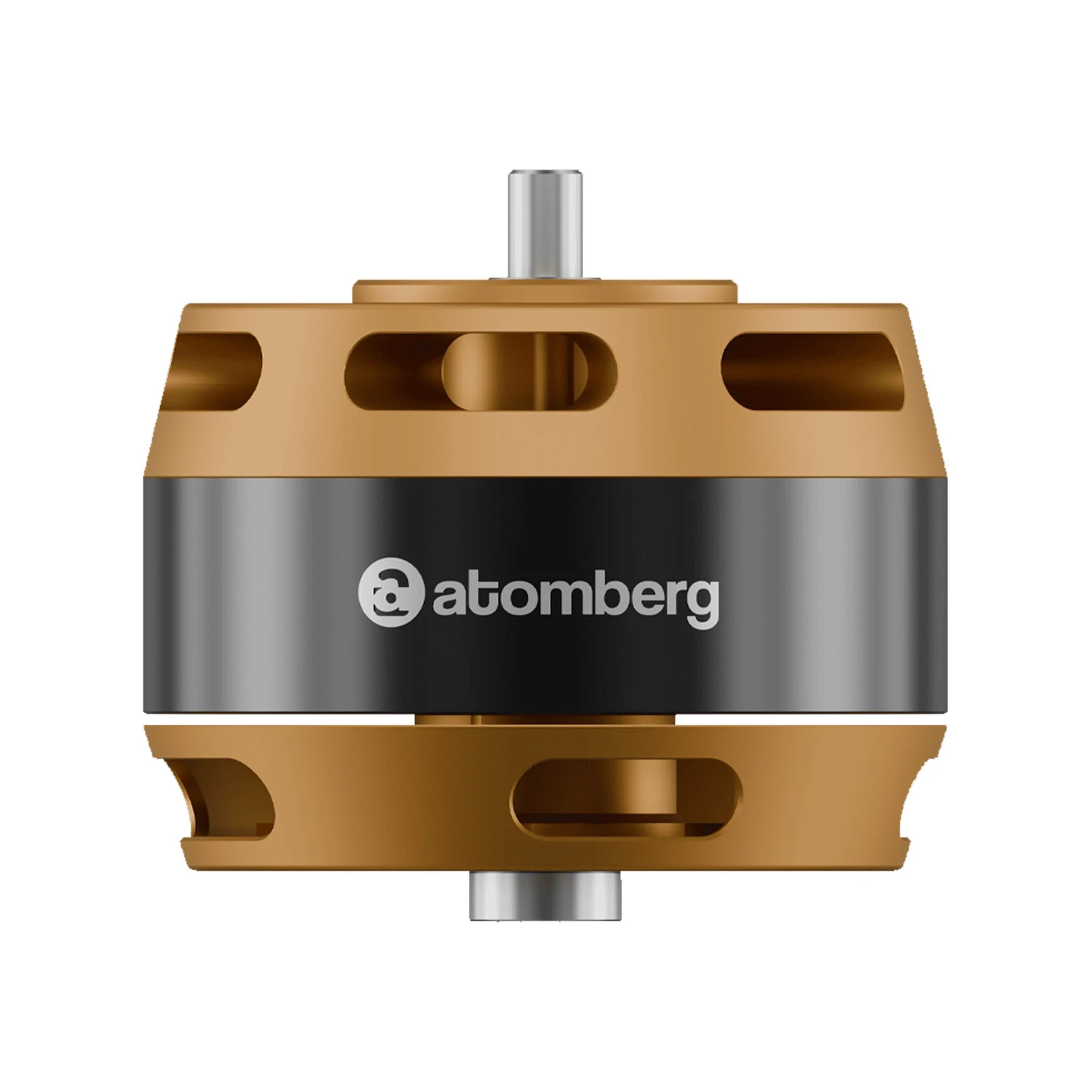

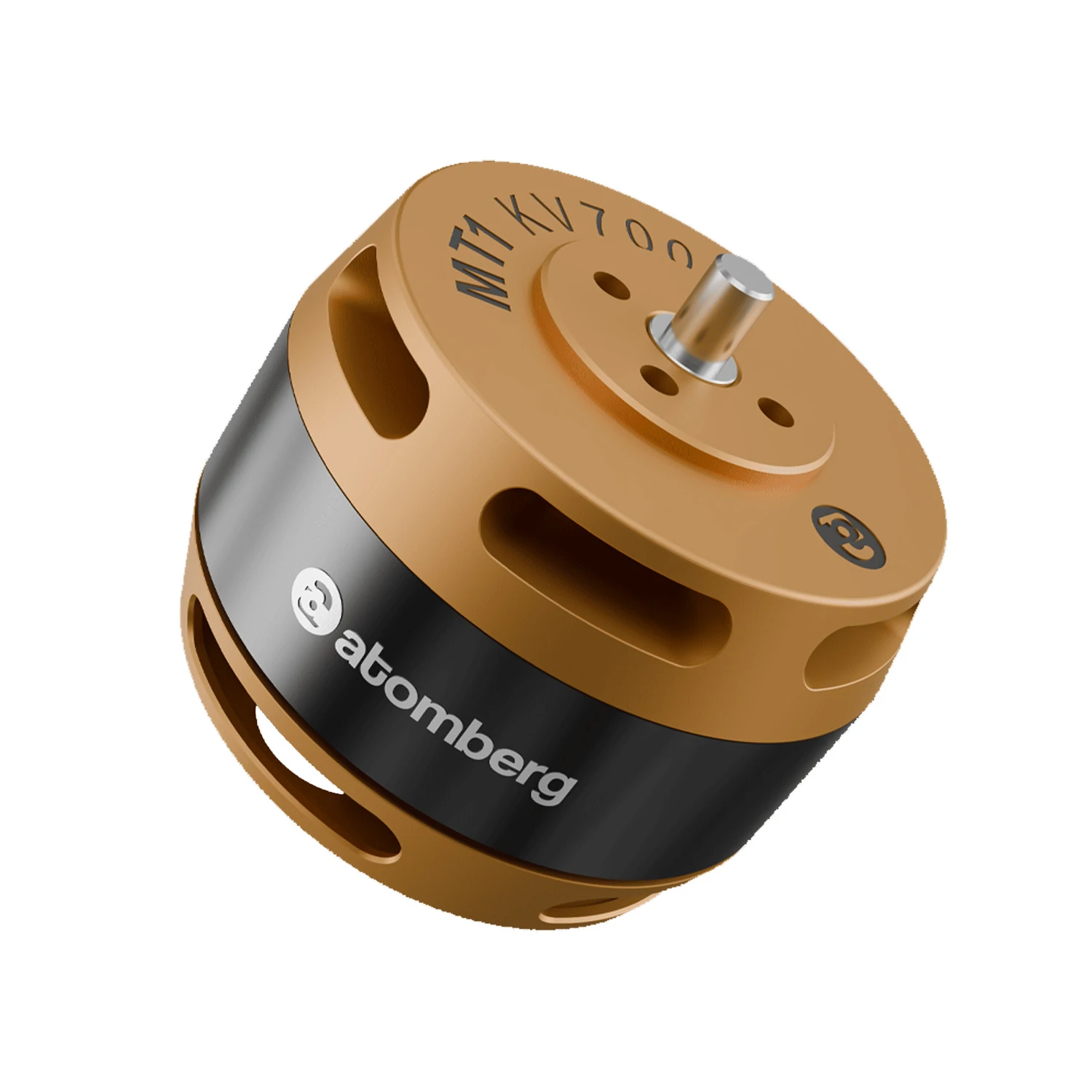

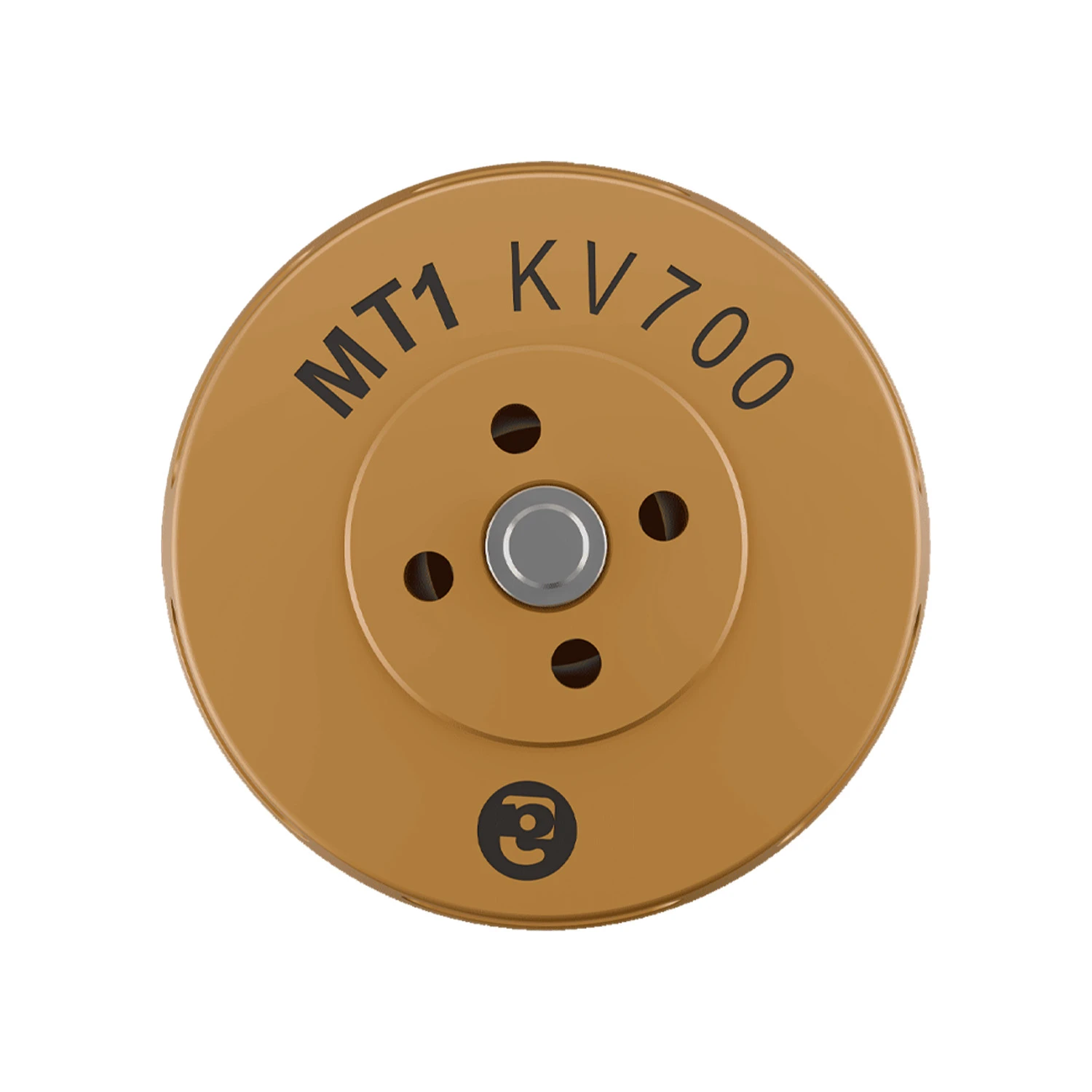

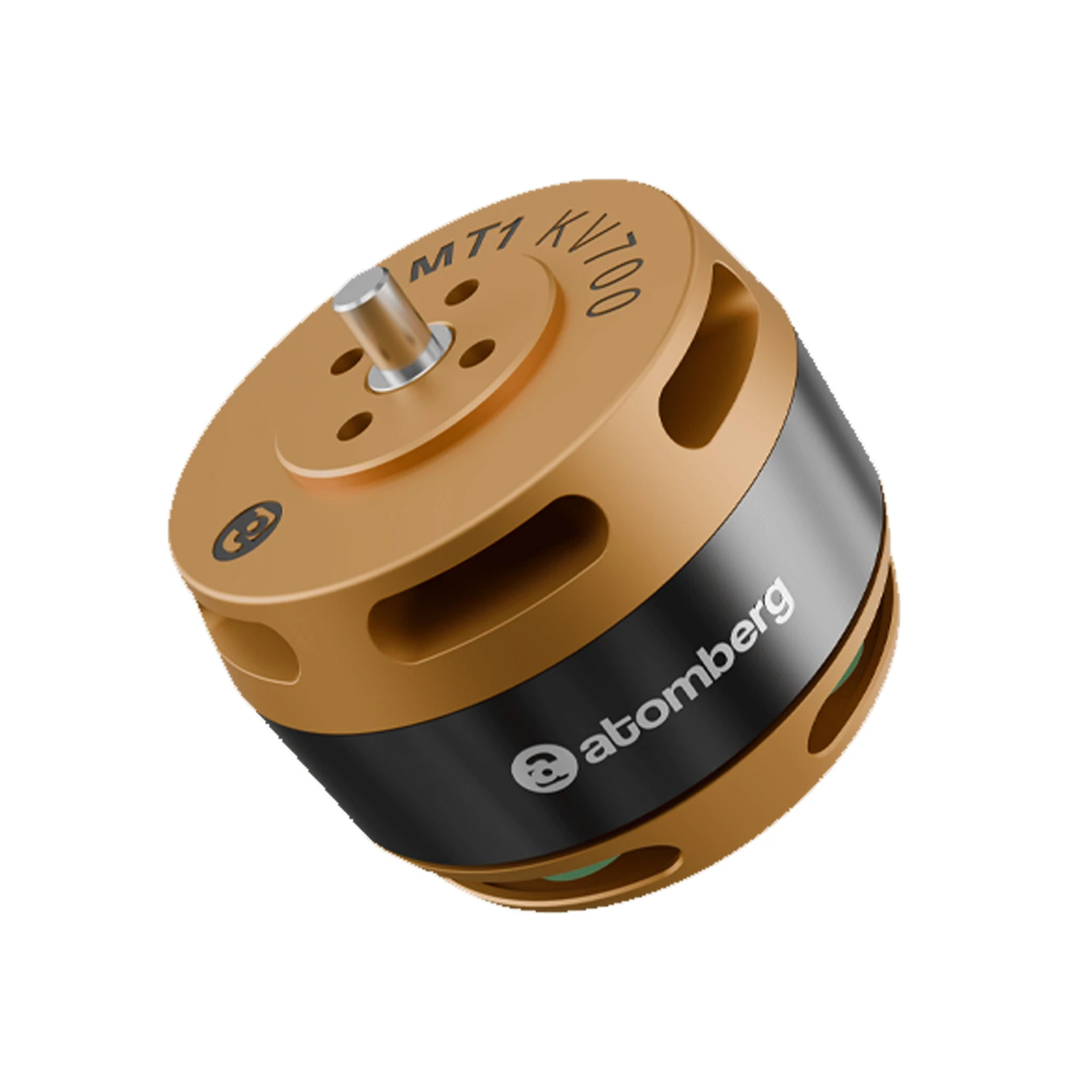

Atomberg MT1 KV700 Drone Motor - 2.30 kg Thrust
The Atomberg MT1 KV700 is a high-thrust, industrial-grade brushless motor engineered for demanding UAV platforms, supporting 3-7S LiPo batteries and delivering up to 2.30 kg of thrust for long-endurance and VTOL applications.
Features
- Delivers up to 2300 grams of maximum thrust for heavy-lift and high-performance drone applications.
- Lightweight 97-gram design (excluding cables) provides an exceptional power-to-weight ratio.
- Features a 12N14P configuration and 700 KV rating optimized for 3-7S LiPo battery systems.
- Rated for a maximum continuous current of 25A and 500W peak power for 180 seconds.
- Includes a 4mm shaft diameter and customizable cable lengths from 200mm to 600mm for flexible integration.
Out of stock
The Atomberg MT1 KV700 brushless motor is engineered for professional UAVs requiring robust performance and reliability. Its 12N14P stator configuration ensures smooth, efficient operation across a wide voltage range, making it suitable for platforms from heavy-lift delivery drones to high-altitude mapping rigs. The motor’s low internal resistance of 50 mΩ minimizes heat generation under load, contributing to its high continuous current rating.
With a maximum power handling of 500W for 180 seconds, the MT1 KV700 is built for sustained high-load scenarios such as VTOL transitions and long-endurance surveillance missions. The compact dimensions of Φ41.8 x 30.75 mm and sub-100-gram weight allow for integration into space-constrained airframes without sacrificing thrust capability. Customizable cable lengths provide installers with the flexibility needed for clean, professional builds in commercial and industrial drone manufacturing.
Additional Information
| Weight | 0.12 kg |
|---|---|
| Dimensions | 5 × 6 × 4 cm |
