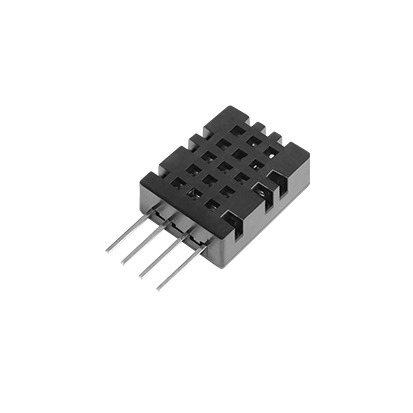

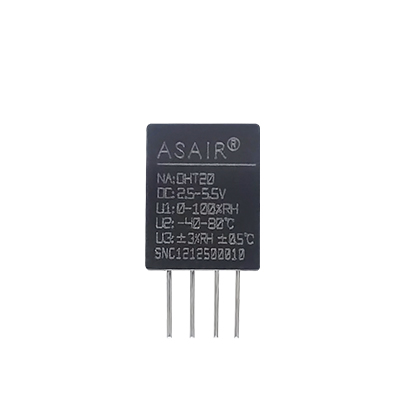

Asair DHT20 SIP Temperature & Humidity Sensor -40~+80°C - I2C Interface
The Asair DHT20 is a SIP-packaged digital temperature and humidity sensor offering a wide measurement range (-40°C to +80°C, 0-100% RH) with I2C digital output. It is designed for direct integration with 3.3V or 5V microcontroller systems like Arduino, Raspberry Pi, ESP32, and STM32.
Features
- High-performance digital sensor with dedicated ASIC for stable I2C output.
- Wide operating voltage range from 2.2V to 5.5V DC for flexible system integration.
- Factory calibrated with ±0.5°C temperature and ±3% RH humidity accuracy.
- Excellent long-term stability and quick response in harsh environments.
- SIP (System-in-Package) construction with ABS housing for robust deployment.
Out of stock
The DHT20 represents a significant upgrade over the popular DHT11, integrating a dedicated ASIC sensor chip, a semiconductor silicon-based capacitive humidity sensing element, and a calibrated on-chip temperature sensor. This design delivers enhanced reliability, improved accuracy, and superior performance stability, especially in high-temperature and high-humidity conditions.
Communicating via a standard I2C interface, the sensor provides fully digital output, simplifying wiring and reducing noise susceptibility compared to analog sensors. Its wide supply voltage compatibility makes it suitable for a broad spectrum of embedded and IoT applications, from portable devices to industrial monitoring systems.
Additional Information
| Weight | 0.03 kg |
|---|---|
| Dimensions | 6 × 7 × 1 cm |
