SKU: SBCD-1300
📋 GST Invoice Available

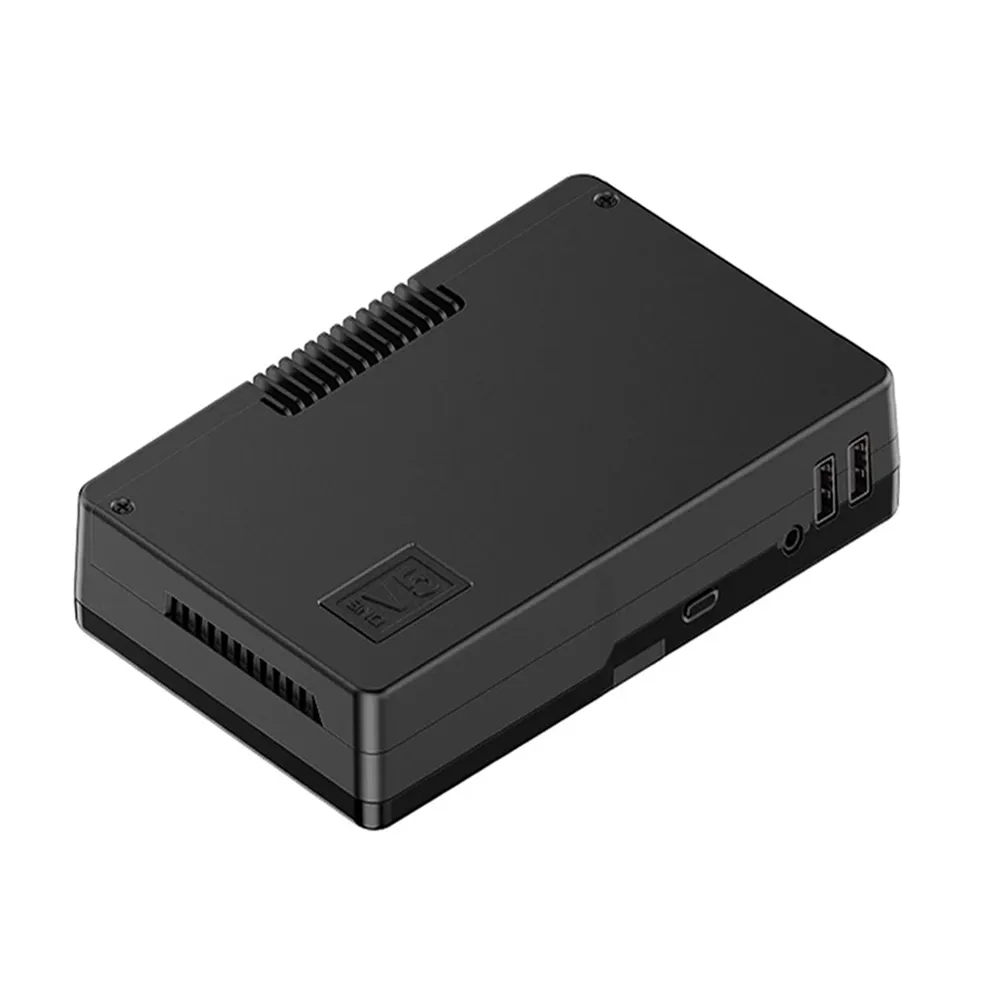

Argon ONE V5 Case with M.2 NVMe for Raspberry Pi 5

₹6,489.00 (Inclusive of all taxes)
Out of Stock

The Argon ONE V5 Case is a premium cast aluminum enclosure designed for the Raspberry Pi 5, integrating passive cooling with an active 30mm PWM fan for optimal thermal management. It expands the Pi 5’s capabilities with an M.2 NVMe PCIe slot for high-speed storage, dual HDMI, and front-facing USB ports.

Features

  • Integrated M.2 NVMe PCIe slot enables high-speed storage expansion for Raspberry Pi 5.
  • Features a robust cast aluminum enclosure with passive cooling and an active 30mm PWM fan.
  • Provides dual HDMI outputs, convenient front-facing USB ports, and a 3.5mm audio jack.
  • Optimizes thermal performance and protects your Raspberry Pi 5 in a sleek, compact design.

Out of stock

Description

The Argon ONE V5 Case with M.2 NVMe PCIe is a sophisticated aluminum enclosure engineered to fully leverage the performance potential of your Raspberry Pi 5. This premium case acts as both a protective shell and an efficient heatsink, facilitating excellent passive thermal management. For more intensive workloads, a built-in 30mm PWM fan provides active cooling, ensuring your Raspberry Pi 5 maintains optimal operating temperatures under load.

Beyond its robust thermal design, the Argon ONE V5 significantly enhances the Raspberry Pi 5’s I/O and storage capabilities. It integrates a dedicated M.2 NVMe PCIe slot, allowing for high-speed storage expansion crucial for data-intensive applications. Connectivity is expanded with dual HDMI ports for multi-monitor setups, easily accessible front-facing USB ports, and 3.5mm audio jacks for comprehensive media support, effectively transforming your Raspberry Pi into a powerful, desktop-grade system.

This case is an ideal solution for a variety of applications, ranging from sophisticated media centers and robust IoT gateways to complex multitasking environments. It harmoniously combines superior performance, elegant aesthetics, and flexible expandability into a single, durable package for the Raspberry Pi 5.

Key Features

  • Casted aluminum body provides robust protection and efficient passive cooling for the Raspberry Pi 5.
  • Includes a built-in 30mm PWM fan for active thermal management during demanding operations.
  • Supports dual display setups with two dedicated HDMI ports.
  • Offers convenient access with two front-facing USB 2.0 ports.
  • Features an integrated DAC with 3.5mm audio jacks, supporting both microphone and headphone input.
  • Equipped with an M.2 NVMe PCIe slot for high-speed, scalable storage expansion.
  • Provides an internal USB port for integrating ZigBee or other IoT communication modules.
  • Maintains compatibility with existing Raspberry Pi HATs.

Applications

  • Building high-performance Raspberry Pi 5 media centers.
  • Developing robust IoT projects requiring expanded storage and reliable cooling.
  • Creating desktop-class Raspberry Pi 5 workstations for multitasking.
  • Edge computing solutions leveraging NVMe storage.
  • Home automation servers with internal ZigBee/IoT module integration.

Technical Specifications

CompatibilityRaspberry Pi 5, Raspberry Pi HATs
MaterialAluminium Metal Alloy
ColorBlack
Cooling SystemPassive heatsink + 30mm PWM Fan
Storage ExpansionM.2 NVMe PCIe Slot (Single Drive)
Video OutputDual HDMI
USB Ports2 x Front-facing USB 2.0, Internal USB for IoT modules
Audio Interface3.5mm Audio Jack (Mic & Headphone) with integrated DAC
Dimensions162mm (L) × 95.5mm (W)
Weight369 g

Frequently Asked Questions

What Raspberry Pi models is the Argon ONE V5 compatible with?

The Argon ONE V5 case is specifically designed for the Raspberry Pi 5. Its form factor, port alignment, and thermal solutions are optimized to integrate perfectly with the Pi 5's architecture, including its PCIe interface for M.2 NVMe expansion, ensuring full functionality and maximum performance.

What type of storage expansion does the Argon ONE V5 offer?

The Argon ONE V5 features an integrated M.2 NVMe PCIe slot, allowing users to connect a single high-speed NVMe SSD. This provides a significant upgrade in storage performance and capacity compared to microSD cards, making it ideal for operating systems, large data sets, and applications requiring fast I/O.

How does the Argon ONE V5 manage thermal performance?

It employs a dual thermal management system. The cast aluminum body acts as a large passive heatsink, dissipating heat efficiently. Additionally, a built-in 30mm PWM fan provides active cooling, which intelligently adjusts its speed based on CPU temperature, ensuring optimal performance under sustained workloads without overheating.

Can the Argon ONE V5 support dual monitors?

Yes, the Argon ONE V5 case is designed with dual HDMI ports, allowing the Raspberry Pi 5 to support two external displays simultaneously. This feature is excellent for productivity setups, media centers, or applications requiring multiple visual outputs, enhancing the Pi 5's versatility as a desktop replacement.

Package Includes

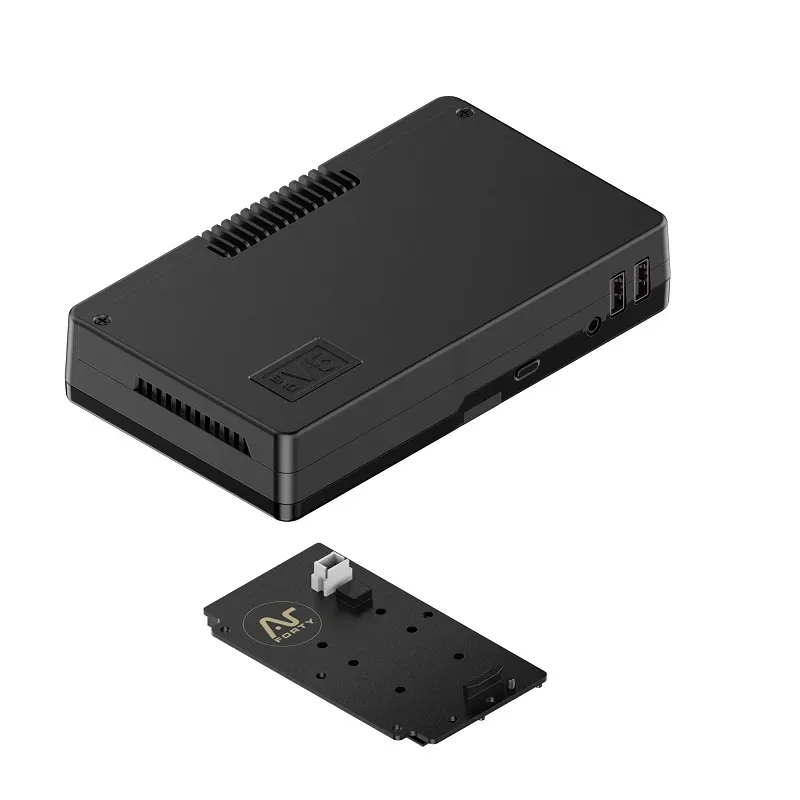

  • 1 x Argon ONE V5 Case with M.2 NVME PCIE SINGLE Drive For Raspberry Pi 5
  • 1 x Argon ONE V5 M.2 NVME PCIE Case HDMI-Audio board
  • 1 x Instruction Manual
  • 1 x THRML M.2 NVMe Heat sink
  • 1 x Silicon Thermal Pads

Additional Information

Weight 0.369 kg
Dimensions 16.2 × 9.55 cm
