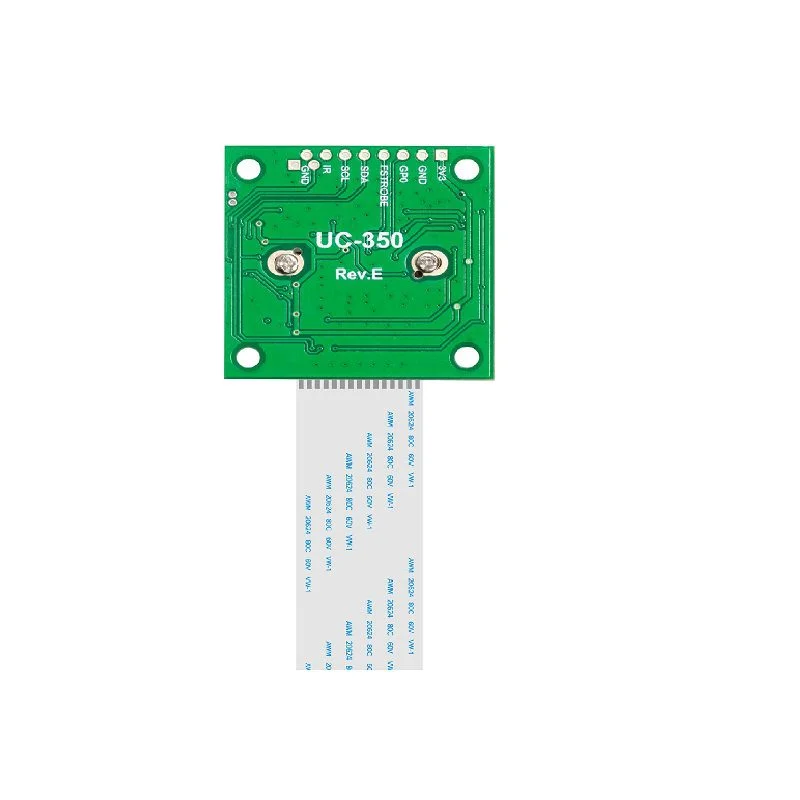

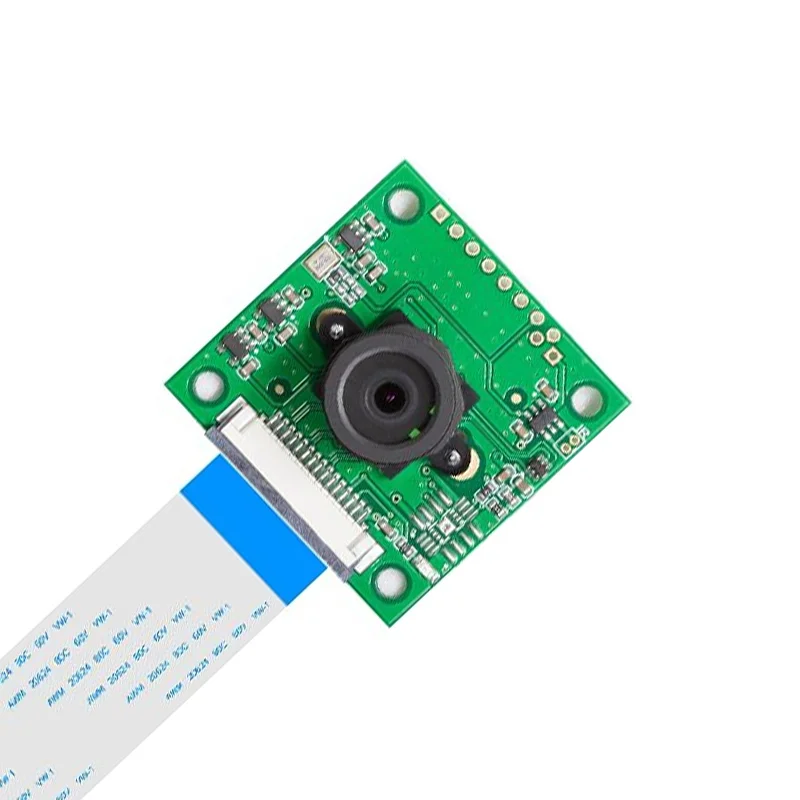

Arducam NOIR 8MP Sony IMX219 Camera Module w/ M12 Lens LS1820

Connect the module's ribbon cable to the CSI-2 camera port on your Raspberry Pi 4, ensuring the connector's blue tab faces the Ethernet port. Enable the camera interface via Raspberry Pi Configuration or raspi-config. Install necessary libraries like libcamera or picamera2 using terminal commands to start capturing images and video streams directly from your Python or C++ applications.

Yes, the module features a standard M12 lens mount, allowing you to swap the included LS1820 lens with other M12 lenses to change the focal length or field of view. Ensure the lens is compatible with the IMX219 sensor's 1/4-inch format and provides proper back focal distance. Tighten the lens using the provided locking mechanism to maintain focus and prevent light leaks in your imaging setup.

On Raspberry Pi OS (Bullseye or later), use the libcamera stack. Open a terminal and run commands like 'libcamera-still -o image.webp' for a still capture or 'libcamera-vid -t 10000 -o video.h264' for video. For legacy OS versions, you may use the picamera Python library. The monochrome sensor outputs grayscale images, which can be processed using OpenCV for computer vision tasks like edge detection or object tracking.

A monochrome sensor like the IMX219 NOIR lacks a color filter array, allowing more light to reach each photosite. This results in higher sensitivity, better signal-to-noise ratio, and improved resolution in low-light conditions. It is ideal for applications where color information is unnecessary but detail, contrast, and light efficiency are critical, such as machine vision, optical character recognition, night surveillance, and scientific imaging.
