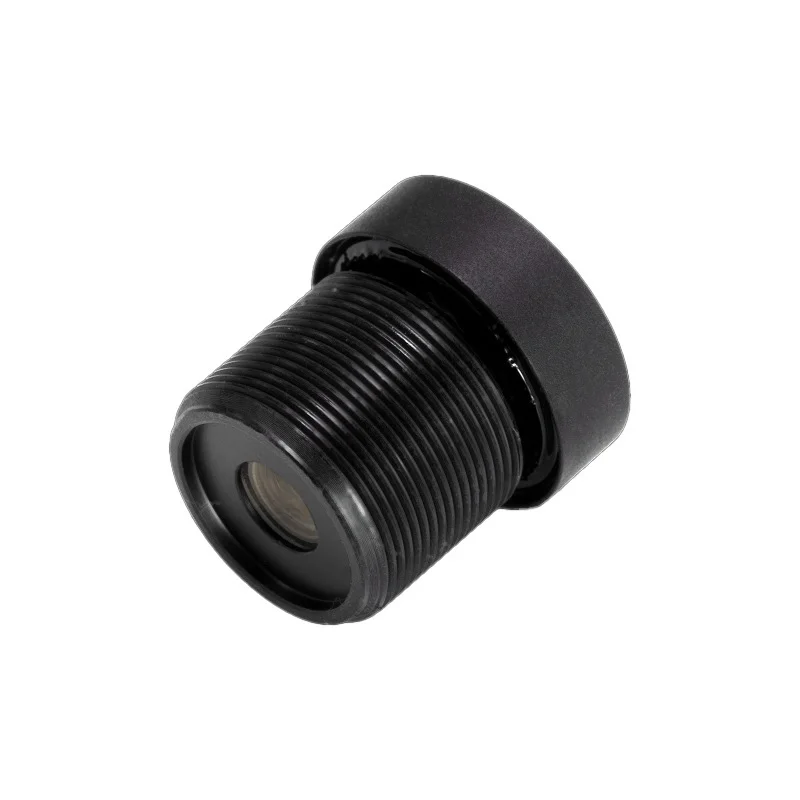

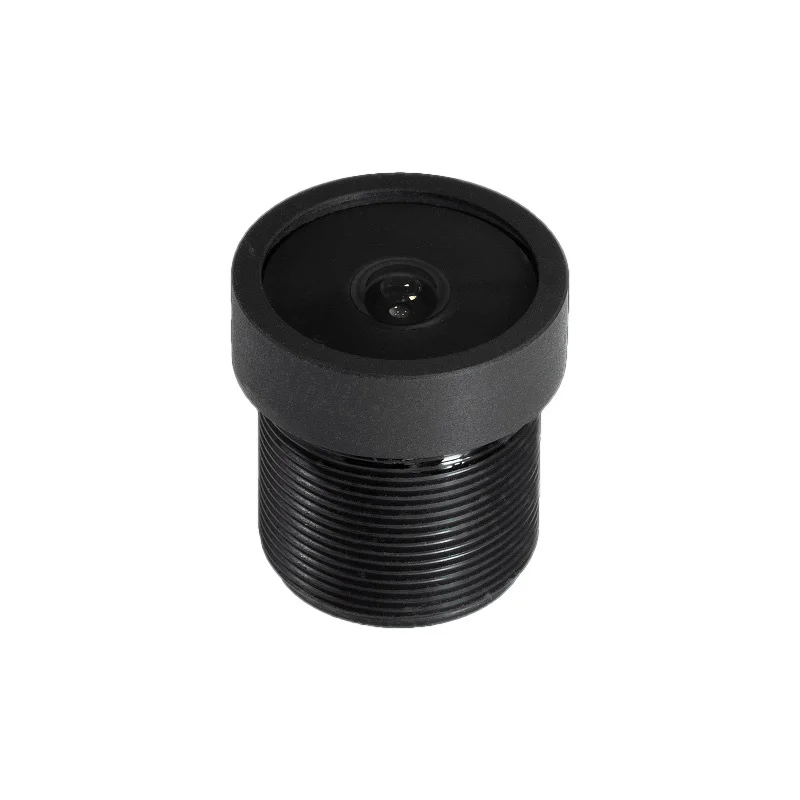

Arducam LN180 M12 Mount Camera Lens M40180H13L
The Arducam LN180 M12 Mount Camera Lens is a 4.0mm wide-angle lens with a 180° field of view, designed for M12-mount camera modules. It delivers high clarity and sharpness for embedded vision applications on platforms like Raspberry Pi, ESP32, and other SBCs.
Features
- Ultra-Wide 180° Field of View: Captures expansive scenes with minimal distortion, ideal for surveillance and panoramic imaging.
- 4.0mm Focal Length (1.8mm Effective): Provides a wide-angle perspective with a 35mm equivalent of 19.5mm for detailed, broad coverage.
- M12 Mount Compatibility: Standard screw mount for easy integration with Arducam and other M12 camera modules.
- High Clarity & Sharpness: Optimized optics ensure detailed image capture across the frame for computer vision tasks.
- Compact & Durable Design: Measures 14mm x 14.7mm with a 13mm holder height and weighs only 6g for space-constrained IoT devices.
Out of stock
The Arducam LN180 M12 Mount Camera Lens (M40180H13L) is an engineered optical component designed for embedded machine vision and surveillance systems. Its 4.0mm focal length and ultra-wide 180-degree diagonal field of view allow for capturing extensive areas without the need for multiple cameras, reducing system complexity and cost.
Constructed with a compact M12 threaded mount, this lens is mechanically robust and easily interchangeable on compatible camera sensor boards. The optical design is tuned for high sharpness and clarity, with an integrated 650nm IR filter that optimizes sensitivity for visible light applications while providing some infrared cutoff. This makes it suitable for deployment in varying lighting conditions common in security, smart home automation, and industrial monitoring setups.
Additional Information
| Weight | 0.02 kg |
|---|---|
| Dimensions | 6 × 4 × 2 cm |
