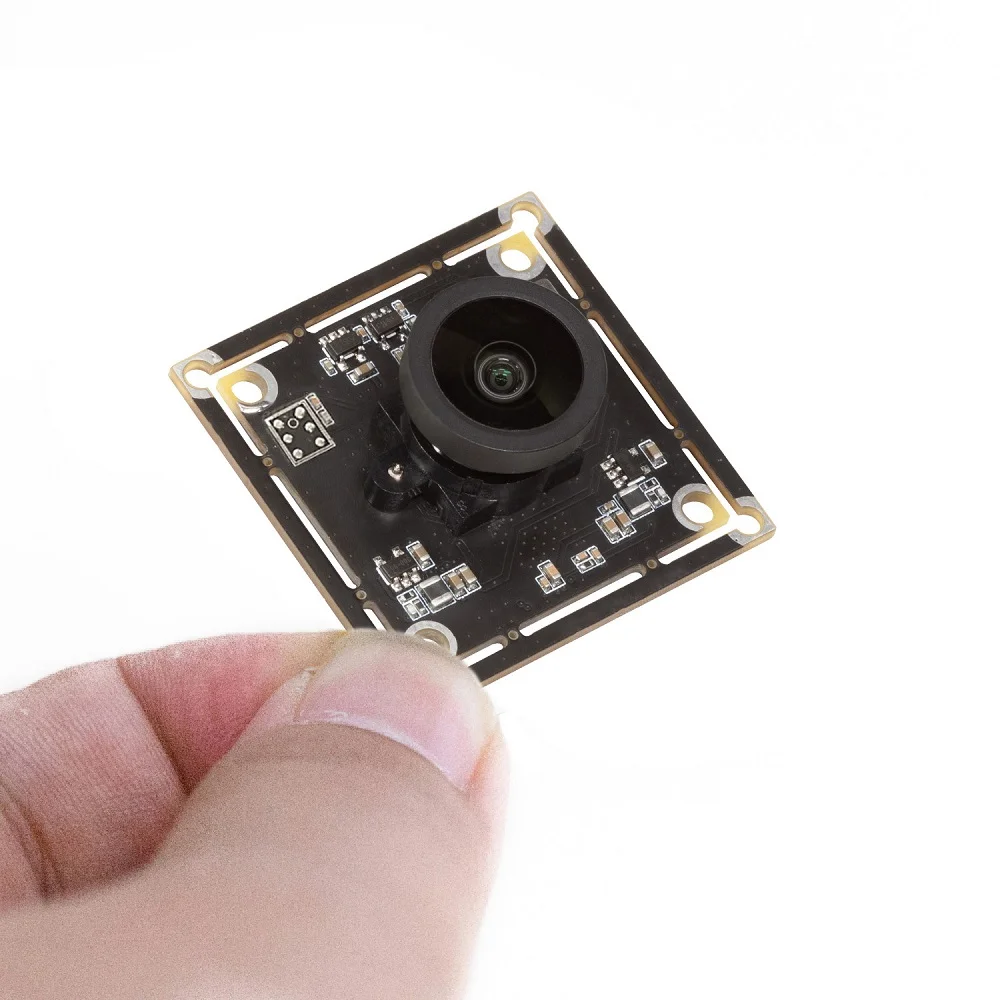

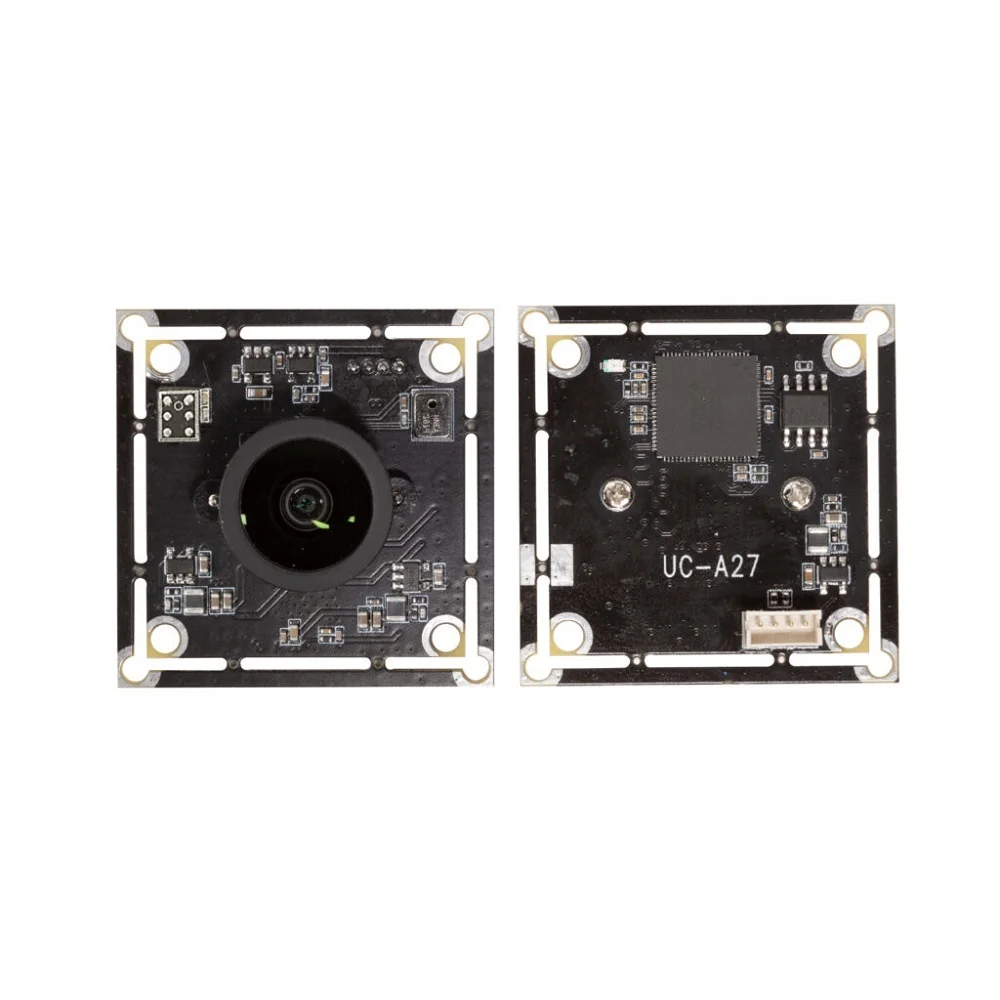

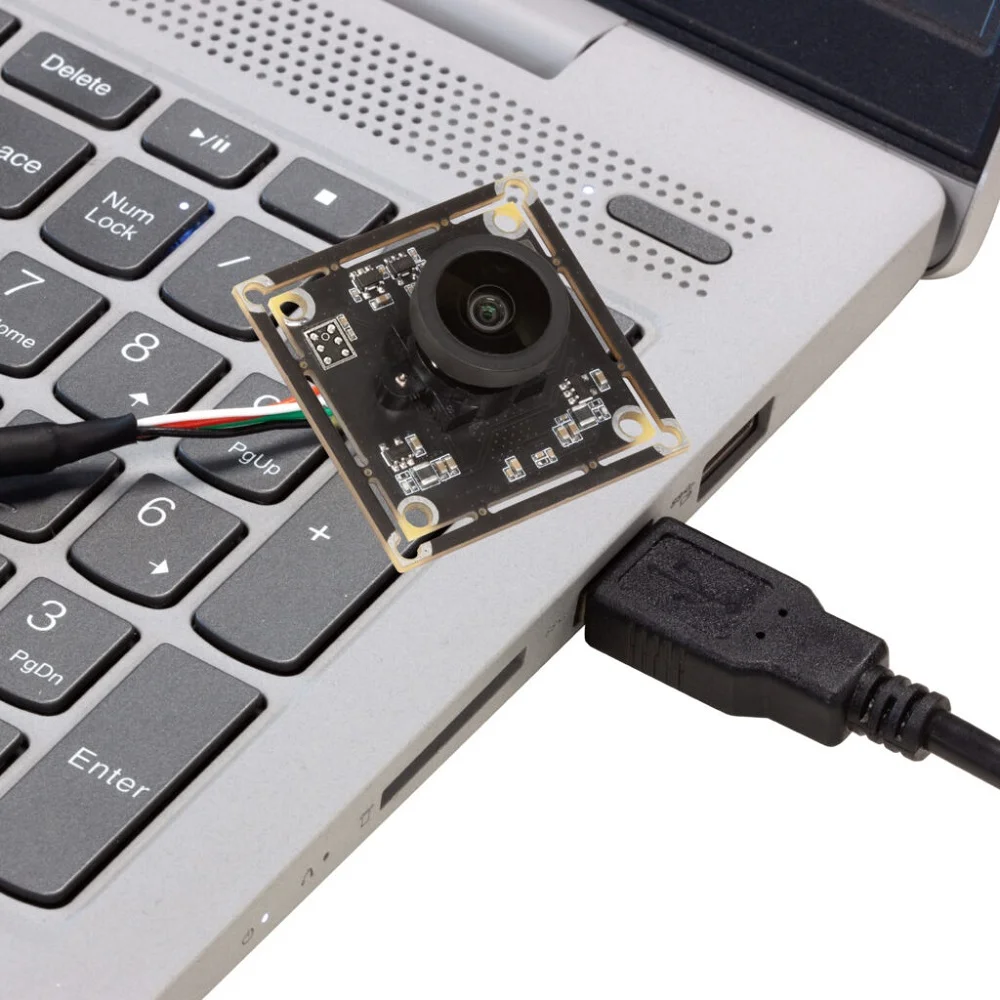

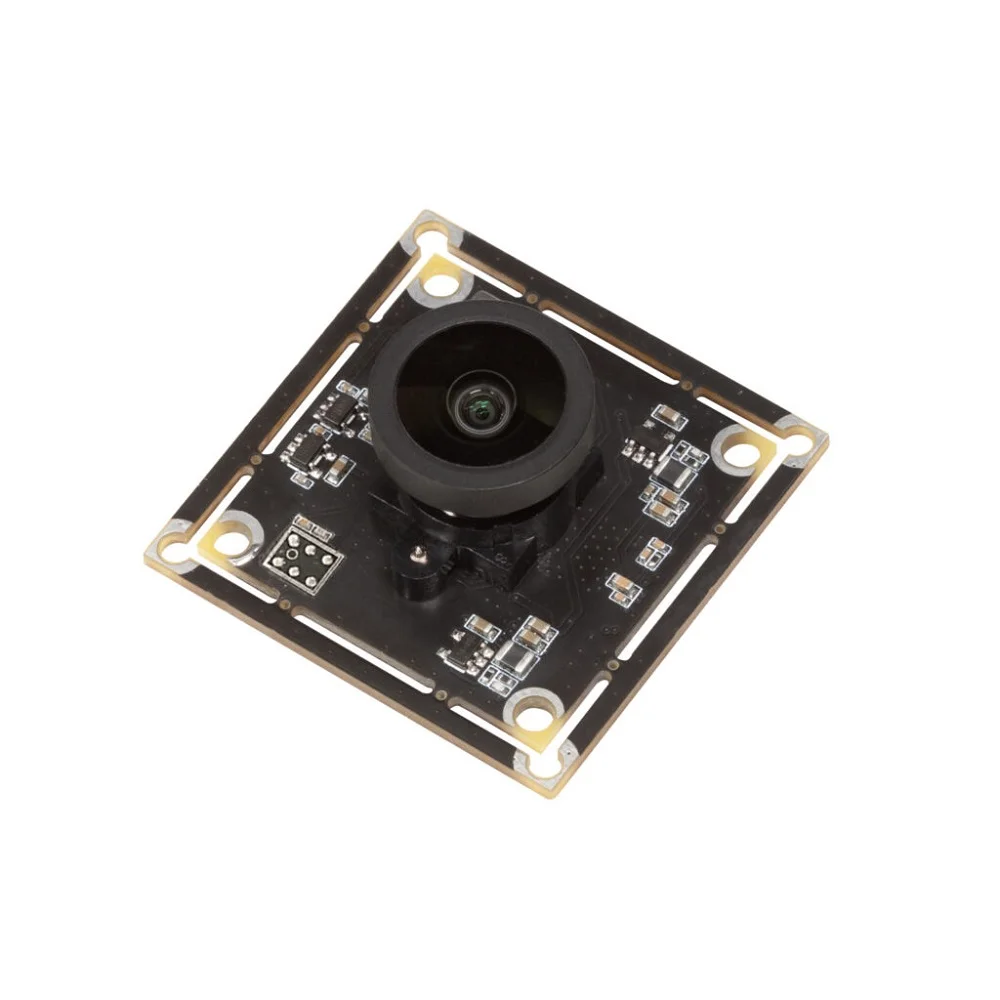

Arducam 12MP USB Camera Module B0433 w/ M12 Lens for Windows/Linux/MacOS/Android
The Arducam B0433 is a 12MP USB camera module featuring a 1/2.3″ CMOS sensor and a wide-angle M12 lens, delivering 4K@30fps video. It is UVC-compliant for plug-and-play operation on Windows, Linux, MacOS, and Android systems without additional drivers.
Features
- 12MP 4K Imaging: Features a 1/2.3″ CMOS sensor delivering high-resolution 3840(H)×3032(V) video at 30fps in MJPG format for detailed computer vision and surveillance.
- Wide-Angle M12 Lens: Equipped with a 110°(H) field-of-view manual focus lens for capturing expansive scenes, with an M12 mount for interchangeable lens compatibility.
- UVC Plug-and-Play: USB Video Class compliant for immediate recognition on Windows, Linux, MacOS, and Android hosts, requiring no custom driver installation.

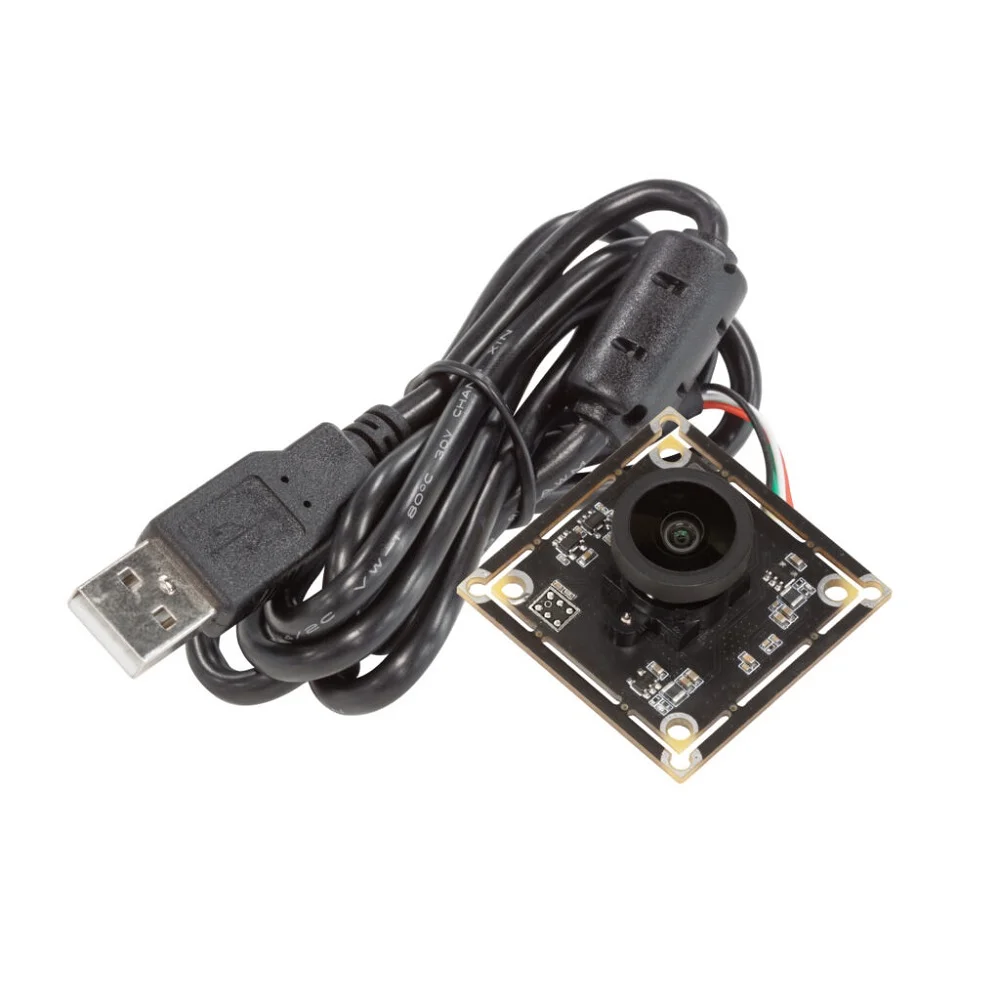

- Robust Connectivity: Uses a standard USB 2.0 interface with a supplied 1-meter cable, drawing a maximum of 300mA for easy integration into embedded and desktop systems.
- Compact Industrial Design: Housed in a 38x38x16mm board with an operating temperature range of -20°C to 70°C, suitable for 3D scanning, VR, and industrial machine vision.
Out of stock

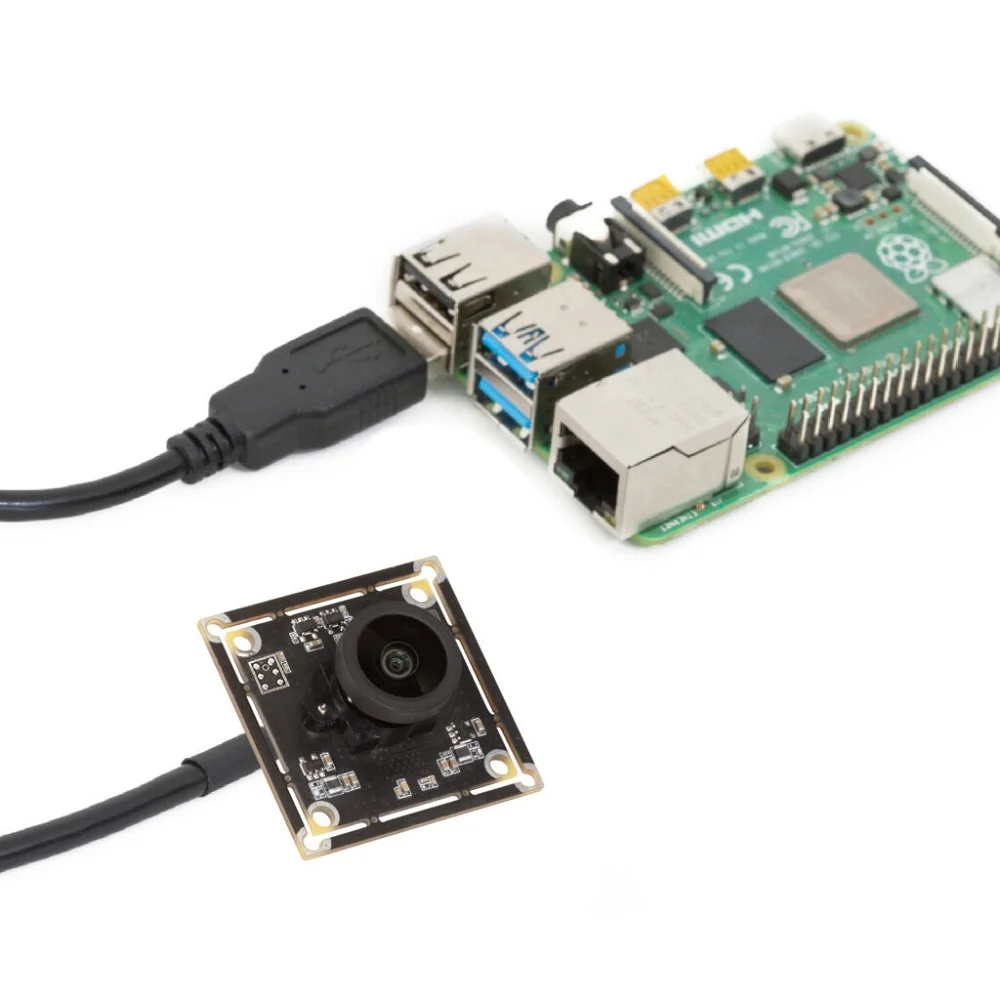

The Arducam B0433 USB Camera Module integrates a high-performance 12-megapixel CMOS image sensor with a wide-angle M12 lens, engineered for developers and system integrators requiring reliable, high-resolution vision input. Its UVC compliance ensures seamless compatibility across major operating systems, simplifying deployment in diverse environments from desktop applications to embedded Linux platforms like Raspberry Pi.
Constructed for versatility, the module supports multiple output formats including MJPG for high-frame-rate 4K streaming and YUYV for raw data processing. The manual-focus M12 lens mount allows users to swap optics to match specific field-of-view or focal length requirements, provided the lens optical size matches the 1/2.3″ sensor format. This makes the B0433 a foundational component for custom vision systems in automation, telepresence, and analytical instrumentation.
Additional Information
| Weight | 0.063 kg |
|---|---|
| Dimensions | 8 × 9 × 4 cm |
