SKU: 3DDF-2072
📋 GST Invoice Available

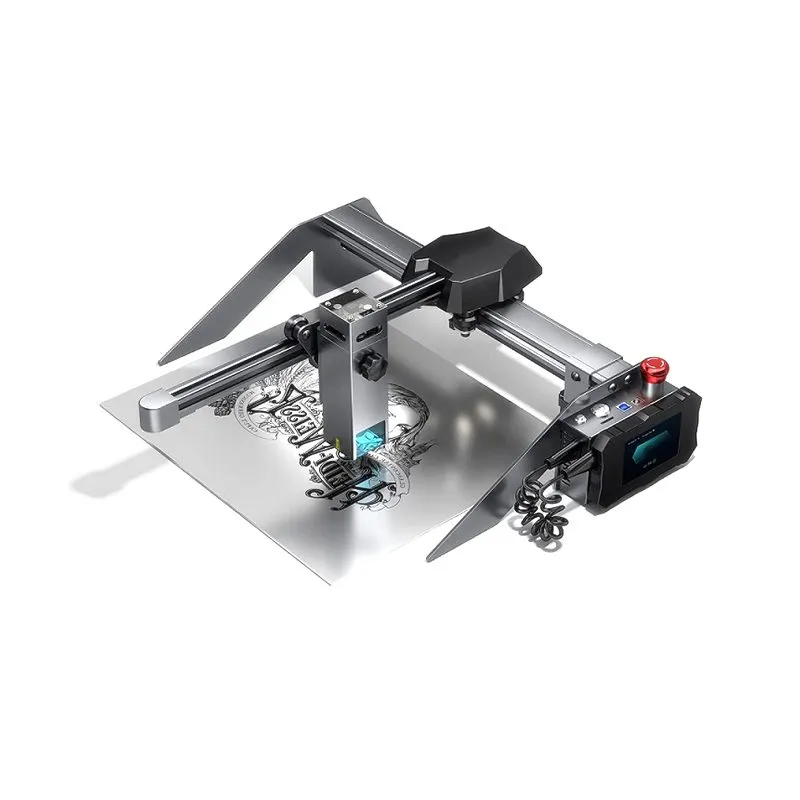

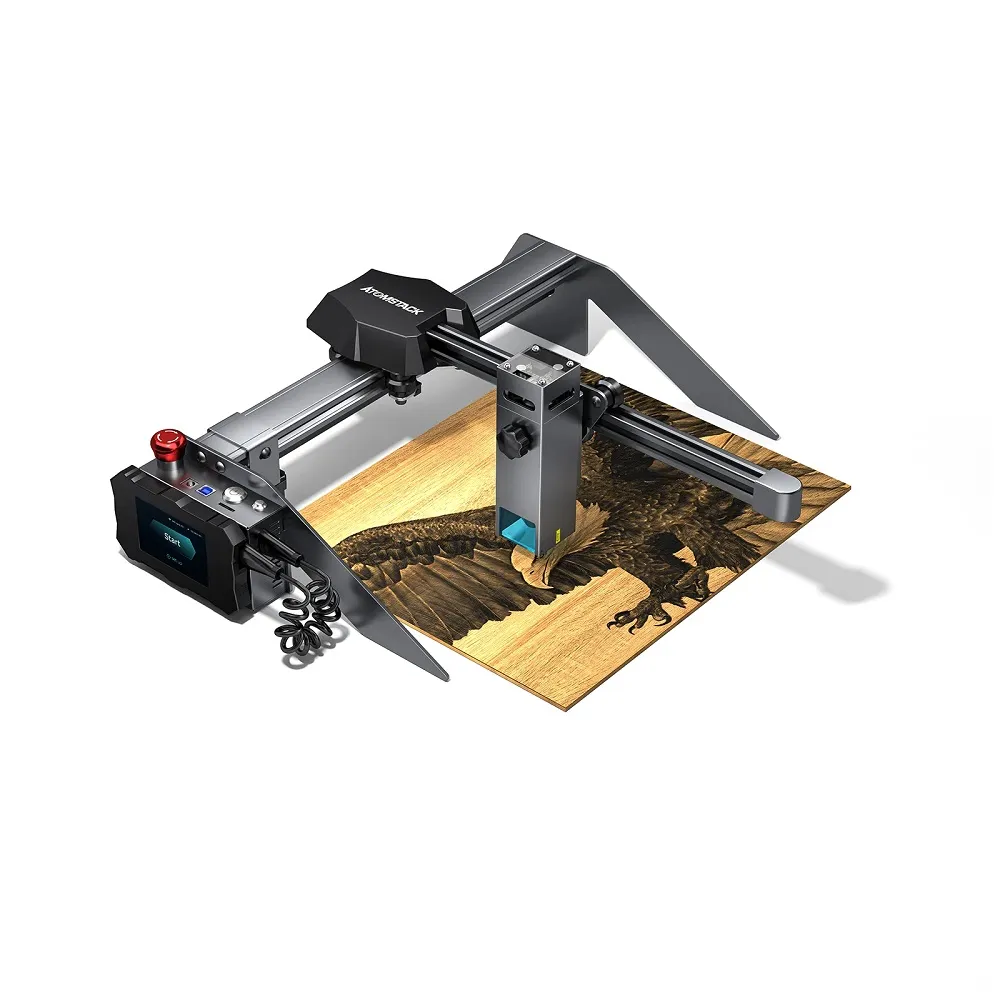

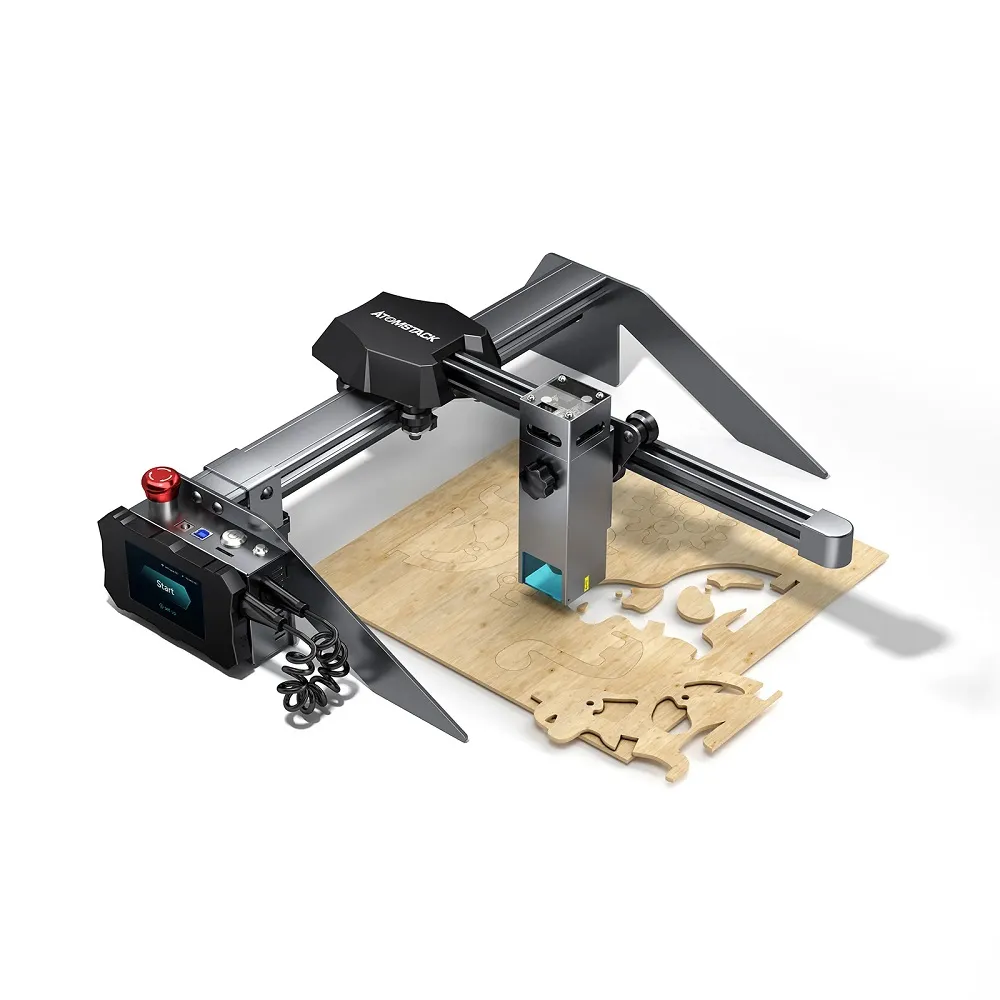

ATOMSTACK P9 M50 Pro Laser Engraver for Metal & Wood

₹56,451.00 (Inclusive of all taxes)
Out of Stock

The ATOMSTACK P9 M50 Pro is a powerful 10-11W fixed-focus laser engraver designed for high-precision metal, wood, and plastic applications. Featuring panoramic filter glass eye protection and an all-aluminum alloy structure, it ensures both exceptional detail and user safety during operation.

Features

  • Panoramic filter glass offers 97% UV protection, eliminating the need for separate goggles.
  • Upgraded fixed-focus laser delivers 10-11W optical power for precise engraving and cutting.
  • Robust all-aluminum alloy anodized structure ensures durability and engraving accuracy.
  • Supports offline engraving, enhancing operational flexibility and convenience.
  • 85% pre-assembled design allows for quick and easy setup in just 5 minutes.

Out of stock

Description

The ATOMSTACK P9 M50 Pro is engineered for precision and safety, featuring a unique panoramic filter glass protector that blocks 97% of UV light, allowing users to observe engraving without goggles. Its robust all-aluminum alloy anodized structure enhances durability and ensures consistent engraving accuracy, making it a reliable tool for various projects. The portable design, coupled with 85% pre-assembly, facilitates quick setup within minutes, minimizing downtime.

Equipped with an upgraded high-performance fixed-focus laser, the P9 M50 Pro eliminates the need for focal length adjustments, offering a spot area significantly smaller than ordinary lasers for simultaneous precision engraving and high-energy cutting. This 10-11W optical power laser maintains superior stability compared to zoom lasers, ensuring consistent results across diverse materials including metal, wood, bamboo, and acrylic. With support for offline engraving, this machine provides enhanced operational flexibility for makers and professionals.

Key Features

  • New filter panorama glass eye protection design blocks 97% of UV light.
  • Sturdy, easy-to-install all-aluminum alloy anodized structure.
  • Upgraded 10-11W high-performance fixed-focus laser with stable power output.
  • Dual compression spot coupling technology for finer detail and stronger cutting capabilities.
  • Integral lead screw system ensures precise axis movement and engraving accuracy.
  • New laser module with intuitive adjustment knob for ease of use.
  • Supports offline engraving, providing enhanced operational flexibility.
  • Achieves laser sintering temperatures up to 1200℃ for effective material processing.
  • Includes safety limiter and a convenient reset switch for secure operation.

Applications

  • Engraving on materials such as wood, bamboo, cardboard, plastic, leather, PCB, and slate.
  • Marking on alumina, non-reflective electroplated/lacquered metal, and 304 mirror stainless steel.
  • Detailed etching on glass, ceramic, and cotton cloth.
  • Cutting materials including cardboard, non-woven fabric, wood board, acrylic, and thin plastic sheets.
  • Creating custom designs for gifts, signage, and personalized projects.

Technical Specifications

Item TypeEngraving Machine
Machine Power50W
Laser Output Optical Power10-11W
Laser Wavelength455 ± 5nm
Engraving Accuracy0.01mm
Focusing MethodFixed-focus (No adjustment required)
Supported SoftwareLightBurn, LaserGRBL
Operating System CompatibilityWindows XP/VISTA/7/8/10
Laser Protective CoverIntegrated panoramic filter glass cover

Frequently Asked Questions

What is the optical output power of the ATOMSTACK P9 M50 Pro laser?

The ATOMSTACK P9 M50 Pro features a laser with an optical output power of 10-11W. This high power enables efficient and precise engraving on a wide range of materials and supports effective cutting for various substrates, enhancing project versatility and quality.

Does the ATOMSTACK P9 M50 Pro require focal length adjustment?

No, the ATOMSTACK P9 M50 Pro is equipped with an upgraded high-performance fixed-focus laser. This design eliminates the need for manual focal length adjustments, streamlining the engraving process and ensuring consistent precision across projects without additional setup time or calibration efforts.

What software is compatible with the ATOMSTACK P9 M50 Pro?

The ATOMSTACK P9 M50 Pro is compatible with popular laser engraving software such as LightBurn and LaserGRBL. It supports various Windows operating systems, including XP, VISTA, 7, 8, and 10, offering broad usability and integration into existing workflows for users.

What materials can the ATOMSTACK P9 M50 Pro engrave and cut?

This laser engraver can engrave materials like wood, bamboo, cardboard, plastic, leather, metal, glass, ceramic, and slate. For cutting, it efficiently handles cardboard, wood board, acrylic, and thin plastic sheets, providing versatile material processing capabilities for diverse creative and industrial applications.

How does the panoramic filter glass enhance safety?

The panoramic filter glass protects eyes by filtering 97% of UV light. This innovative feature allows users to safely observe the laser engraving process without needing additional protective goggles, reducing discomfort and expense while maintaining clear visibility of the work area during operation.

Package Includes

  • 1 x ATOMSTACK P9 M50 Pro Laser Engraver

Additional Information

Weight 5.225 kg
Dimensions 51 × 27 × 15 cm
