Arducam 12MP IMX477 Motorized Focus Camera for Raspberry Pi
The Arducam 12MP IMX477 Motorized Focus Camera is a high-resolution sensor module designed for Raspberry Pi, featuring software-controlled focus via I2C for automated or manual fine-tuning without physical lens adjustments.
Features
- 12.3MP IMX477 sensor delivers 4056 x 3040 pixel resolution for sharp, detailed images.
- Motorized focus controlled via I2C enables software-based autofocus and manual adjustment.
- Compatible with Raspberry Pi models via included 15-pin and 22-pin flex ribbon cables.
- 3.9mm focal length with F2.8 aperture for a wide field of view and good low-light performance.
- Integrates seamlessly with OpenCV and Python libraries for computer vision applications.
Out of stock
The Arducam IMX477 Motorized Focus Camera Module replaces manual lens adjustment with precise, software-controlled focusing. An integrated micro-motor is managed directly through the camera’s I2C interface, allowing developers to implement autofocus algorithms or provide fine-grained manual control via keyboard inputs or scripts. This eliminates mechanical wear and enables remote, repeatable focus setups.

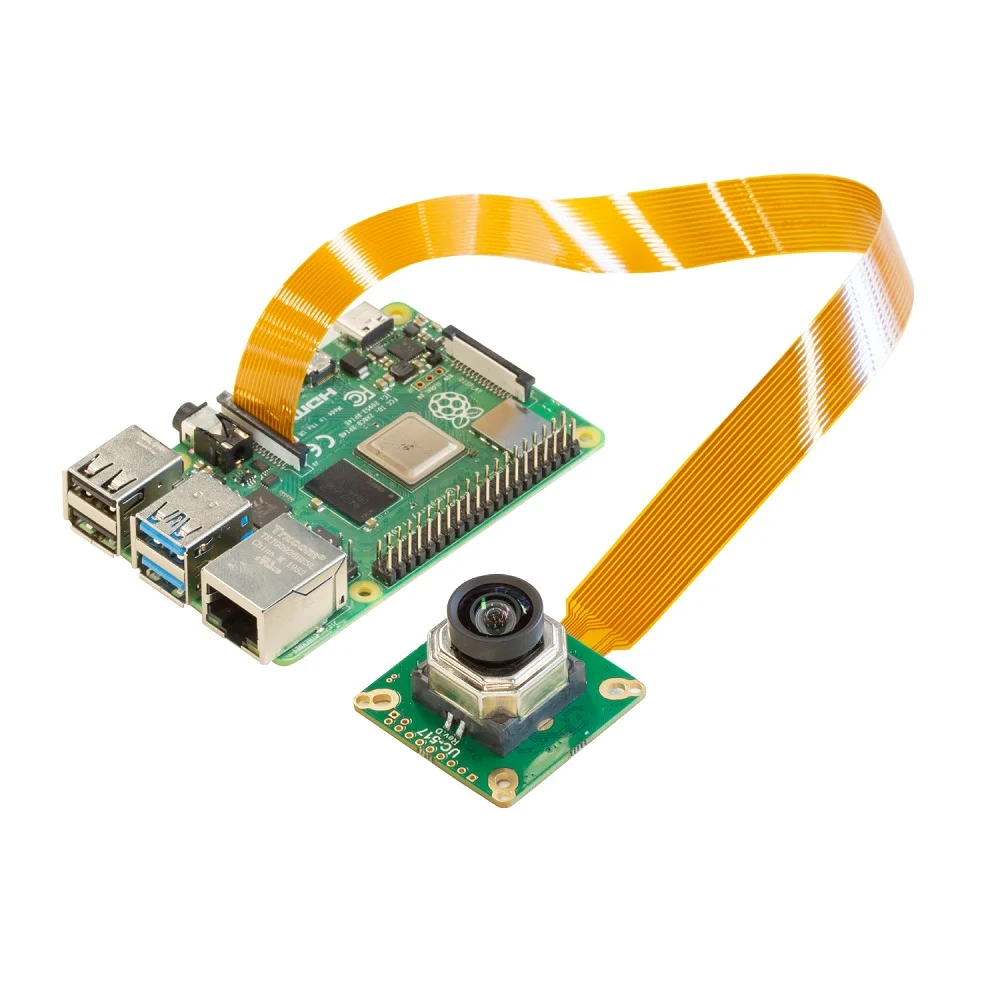

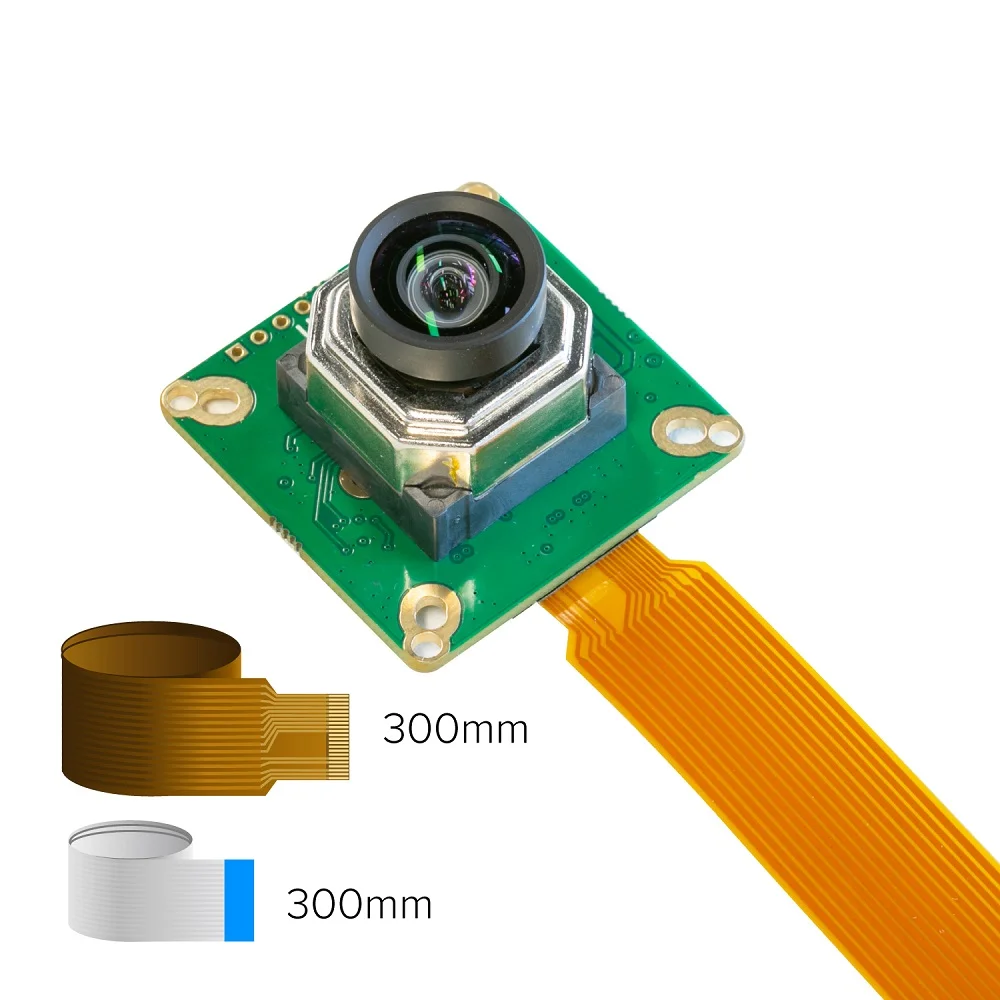

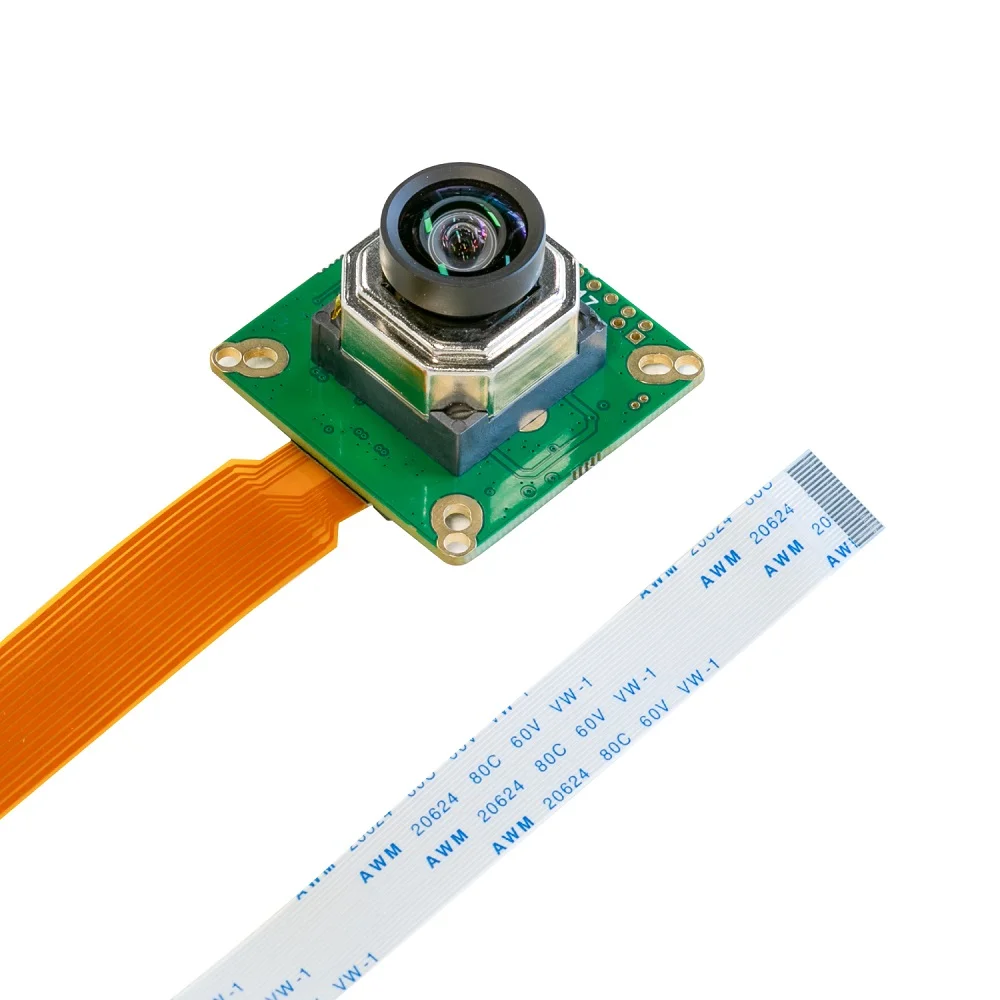

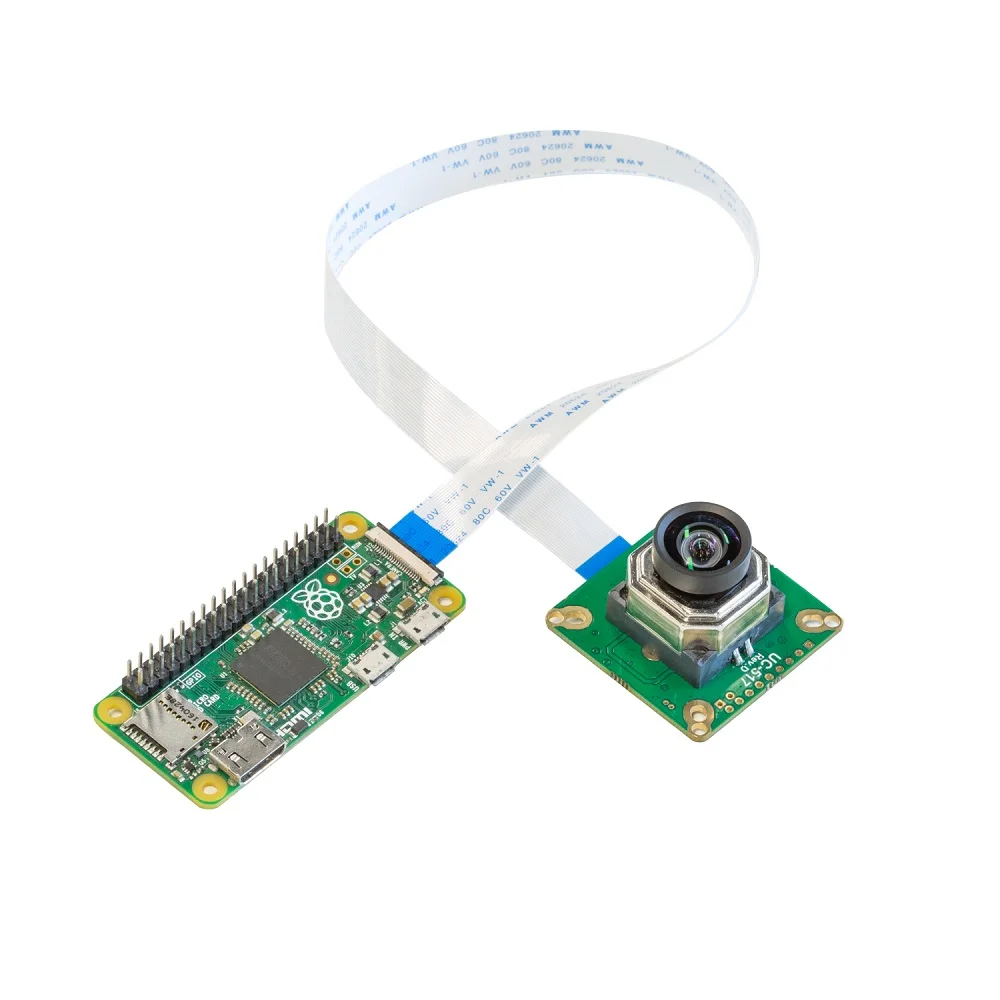

Built around the high-performance Sony IMX477 back-illuminated sensor, this module captures 12-megapixel stills and supports high-frame-rate video. It is supplied with two flexible ribbon cables (15-pin to 22-pin and 22-pin to 22-pin) for compatibility with standard Raspberry Pi boards (Model A/B) as well as the Pi Zero and Compute Module variants. The module is ideal for projects requiring consistent image quality, such as machine vision, surveillance, or automated inspection systems.
Additional Information
| Weight | 0.03 kg |
|---|---|
| Dimensions | 5 × 5 × 4 cm |
