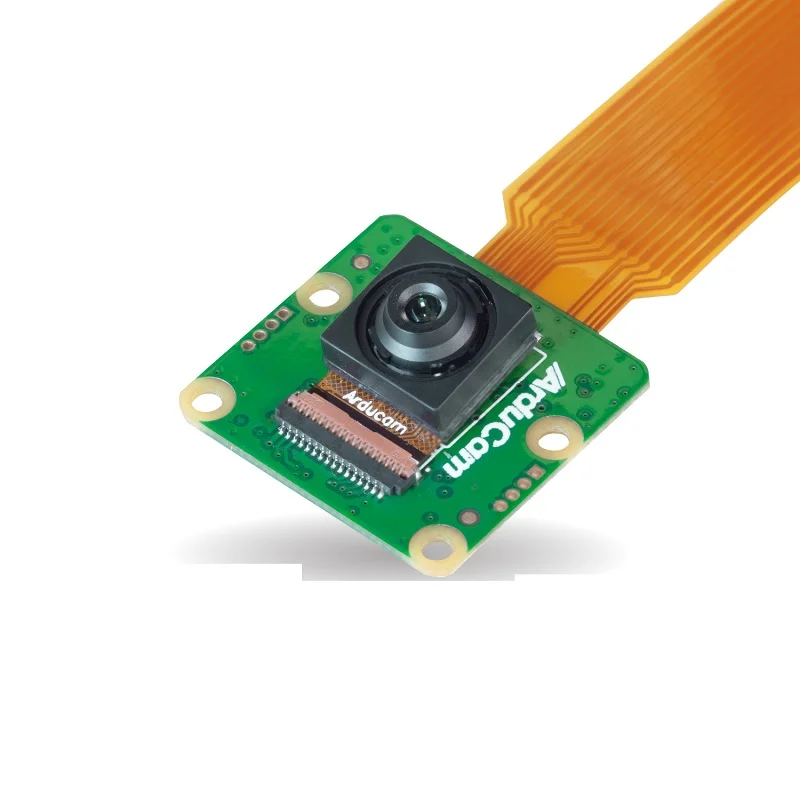

Arducam 12MP IMX378 Camera Module for Raspberry Pi

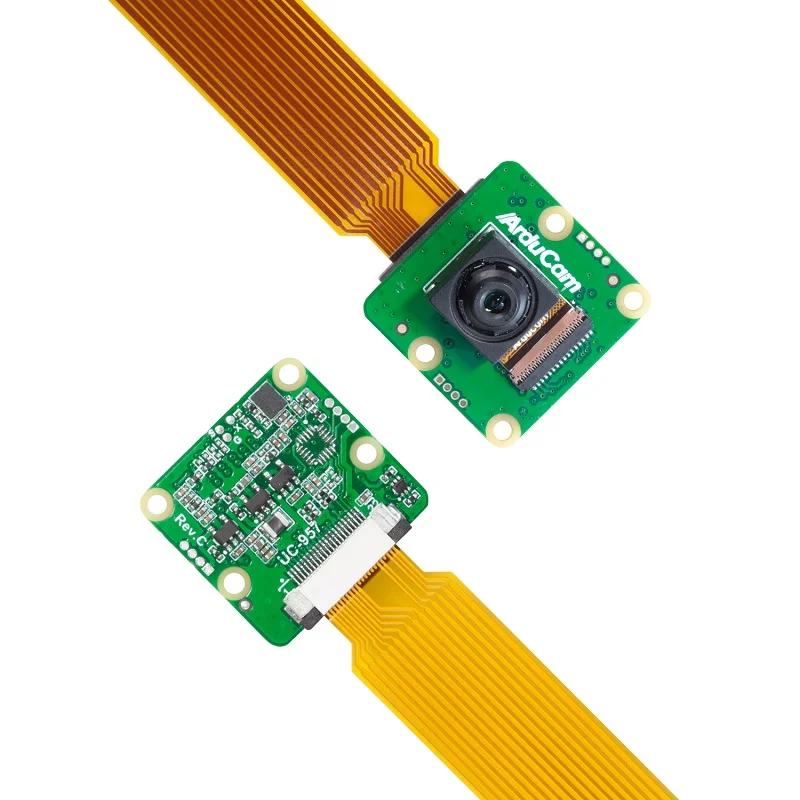

Arducam 12MP IMX378 Camera Module for Raspberry Pi - Image 2
SKU: IOWC-0355
📋 GST Invoice Available

Arducam 12MP IMX378 Camera Module for Raspberry Pi

₹4,599.00 (Inclusive of all taxes)
Out of Stock

The Arducam 12MP IMX378 Camera Module is a high-resolution monochrome sensor board designed for industrial-grade computer vision on Raspberry Pi platforms. It delivers sharp 12-megapixel RAW image capture and is compatible with Pi 5, 4, 3, Zero, and Compute Modules via USB Camera Shield for flexible development.

Features

  • 12MP Sony IMX378 sensor for high-detail monochrome imaging and industrial inspection.
  • Broad Raspberry Pi compatibility (Pi 5/4/3/Zero/CM3/CM4) via USB Camera Shield interface.
  • Fast f/1.8 lens with 82.4° diagonal field of view for wide-angle capture.
  • Outputs RAW10/RAW12 data for maximum image fidelity and post-processing flexibility.
  • Compact form factor ideal for embedded vision projects, robotics, and machine vision.

Out of stock

Description

The Arducam 12MP IMX378 Camera Module integrates a Sony IMX378 1/2.3-inch monochrome sensor into a compact Raspberry Pi-compatible form factor. It is engineered for developers and system integrators requiring high-resolution, low-noise image capture for industrial machine vision, quality inspection, and embedded AI applications.

This module outputs uncompressed RAW10 and RAW12 data streams, providing maximum bit depth for advanced image processing algorithms. The integrated f/1.8 lens with a 4.74mm effective focal length ensures good light gathering capability in varied lighting conditions. Its primary interface is through Arducam’s USB Camera Shield, enabling plug-and-play evaluation on Windows, Linux, and Raspberry Pi OS without complex driver configuration.

Key Features

  • High-resolution 12MP Sony IMX378 monochrome CMOS sensor for precise imaging.
  • Supports RAW10/RAW12 output formats for full sensor data without compression.
  • Wide 82.4° diagonal field of view lens suitable for surveillance and object tracking.
  • Direct compatibility with Arducam USB Camera Shield for rapid prototyping.
  • Cross-platform driver support for Windows, Linux, and Raspberry Pi OS.
  • Industrial-grade build quality for reliable performance in demanding environments.

Applications

  • Industrial machine vision and automated optical inspection (AOI) systems.
  • Embedded AI and computer vision on Raspberry Pi for object detection.
  • High-resolution monitoring and surveillance applications.
  • Robotics and drone vision for navigation and environment mapping.
  • Scientific imaging and research requiring monochrome sensor fidelity.

Technical Specifications

Sensor ModelSony IMX378
Resolution12 MP (4056 x 3040 max)
Optical Format1/2.3-inch (Diagonal 7.857 mm)
Output FormatRAW10, RAW12
Lens Aperturef/1.8
Effective Focal Length4.74mm
Field of View (Diag.)82.4°
Supported PlatformsRaspberry Pi 5/4/3/Zero/CM3/CM4
InterfaceUSB (via Arducam Camera Shield)
Operating SystemsWindows, Linux, Raspberry Pi OS

Frequently Asked Questions

How do I connect this Arducam IMX378 module to my Raspberry Pi?

This module connects via an Arducam USB Camera Shield. First, connect the camera's flex cable to the shield. Then, plug the shield into a USB port on your Raspberry Pi. Install the provided V4L2 drivers or Arducam software tools on your Raspberry Pi OS. The camera will appear as a standard USB video device, compatible with OpenCV, Picamera2, and other imaging libraries.

What software and libraries support the RAW10/RAW12 output format?

To utilize the RAW10/RAW12 output, you need to use Arducam's specific SDK or capture software, which provides APIs to access the uncompressed sensor data. Libraries like OpenCV can then process the raw Bayer pattern data for demosaicing. Standard Raspberry Pi camera software (like libcamera) may not support this raw mode without custom configuration using the manufacturer's provided drivers and example code.

Is this camera compatible with Raspberry Pi 5 and Compute Module 4?

Yes, this IMX378 module is fully compatible with Raspberry Pi 5, Pi 4, Pi 3, Pi Zero, Compute Module 3, and Compute Module 4. The compatibility is achieved through the USB interface of the Arducam Camera Shield, which is a universal connection method across all these Raspberry Pi models that have a USB host port. Ensure your OS has the necessary V4L2 kernel modules enabled.

Package Includes

  • 1 x Arducam 12MP IMX378 Camera Module for Raspberry Pi

Additional Information

Weight 0.025 kg
Dimensions 5 × 5 × 5 cm
