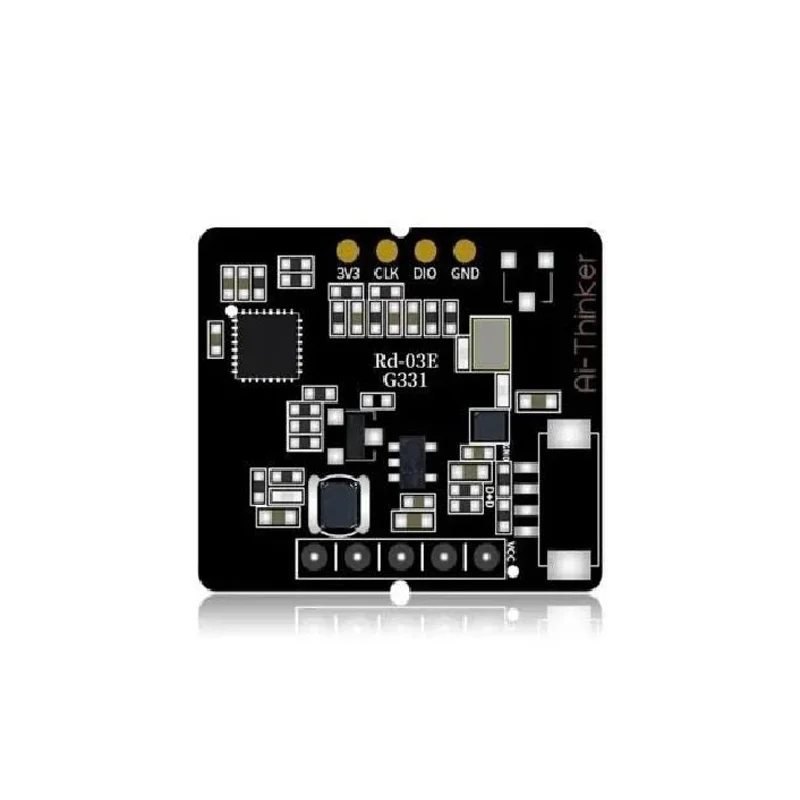

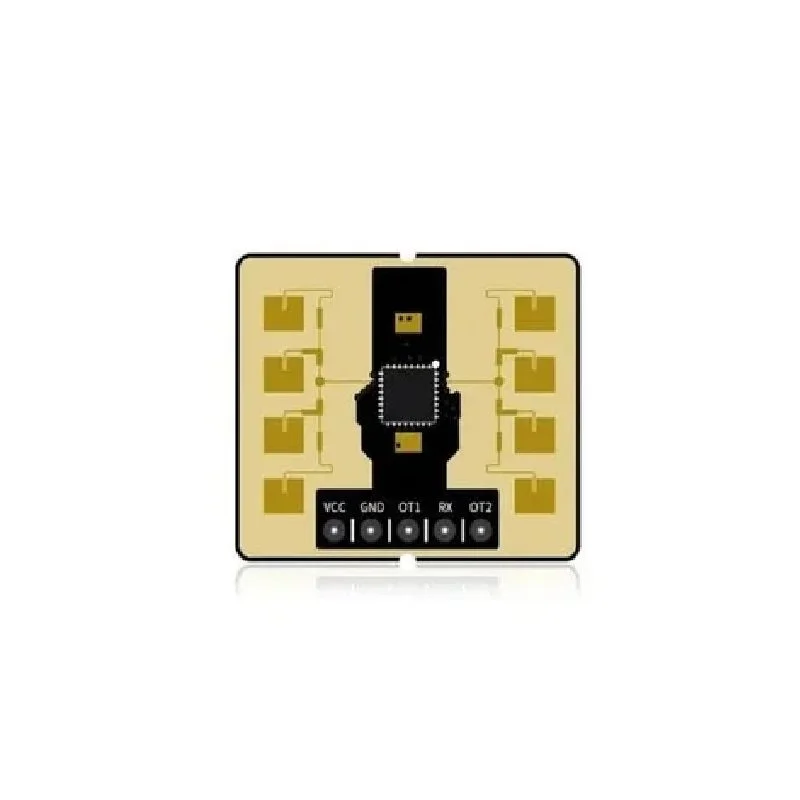

AI-Thinker Rd-03E 24GHz Gesture Radar Module UART
The AI-Thinker Rd-03E is a 24GHz FMCW radar module featuring the S3KM111L SoC, designed for precise human body sensing, micro-motion detection, and gesture recognition up to 6 meters. It offers flexible configuration via UART or Bluetooth, making it ideal for various AIoT and smart sensing applications.
Features
- Integrated 24GHz FMCW radar for high-precision human presence and gesture detection.
- Capable of sensing moving human bodies up to 6m and micro-motion up to 3.5m.
- Robust performance, unaffected by environmental factors like temperature or light.
- Flexible configuration and parameter adjustment via UART serial port or Bluetooth.
- Plug-and-play operation for rapid integration into AIoT solutions.
Out of stock
The AI-Thinker Rd-03E is an advanced radar module developed by Shenzhen AI-Thinker Technology Co., LTD., integrating the powerful S3KM111L single-chip millimeter-wave sensor SoC. Utilizing FMCW radar transceiver technology, it operates within the 24GHz K-band, offering up to 1 GHz modulation bandwidth. The module employs sophisticated signal processing combined with an intelligent presence sensing algorithm to deliver accurate human body sensing, precise distance measurement, and reliable gesture recognition.
Developers can monitor real-time distance and gesture information using a dedicated host computer tool, which also facilitates intelligent parameter adjustment via the serial port. The Rd-03E efficiently detects and identifies both moving and subtle human movements, reporting distances in real-time. Its ability to detect targets and gestures within defined areas makes it highly versatile for numerous AIoT scenarios, characterized by strong real-time performance, high ranging accuracy, an expansive detection range, and adaptable algorithm parameters.
Additional Information
| Weight | 0.015 kg |
|---|---|
| Dimensions | 7 × 7 × 2 cm |
