AHT30 White Shell Built-in Cotton Core Temperature & Humidity Sensor with Card Holder - 1m Cable, I2C Digital Output

Name: AHT30 White Shell Built-in Cotton Core Temperature &amp; Humidity Sensor with Card Holder - 1m Cable, I2C Digital Output
Brand: Generic
SKU: SENS-3368
Price: 489.00 INR
Availability: OutOfStock

₹489.00 (Inclusive of all taxes)

Out of Stock

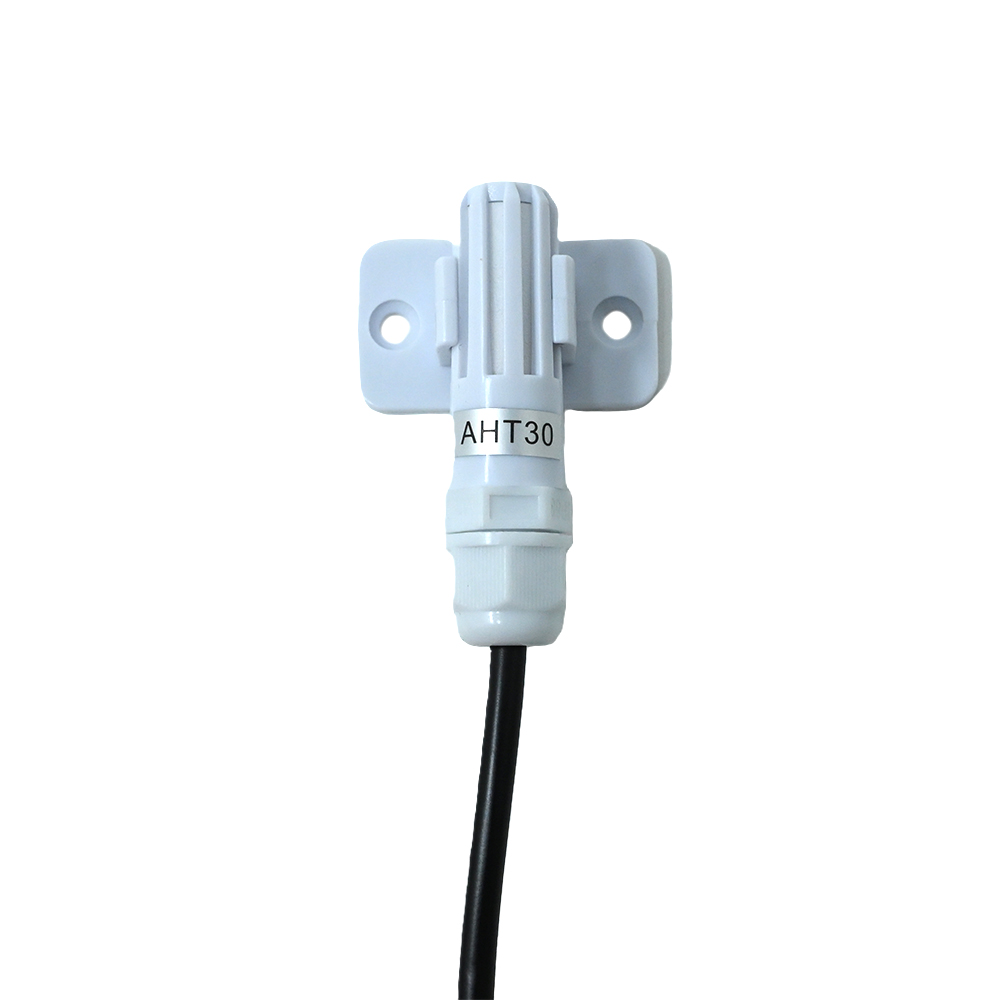

The AHT30 digital temperature and humidity sensor module features a white shell with a built-in cotton core for enhanced airflow and a card holder for secure mounting. Operating from 3.0V to 5.5V, it provides high-precision I2C digital output compatible with Arduino, Raspberry Pi, ESP32, and other 3.3V/5V logic systems.

Features

High-precision digital I2C temperature and humidity sensor
Wide operating voltage range: 3.0V to 5.5V for versatile system integration
Excellent temperature accuracy: ±0.3°C and humidity accuracy: ±3% RH
Includes 1-meter cable with customizable 4-pin connector options
Compact white shell design with built-in cotton core and mounting card holder

Out of stock

Get Notified When Available

Description

The AHT30 sensor utilizes a MEMS-based capacitive sensing element for humidity and a band-gap temperature sensor, delivering calibrated digital signals via the I2C interface. The built-in cotton core within the white protective shell ensures accurate environmental sampling by preventing dust ingress while allowing proper air circulation to the sensing element.

Designed for stable long-term operation, the module includes signal conditioning circuitry and is pre-calibrated, providing immediate plug-and-play functionality. The integrated card holder facilitates secure mounting in enclosures or on PCBs for applications requiring precise environmental monitoring.

Key Features

High-precision AHT30 sensing chip with digital I2C output (SDA/SCL)
Wide supply voltage compatibility from 3.0V to 5.5V DC
Superior measurement accuracy: ±0.3°C for temperature and ±3% RH for humidity
High resolution: 0.01°C for temperature and 0.024% RH for humidity

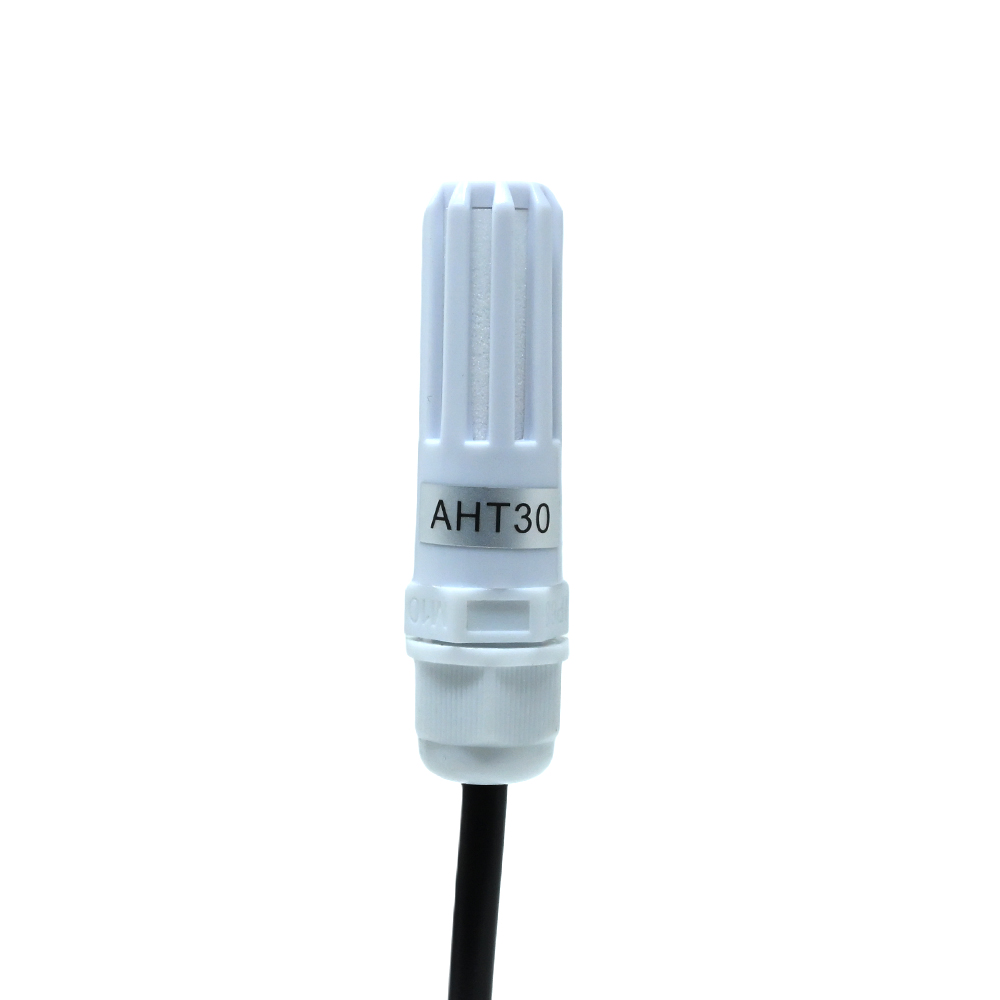

White ABS shell with integrated cotton core for filtered, accurate air sampling
Includes a practical card holder for easy and secure module installation

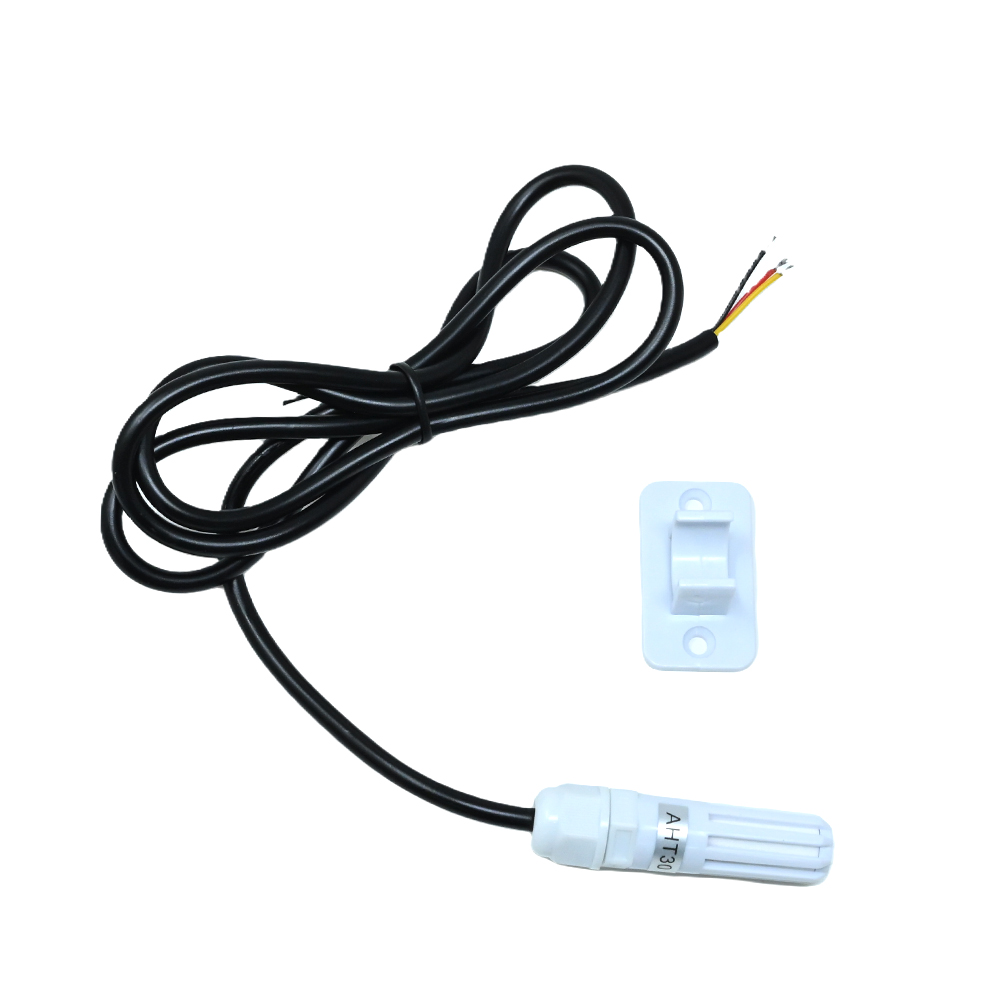

Pre-terminated with a 1-meter cable for flexible positioning
Offers customizable 4-pin connector options (XH2.54, XHB2.54, BH2.0)

Applications

Smart home and HVAC system environmental monitoring and control
Precision agriculture and greenhouse climate management systems
Industrial process monitoring and data logging
Laboratory equipment and scientific instrumentation
IoT sensor nodes and wireless environmental monitoring stations

Technical Specifications

Item Type	Sensor Module
Model Number	AHT30
Sensing Element	MEMS Capacitive (Humidity), Band-Gap (Temperature)
Operating Voltage	3.0V to 5.5V DC
Communication Interface	I2C Digital (SDA/SCL)
Temperature Range	-40°C to +85°C (Typical)
Temperature Accuracy	±0.3°C
Temperature Resolution	0.01°C
Humidity Range	0% to 100% RH (Typical)
Humidity Accuracy	±3% RH
Humidity Resolution	0.024% RH
Cable Length	1 Meter
Connector Type	Customizable 4-Pin (XH2.54, XHB2.54, BH2.0)
Housing Material	White ABS Shell with Cotton Core
Module Diameter	12 mm
Module Weight	21 g

Frequently Asked Questions

What is the operating voltage range for this AHT30 sensor module?

The module operates from 3.0V to 5.5V DC, making it directly compatible with both 3.3V logic systems (like ESP32, Raspberry Pi) and 5V systems (like standard Arduino boards) without requiring a logic level shifter.

How do I connect this sensor to a microcontroller like Arduino or ESP32?

Connect the module's I2C pins (SDA and SCL) to the corresponding pins on your microcontroller. The module includes a 1-meter cable, typically with a 4-pin connector that can be adapted. Ensure you also connect the VCC (3-5.5V) and GND pins. Use standard I2C libraries to read the calibrated digital temperature and humidity data.

What is the purpose of the cotton core inside the white shell?

The built-in cotton core acts as a simple filter, allowing air to reach the MEMS sensing element while preventing dust and larger particulates from entering. This helps maintain long-term sensor accuracy and stability in non-cleanroom environments by protecting the sensitive capacitive humidity film.

Can I change the I2C address of the AHT30 sensor?

No, the AHT30 chip has a fixed I2C address (typically 0x38). If you need to connect multiple sensors on the same bus, you will require an I2C multiplexer (like the TCA9548A) to manage separate channels for each sensor module.
