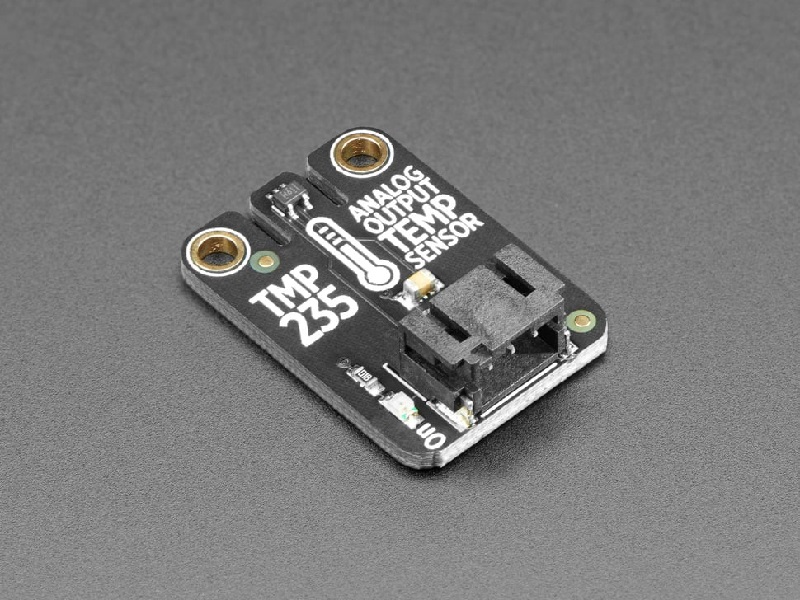

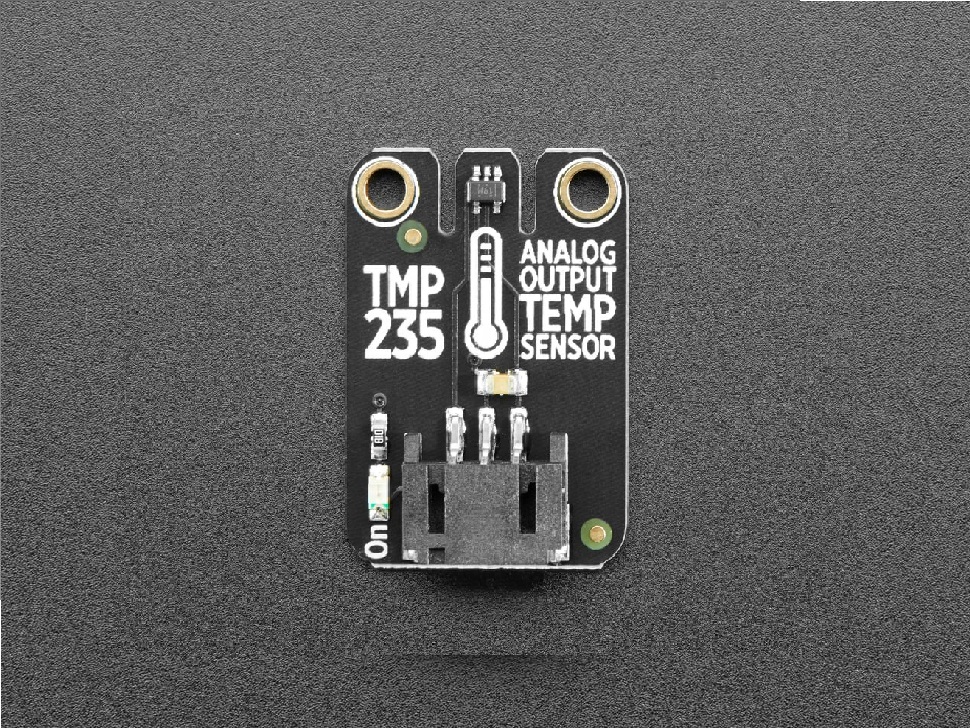

Adafruit TMP235 STEMMA Analog Temperature Sensor - Module Only
The Adafruit TMP235 is a plug-and-play analog temperature sensor module featuring a STEMMA JST-PH connector for easy cable integration. It provides a linear voltage output from 0V at -50°C to 1.75V at 125°C, requiring no libraries and interfacing directly with the analog input of any 3.3V or 5V microcontroller like Arduino, ESP32, or Raspberry Pi Pico.
Features
- Linear analog output: 0V at -50°C to 1.75V at 125°C.
- Plug-and-play STEMMA JST-PH 3-pin connector for rapid prototyping.
- Wide 3V to 5V DC operating voltage range.
- No libraries or complex configuration required.
- RoHS compliant for environmentally safe use.
Out of stock
The Adafruit TMP235 is a precision analog temperature sensor designed for simplicity and ease of integration. It converts ambient temperature into a linear voltage signal, eliminating the need for digital communication protocols and complex libraries. This makes it ideal for educational projects, rapid prototyping, and systems where a straightforward analog signal is preferred.
The sensor operates on a 3V to 5V DC supply and features a built-in STEMMA JST-PH connector, compatible with a wide range of plug-and-play cables from Adafruit. Its output is directly proportional to temperature, allowing for simple calculation (Temp °C = 100 * Vout – 50) on any microcontroller with an ADC. The module is RoHS compliant and designed for reliable performance in standard electronic environments.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 13 × 7 × 2 cm |
