Adafruit MLX90632 FIR Remote Thermal Temperature Sensor - Medical Grade STEMMA QT / Qwiic
The Adafruit MLX90632 is a medical-grade, non-contact far-infrared (FIR) temperature sensor module featuring STEMMA QT / Qwiic connectors for plug-and-play I2C interfacing with Arduino, Raspberry Pi, and other 3.3V/5V microcontrollers. It provides high-precision object temperature measurement without physical contact.
Features
- Medical-grade MLX90632 sensor with ±0.2°C accuracy in the 35–42°C body temperature range.
- Non-contact FIR sensing with a 50° field of view, optimized for close-range measurements.

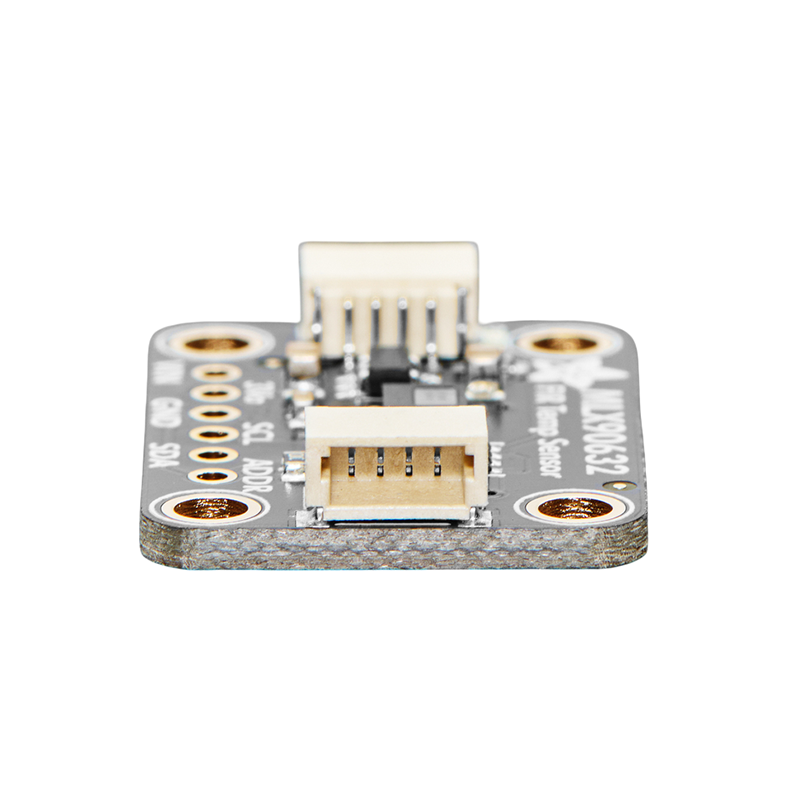

- Plug-and-play STEMMA QT / Qwiic I2C connectors for solder-free system integration.
- Onboard voltage regulation and level shifting for seamless 3V & 5V logic compatibility.
- Ultra-low power operation with ~1 mA typical supply current and configurable sleep mode.
Out of stock

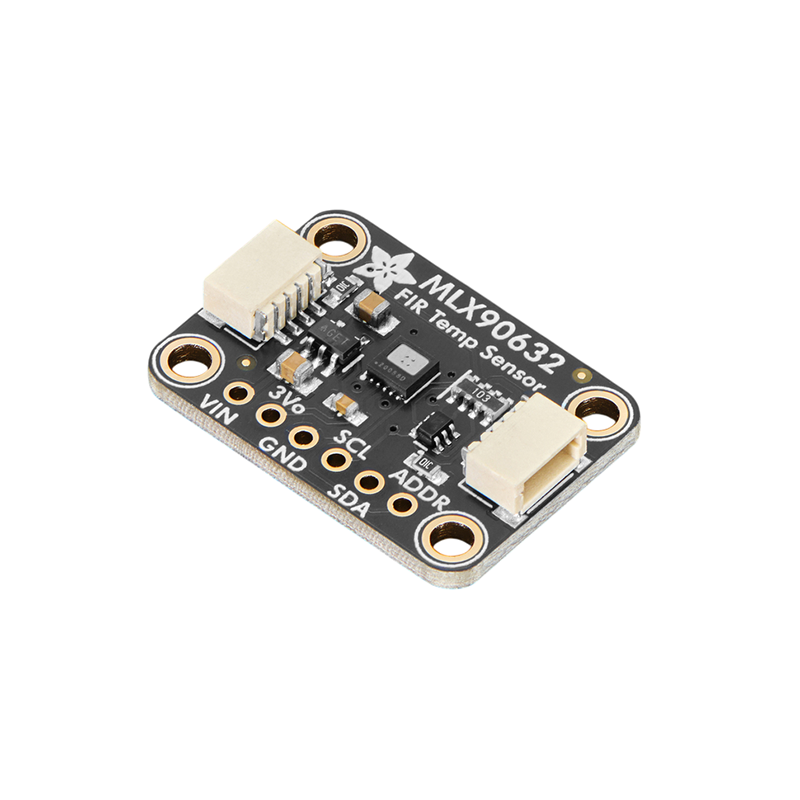

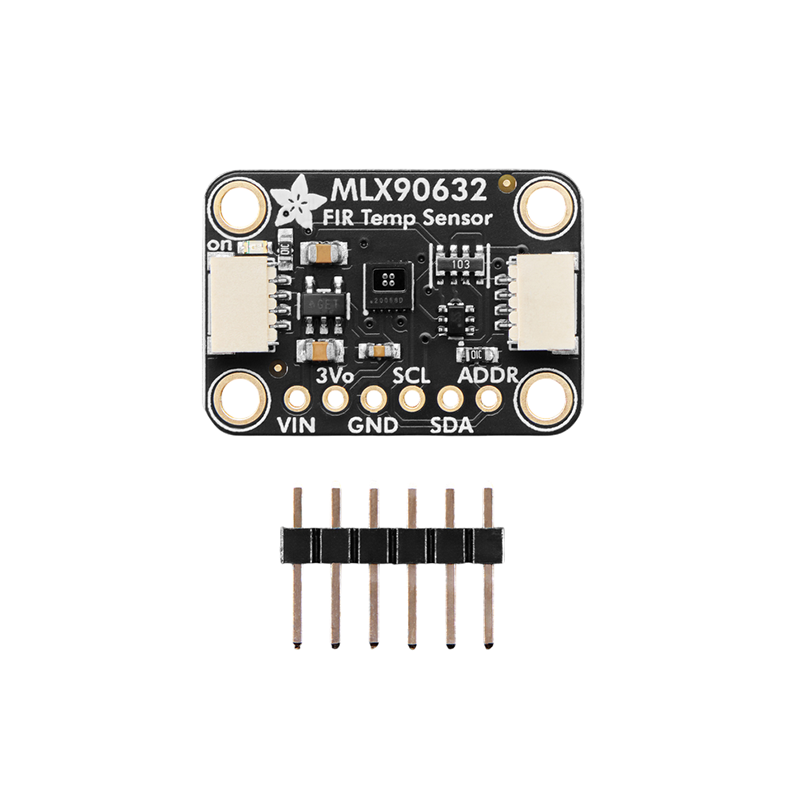

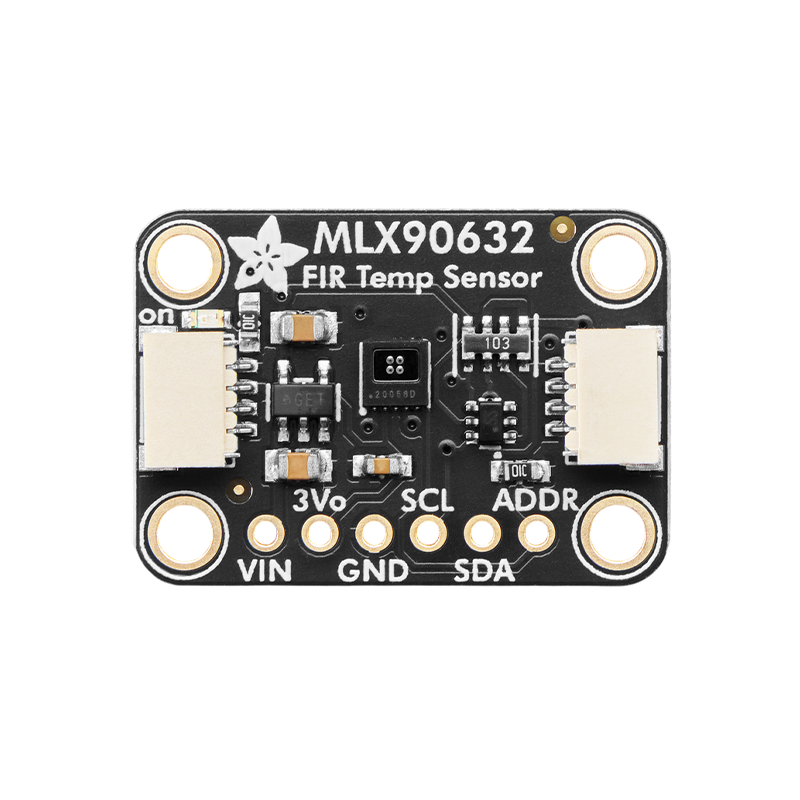

The Adafruit MLX90632 module integrates the Melexis MLX90632SLD-DCB sensor, a factory-calibrated far-infrared thermopile designed for medical-grade precision. It measures object temperature via passive infrared radiation detection, making it ideal for non-invasive monitoring of sensitive, moving, or electrically isolated targets. The sensor’s 50° field of view ensures accurate readings at close proximity.
The board includes full signal conditioning, voltage regulation, and I2C level shifting, providing a robust interface for embedded systems. It outputs both object and ambient temperature readings directly via I2C, requiring minimal microcontroller processing. This module is engineered for reliable performance in healthcare devices, industrial equipment monitoring, and IoT applications where contactless sensing is critical.
Additional Information
| Weight | 0.0017 kg |
|---|---|
| Dimensions | 2.55 × 1.77 cm |
