Acro Naze 32 Brush Flight Controller
The Acro Naze 32 Brush is a 32-bit flight controller designed for micro FPV drones using brushed motors. Compatible with 1-2S LiPo batteries (3.2-8.4V) and supporting DSM/DSM2/DSMX via PPM or SBUS, it is configurable with Cleanflight and Baseflight firmware for quad and hexacopter builds.
Features
- 32-bit STM32-based flight controller optimized for brushed micro motors.
- Wide input voltage range: 1-2S LiPo (3.2V to 8.4V).
- Supports DSM, DSM2, and DSMX receiver protocols via PPM or SBUS input.
- High-current NMOS transistors rated for up to 10A per motor channel.
- Compatible with Cleanflight and Baseflight configuration software.
Out of stock

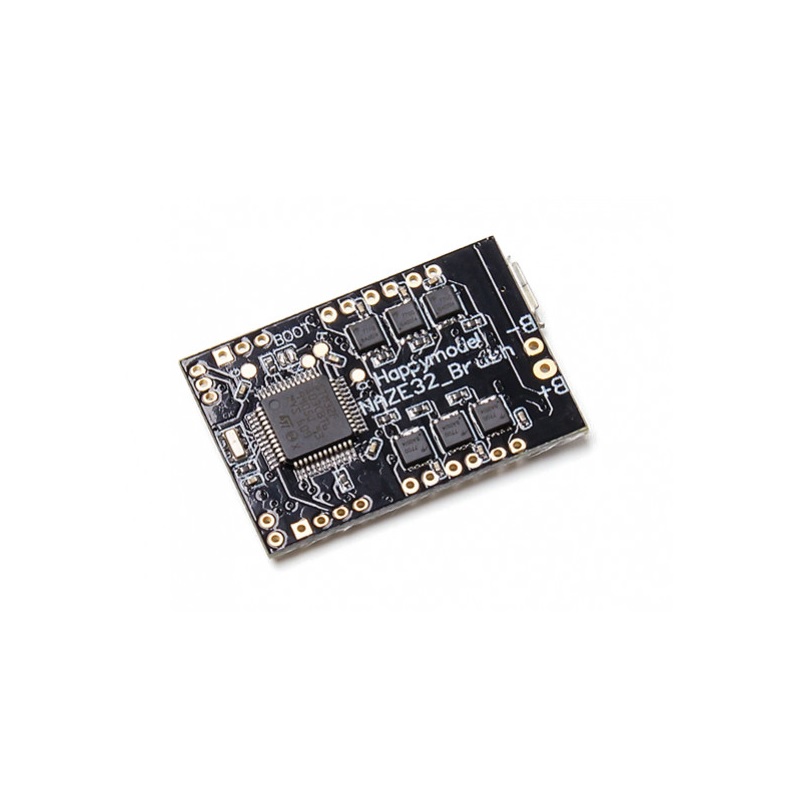

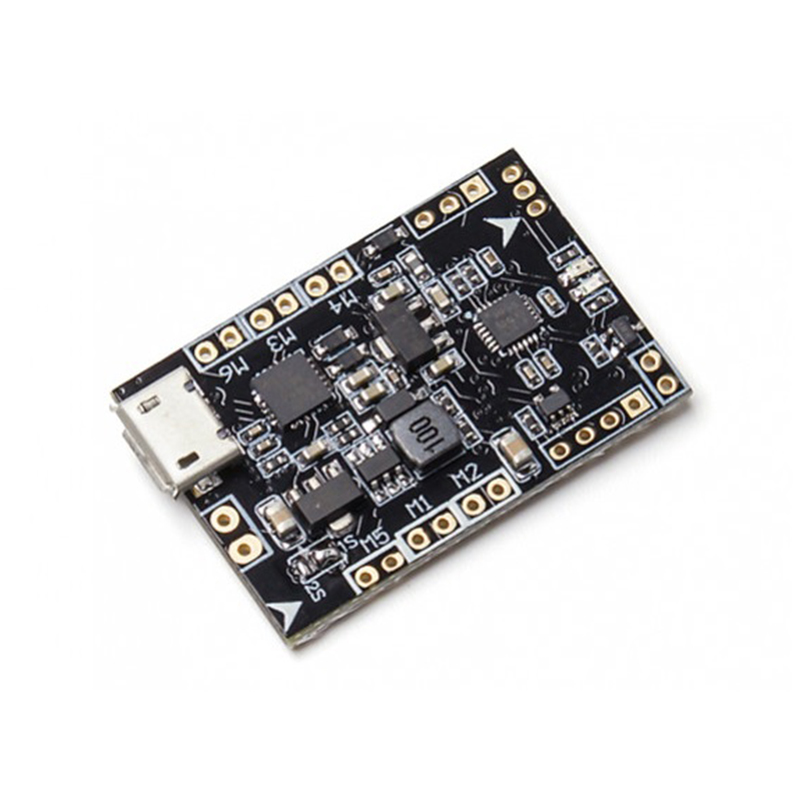

The Acro Naze 32 Brush flight controller is engineered for high-performance micro and nano-sized FPV racing drones utilizing brushed hollow-cup or 1020 coreless motors. Its compact 32.5 x 22mm footprint and ultra-light 3g weight make it ideal for tight builds where every gram counts.
Built around a robust 32-bit STM32 processor, it delivers precise flight control for acrobatic maneuvers. The board integrates high-efficiency NMOS FETs with freewheeling diodes on each channel, capable of sustaining continuous 10A current per motor for aggressive throttle response on 2S power.
Additional Information
| Weight | 0.003 kg |
|---|---|
| Dimensions | 3.25 × 2.2 × 0.12 cm |
