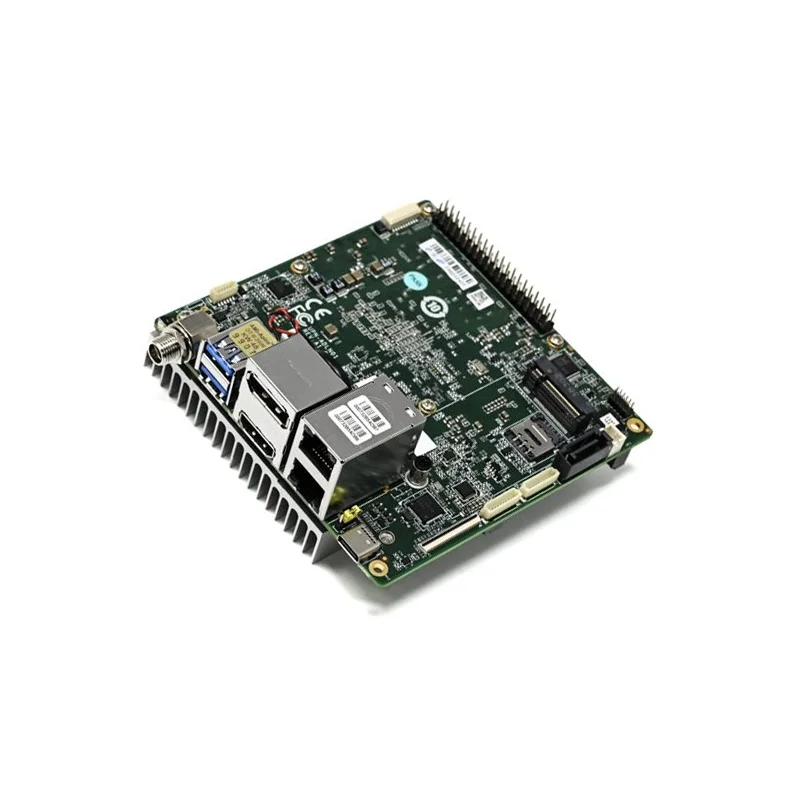

AAEON UP Squared Pro 7000 SBC Intel Core i3-N305 16GB RAM 64GB eMMC A1.0

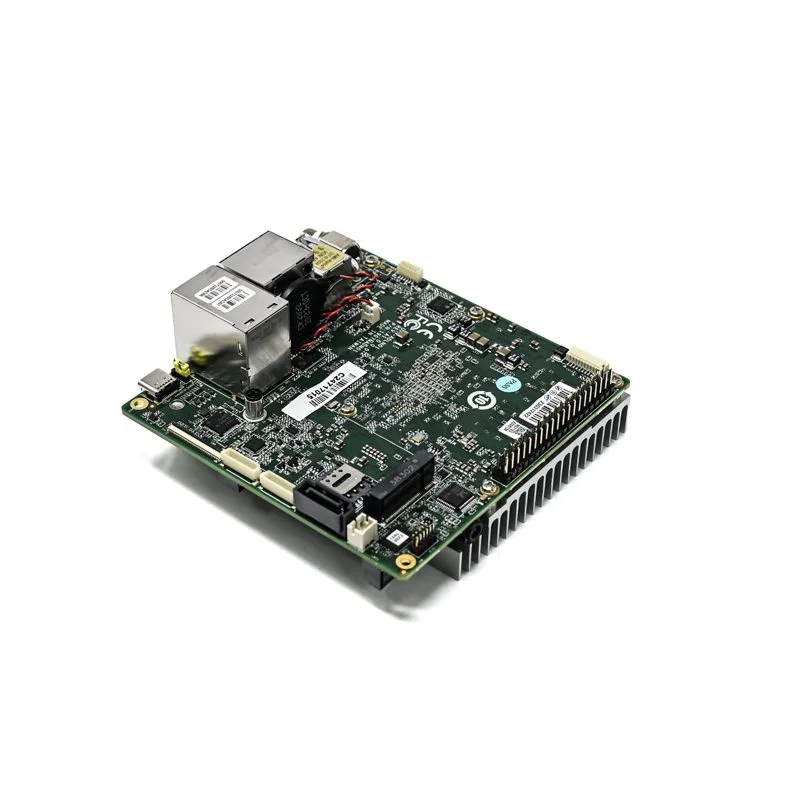

AAEON UP Squared Pro 7000 SBC Intel Core i3-N305 16GB RAM 64GB eMMC A1.0 - Image 2

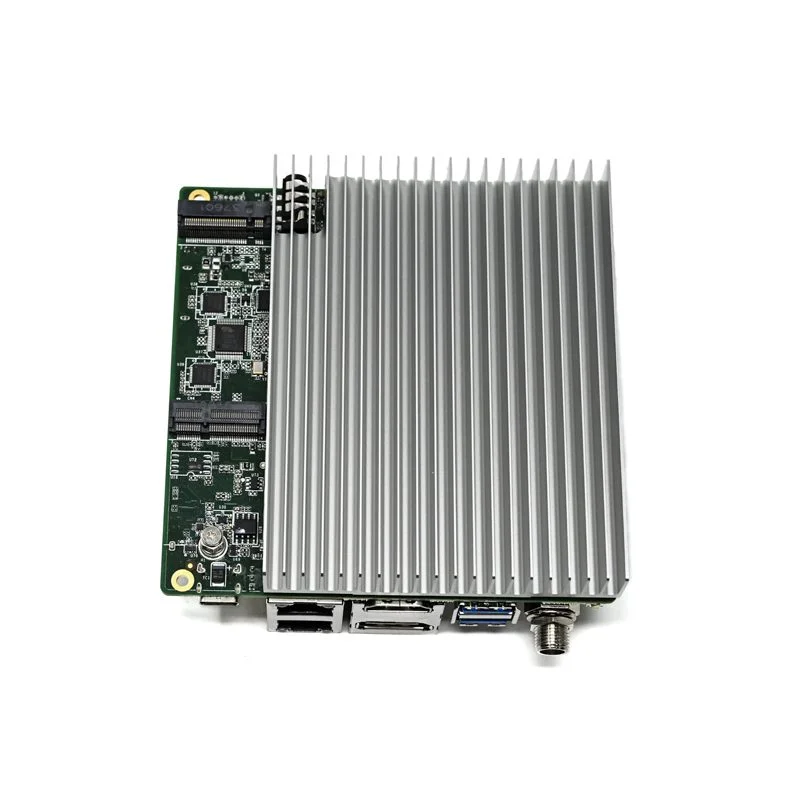

AAEON UP Squared Pro 7000 SBC Intel Core i3-N305 16GB RAM 64GB eMMC A1.0 - Image 3

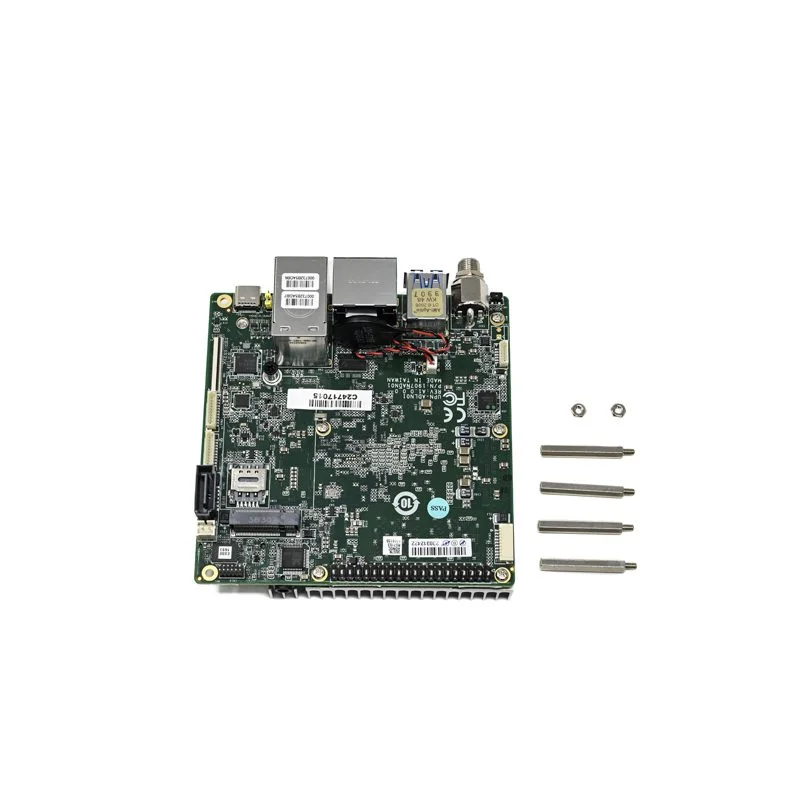

AAEON UP Squared Pro 7000 SBC Intel Core i3-N305 16GB RAM 64GB eMMC A1.0 - Image 4
SKU: IOWC-1309
📋 GST Invoice Available

AAEON UP Squared Pro 7000 SBC Intel Core i3-N305 16GB RAM 64GB eMMC A1.0

₹144,649.00 (Inclusive of all taxes)
Out of Stock

The AAEON UP Squared Pro 7000 is an industrial-grade single-board computer powered by an Intel Core i3-N305 processor, 16GB RAM, and 64GB eMMC storage. It runs Ubuntu 22.04 LTS, Windows 10 IoT Enterprise, or Yocto 4.0, offering robust performance for demanding embedded and IoT applications.

Features

  • Intel Core i3-N305 processor delivers robust computing power for industrial automation and edge AI workloads.
  • 16GB RAM and 64GB onboard eMMC storage ensure smooth multitasking and reliable data logging.
  • Compact A1.0 form factor (101.6 x 101.6mm) enables easy integration into space-constrained embedded systems.
  • Comprehensive I/O includes 2.5GbE Ethernet, USB 3.2 Gen 2 ports, HDMI/DisplayPort, and RS-232/422/485 serial header.
  • Onboard TPM 2.0 security and support for major industrial OSes (Ubuntu LTS, Windows IoT, Yocto) ensure secure, reliable deployment.

Out of stock

Description

The AAEON UP Squared Pro 7000 SBC is engineered for industrial IoT and embedded computing applications requiring high performance and reliability. Its Intel Core i3-N305 processor, coupled with 16GB of RAM, handles complex tasks like machine vision, data aggregation, and real-time control systems. The board’s 12V DC power input and industrial-grade components ensure stable operation in demanding environments.

Connectivity is a cornerstone, featuring dual display outputs (HDMI 2.0b, DisplayPort), high-speed USB 3.2 Gen 2 ports, a 2.5GbE network interface, and legacy serial support via an RS-232/422/485 header. An onboard TPM 2.0 module provides hardware-based security for secure boot and data encryption, making it suitable for sensitive industrial and commercial deployments.

Key Features

  • High-performance Intel Core i3-N305 processor for demanding edge computing and automation tasks.
  • Generous 16GB system memory supports intensive multi-threaded applications and large data buffers.
  • 64GB soldered eMMC storage offers fast, reliable boot media and application storage with high endurance.
  • Versatile expansion via MIPI-CSI camera connector, GPIO headers, and USB Type-C with DisplayPort Alt Mode.
  • Industrial reliability with wide operating temperature tolerance and robust power delivery for 24/7 operation.
  • Integrated 2.5 Gigabit Ethernet provides high-bandwidth network connectivity for data-intensive IoT gateways.
  • Hardware security via TPM 2.0 chip enables secure key storage, device identity, and platform integrity verification.
  • Flexible OS support for Ubuntu 22.04 LTS, Windows 10 IoT Enterprise, and Yocto 4.0 builds.

Applications

  • Industrial Automation & Control: Acts as a powerful PLC or machine vision controller for production lines.
  • IoT Edge Gateway: Aggregates sensor data from Modbus/RS485 networks and processes it locally before cloud transmission.
  • Digital Signage & Kiosks: Drives high-resolution displays with multimedia content in retail or public spaces.
  • Embedded AI & Vision: Runs computer vision models for quality inspection, security monitoring, or robotics.
  • Network Appliances: Serves as a firewall, router, or network-attached storage (NAS) device with 2.5GbE capability.

Technical Specifications

Processor/SoCIntel Core i3-N305
System Memory (RAM)16GB
Onboard Storage64GB eMMC
Power Supply12V DC
Ethernet2.5GbE (2500BASE-T)
USB PortsUSB 3.2 Gen 2 (Type-A & Type-C), USB 2.0
Display OutputsHDMI 2.0b, DisplayPort 1.2/1.4a (via USB-C)
Serial InterfaceRS-232/422/485 via 10-pin header
Camera InterfaceMIPI-CSI via 61-pin FPC connector
SecurityOnboard TPM 2.0
Supported OSUbuntu 22.04 LTS, Windows 10 IoT Enterprise, Yocto 4.0
Dimensions (L x W)101.6 x 101.6 mm
Weight231 g

Frequently Asked Questions

What operating systems are supported by the UP Squared Pro 7000 SBC?

The board is officially validated for Ubuntu 22.04 LTS, Windows 10 IoT Enterprise, and Yocto Project 4.0 (Kirkstone). You can download the necessary board support packages and installation images directly from AAEON's official support website. Ensure you follow the provided flashing guide to prepare a bootable USB drive or write the image to the onboard eMMC storage.

How do I connect serial devices like PLCs or sensors to this board?

Use the 10-pin GPIO header, which provides RS-232, RS-422, and RS-485 serial communication lines. You will need a compatible breakout cable or adapter (not included) to connect standard DB9 or terminal block interfaces. Configure the correct baud rate, parity, and stop bits within your host operating system's serial port settings or through your application code after installing any necessary drivers.

What is the power requirement for this single-board computer?

The UP Squared Pro 7000 requires a stable 12V DC power supply, connected via the board's DC jack. Ensure your power adapter can deliver sufficient current (typically 3A or more) to handle peak processor loads, especially when all USB ports and peripherals are active. Using an under-rated power supply may cause instability or damage to the board.

Package Includes

  • 1 x AAEON UP Squared Pro 7000 Single Board Computer

Additional Information

Weight 0.231 kg
Dimensions 10.16 × 10.16 cm
