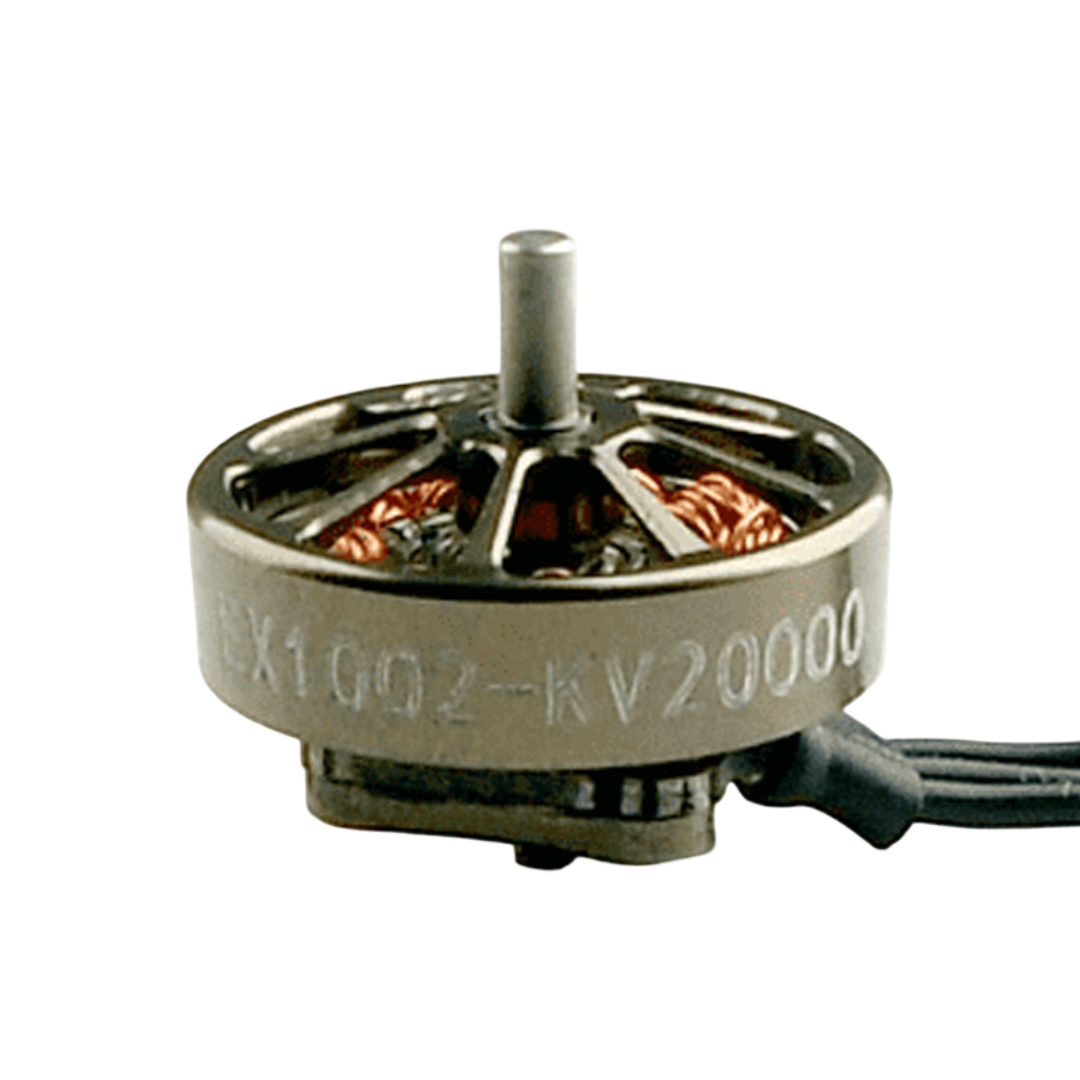

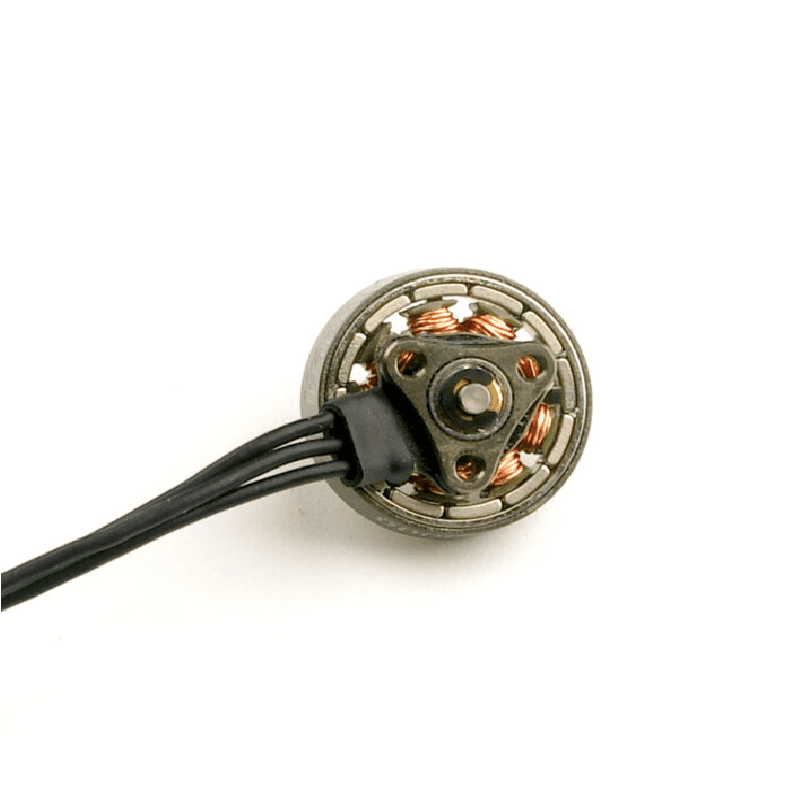

HappyModel EX1002 KV20000 Brushless Motor (CW)
The HappyModel EX1002 is a 20000KV brushless motor engineered for high-speed 1S LiPo micro drone builds, offering an exceptional power-to-weight ratio for agile flight performance in ultra-lightweight FPV platforms.
Features
- Ultra-high 20000KV rating for maximum RPM on 1S LiPo voltage.
- Extremely lightweight 2.45g design for superior power-to-weight ratio and agility.
- Compact 10x2mm stator dimensions (Φ13.5mm x 12.5mm outer size) for tight micro builds.
- Features a durable 1.5mm steel shaft for reliable high-RPM operation.
- Pre-wired with JST1.25mm connector for direct compatibility with 1S micro flight controllers and ESCs.
Out of stock
The HappyModel EX1002 brushless motor is engineered for the demanding performance requirements of modern micro FPV drones. Its 20000KV rating delivers exceptionally high rotational speed, translating to rapid throttle response and high top-end thrust when paired with lightweight 2-inch propellers on 1S power systems.
Constructed with a 10mm diameter stator and a 2mm stator length, the motor achieves an optimal balance between magnetic flux and thermal mass. The robust 1.5mm steel shaft ensures minimal deflection and reliable operation at sustained high RPMs, while the overall compact footprint allows for installation in the most space-constrained micro and nano drone frames.
Additional Information
| Weight | 0.15 kg |
|---|---|
| Dimensions | 12 × 8 × 2 cm |
