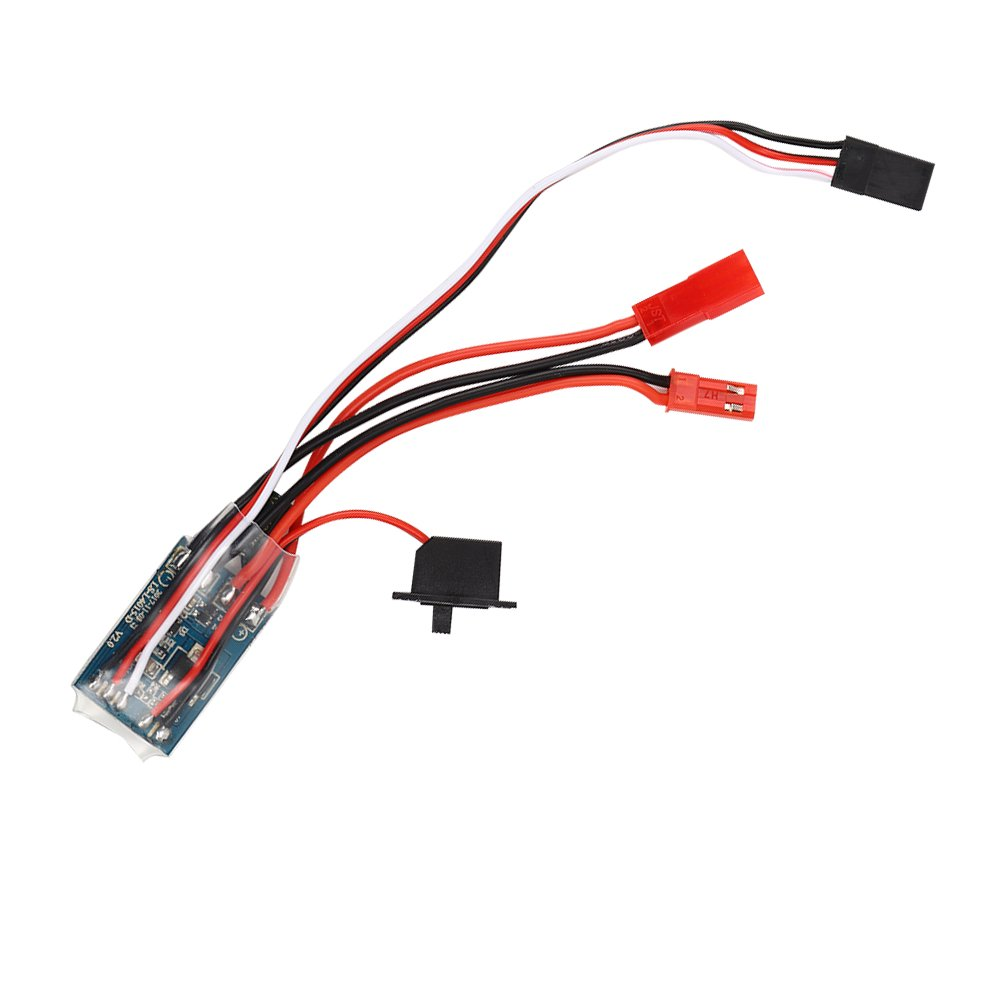

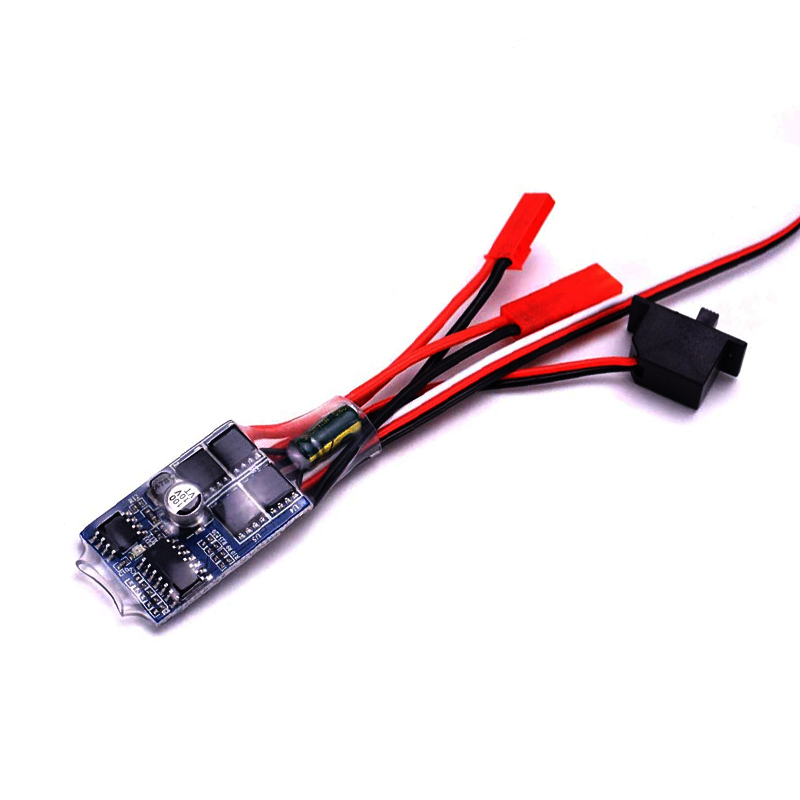

30A Brushed ESC with No Brake
This 30A brushed Electronic Speed Controller (ESC) provides reliable motor control for various RC applications, supporting 4-8V input with a 5.7V/1A UBEC. Designed for 130/180/260/280/380 brush motors, it offers forward and backward functionality without braking, ideal for RC cars, boats, and tanks.
Features
- Delivers 30A continuous forward current and 20A reverse, with a 40A peak for robust performance.
- Integrated 5.7V/1A UBEC efficiently powers receiver and servos.
- Supports 4-8V input, compatible with various battery configurations.
- Designed for 130-380 sized brushed motors in 1/16, 1/18, 1/24 scale RC vehicles.
- Features a no-brake switch for smooth, uninterrupted forward and reverse operation.
Out of stock
The 30A Brushed ESC is engineered to provide precise and reliable power delivery for a range of brushed DC motors in RC models. This controller is specifically designed for applications where smooth, continuous power without a brake function is desired, offering both forward and reverse motor control. Its robust current handling capabilities ensure consistent performance even under demanding conditions.
Equipped with an integrated 5.7V/1A UBEC, this ESC efficiently steps down the battery voltage to power your receiver and servos, simplifying wiring and reducing the need for separate BEC units. It accommodates input voltages from 4V to 8V, making it versatile for various 1S or 2S LiPo setups, or equivalent NiMH/NiCd packs. The compact and durable design ensures it can withstand the rigors of RC car, boat, and tank environments, providing stable operation across different terrains and water conditions.
Additional Information
| Dimensions | 8 × 7 × 1 cm |
|---|
