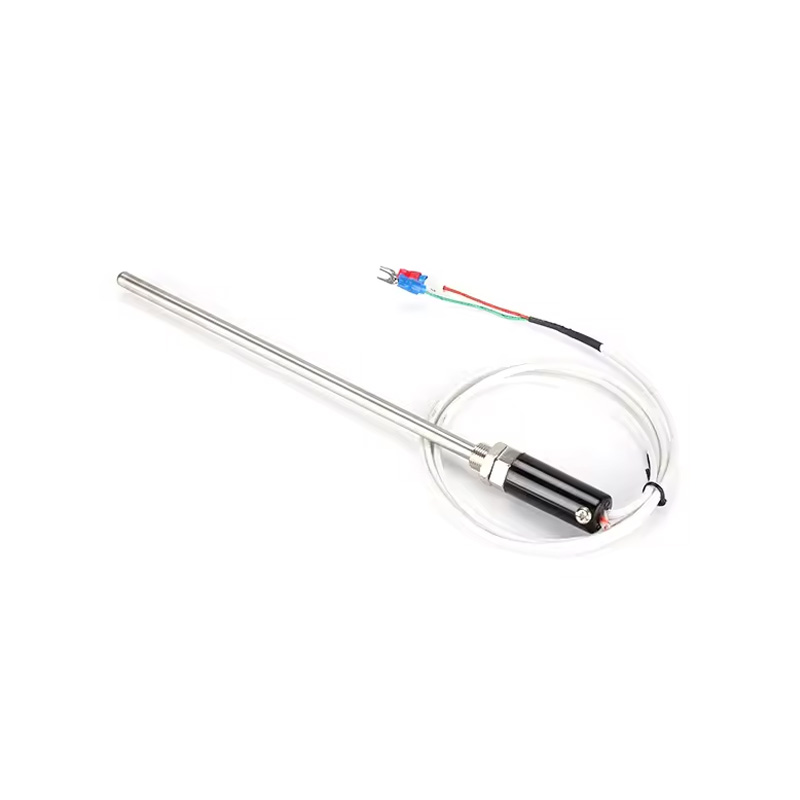

XIQI Electric CG-WRNT-03 K-Type Thermocouple Sensor, M12 Thread, 7x100mm Probe, 1m Cable
The XIQI Electric CG-WRNT-03 is a K-type thermocouple temperature sensor with an M12 threaded connection, designed for direct integration into industrial temperature controllers, PLCs, and data acquisition systems. It provides reliable measurement from 0°C to 600°C for monitoring ovens, furnaces, and process equipment.
Features
- K-Type Thermocouple (T/C) with ±1.5°C accuracy for industrial-grade temperature measurement.
- M12 threaded process connection for secure mounting in panels, vessels, and machinery.
- Stainless steel sheathed probe (7mm diameter x 100mm length) for durability in high-temperature environments.
- Standard 1-meter high-temperature compensated cable for flexible installation.
- Wide operating range from 0°C to 600°C, suitable for furnaces, kilns, and industrial ovens.
Out of stock
The CG-WRNT-03 is a grounded-junction, metal-sheathed thermocouple sensor that generates a millivolt signal proportional to temperature, based on the Seebeck effect. Its robust stainless steel construction and M12 threaded housing provide mechanical strength and environmental sealing for harsh industrial settings.
This sensor is designed for direct connection to temperature controllers, PLC analog input modules, or data loggers equipped for K-type thermocouple input. The integrated 1-meter cable simplifies wiring, while the standardized M12 connection ensures compatibility with a wide range of industrial fittings and enclosures.
Additional Information
| Weight | 0.06 kg |
|---|---|
| Dimensions | 15 × 8 × 2 cm |
