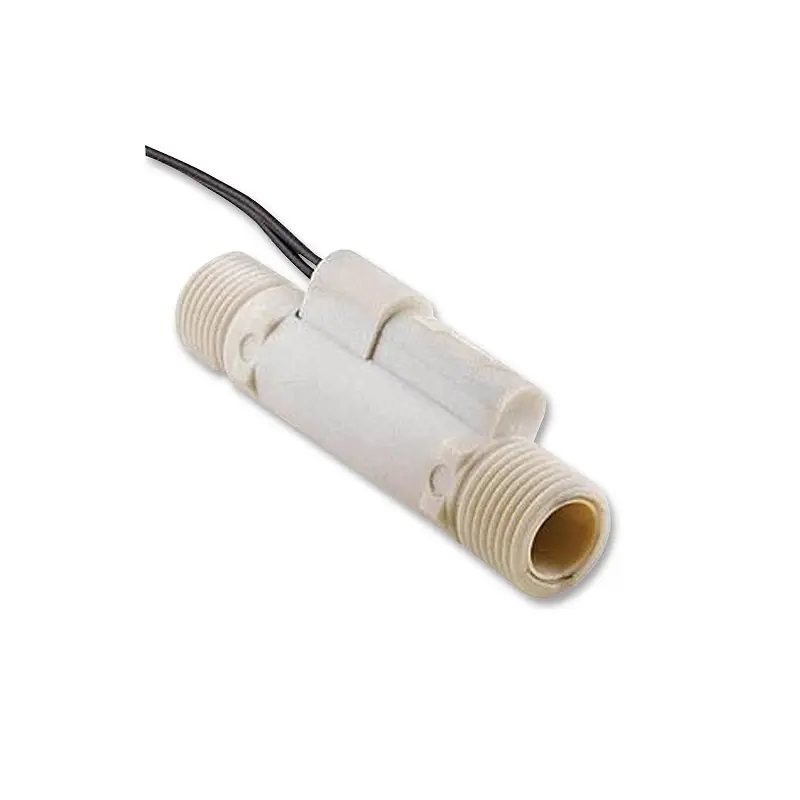

TE Connectivity FCS-03 Flow Switch 0.1–1.1 L/min SPST-NO - 3/8" BSP Thread, PPS Housing
The TE Connectivity FCS-03 is a compact, in-line flow switch sensor designed for detecting liquid or air flow within a 0.1 to 1.1 L/min range. Featuring a SPST-NO reed switch with ruthenium contacts and a rugged PPS housing, it integrates directly into 3/8″ BSP threaded systems for industrial and HVAC applications.
Features
- SPST-NO reed switch with ruthenium contacts for reliable, long-life switching.
- Broad flow rate sensing range from 0.1 to 1.1 liters per minute (L/min).
- Rugged PPS (Polyphenylene Sulfide) housing with UL94-HB flammability rating.
- 3/8-inch BSP male threaded fittings for direct in-line installation.
- Wide operating temperature range from -30°C to +100°C.
Out of stock
The FCS-03 flow switch operates on a reliable reed switch mechanism, which is actuated by the movement of an internal magnet suspended in the fluid stream. This design ensures a hermetically sealed switching element, providing excellent isolation from the media and enabling dependable detection of flow presence or absence with minimal pressure drop.
Engineered for durability, the sensor’s white PPS housing offers high chemical resistance and thermal stability, making it suitable for applications involving hot and cold potable water, as well as air. Its any-axis mounting capability provides flexible installation options in confined spaces within control panels, machinery, or fluidic systems.
Additional Information
| Weight | 0.028 kg |
|---|---|
| Dimensions | 18 × 13 × 1 cm |
