Teltonika TAP100 Industrial Wi-Fi 4 Access Point w/ PoE
Teltonika TAP100 Industrial Wi-Fi 4 Access Point w/ PoE - Image 2
Teltonika TAP100 Industrial Wi-Fi 4 Access Point w/ PoE - Image 3
SKU: IOWC-1919
📋 GST Invoice Available

Teltonika TAP100 Industrial Wi-Fi 4 Access Point w/ PoE

₹5,039.00 (Inclusive of all taxes)
Out of Stock

The Teltonika TAP100 is a PoE-powered industrial wireless access point running RutOS (OpenWrt) for stable, secure Wi-Fi 4 (802.11b/g/n) connectivity in commercial and enterprise environments, supporting up to 100 concurrent users.

Features

  • Industrial-grade Wi-Fi 4 (802.11b/g/n) access point powered by a 580 MHz Mediatek CPU and RutOS (OpenWrt-based) for advanced network management.
  • Simplified installation via 802.3af Power over Ethernet (PoE), enabling single-cable ceiling mounting with the integrated bracket.
  • Enterprise security features including WPA2/WPA3, 802.1x authentication, VLAN separation, captive portal, and hotspot functionality.
  • Designed for harsh environments with an operating temperature range of -40°C to +75°C and UV-stabilized plastic housing.
  • Centralized remote monitoring and firmware updates via Teltonika RMS (Remote Management System) for scalable deployments.

Out of stock

Description

The Teltonika TAP100 Industrial Wireless Access Point delivers robust, low-power Wi-Fi connectivity tailored for small to medium enterprise, retail, and industrial spaces. Built on the RutOS operating system—a hardened, OpenWrt-based Linux distribution—it provides a full-featured networking platform with web UI, SSH, and JSON-RPC API access for deep configuration and automation. Its 802.3af PoE input via a single RJ45 port simplifies deployment, eliminating the need for a separate power outlet and enabling clean ceiling or wall installations.

Engineered for reliability in demanding conditions, the TAP100 features a wide industrial temperature rating and consumes less than 2 watts of power, ensuring stable 2.4 GHz network performance with support for up to 100 simultaneous clients. The integrated Mediatek MIPS processor and 64 MB DDR2 RAM efficiently handle advanced networking tasks like wireless mesh, fast roaming, and secure captive portals, making it an ideal foundational node for scalable commercial IoT and wireless infrastructure projects.

Key Features

  • Industrial-grade Wi-Fi 4 (802.11b/g/n) access point with a 580 MHz Mediatek MIPS CPU and 64 MB DDR2 RAM.
  • Single-cable installation via 802.3af Power over Ethernet (PoE) input on a 10/100 Mbps RJ45 port.
  • RutOS operating system (OpenWrt-based) enabling advanced management via Web UI, SSH, and JSON-RPC API.
  • Enterprise wireless security with WPA2/WPA3, 802.1x authentication, VLAN support, and captive portal.
  • Teltonika RMS (Remote Management System) support for centralized monitoring, configuration, and firmware updates.
  • Robust industrial design with UV-stabilized plastic housing and an operating range of -40°C to +75°C.
  • Integrated ceiling mounting bracket and internal antennas for a clean, low-profile installation.
  • Low power consumption (under 2W max) for energy-efficient, always-on network operation.

Applications

  • Enterprise and office Wi-Fi networks providing stable connectivity for up to 100 concurrent users.
  • Retail and public venue deployments for customer hotspots, captive portals, and POS system connectivity.
  • Industrial IoT (IIoT) environments requiring rugged, low-power wireless access in warehouses and manufacturing floors.
  • Smart building automation as a foundational wireless node for sensor networks and control systems.
  • Remote site networking managed centrally via Teltonika RMS for scalable commercial deployments.

Technical Specifications

CPU / SoCMediatek 580 MHz, MIPS 24KEc
Wireless ProtocolIEEE 802.11b/g/n (Wi-Fi 4)
Frequency Range2.4 GHz (2400 – 2500 MHz)
Ethernet Port1 × RJ45, 10/100 Mbps, 802.3af PoE-IN
Supply Voltage44 – 57 V DC (via PoE)
Operating Power< 2 W (Max)
RAM64 MB DDR2
Operating SystemRutOS (OpenWrt-based Linux)
Management InterfacesWeb UI, RMS, SSH, JSON-RPC API
AntennaInternal
Operating Temperature-40°C to +75°C
Dimensions (Diameter)158 mm
Weight190 g

Frequently Asked Questions

How do I power and install the Teltonika TAP100 Access Point?

The TAP100 is powered exclusively via 802.3af Power over Ethernet (PoE) on its single RJ45 port, requiring a compatible PoE switch or injector providing 44-57V DC. For installation, use the integrated ceiling mounting bracket for a clean, single-cable setup, ensuring the device is placed within range of your network switch and desired coverage area.

What management interfaces are available for configuring the TAP100?

You can manage the TAP100 through its local Web UI accessed via its IP address, via SSH for command-line control, or using the JSON-RPC API for automation. For large-scale deployments, Teltonika's RMS (Remote Management System) provides centralized monitoring, bulk configuration, and over-the-air firmware updates, streamlining network administration.

What security features does this industrial access point support?

The device supports enterprise-grade Wi-Fi security including WPA2 and WPA3 personal/enterprise encryption, 802.1x/RADIUS authentication for user access control, and VLAN tagging for network segmentation. It also includes a built-in captive portal for guest hotspot creation, allowing customizable login pages and access rules for public networks.

Can the TAP100 operate in extreme temperature environments?

Yes, the TAP100 is built for industrial use with an operating temperature range of -40°C to +75°C and a UV-stabilized plastic housing. This makes it suitable for deployment in unheated warehouses, manufacturing floors, or outdoor enclosures where standard commercial access points would fail.

How many wireless clients can connect to the TAP100 simultaneously?

The access point is rated to support up to 100 concurrent Wi-Fi users on the 2.4 GHz band (802.11b/g/n). Its Mediatek 580 MHz CPU and 64 MB RAM efficiently handle this client load alongside advanced features like mesh networking, fast roaming, and traffic filtering for stable performance in busy offices or public spaces.

Package Includes

  • 1 x Teltonika TAP100 Industrial Wireless Access Point
  • 1 x QSG (Quick Start Guide)
  • 1 x Wi-Fi Information sticker
  • 1 x Packaging box

Additional Information

Weight 0.28 kg
Dimensions 36 × 18 × 6 cm

Related Products

Out of Stock

Teltonika TRB145 Industrial RS485 LTE Gateway

14,969.00
Learn More
Out of Stock

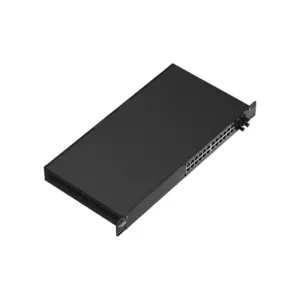

Teltonika SWM282 Managed Industrial Ethernet Switch

48,889.00
Learn More
Out of Stock

Teltonika EBD050 5G HAT for Raspberry Pi 4/5

44,299.00
Learn More
Out of Stock

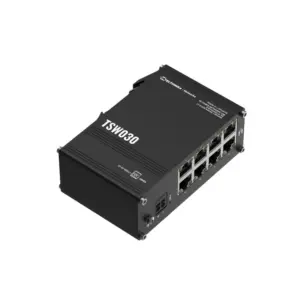

Teltonika TSW030 8-Port Industrial Ethernet Switch 8x100 Mbps

6,109.00
Learn More
Out of Stock

Teltonika TRB256 Industrial LTE Cat-M1 NB-IoT Gateway

15,579.00
Learn More
Out of Stock

Teltonika EBD070 5G RedCap Raspberry Pi HAT

25,209.00
Learn More
Out of Stock

Espressif ESP32-S3-WROOM-1U-N4R8 Wi-Fi & BLE 5.0 Module

399.00
Learn More
Out of Stock

Teltonika DAP142 AP+RS232 Industrial Wireless Access Point

9,929.00
Learn More
Out of Stock

Teltonika RUT271 RedCap 5G Router w/ Dual ETH & Wi-Fi

36,669.00
Learn More
Out of Stock

Raspberry Pi Radio Module 2 (CYW43439)

699.00
Learn More
Out of Stock

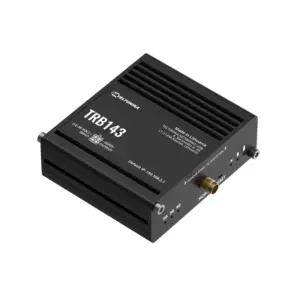

Teltonika TRB143 Industrial M-Bus Cellular Gateway w/ 4G LTE Cat 4
