Sonoff Dual R3 2-Channel Smart WiFi Relay Switch
SKU: IOWC-1528
📋 GST Invoice Available

Sonoff Dual R3 2-Channel Smart WiFi Relay Switch

₹1,629.00 (Inclusive of all taxes)
Out of Stock

The Sonoff Dual R3 is a Wi-Fi smart relay switch with two independent 10A/2200W channels, powered by an ESP8285 MCU for integration with eWeLink, Alexa, Google Home, and Siri for voice and mobile control.

Features

  • Dual independent 10A/2200W relay channels for controlling two high-power AC devices.
  • Powered by ESP8285 Wi-Fi SoC for robust 2.4GHz connectivity and local automation.
  • Integrates with eWeLink app, Alexa, Google Home, and Siri for voice and remote control.
  • Supports scheduling, timer automation, and device sharing with other users.
  • Compact DIN-rail compatible design for easy installation in electrical panels.

Out of stock

Description

The Sonoff Dual R3 is a professional-grade, Wi-Fi-enabled smart relay module designed for home and light industrial automation. Built around the ESP8285 system-on-chip, it provides reliable 2.4GHz Wi-Fi connectivity and two fully independent relay outputs, each capable of switching up to 10A at 220V AC. This allows for the remote control of two separate high-power circuits, such as lighting, appliances, or motors.

Its core functionality is managed through the eWeLink ecosystem, enabling seamless integration with major smart home platforms like Amazon Alexa, Google Assistant, and Apple HomeKit via Siri. The module supports advanced features like scheduling, countdown timers, and scene creation, facilitating complex automation routines without requiring a dedicated hub. The compact form factor and DIN-rail mounting option make it ideal for discreet installation within standard electrical enclosures.

Key Features

  • Dual-channel high-power relay control for independent operation of two AC circuits.
  • ESP8285-based Wi-Fi connectivity enables direct cloud and local network control.
  • Full compatibility with eWeLink app for remote access, scheduling, and scene management.
  • Voice control integration with Amazon Alexa, Google Assistant, and Apple Siri/HomeKit.
  • Supports timer functions, countdowns, and device sharing with family or team members.
  • Safe operation with AC 100-240V input and robust relay isolation.
  • Compact and discreet design suitable for DIN-rail mounting in electrical boxes.

Applications

  • Smart home lighting control for two separate rooms or zones.
  • Remote switching of high-power appliances like heaters, fans, or pumps.
  • Automation of garage doors, motorized gates, or window shades.
  • Light industrial control for machinery or signage on schedules.
  • Integration into DIY home automation systems using eWeLink or local API.

Technical Specifications

Microcontroller/SoCESP8285
Wireless ProtocolWi-Fi 2.4GHz (802.11 b/g/n)
Supply Voltage100-240V AC
Maximum Load per Channel10A / 2200W (Resistive)
Maximum Total Load15A / 3500W
Control InterfaceeWeLink App, Voice Assistants (Alexa, Google, Siri)
Dimensions (LxW)110mm x 50mm
Weight80g

Frequently Asked Questions

What is the maximum load each relay channel on the Sonoff Dual R3 can handle?

Each independent relay channel on the Sonoff Dual R3 is rated for a maximum resistive load of 10 Amps at 220 Volts AC, equating to 2200 Watts. The module's total maximum combined load for both channels operating simultaneously is 15A or 3500W. It is designed for standard incandescent, LED, and appliance loads within these specifications.

How do I connect and set up the Sonoff Dual R3 with my home Wi-Fi and smart assistants?

First, wire the module's AC input (L/N) to your mains power and connect the load wires to the relay output terminals. Download the eWeLink app, create an account, and follow the in-app pairing process to connect the device to your 2.4GHz Wi-Fi network. Once online in the app, you can link your eWeLink account to Amazon Alexa, Google Home, or Apple HomeKit to enable voice control and automation routines through those respective platforms.

Does the Sonoff Dual R3 support local network control or automation without the cloud?

While primary control is facilitated through the eWeLink cloud service for remote access, the ESP8285 chipset is capable of supporting local network control. Advanced users can potentially flash custom firmware like Tasmota or ESPHome via serial connection to enable full local MQTT control, removing cloud dependency and integrating the switch into open-source home automation platforms like Home Assistant for increased privacy and reliability.

Package Includes

  • 1 x Sonoff Dual R3 Smart WiFi Switch

Additional Information

Weight 0.08 kg
Dimensions 11 × 5 cm

Related Products

Out of Stock

Tapo C220 Pan/Tilt Smart AI 2K 4MP QHD Wi-Fi Security Camera

2,599.00
Learn More
Out of Stock

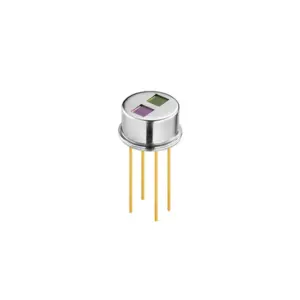

MemsFrontier MPY20-A112T Pyroelectric Infrared Gas Sensor Module - TO-39 Package, Dual Channel

4,369.00
Learn More
Out of Stock

ESP8285 ESP-M3 Ultra-Small Wi-Fi Module Compatible w/ ESP8266

209.00
Learn More
Out of Stock

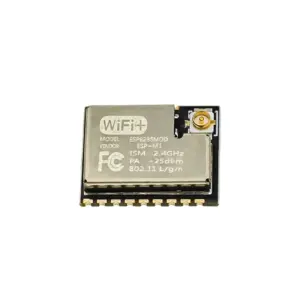

ESP-M1 ESP8285 Serial-to-WiFi Module (Replaces ESP-07/07S)

131.00
Learn More
Out of Stock

SWYAM Home Assistant 30A Smart WiFi Switch | Local Control

1,249.00
Learn More
Out of Stock

DOIT ESP-M3 Ultra-Small ESP8285 Serial WiFi Module

209.00
Learn More
Out of Stock

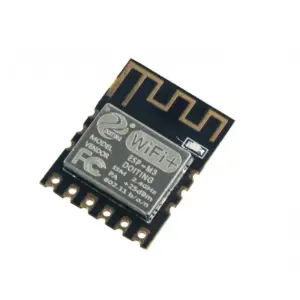

ESP8285 ESP-M3 Ultra-Small WiFi Module w/ ESP8266 AT Firmware

259.00
Learn More
Out of Stock

Tapo TP-Link TC71 Pan/Tilt Home Security Wi-Fi Camera

1,729.00
Learn More
Out of Stock

HGLRC ELRS 2.4G Receiver

1,639.00
Learn More
Out of Stock

Sonoff NSPanel Pro Gen2 Smart Control Panel w/ Dual Relay, Matter Hub & Zigbee 3.0

25,719.00
Learn More
Out of Stock

Sonoff MINI-ZBD Zigbee 3.0 Dry Contact Smart Relay Switch

2,519.00
Learn More
Out of Stock

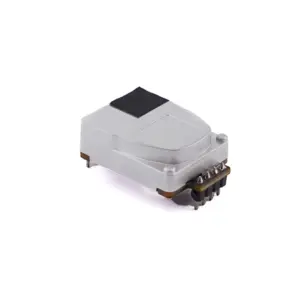

MemsFrontier MTP80-A Dual Channel CO2 Sensor Module - NDIR, UART/I2C/PWM Output
