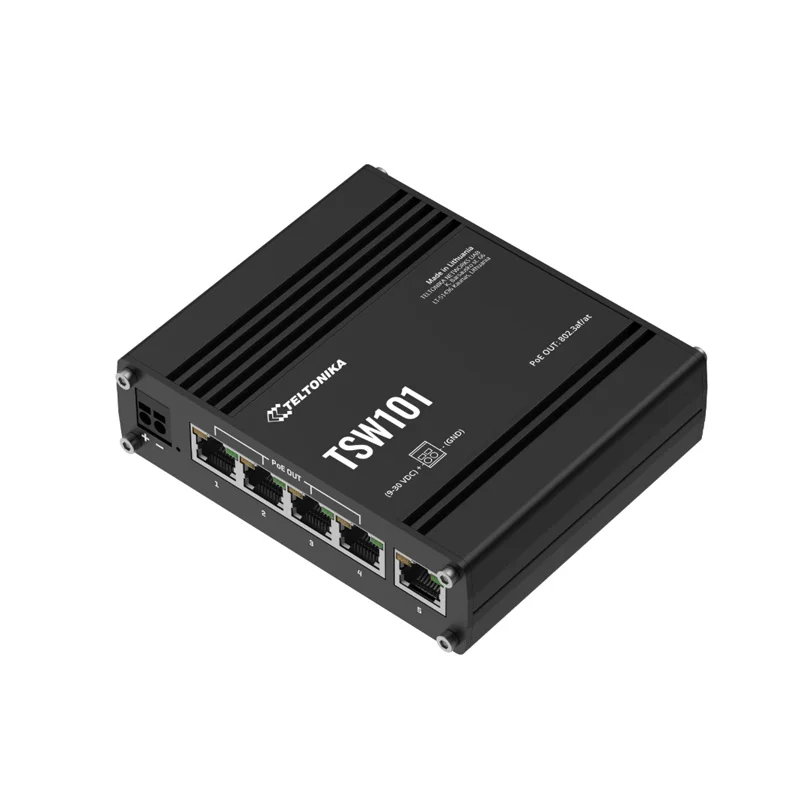

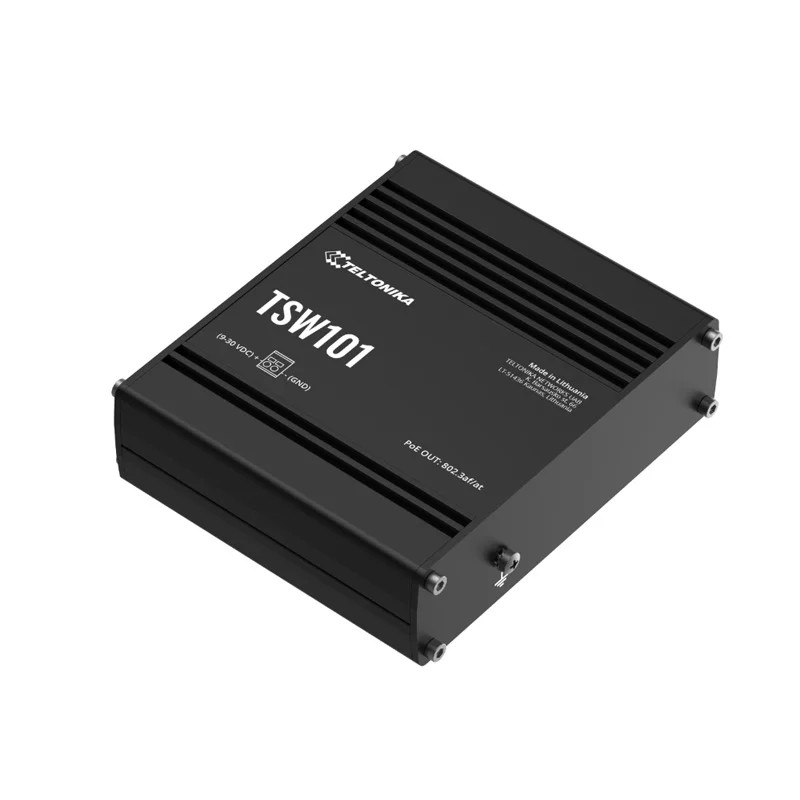

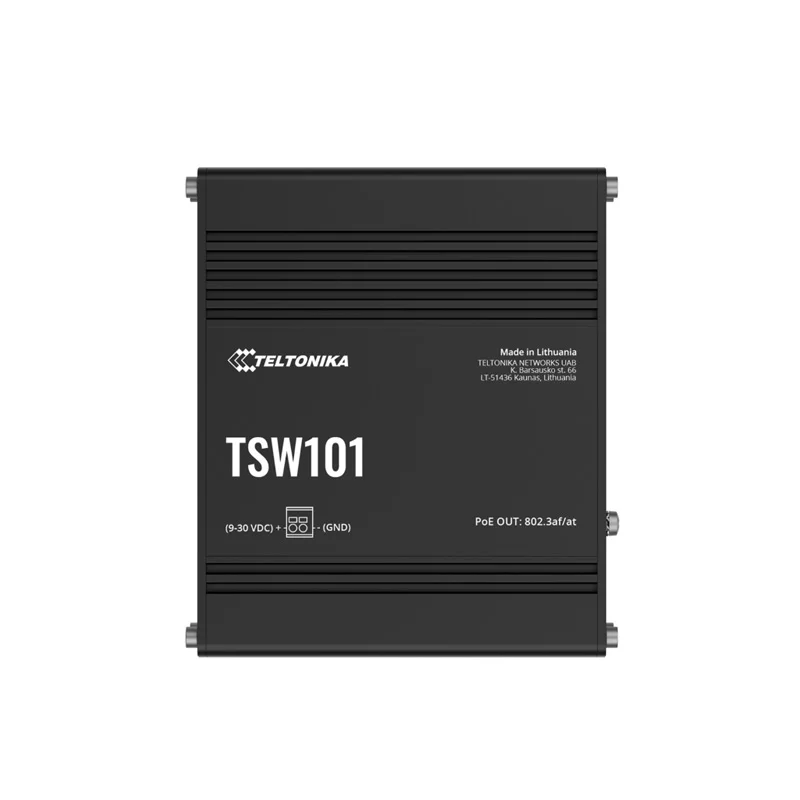

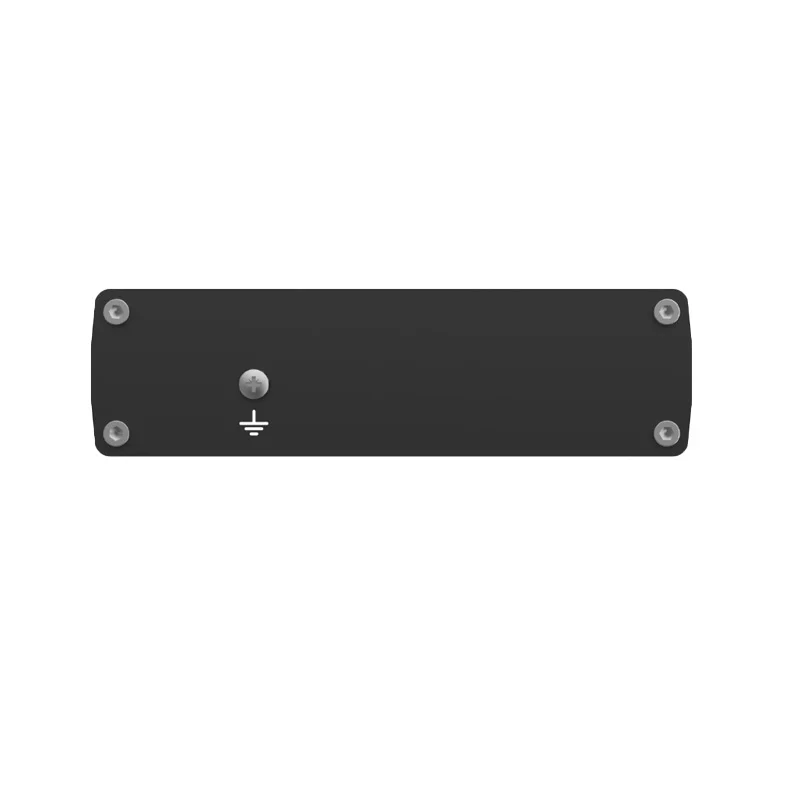

Teltonika TSW101 Industrial 5-Port Gigabit PoE+ Switch

The Teltonika TSW101 provides a total PoE budget of 60 Watts, managed across its four IEEE 802.3af/at compliant PoE+ ports. The switch intelligently allocates power to connected devices such as IP cameras, wireless access points, or sensors, with a per-port limit defined by the PoE standard. The internal power management ensures stable operation even when drawing the full 60W, which is supplied via the 9-30 VDC input from a vehicle battery or industrial power source. Always verify the power requirements of your connected devices against the total budget.

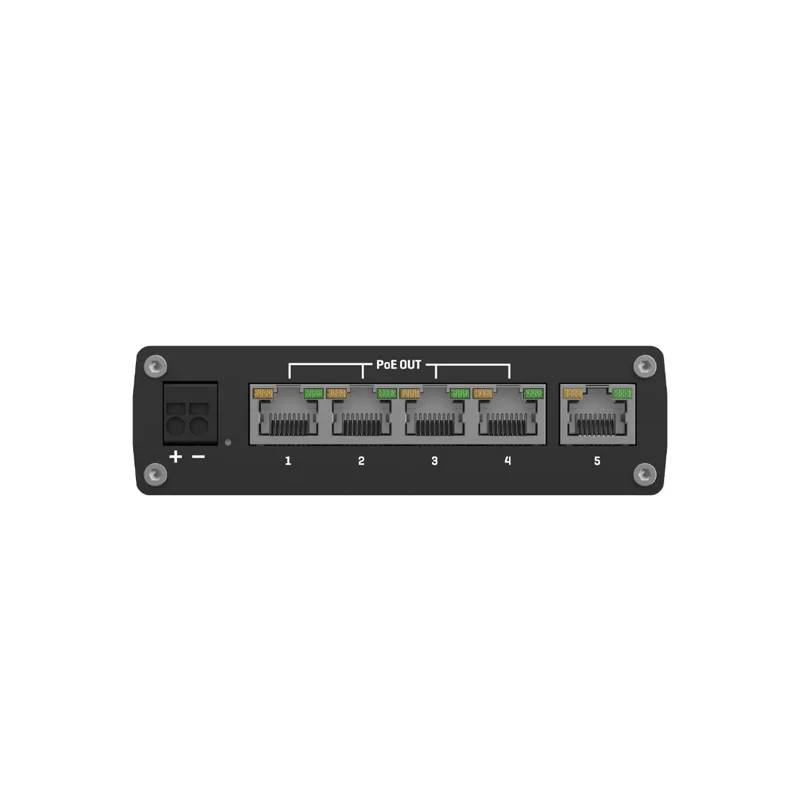

Yes, the Teltonika TSW101 is specifically designed for direct connection to 12V or 24V vehicle battery systems. Its wide-range 9-30 VDC input accepts power through the integrated 2-pin industrial DC socket, eliminating the need for an external AC/DC power adapter. This plug-and-play feature simplifies installation in trucks, buses, or mobile command centers. Ensure your battery system provides stable voltage within the specified range and use appropriate gauge wiring to handle the potential maximum current draw when all PoE ports are active.

The TSW101 offers three primary mounting methods for flexible deployment. It can be secured to a standard DIN rail using an appropriate clip, attached directly to a wall via its integrated mounting holes, or placed on a flat surface. The compact aluminum housing and IP30 rating make it suitable for control panels, equipment racks, or vehicle cabins. For vibration-prone mobile applications, using all provided screw points is recommended to ensure a secure and reliable mechanical connection over the long term.

No, the Teltonika TSW101 operates as an unmanaged, plug-and-play Layer 2 Ethernet switch. It requires zero software configuration for basic functionality, automatically negotiating link speed (10/100/1000 Mbps) and duplex settings with connected devices. The PoE+ ports automatically detect and classify compliant powered devices (PDs) to deliver the appropriate power level. For advanced features like VLANs or QoS, you would need a managed switch; the TSW101 is designed for simplicity and reliability in harsh, hands-off environments.
