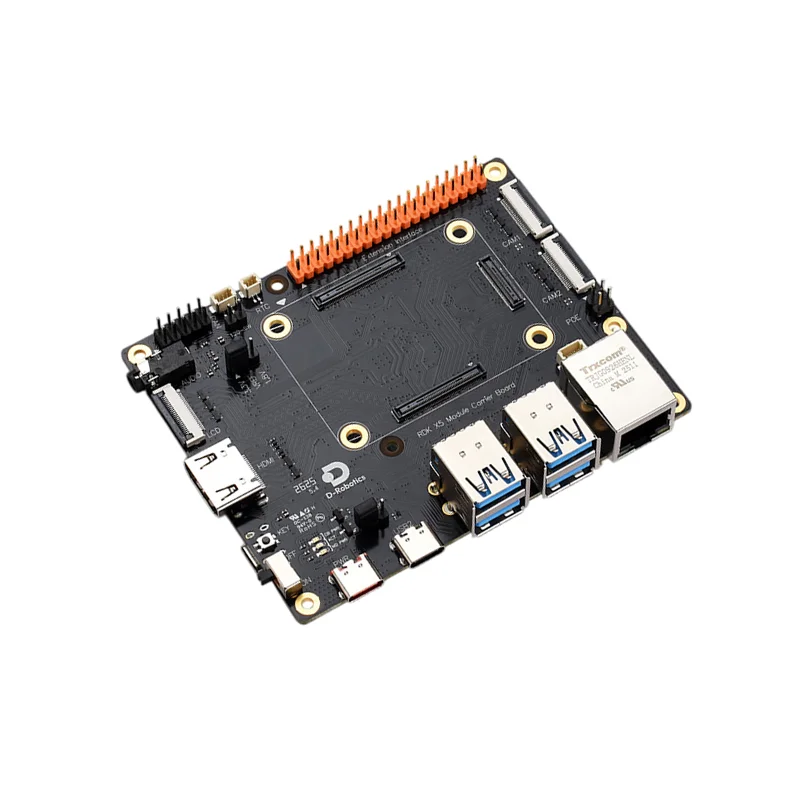

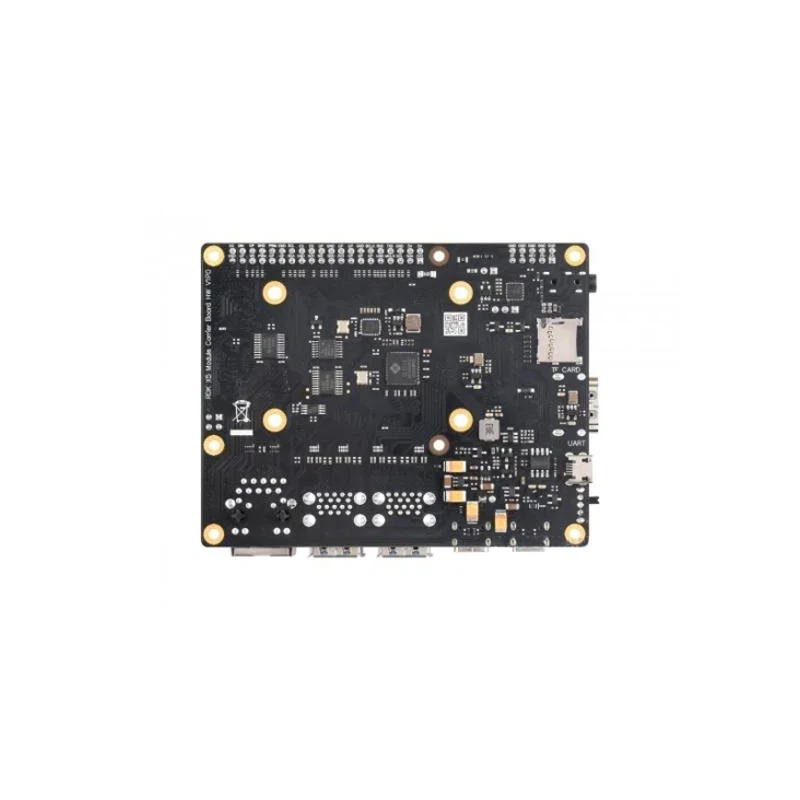

D-Robotics RDK X5 MD Carrier Board
The D-Robotics RDK X5 MD Carrier Board is a development platform providing comprehensive I/O expansion for RDK X5 compute modules. It integrates high-speed USB 3.0, Gigabit Ethernet, dual MIPI CSI camera inputs, and HDMI/MIPI DSI display outputs, ideal for AIoT, computer vision, and embedded system prototyping.
Features
- Universal socket for seamless integration with all RDK X5 series compute modules.
- High-bandwidth I/O with 4x USB 3.0 host ports, Gigabit Ethernet, and a dedicated USB 2.0 debug port.
- Dual 4-lane MIPI CSI interfaces for connecting high-resolution cameras and vision sensors.
- Versatile display outputs via HDMI and MIPI DSI ports for multimedia and HMI applications.
- Extensive expansion via 40-pin GPIO header, CAN, RTC, PoE header, and microSD slot.
Out of stock
The D-Robotics RDK X5 MD Carrier Board serves as a robust foundation for developing advanced embedded systems based on the RDK X5 module. It translates the module’s high-speed interfaces into accessible physical connectors, enabling rapid prototyping of AI inference, IoT gateways, and edge computing devices. The board’s architecture prioritizes data throughput with multiple USB 3.0 ports and a Gigabit Ethernet controller, ensuring minimal bottleneck for sensor data and network traffic.
Designed for vision-centric applications, the dual MIPI CSI-2 camera inputs support concurrent streaming from high-resolution sensors, which is essential for stereo vision, surveillance, or robotics. The inclusion of HDMI and MIPI DSI provides flexible display connectivity for dashboards or user interfaces. Additional features like the PoE module header, RTC battery backup, and 40-pin GPIO expander offer system integrators the flexibility to add power-over-Ethernet, maintain timekeeping, and interface with a wide array of digital and analog peripherals.
Additional Information
| Weight | 0.12 kg |
|---|---|
| Dimensions | 7.9 × 9.9 cm |
