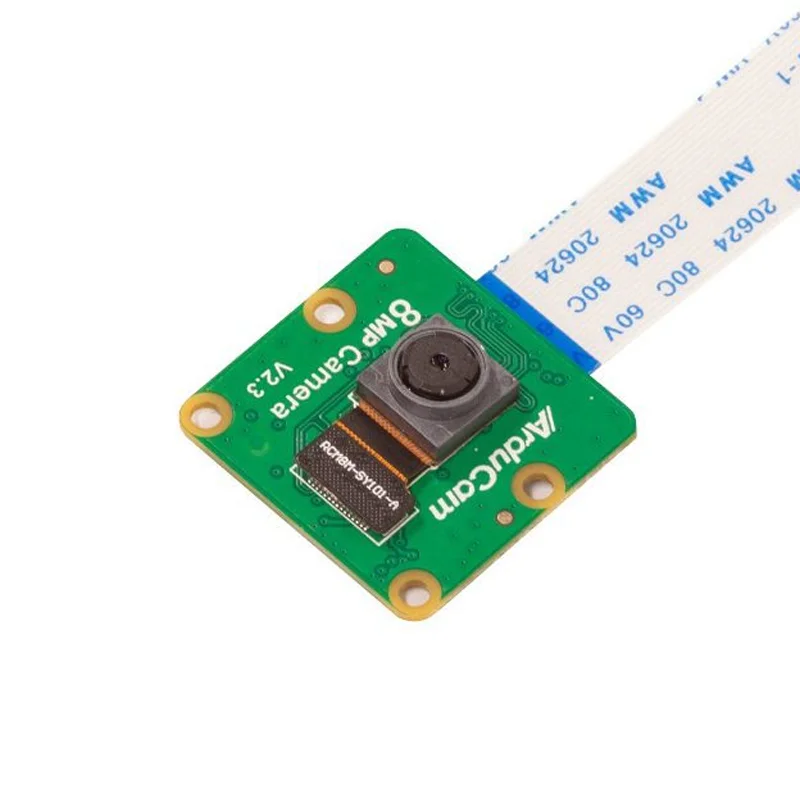

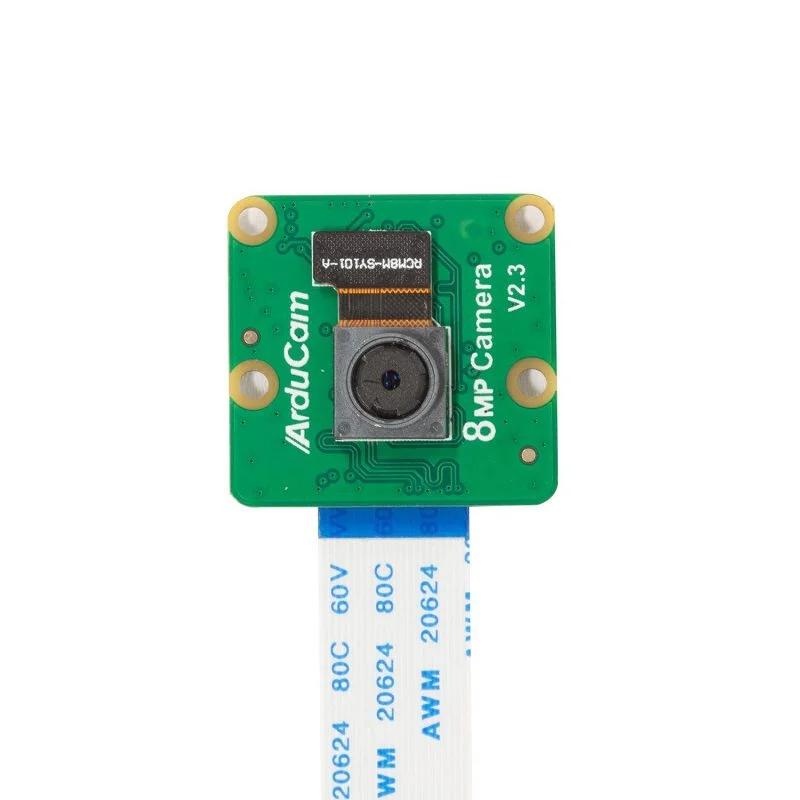

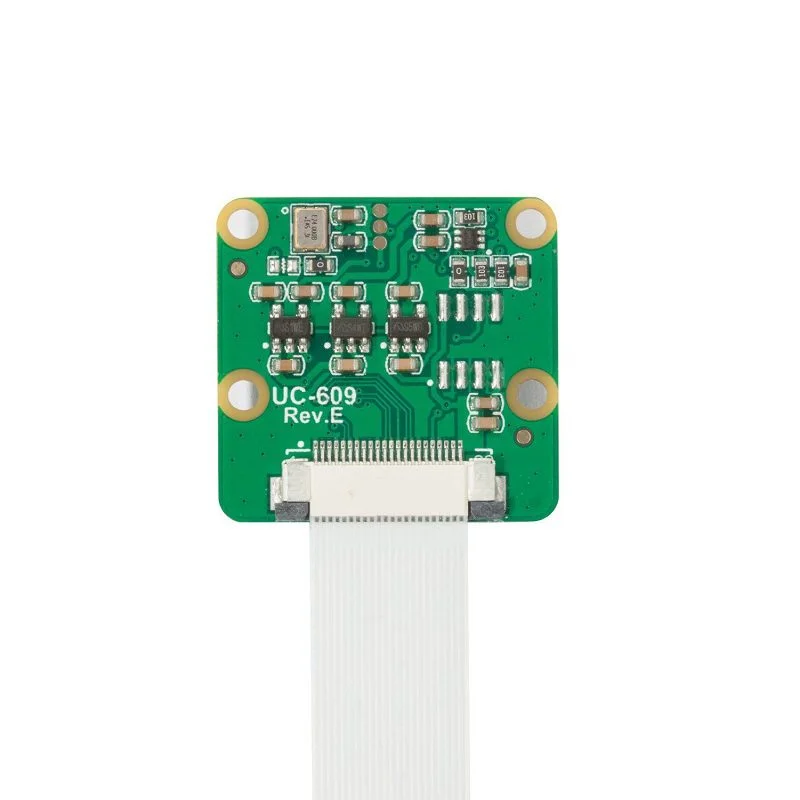

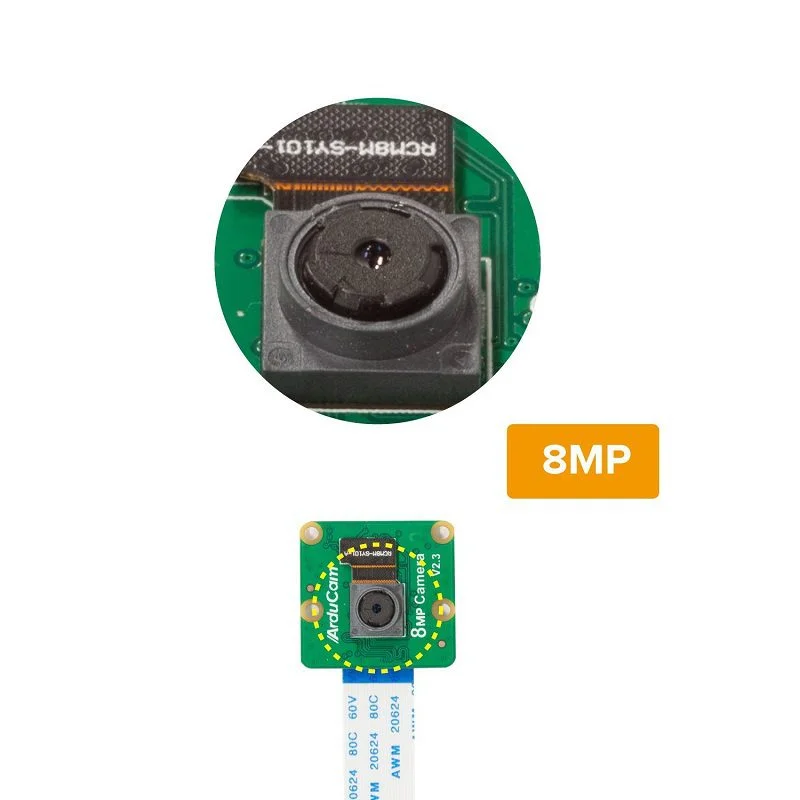

Arducam B0191 IMX219 Fixed Focus Camera Module for Jetson Nano, Raspberry Pi CM4
The Arducam B0191 is an 8MP fixed-focus camera module featuring the Sony IMX219 sensor, designed for NVIDIA Jetson Nano/Orin and Raspberry Pi Compute Module platforms. It connects via a 2-lane MIPI CSI-2 interface for high-speed image capture in embedded vision and AI applications.
Features
- Equipped with a Sony 8MP IMX219 sensor for high-resolution 3264×2448 image capture.
- Fixed-focus lens with a 3.04mm focal length and a wide 62.2° diagonal field of view.
- MIPI CSI-2 2-lane interface ensures seamless plug-and-play compatibility with NVIDIA Jetson Nano, Orin, and Raspberry Pi Compute Module 4/3+.
- Compact 25x24mm form factor ideal for space-constrained drones, robotics, and embedded systems.
- Focus distance from 200mm to infinity, optimized for general-purpose computer vision tasks.
Out of stock
The Arducam B0191 camera module integrates the proven Sony IMX219 8-megapixel sensor into a compact, fixed-focus package tailored for embedded AI platforms. Its primary design target is the NVIDIA Jetson ecosystem, including the Nano and newer Orin series, where it leverages the native MIPI CSI-2 interface for low-latency, high-bandwidth video streaming directly to the GPU for accelerated vision processing.
With a 1/4-inch optical format and an F.NO of 2.0, the module provides a balanced performance suitable for a variety of lighting conditions. The fixed-focus lens eliminates the need for calibration, simplifying integration into final products like autonomous robots or UAVs. Its compatibility extends to ARM-based systems like the Raspberry Pi Compute Module, making it a versatile choice for developers across different hardware architectures.
Additional Information
| Weight | 0.005 kg |
|---|---|
| Dimensions | 2.5 × 2.4 cm |
