Arduino PLC Starter Kit AKX00051 (No Power Adapter)
Arduino PLC Starter Kit AKX00051 (No Power Adapter) - Image 2
Arduino PLC Starter Kit AKX00051 (No Power Adapter) - Image 3
Arduino PLC Starter Kit AKX00051 (No Power Adapter) - Image 4
Arduino PLC Starter Kit AKX00051 (No Power Adapter) - Image 5
SKU: SBCD-0711
📋 GST Invoice Available

Arduino PLC Starter Kit AKX00051 (No Power Adapter)

₹40,339.00 (Inclusive of all taxes)
Out of Stock

The Arduino PLC Starter Kit AKX00051 offers a complete industrial automation training and prototyping solution, built around the Arduino Opta WiFi micro PLC. It supports IEC 61131-3 programming languages and provides extensive industrial connectivity for seamless integration into Industry 4.0 applications.

Features

  • Industrial PLC Platform: Arduino Opta WiFi automation controller for robust control.
  • IEC 61131-3 Support: Program using standard industrial PLC languages (Ladder, FBD, ST, SFC, IL).
  • Industrial Connectivity: Features Ethernet, Wi-Fi, RS-485, and Bluetooth LE for diverse applications.
  • Configurable I/O: Equipped with 8 inputs and 4x10A relay outputs for versatile control.
  • Training Ready: Includes DIN Simul8 & DIN Celsius simulation modules for hands-on learning.

Out of stock

Description

The Official Arduino PLC Starter Kit AKX00051 is a comprehensive industrial automation training and prototyping solution, meticulously engineered for students, educators, and automation professionals. Centered around the robust Arduino Opta WiFi micro PLC, this kit delivers practical, hands-on experience in PLC programming, industrial communication protocols, and modern Industry 4.0 applications.

This kit provides full support for all IEC 61131-3 programming languages, ensuring compatibility with industry standards. It integrates effortlessly with both the Arduino PLC IDE and Arduino IDE 2, streamlining the development workflow. With included simulation modules like DIN Simul8 and DIN Celsius, along with necessary jumper cables and a premium USB Type-C cable, users can rapidly develop and rigorously test their automation projects.

Key Features

  • Complete Arduino PLC learning kit for comprehensive industrial automation training and projects.
  • Utilizes the Arduino Opta WiFi as the core controller, a reliable micro PLC for industrial environments.
  • Supports IEC 61131-3 programming languages: Ladder, Function Block Diagram (FBD), Structured Text (ST), Sequential Function Chart (SFC), and Instruction List (IL).
  • Compatible with both Arduino IDE and Arduino PLC IDE for flexible and accessible programming and development.
  • Offers extensive industrial IoT connectivity including Wi-Fi, Bluetooth LE, Ethernet, and RS-485.
  • Includes DIN Simul8 and DIN Celsius, specialized modules for practical, hands-on simulation.
  • Designed to be Industry 4.0 ready, making it suitable for developing and testing smart automation systems.
  • Comes with a USB Type-C cable and jumper wires, providing a ready-to-use setup for immediate prototyping.

Applications

  • Industrial automation training and education for students and professionals.
  • Prototyping and developing PLC-based control systems for light industrial applications.
  • Learning and implementing IEC 61131-3 standard programming languages.
  • Developing Industry 4.0 solutions, including smart factory and IoT gateway projects.
  • Simulation and testing of HVAC and process control logic using included modules.
  • Building embedded control systems requiring robust connectivity and configurable I/O.

Technical Specifications

Item TypeOfficial Arduino PLC Starter Kit
Model NumberAKX00051
PLC ControllerArduino Opta WiFi
ProcessorST STM32H747XI Dual-Core Processor (Cortex-M7 + Cortex-M4)
RAM1 MB
Flash Memory2 MB
External Flash16 MB QSPI Flash
Inputs8 Configurable Analog/Digital Inputs
Outputs4 Normally Open Relay Outputs
Relay RatingUp to 10A per Relay Channel
Communication InterfacesEthernet, Wi-Fi 2.4GHz, Bluetooth® LE, RS-485
USB InterfaceUSB Type-C
Power AdapterNot Included
Operating Voltage12V to 24V DC

Frequently Asked Questions

What processor powers the Arduino Opta WiFi in this kit?

The Arduino Opta WiFi in this kit is powered by an STMicroelectronics STM32H747XI dual-core processor, which combines a Cortex-M7 and a Cortex-M4. This powerful architecture enables robust industrial control, efficient execution of complex PLC logic, and streamlined communication management for demanding automation tasks.

Which industrial programming standards does the Arduino PLC Starter Kit support?

The Arduino PLC Starter Kit fully supports the IEC 61131-3 standard for industrial control programming. This includes various languages such as Ladder Diagram (LD), Function Block Diagram (FBD), Structured Text (ST), Instruction List (IL), and Sequential Function Chart (SFC), facilitating professional-grade PLC development.

What communication interfaces are available on the Arduino Opta WiFi?

The Arduino Opta WiFi offers a comprehensive suite of industrial communication protocols. It features Ethernet for reliable wired connections, Wi-Fi 2.4GHz and Bluetooth LE for flexible wireless IoT integration, and RS-485 for robust serial industrial networking. This ensures broad compatibility with existing industrial infrastructures.

Can this kit be used for real-world industrial applications?

Yes, the Arduino Opta WiFi is an industrial-grade micro PLC, making it suitable for prototyping and deployment in light industrial automation tasks. Its configurable inputs, 10A relay outputs, and robust communication features allow it to be integrated into various control scenarios, serving as a reliable embedded controller.

What is the power supply requirement for the Arduino Opta WiFi PLC?

The Arduino Opta WiFi operates on a 12V to 24V DC power supply. It is important to note that this starter kit explicitly does not include a power adapter. Users will need to acquire a compatible industrial-grade DC power supply separately to operate the PLC and associated modules effectively.

Package Includes

  • 1 x Arduino Opta WiFi Micro PLC
  • 1 x Arduino DIN Simul8 Industrial Simulation Module
  • 1 x Arduino DIN Celsius Temperature Simulation Module
  • 1 x Arduino USB Type-C Cable (TPX00094), 1 Meter
  • 1 x Connecting Wire Set

Additional Information

Weight 0.932 kg
Dimensions 18 × 30 × 11 cm

Related Products

Out of Stock

Hanyoung Nux P501O ZCN Plunger Type Limit Switch

629.00
Learn More
Out of Stock

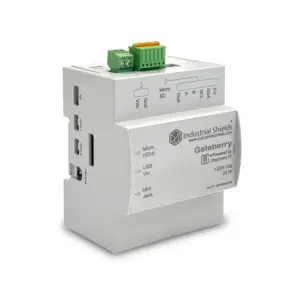

Industrial Shields GateBerry Raspberry Pi-Based Industrial Gateway

32,469.00
Learn More
Out of Stock

WIN-PIHAT-8AI 8-Ch Analog Input HAT for Raspberry Pi

8,390.98
Learn More
Out of Stock

Hanyoung Nux LS803RN Roller Arm Mini Limit Switch

549.00
Learn More
Out of Stock

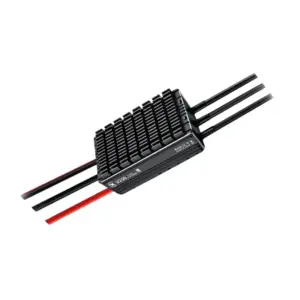

XC ESC ESC 12S 200A 48V High-Power Brushless Motor Controller

30,979.00
Learn More
Out of Stock

TJA1050 CAN Bus Transceiver Module

128.00
Learn More
Out of Stock

L701 Microcomputer Programmable Timer Switch AC 250V 16A LCD Display

419.00
Learn More
Out of Stock

Digilent MCC USB-1024LS 24-Channel Digital I/O USB Device

14,399.00
Learn More
Out of Stock

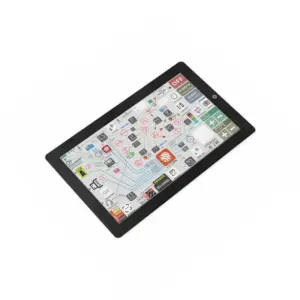

M5Stack Tab5 IoT Development Kit (ESP32-P4) w/ 5-Inch Touchscreen
