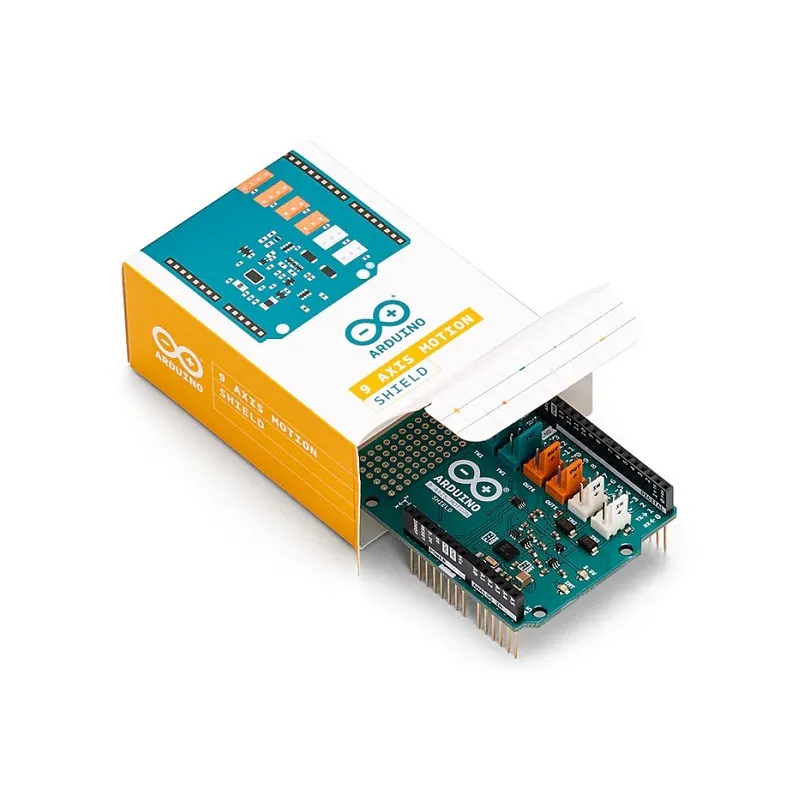

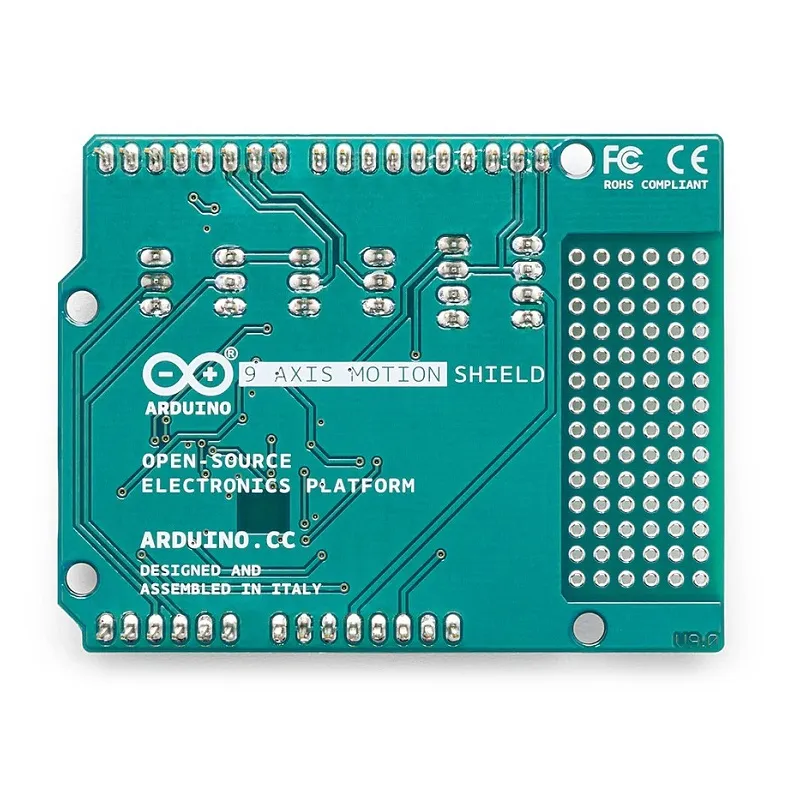

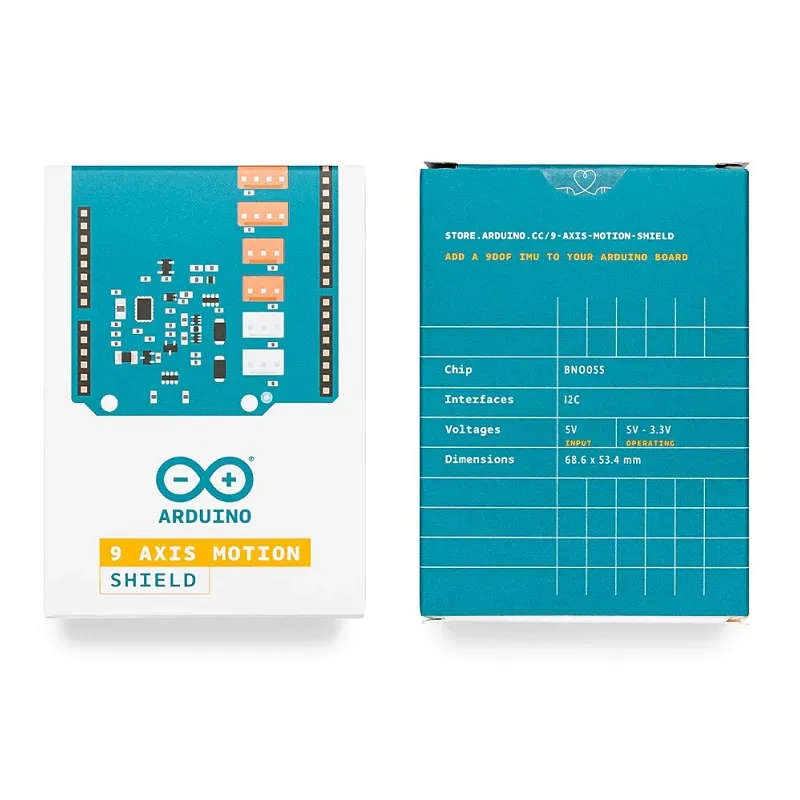

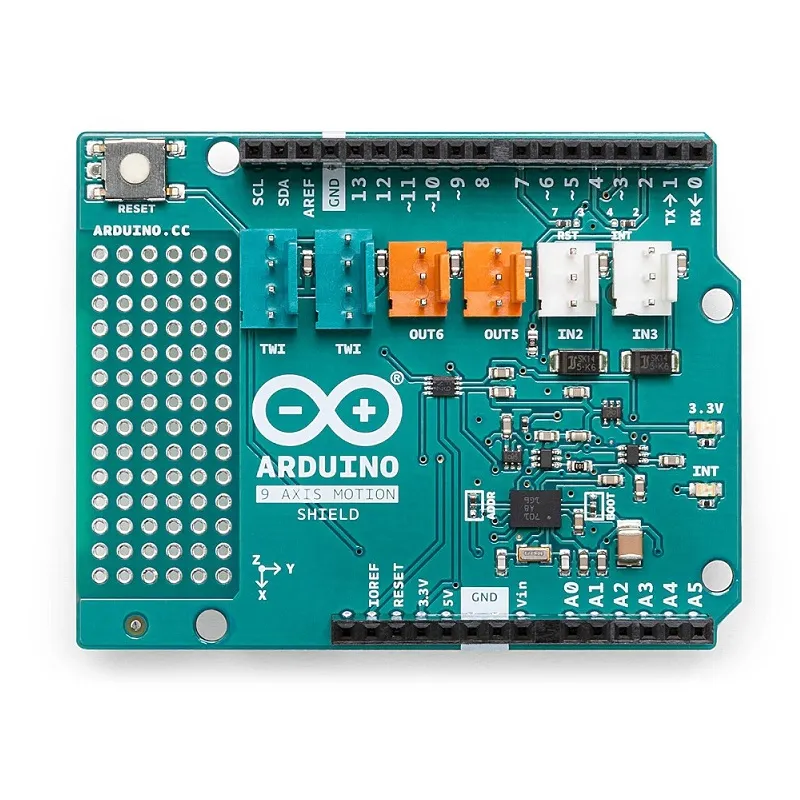

Arduino 9 Axis Motion Shield A000070
The Official Arduino 9 Axis Motion Shield (A000070) provides precise 3D motion sensing for Arduino UNO boards via I2C, integrating a Bosch BNO055 absolute orientation sensor for comprehensive data acquisition. It offers a robust solution for projects requiring accurate orientation, acceleration, and magnetic field measurements.
Features
- Integrates Bosch Sensortec BNO055 absolute orientation sensor.
- Features triaxial 14-bit accelerometer and 16-bit gyroscope.
- Includes a triaxial geomagnetic sensor with 32-bit microcontroller.
- Embedded with BSX3.0 FusionLib software for sensor fusion.
- Communicates via I2C for straightforward Arduino UNO compatibility.
Out of stock
The Official Arduino 9 Axis Motion Shield is engineered around the advanced BNO055 absolute orientation sensor from Bosch Sensortec GmbH. This sophisticated sensor package integrates a triaxial 14-bit accelerometer, a triaxial 16-bit gyroscope capable of a ±2000 degrees per second range, and a triaxial geomagnetic sensor. Powering the sensor fusion capabilities is a dedicated 32-bit microcontroller, which runs Bosch’s proprietary BSX3.0 FusionLib software.
This shield empowers Arduino projects with real-time, high-precision motion data. Developers can access three-dimensional acceleration, yaw rate, and magnetic field strength data, each measured along three perpendicular axes. The integrated sensor fusion library significantly simplifies the process of obtaining stable and reliable orientation data, making it an ideal choice for robotics, navigation, and human-computer interaction applications.
Additional Information
| Weight | 0.042 kg |
|---|---|
| Dimensions | 8.5 × 6 × 4 cm |
