PWM Generator Module for Stepper Motor Driver
This versatile PWM Generator Module provides precise signal control for stepper motor drivers, featuring a 12VDC operating voltage and three selectable frequency ranges. It also incorporates essential forward and reverse functionality, enabling flexible motor direction control for various applications.
Features
- Generates precise PWM signals for stepper motor drivers.
- Integrated controls for forward and reverse motor rotation.
- Adjustable motor speed via an onboard potentiometer.
- Three selectable frequency ranges for broad compatibility.
- Operates reliably on a 12VDC power supply.
Out of stock

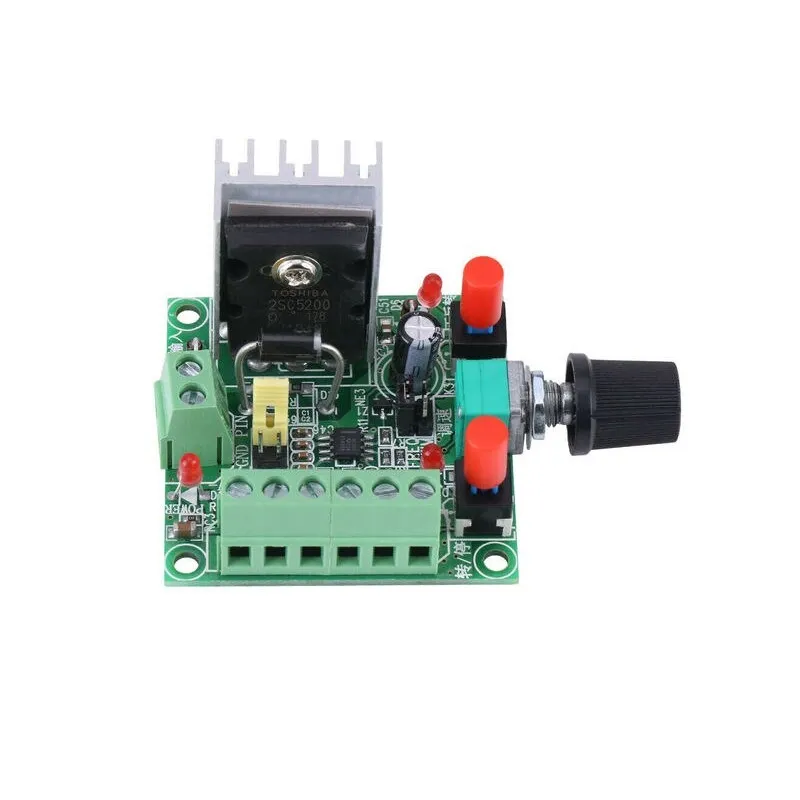

The PWM Generator Module is engineered to provide robust and flexible control for stepper motor drivers. Based on the reliable TOSHIBA 2SC5200, this board efficiently generates the necessary PWM signals to drive stepper motors, making it an ideal component for a wide range of digital fabrication and automation projects. Its design focuses on ease of use and precise control, ensuring consistent motor performance.

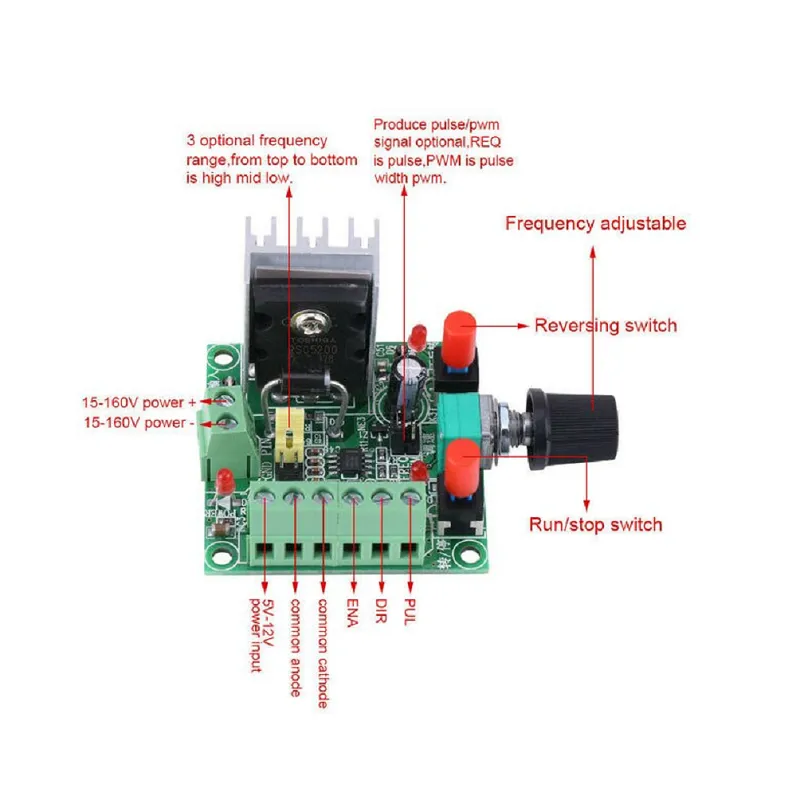

Users can effortlessly manage motor direction with dedicated onboard buttons for both clockwise (CW) and counter-clockwise (CCW) rotation. Furthermore, the module allows for continuous speed variation through an integrated potentiometer, offering fine-tuned control over motor RPM. For enhanced adaptability, the board features selectable high and low-frequency signal ranges via an onboard jumper, ensuring optimal signal generation for different stepper motor types and application requirements. It’s a critical component for those seeking reliable, adjustable stepper motor control.
Additional Information
| Weight | 0.047 kg |
|---|---|
| Dimensions | 6 × 8 × 4 cm |
