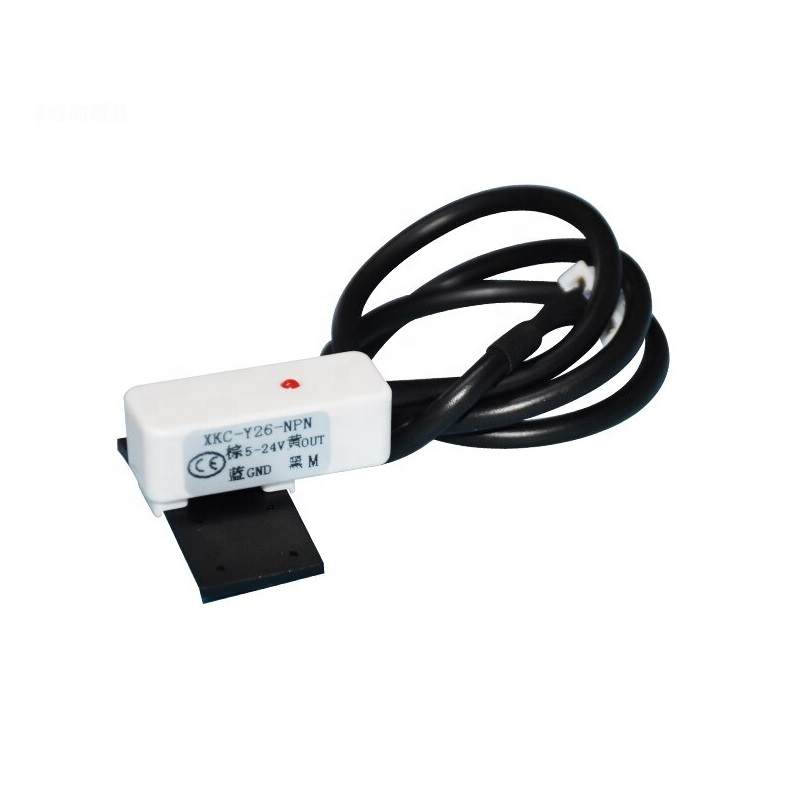

XKC-Y26 NPN 24V Intelligent Non-Contact Liquid Level Sensor 50CM
The XKC-Y26 NPN is a 24V DC intelligent non-contact liquid level sensor designed for detecting liquid levels through non-metallic container walls. It features a 50cm cable, NPN open-collector output, and is compatible with industrial PLCs and 24V control systems for applications like water towers, tanks, and automated fluid handling.
Features
- Non-contact capacitive sensing through non-metallic container walls (e.g., plastic, glass).
- 24V DC operating voltage with NPN open-collector output (1-100mA max).
- Integrated buzzer alarm output for direct audible indication.

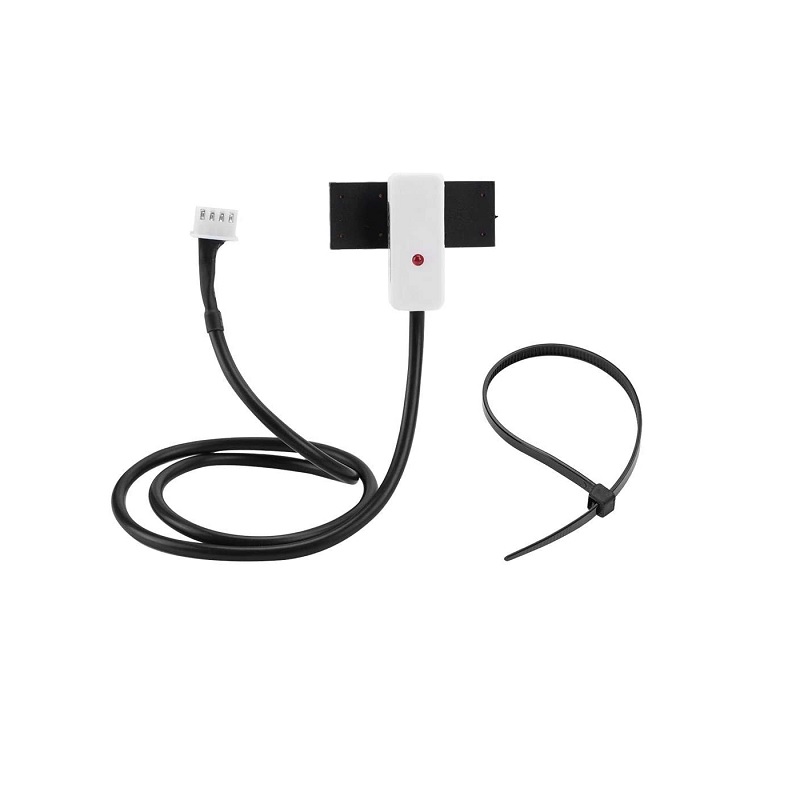

- 50cm pre-wired cable with brown (24V+), blue (GND), yellow (buzzer-), and black (signal) wires.
- Robust design for detecting various liquids, including acids, alkalis, and toxic substances.
Out of stock

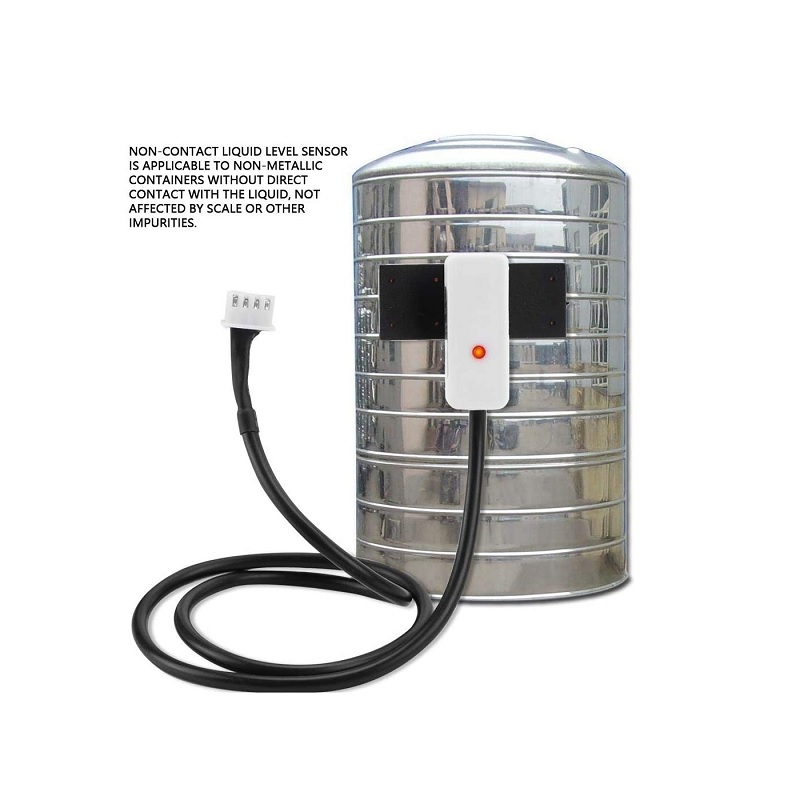

The XKC-Y26 NPN sensor operates on a capacitive sensing principle, detecting changes in dielectric constant caused by the presence of liquid behind a non-metallic barrier. Its advanced signal processing chip ensures stable performance, making it immune to container wall thickness and scale buildup. The sensor is installed externally on the container, eliminating the need for drilling or direct liquid contact.
Designed for industrial environments, it features a wide operating temperature range of 0 to 80°C and can function in high-humidity conditions. The 500ms response time provides reliable feedback for level control and alarm systems in automated processes, HVAC, water treatment, and smart appliance applications.
Additional Information
| Weight | 0.02 kg |
|---|---|
| Dimensions | 6 × 4 × 2 cm |
