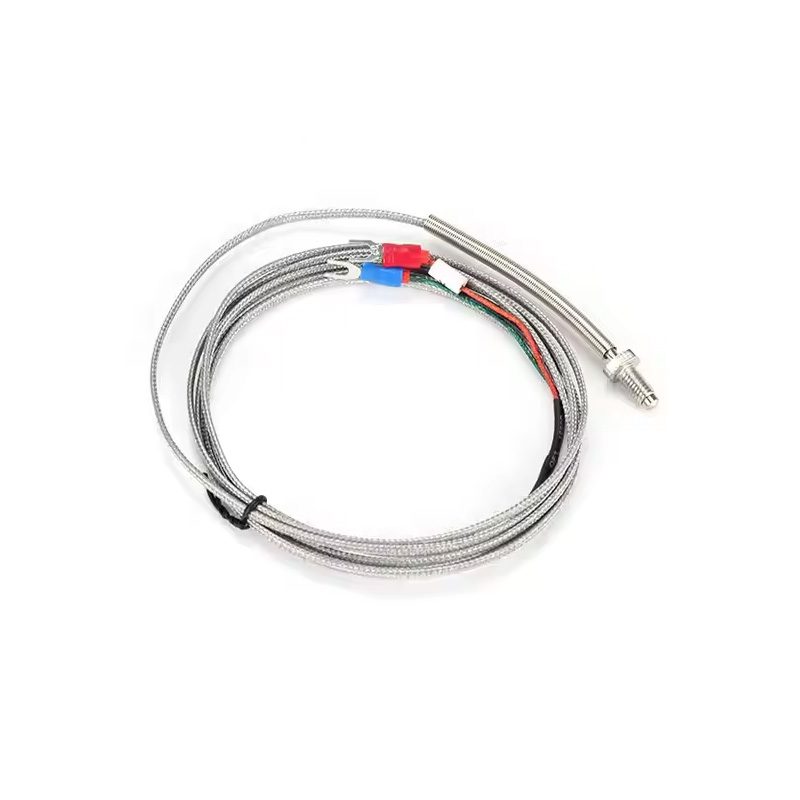

XIQI Electric CG-WRNT-02 K-Type Thermocouple Sensor, M6 Thread, 1m Cable

Name: XIQI Electric CG-WRNT-02 K-Type Thermocouple Sensor, M6 Thread, 1m Cable
Brand: XIQI Electric
SKU: SENS-3717
Price: 119.00 INR
Availability: OutOfStock

₹119.00 (Inclusive of all taxes)

Out of Stock

The XIQI Electric CG-WRNT-02 is a K-type thermocouple temperature sensor with an M6 threaded stainless steel probe and 1-meter cable. It delivers ±1.5°C accuracy across a 0°C to 600°C range, designed for direct integration with temperature controllers, PLCs, and industrial data acquisition systems.

Features

K-Type (NiCr-NiAl) thermocouple with 0°C to 600°C measurement range.
±1.5°C accuracy for reliable process monitoring and control.
M6 threaded stainless steel probe for durable, secure mounting.
1-meter high-temperature compensated cable for flexible installation.
Industrial-grade construction suitable for ovens, furnaces, and kilns.

Out of stock

Get Notified When Available

Description

The CG-WRNT-02 is an industrial-grade K-type thermocouple sensor based on the Seebeck effect, generating a millivolt signal proportional to the temperature difference between its measuring junction and reference point. Its M6 threaded stainless steel sheath provides mechanical robustness and corrosion resistance for harsh environments.

This sensor outputs a standard K-type thermocouple (Type K) signal compatible with a wide range of temperature controllers, PLC analog input modules, and data loggers. The 1-meter insulated extension cable is designed to maintain signal integrity, minimizing thermal EMF errors for accurate readings up to 600°C.

Key Features

High-precision K-type (NiCr-NiAl) thermocouple element.
Stainless steel M6 threaded probe for durable, sealed installation.
Wide operating range from 0°C to 600°C.
Specified accuracy of ±1.5°C for consistent process control.
1-meter flexible, heat-resistant compensated extension cable.
Industrial-grade construction for reliability in demanding applications.
Direct compatibility with standard thermocouple input sockets and controllers.

Applications

Temperature monitoring and control in industrial ovens and furnaces.
Process temperature measurement in kilns for ceramics and materials processing.
Heating element and surface temperature sensing in manufacturing equipment.
Integration with PLCs and SCADA systems for industrial automation.
Laboratory and R&D thermal testing setups.

Technical Specifications

Model Number	CG-WRNT-02
Thermocouple Type	K (NiCr-NiAl)
Temperature Range	0°C to 600°C
Accuracy	±1.5°C
Probe Material	Stainless Steel
Probe Thread	M6
Cable Length	1 meter
Output Signal	Thermocouple (mV)
Shipping Weight	0.05 kg
Shipping Dimensions	10 × 8 × 1 cm

Frequently Asked Questions

What type of signal does this CG-WRNT-02 sensor output?

This sensor outputs a standard K-type thermocouple (Type K) millivolt signal. The voltage generated is proportional to the temperature difference between the probe tip and the cold junction (typically at the connector or instrument input). It requires a thermocouple-compatible temperature controller, data logger, or PLC analog input module for proper reading and display.

What is the maximum temperature and mounting method for this probe?

The specified operating temperature range is 0°C to 600°C. The probe features an M6 external thread, allowing it to be screwed directly into a corresponding tapped hole in an oven wall, pipe, or process vessel. Ensure the mounting location's material can withstand the full temperature range and that the thread is properly sealed if needed.

Can I extend the 1-meter cable on this thermocouple?

Yes, but it must be done correctly to maintain accuracy. You must use thermocouple extension wire of the same type (K-type) and appropriate gauge. All connections must be secure and kept at a stable, similar temperature to avoid introducing thermal EMF errors. For best results, consult the manual of your temperature controller regarding external reference compensation.
