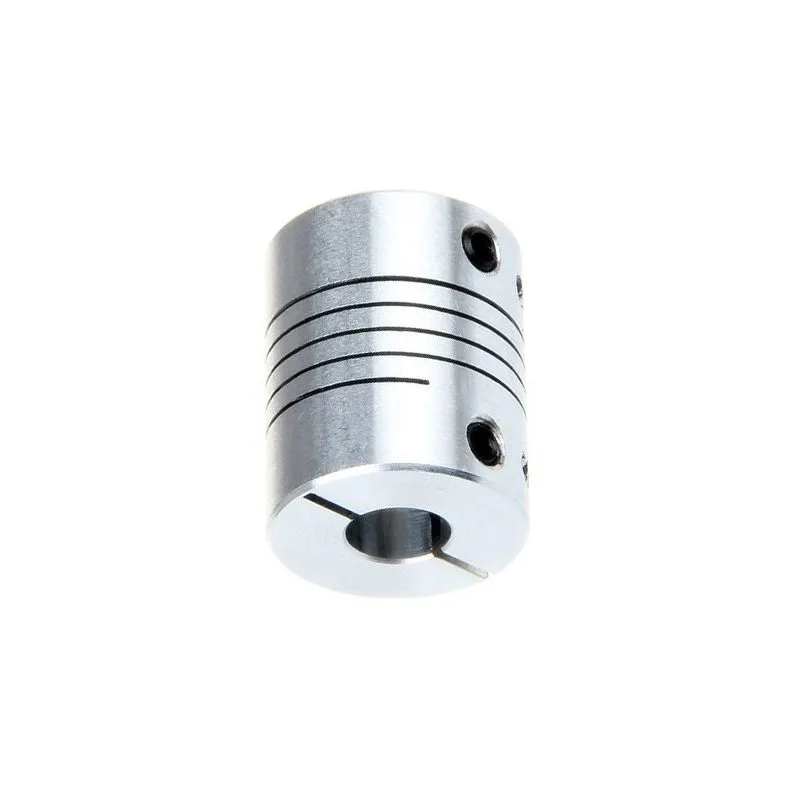

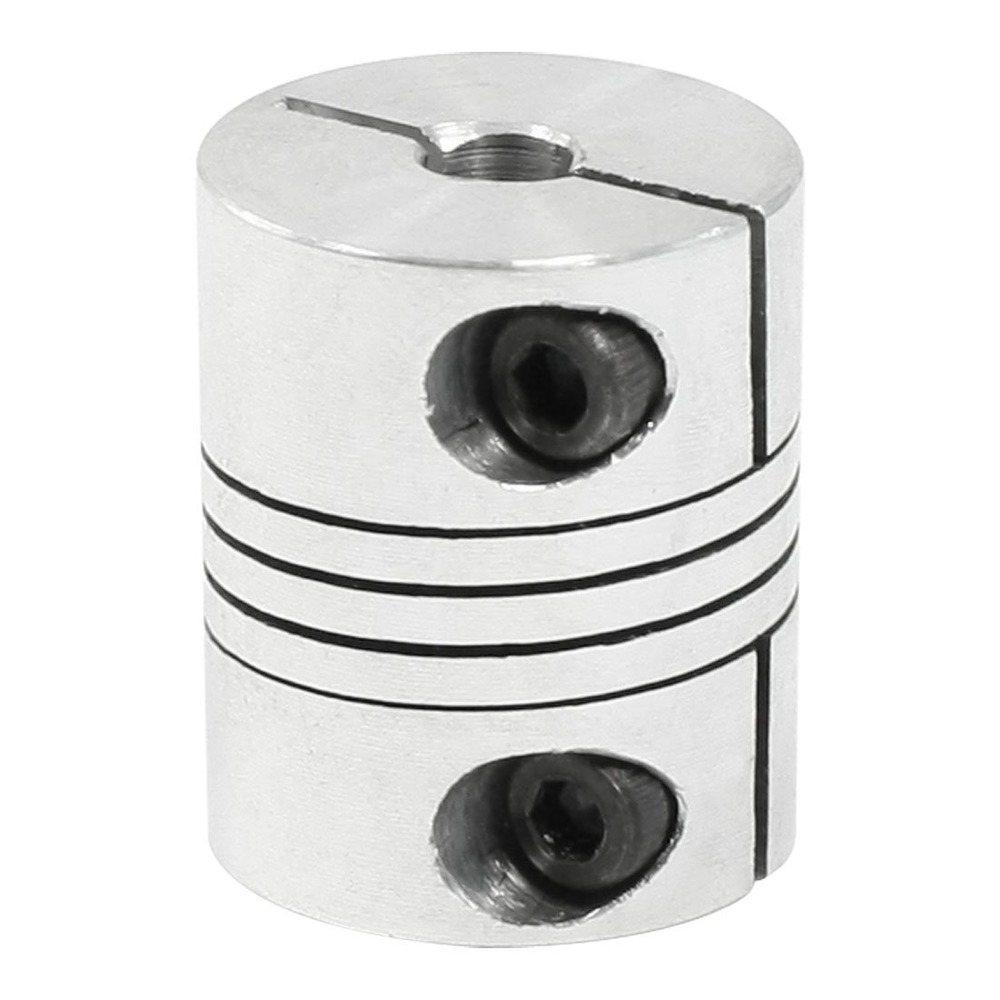

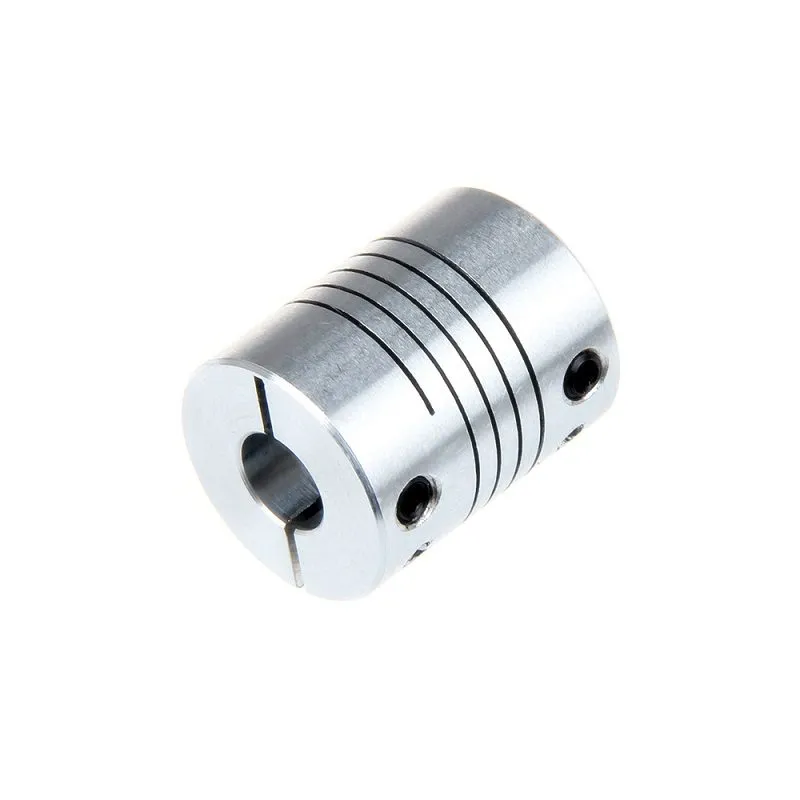

Flexible Shaft Coupling, OD 20mm x L 25mm, 5x8mm Bore
This flexible aluminum coupling connects 5mm and 8mm shafts, effectively compensating for minor misalignments while maintaining zero backlash for precise motion control in 3D printers and CNC machines.
Features
- High-quality aluminum construction for durability and corrosion resistance.
- Efficiently compensates for shaft misalignment, reducing binding effects.
- Features zero backlash, ensuring high precision for demanding applications.
- Easy integration with 5mm to 8mm shaft diameters, ideal for motor-driven systems.
- Compact OD 20mm x L 25mm design, suitable for space-constrained builds.
Out of stock
This flexible motor coupling is engineered to reliably connect a driving shaft with a driven shaft, significantly minimizing the impact of potential misalignments. Its design ensures efficient power and torque transmission while mitigating harmful effects caused by shaft discrepancies, sudden shock loads, or vibrations. This enhances the longevity and performance of connected components.
Constructed from machined aluminum, this coupling features an outer diameter of 20mm and a length of 25mm. A unique spiral cut along its length provides flexibility, allowing it to accommodate shafts that are not perfectly co-linear. This inherent flexibility, combined with minimal backlash, makes it exceptionally suitable for applications requiring high precision, such as in CNC machinery and 3D printers, where consistent and accurate motion transfer is critical. It acts as a protective interface, absorbing stresses that could otherwise damage sensitive shaft members.
Additional Information
| Weight | 0.02 kg |
|---|---|
| Dimensions | 3 × 2.5 × 2.5 cm |
