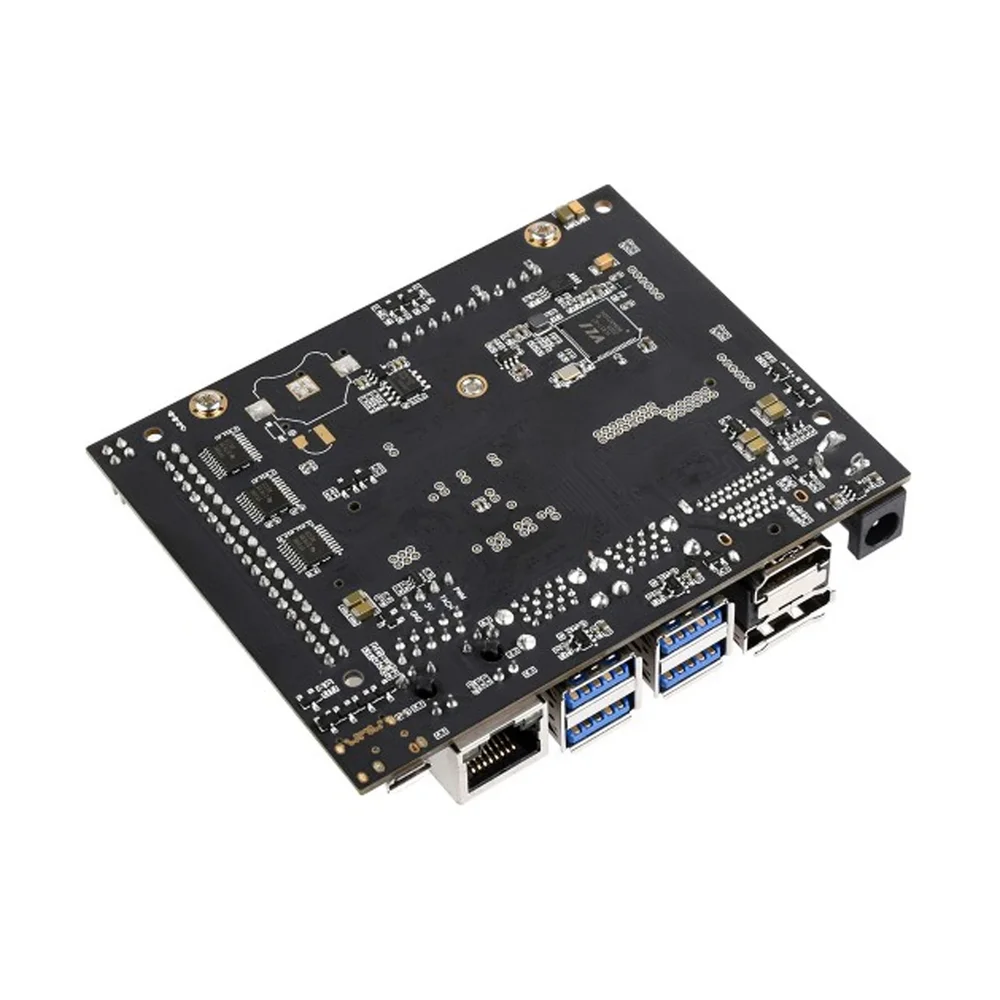

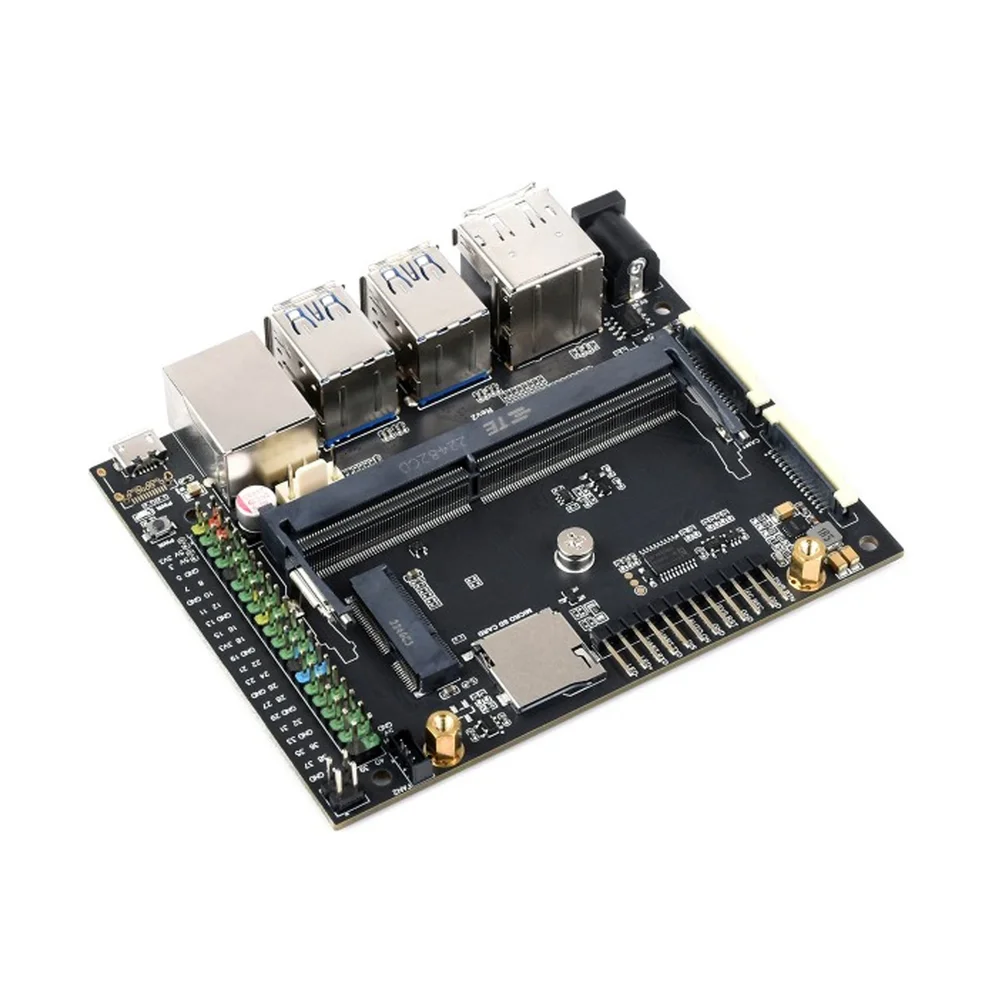

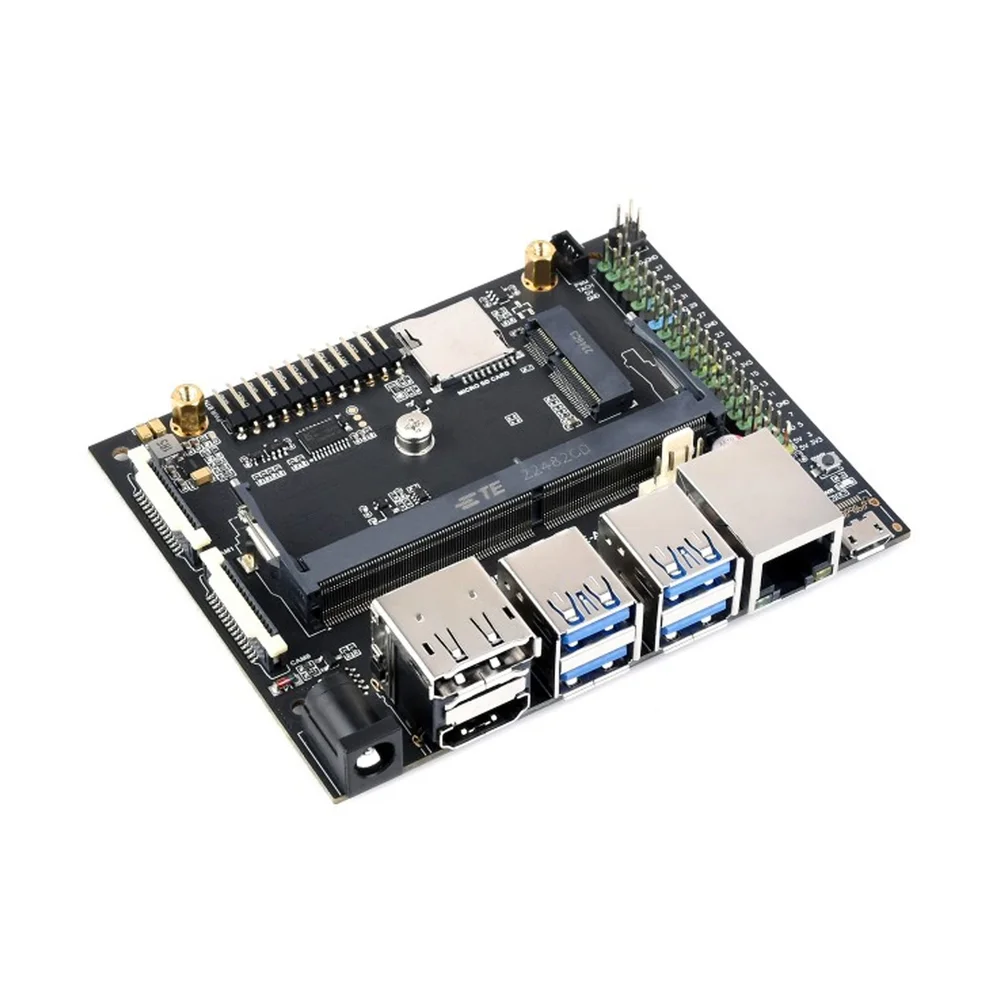

Waveshare Jetson Nano Development Board (Alternative B01 Kit)

Yes, this Waveshare development board is designed as a direct alternative and is form-factor compatible with the official NVIDIA Jetson Nano B01 kit. It uses the same 260-pin SO-DIMM connector and matches the physical dimensions, allowing it to fit into official Jetson Nano enclosures and use compatible heatsinks, fans, and expansion accessories. The pinout and core specifications align with the reference design for seamless software and hardware integration.

The board accepts a 5V DC power supply through either the barrel jack (DC jack) or the Micro-USB port. A stable 5V/4A (20W) power adapter is recommended for reliable operation under full CPU/GPU load, especially when using power-hungry USB peripherals. The board includes headers for connecting cooling fans. Ensure your power source meets the current requirement to avoid instability or throttling during intensive AI inference tasks.

The board supports NVIDIA's official JetPack SDK, which includes Ubuntu Linux, CUDA, cuDNN, TensorRT, and popular AI frameworks like TensorFlow, PyTorch, and OpenCV. You flash the JetPack OS image to a microSD card, insert it into the board's TF slot, and boot. The environment is optimized for deploying deep learning models for computer vision, natural language processing, and robotics applications directly on the edge device.

Yes, the board features two independent MIPI CSI-2 camera connectors (2-lane D-PHY each), allowing you to connect two compatible Raspberry Pi or NVIDIA-certified camera modules simultaneously. This is ideal for stereo vision, depth perception, and multi-camera AI applications. You can configure the cameras using the NVIDIA V4L2 drivers and process the streams with frameworks like OpenCV or deep learning models within the JetPack environment.

The M.2 Key E (PCIe/USB interface) expansion slot allows you to add wireless communication modules, such as Wi-Fi 6 (AX200) or Bluetooth adapters, to the Jetson Nano platform. This is useful for creating wireless AI gateways or robots that require high-speed network connectivity without using a USB port. You need to install the appropriate Linux drivers for your M.2 module after physically installing it into the slot.
