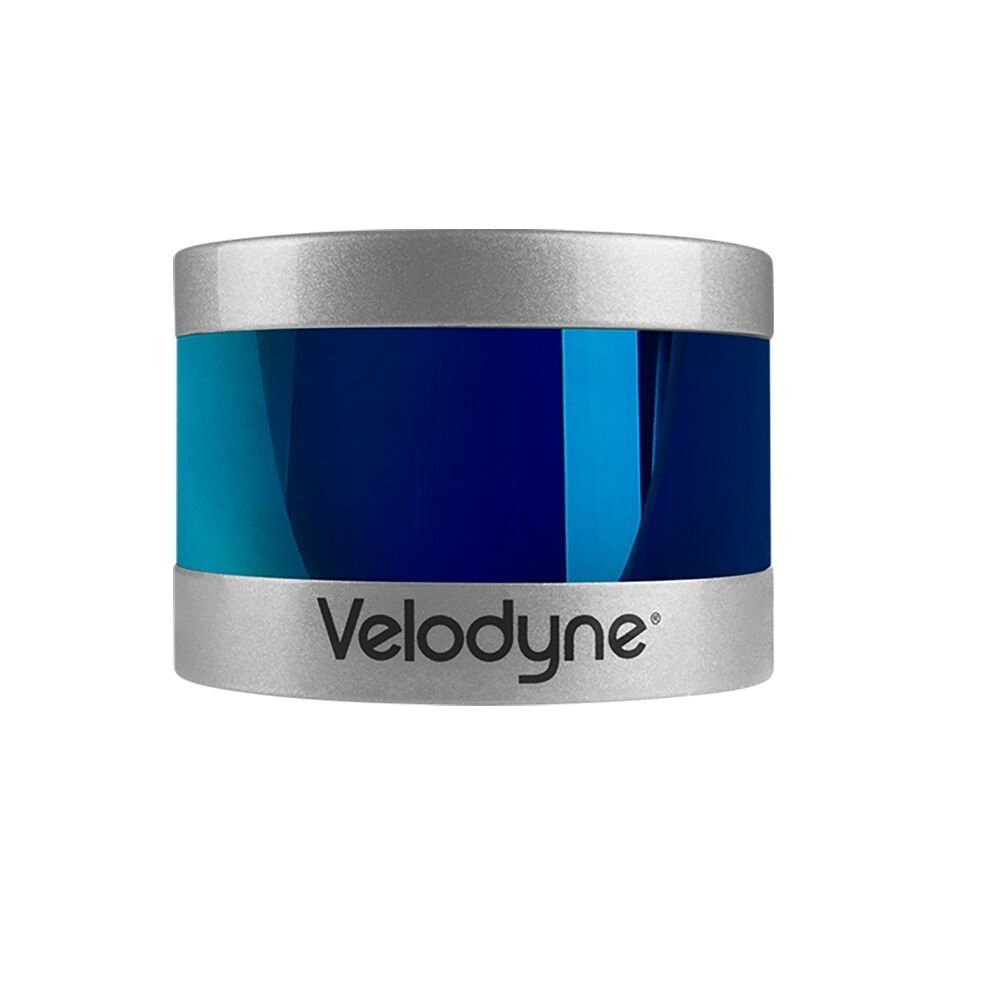

Velodyne Lidar Puck VLP-16 LiDAR Sensor Module - 16-Channel, 100m Range, IP67, 360° FOV
The Velodyne Lidar Puck VLP-16 is a compact, high-performance 3D LiDAR sensor module delivering real-time 360° point cloud data. Featuring 16 channels, a 100m range, and dual-return capability, it is engineered for demanding applications in robotics, autonomous navigation, and mobile terrestrial mapping.
Features
- 16-channel LiDAR with 360° horizontal and ±15° vertical field of view.
- 100-meter measurement range with calibrated reflectivity data.
- Dual-return mode for detailed environmental mapping of complex scenes.
- Compact, rugged IP67-rated housing with no exposed rotating parts.
- Low power consumption (~8W) and lightweight (830g) design.
Out of stock
The Velodyne Lidar Puck (VLP-16) is a solid-state 3D LiDAR sensor built on patented surround-view technology. It emits 905 nm laser pulses, capturing real-time distance and calibrated intensity measurements at a rate of approximately 300,000 points per second. Its dual-return capability provides multiple data points per laser pulse, enhancing object detection in environments with vegetation, wire fences, or non-opaque surfaces.
Engineered for resilience, the module features an IP67 ingress protection rating and operates across an extended temperature range of -10°C to +60°C. The absence of visible rotating parts increases reliability in high-vibration or dusty conditions, making it suitable for integration into autonomous vehicles, UAVs, robotic platforms, and industrial security systems.
Additional Information
| Weight | 0.83 kg |
|---|---|
| Dimensions | 10.3 × 10.3 × 7.2 cm |
