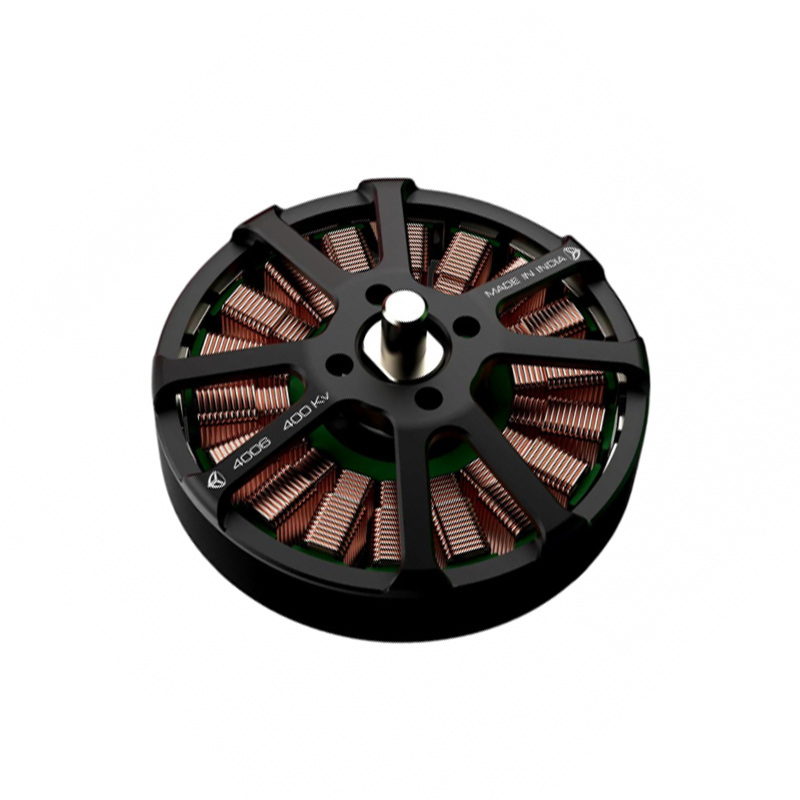

Vector Technics Technics Vector Technics 4006 -400KV Motor
The Vector Technics Technics Vector Technics 4006 is a 400KV brushless outrunner motor engineered for 6S (24V) industrial and enterprise UAV platforms, delivering up to 250W continuous power and compatibility with 12 to 16-inch propellers for heavy-lift applications.
Features
- 400KV rating optimized for 6S (24V) LiHV battery systems.
- Delivers up to 250W maximum continuous power for 180-second intervals.
- High power density design with a rated 2.72 W/g and peak 5.11 W/g.
- Features dual SKF 619/4-2RS bearings and an 18S24P stator-pole configuration for smooth, reliable operation.
- IP45 ingress protection rating and a design life of 1000 hours for demanding operational environments.
Out of stock
The Vector Technics 4006 motor is engineered for demanding UAV applications requiring a balance of high torque, efficiency, and thermal management. Its 400KV design is optimized for 6S (24V) power systems, enabling direct drive of large 12 to 16-inch propellers without excessive current draw. The motor’s construction prioritizes power density, achieving a rated 2.72 W/g, which contributes to overall system weight savings.
Built for industrial endurance, the motor incorporates dual premium SKF bearings and features an IP45 rating for resistance against dust and water ingress. The 18S24P stator-pole configuration ensures smooth rotation and precise torque delivery, supporting applications like aerial mapping, surveying, and payload delivery where consistent, reliable performance is critical over extended flight times.
Additional Information
| Weight | 0.067 kg |
|---|---|
| Dimensions | 7 × 7 × 7 cm |
