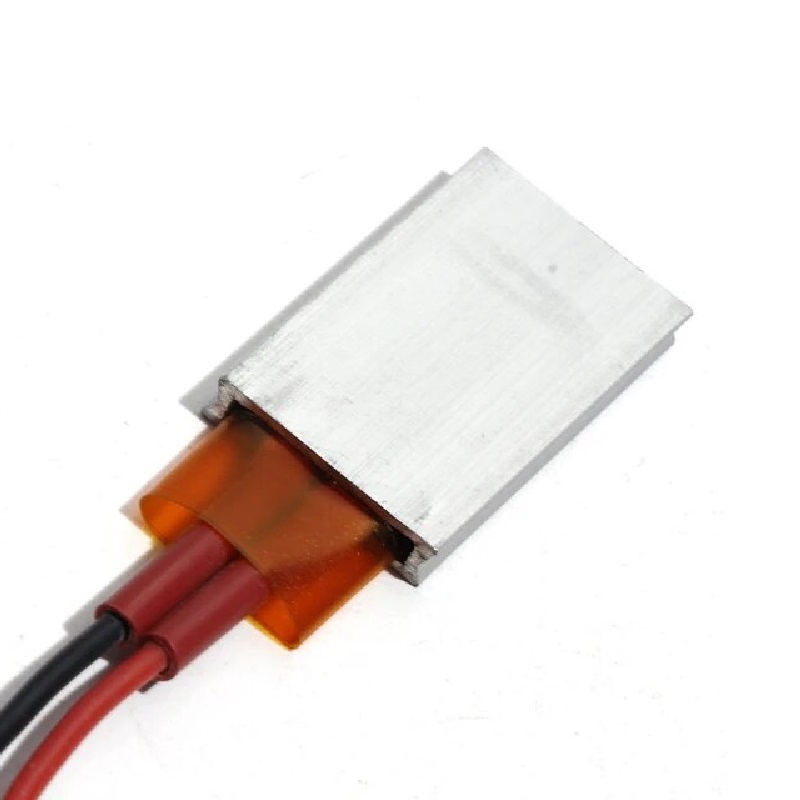

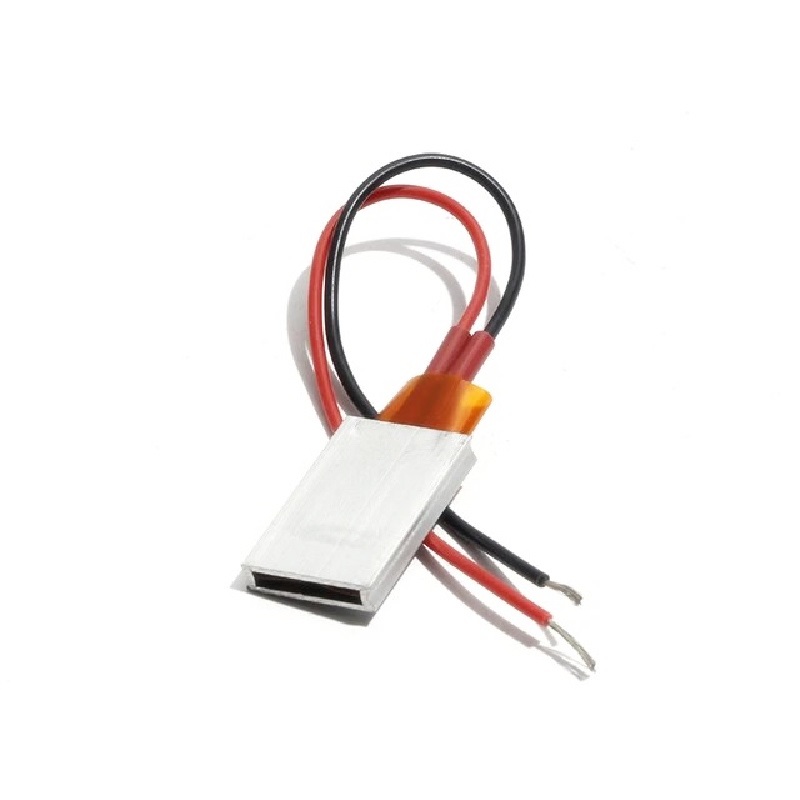

Generic PTC Heater Plate 24V 220°C (35×21×5 mm)
This 24V PTC ceramic heater plate provides self-regulating, constant-temperature heating up to 220°C, ideal for integration into compact electronic devices, small appliances, and precision thermal control systems.
Features
- Self-regulating PTC ceramic heating element with a 220°C temperature limit.
- Operates at 24V DC, suitable for low-voltage control systems and power supplies.
- Compact dimensions of 35mm x 21mm x 5mm for space-constrained applications.
- Features inherent safety due to positive temperature coefficient resistance.
- Includes 15cm lead wires for simplified electrical connection.
Out of stock
The PTC heater plate utilizes a ceramic element with a Positive Temperature Coefficient, where electrical resistance increases with temperature. This intrinsic property provides automatic power regulation, preventing overheating and ensuring stable thermal output at its designed equilibrium point of approximately 220°C. The element is encased for durability and efficient heat conduction.
Designed for 24V DC operation, this heater is compatible with common industrial and electronic power rails. Its compact, flat-profile form factor allows for direct mounting onto surfaces requiring localized heating. The self-limiting characteristic eliminates the need for external thermostatic control in many applications, simplifying system design.
Additional Information
| Weight | 0.012 kg |
|---|---|
| Dimensions | 3.5 × 2.1 × 0.5 cm |
