SKU: 3DDF-2127
📋 GST Invoice Available

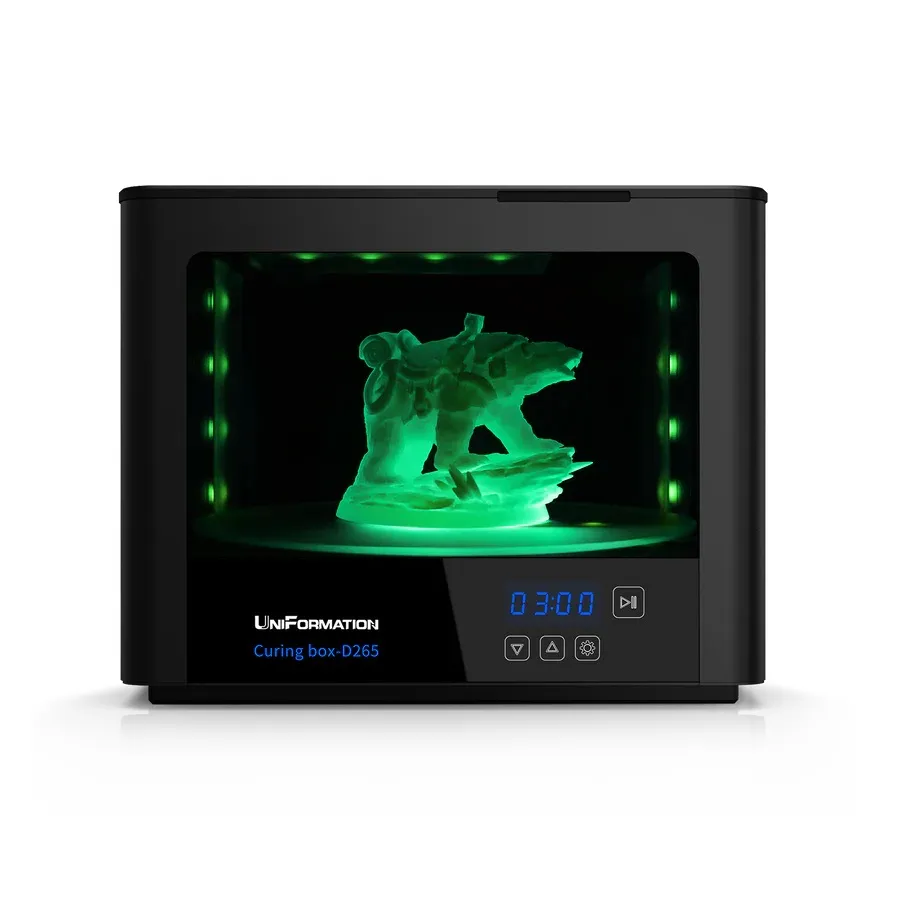

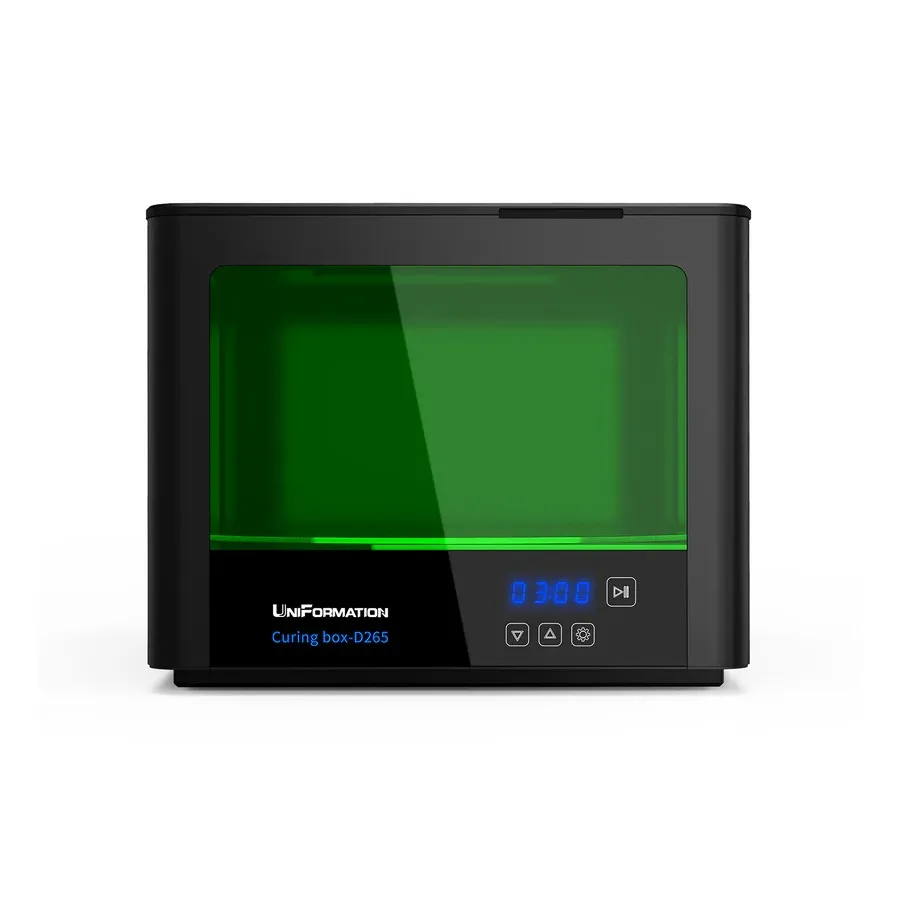

UniFormation 405nm UV Resin Curing Station (10.2-inch)

₹20,810.00 (Inclusive of all taxes)
Out of Stock

The UniFormation 405nm UV Resin Curing Station is designed for post-processing resin 3D prints, featuring a spacious 10.2-inch diameter curing volume and 16 UV lights for thorough, even curing across LCD/DLP/SLA models.

Features

  • Achieve perfectly cured resin prints with 16 precisely positioned 405nm UV lights.
  • Benefit from a spacious 10.2-inch diameter curing volume, accommodating larger resin models.
  • Experience superior uniformity thanks to the automatic rotating turntable, eliminating blind spots.
  • Streamline your workflow with an intuitive touch screen and a convenient 3-minute preset curing mode.
  • Ensure broad compatibility with most LCD, DLP, and SLA 3D printers for versatile post-processing.

Out of stock

Description

The UniFormation 405nm UV Resin Curing Station (10.2-inch) is an essential post-processing unit engineered to significantly enhance the mechanical properties and surface finish of resin 3D prints. By delivering concentrated 405nm UV light, it effectively cures photopolymer resins, ensuring models achieve their intended hardness, durability, and detail accuracy. This station is designed for seamless integration into any resin 3D printing workflow, supporting a wide array of LCD, DLP, and SLA printed parts.

Featuring a generous 10.2-inch diameter curing volume and an intelligent array of 16 UV LED lights coupled with an automatic rotating turntable, the UniFormation Curing Station eliminates common curing inconsistencies and blind spots. Its user-friendly interface, complete with a touch screen and preset modes, simplifies operation, making it suitable for both hobbyists and professionals. The vertical flip-up lid further optimizes workspace utilization, providing a tidy and efficient curing environment.

Key Features

  • Spacious Curing Volume: Accommodates prints up to 260mm (10.2 inches) in diameter and 160mm (6.3 inches) in height.
  • Even UV Exposure: Equipped with 16 powerful 405nm UV lights and an automatic rotating turntable for comprehensive, uniform curing.
  • Optimized Workspace: Features a vertical flip-up lid design, saving valuable desk space and promoting efficient side-by-side operation.
  • Intuitive Touchscreen Control: User-friendly interface with a clear digital LCD screen and a convenient 3-minute preset curing option.
  • Broad Printer Compatibility: Fully compatible with UniFormation GKtwo and a wide range of LCD, DLP, and SLA 3D printers.
  • Versatile Application: Ideal for post-curing prototypes, industrial components, jewelry, and dental models, enhancing material flexibility.

Applications

  • Post-curing 3D printed prototypes to achieve final material properties.
  • Enhancing durability and surface finish of industrial components.
  • Curing intricate jewelry models for casting or direct use.
  • Processing dental models and aligner molds for precision and strength.

Technical Specifications

Model Name405nm UV Resin Curing Station 10.2
Accessory TypeResin Curing Station
UV Wavelength405nm
Curing Volume (Diameter x Height)260mm (10.2 inches) x 160mm (6.3 inches)
Light SourceUV LED Array (16 UV lights)
Curing Timer1 - 60 minutes (Adjustable)
Display TypeDigital LCD Screen
Control MethodTouch-sensitive Buttons
Printer CompatibilityLCD, DLP, SLA 3D Printers (including UniFormation GKtwo)

Frequently Asked Questions

What is the maximum curing capacity of this station?

The UniFormation Curing Station can accommodate resin prints up to 260mm (10.2 inches) in diameter and 160mm (6.3 inches) in height. This spacious volume allows for curing larger models or multiple smaller prints simultaneously, enhancing workflow efficiency for various projects.

How does the UniFormation station ensure even curing?

It utilizes 16 strategically placed 405nm UV LED lights combined with an automatic rotating turntable. This dual system ensures that UV light reaches all surfaces of your print, preventing uncured spots and promoting uniform hardness and material integrity.

Is this curing station compatible with all resin 3D printers?

The UniFormation 405nm UV Curing Station is widely compatible with most 3D printers that utilize 405nm UV resin, including LCD, DLP, and SLA models. It works seamlessly with popular machines like the UniFormation GKtwo and many other brands for efficient post-processing.

What is the recommended curing time for typical prints?

Curing times vary based on resin type, print size, and thickness. The station offers an adjustable timer from 1 to 60 minutes. A common starting point is often the 3-minute preset mode for standard prints, which can then be adjusted as needed.

Package Includes

  • 1x UniFormation 405nm UV Resin Curing Station (10.2-inch)

Additional Information

Weight 5.6 kg
Dimensions 30 × 30 × 24 cm
