SKU: 3DDF-1755
📋 GST Invoice Available

Two Trees TR2 Pro 4-in-1 Multifunctional Laser Rotary

₹12,669.00 (Inclusive of all taxes)
Out of Stock

This Two Trees TR2 Pro 4-in-1 multifunctional rotary module enhances your laser engraver with precise engraving capabilities for cylindrical, spherical, and ring-shaped objects. It offers versatile clamping and rotation for diverse workpiece geometries, significantly expanding your engraving possibilities.

Features

  • Multi-functional 4-in-1 rotary system for diverse object shapes.
  • Enables precise engraving on cylindrical, spherical, and ring workpieces.
  • Chuck rotary supports diameters from 1mm to 115mm; roller 5mm-150mm.
  • Easy assembly with hand-tightening screws for quick setup.
  • Wide compatibility with various laser engraver interfaces via included adapters.

Out of stock

Description

The Two Trees TR2 Pro 4-in-1 Multifunctional Rotary Module is a high-precision accessory designed to significantly expand the capabilities of compatible laser engravers. This versatile system integrates four distinct engraving functions: roller, chuck, sphere, and ring rotary, allowing users to accurately engrave on a wide array of uniquely shaped workpieces, including cylindrical objects like cups, bottles, and custom-designed parts. It addresses the common challenge of engraving non-flat surfaces, making it an essential upgrade for laser engraving enthusiasts, professional designers, and small businesses seeking to diversify their production capabilities.

Engineered for ease of use and precision, the TR2 Pro Rotary Module simplifies the process of achieving detailed engravings on complex geometries. Its robust design ensures stable workpiece rotation and alignment, crucial for consistent output quality. By enabling the engraving of otherwise difficult-to-handle items, this module transforms your laser engraver into a more powerful and adaptable fabrication tool, opening new avenues for product customization and artistic expression. Always refer to the Two Trees user manual for proper setup, alignment, and safety protocols when integrating and operating this rotary attachment.

Key Features

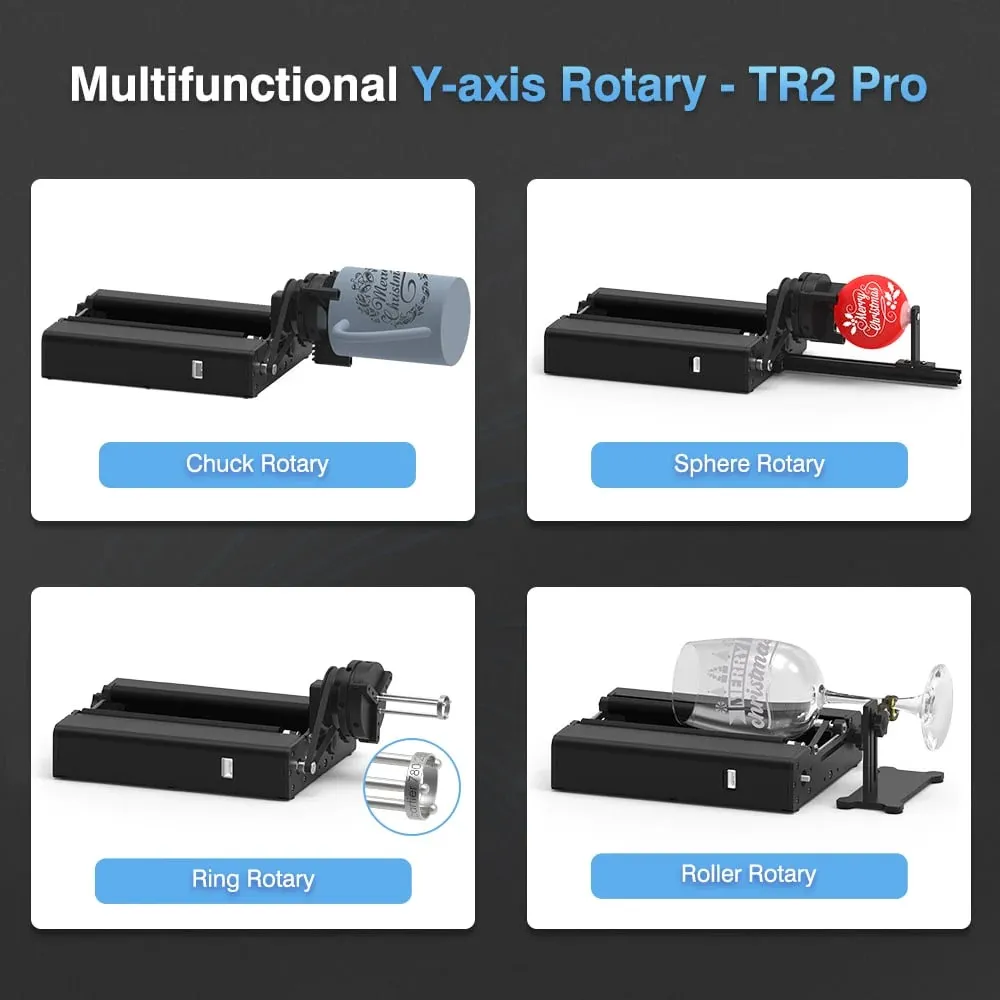

  • Integrated 4-in-1 engraving module: Roller, Chuck, Sphere, and Ring rotary functions.
  • Designed for easy assembly using hand-tightening screws for quick component changes.
  • Ensures wide compatibility with various laser engraver interfaces via 80CM motor adapters.
  • Achieves high-precision engraving across all four rotary modes.
  • Chuck rotary offers a 5.7:1 ratio and accommodates diameters from 26mm to 140mm.
  • Roller engraving diameter range: 5mm-150mm (with risers).
  • Chuck engraving diameter range: 1mm-115mm (with risers).
  • Sphere engraving diameter range: 50mm-105mm (with risers).
  • Ring engraving diameter range: 15mm-110mm (with risers).

Applications

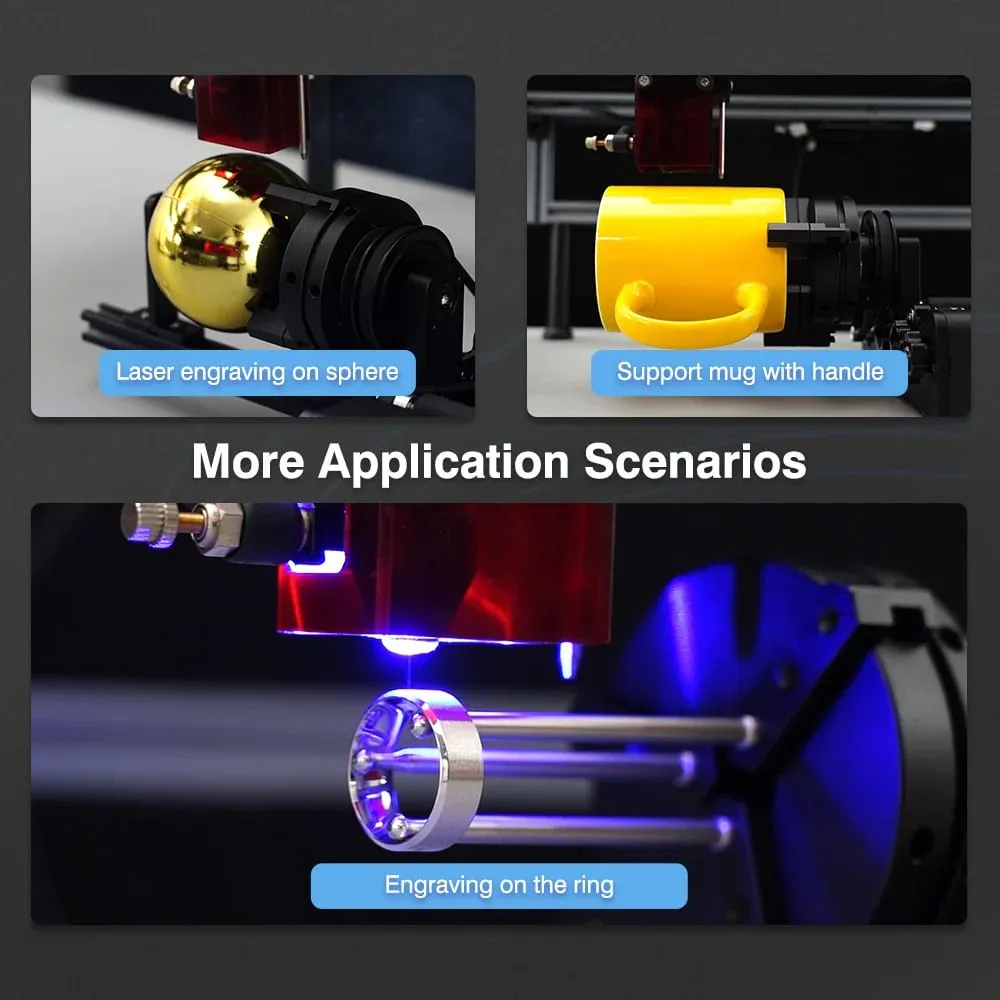

  • Customizing cylindrical drinkware (cups, bottles, tumblers).
  • Engraving spherical objects like ornaments or specialty tools.
  • Personalizing rings, bangles, and other circular jewelry.
  • Producing prototypes or short-run custom parts with rotary engraving.
  • Adding branding or serial numbers to irregularly shaped components.

Technical Specifications

CompatibilityLaser Engraver
Rotary FunctionsRoller, Chuck, Sphere, Ring
Chuck Rotary Ratio5.7:1
Chuck Diameter Range26mm - 140mm
Engraving Diameter (Roller)5mm - 150mm
Engraving Diameter (Chuck)1mm - 115mm
Engraving Diameter (Sphere)50mm - 105mm
Engraving Diameter (Ring)15mm - 110mm
Length410 mm
Width214 mm
Weight2.52 kg

Frequently Asked Questions

What types of objects can the TR2 Pro rotary module engrave?

The TR2 Pro 4-in-1 rotary module can engrave a wide range of objects, including cylindrical items like cups and bottles, spherical shapes, and rings. Its versatile chuck and roller systems accommodate various diameters, significantly expanding your laser engraving possibilities for diverse workpieces.

Is the Two Trees TR2 Pro rotary module compatible with all laser engravers?

The module is designed for wide compatibility with various laser engraver interfaces, typically Two Trees models like the TR2 Pro. It includes 80CM motor adapters to ensure connectivity. Users should verify their engraver's interface against the module's specifications for optimal performance and integration.

What are the specific engraving diameter ranges for each function?

The TR2 Pro offers precise engraving across multiple modes. The roller supports 5mm-150mm, the chuck handles 1mm-115mm, spheres range from 50mm-105mm, and rings from 15mm-110mm. These ranges apply when using additional risers for optimal positioning and accuracy.

How easy is it to switch between the different rotary functions?

The TR2 Pro rotary module features an easy assembly design, utilizing hand-tightening screws. This allows for quick and straightforward component changes to switch between roller, chuck, sphere, and ring engraving modes. This design minimizes downtime and maximizes user convenience and efficiency.

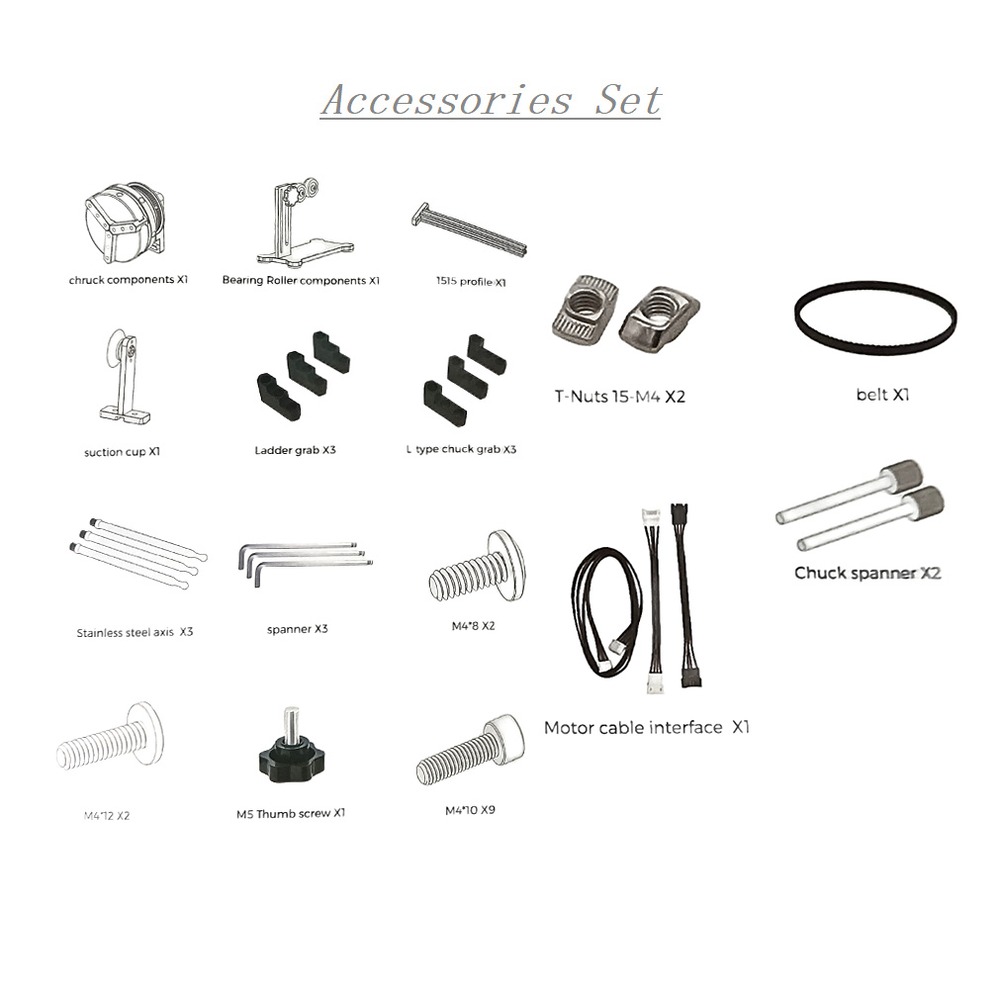

Package Includes

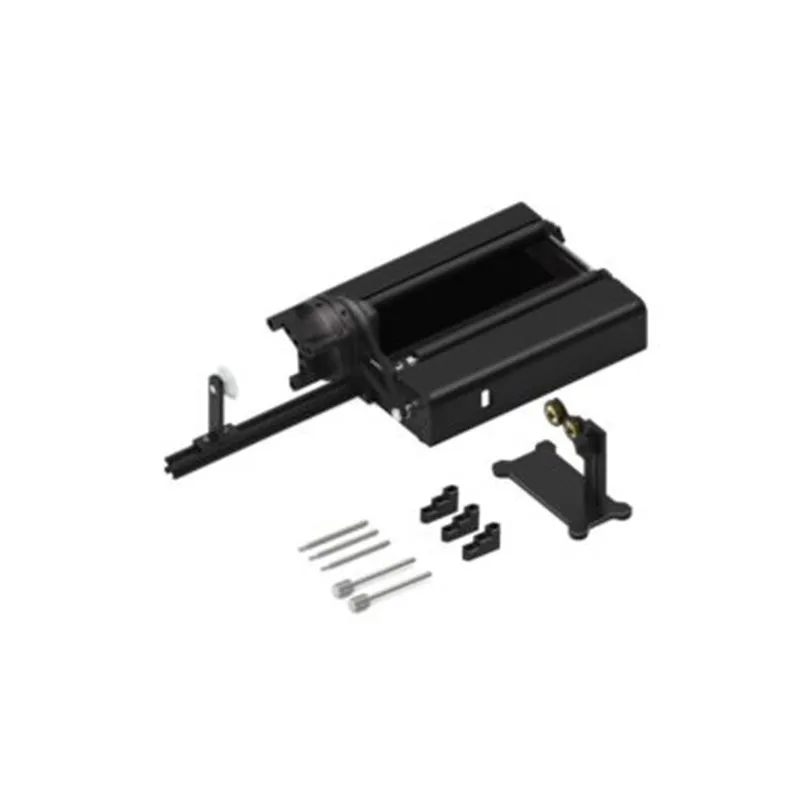

  • 1x Two Trees TR2 Pro 4-in-1 Multifunctional Laser Rotary Module
  • Necessary accessories for assembly and operation

Additional Information

Weight 2.52 kg
Dimensions 41 × 21.4 × 11 cm
