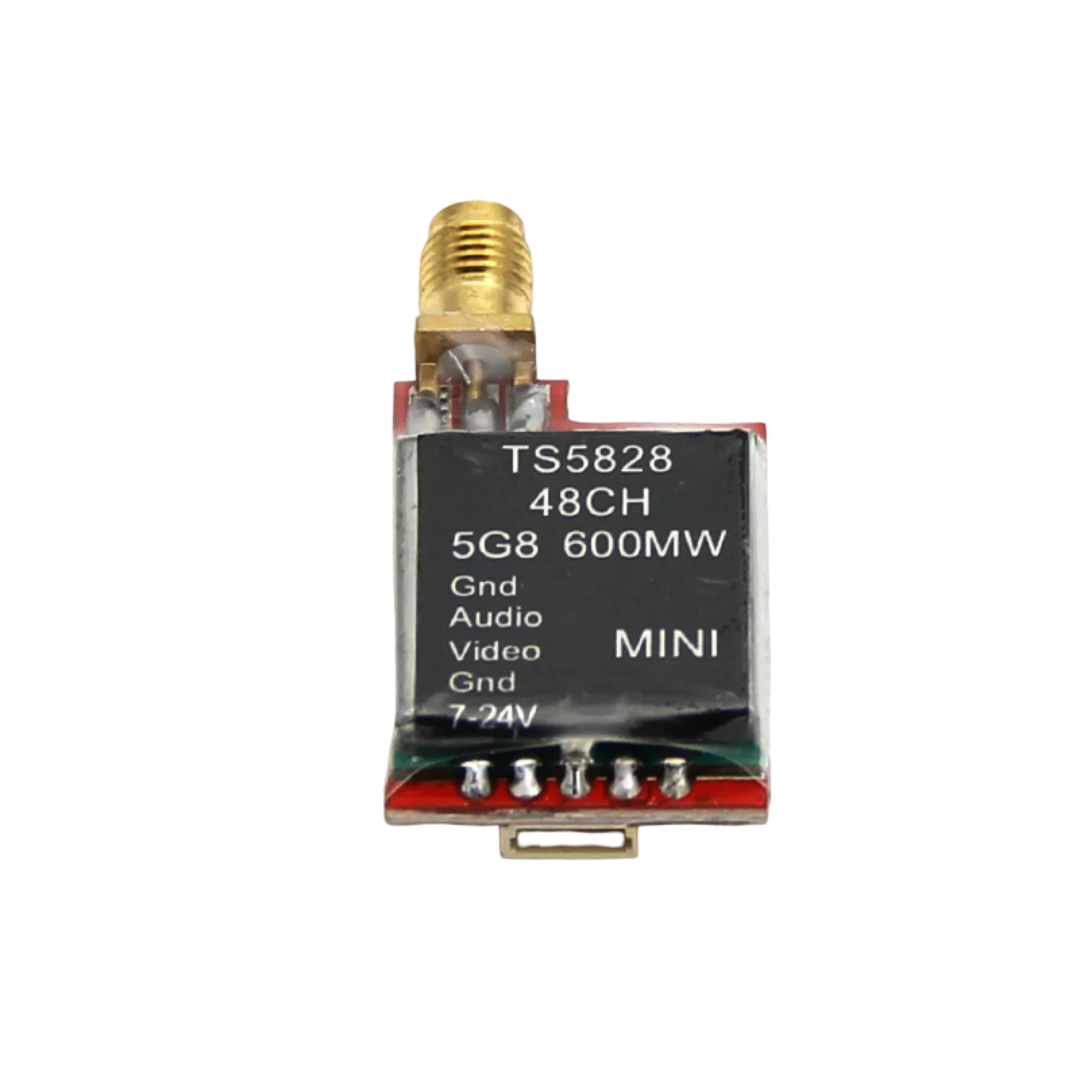

TS5828 Mini 48CH 600mW Transmitter Module w/ Antenna

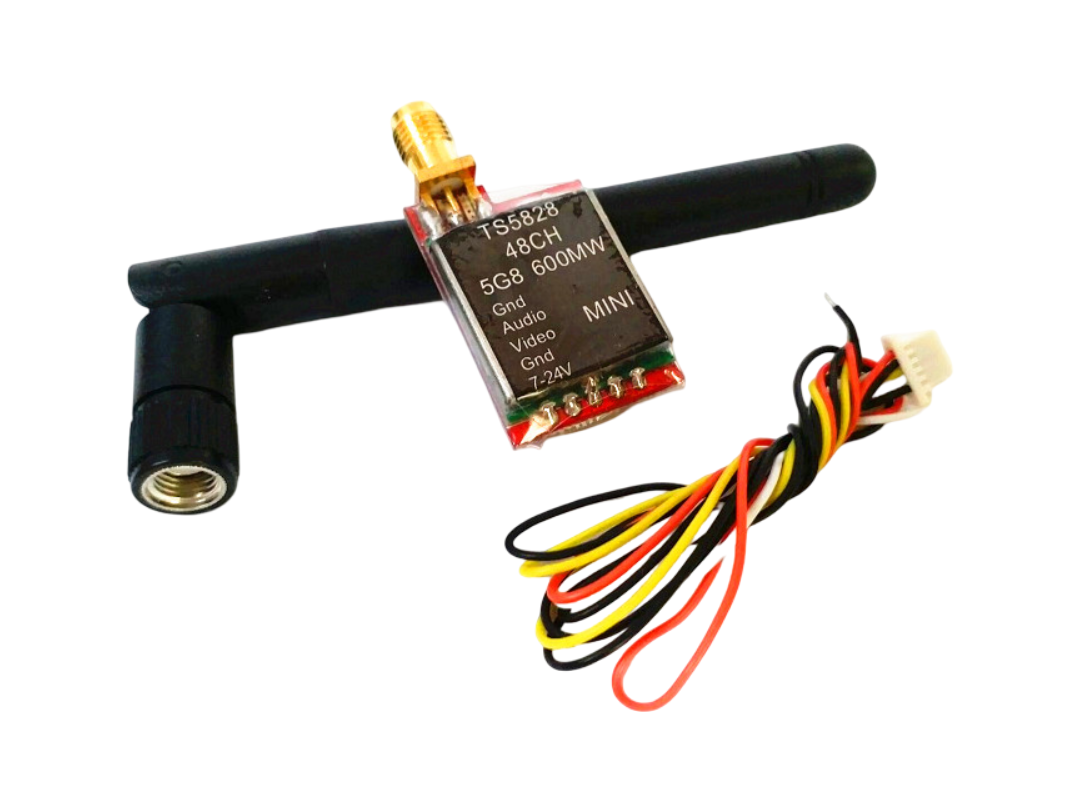

TS5828 Mini 48CH 600mW Transmitter Module w/ Antenna - Image 2

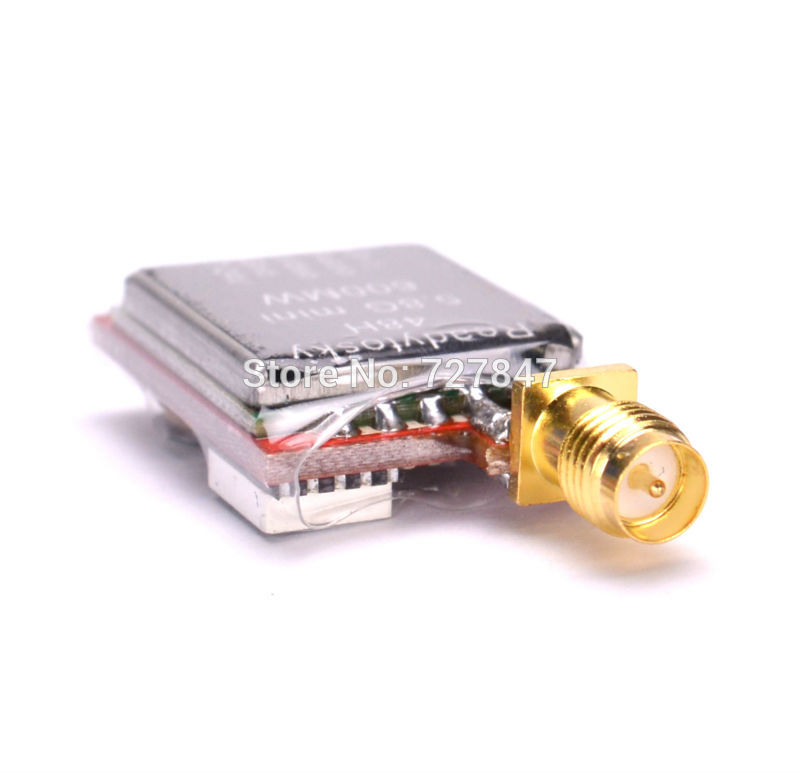

TS5828 Mini 48CH 600mW Transmitter Module w/ Antenna - Image 3
TS5828 Mini 48CH 600mW Transmitter Module w/ Antenna - Image 4
SKU: DRFC-2203
📋 GST Invoice Available

TS5828 Mini 48CH 600mW Transmitter Module w/ Antenna

₹1,259.00 (Inclusive of all taxes)
Out of Stock

The TS5828 Mini is a 5.8GHz 48-channel analog video transmitter (VTX) delivering 600mW RF output, designed for compact FPV drone builds. It supports a wide 7-24V input range for compatibility with 2S to 6S LiPo systems and features an RP-SMA male antenna connector for stable, long-range video transmission.

Features

  • 600mW RF output power for extended video range and penetration.
  • 48-channel operation across A, B, C, D, H, and L bands (5.6-5.9GHz).
  • Wide input voltage range of 7-24V, compatible with 2S to 6S LiPo batteries.
  • Ultra-compact form factor measuring 40 x 20 x 8 mm and weighing only 15g.
  • RP-SMA male antenna connector with included threaded detachable antenna.

Out of stock

Description

The TS5828 Mini 600mW transmitter is engineered for reliable analog FPV video transmission in space-constrained multirotor and fixed-wing applications. Its robust 7-24V DC input allows direct integration with a wide array of power systems without requiring a separate voltage regulator, simplifying wiring and reducing points of failure.

Built around a stable RF circuit, the VTX provides clear video with 8MHz bandwidth and supports an audio channel with 6.5MHz bandwidth. The unit’s efficient thermal design, coupled with an operating temperature range of -10°C to 85°C, ensures consistent performance during prolonged flight sessions, making it a dependable choice for both racing and long-range FPV pilots.

Key Features

  • High-Power 600mW Output: Delivers strong signal penetration and range, capable of 1-2km with the included antenna.
  • Full Band Coverage: Accesses 48 channels across six major bands (A/B/C/D/H/L) for clear frequency selection and race band compatibility.
  • Broad Voltage Compatibility: Directly accepts 7-24V input, eliminating the need for a separate BEC on most 2S-6S drone power trains.
  • Minimalist & Lightweight Design: Compact 40x20x8mm footprint and 15g weight minimize impact on drone CG and frame space.
  • RP-SMA Connector: Standard RP-SMA male interface allows for easy antenna upgrades to directional or high-gain models.
  • Low Operating Current: Draws only 0.19A at full power, contributing to longer flight times.

Applications

  • Ultra-lightweight 3-inch and 5-inch FPV racing drone builds requiring a compact VTX.
  • Long-range fixed-wing FPV platforms needing stable analog video transmission over 1km.
  • Micro and Whoop-class drones where minimal size and weight are critical.
  • DIY FPV ground stations and portable receiver setups as a portable video source.
  • Backup or secondary video link systems for redundancy in complex UAV builds.

Technical Specifications

Item TypeVideo Transmitter (VTX)
Connector TypeRP-SMA Male
Frequency Range5.6 - 5.9 GHz
Channels48
RF Output Power600 mW
Input Voltage7 - 24 V
Operating Current0.19 A
Video Bandwidth8 MHz
Audio Bandwidth6.5 MHz
Operating Temperature-10°C to 85°C
Dimensions (LxWxH)40 x 20 x 8 mm
Weight15 g

Frequently Asked Questions

What is the maximum input voltage for the TS5828 Mini VTX?

The TS5828 Mini supports a wide input voltage range from 7V to 24V DC. This allows it to be powered directly from a 2S LiPo (7.4V nominal) up to a 6S LiPo (22.2V nominal) without requiring a separate BEC, simplifying your power wiring.

What type of antenna connector does it use, and is an antenna included?

This VTX uses a standard RP-SMA male connector. The package includes one threaded detachable RP-SMA antenna. You can easily upgrade to higher-gain or directional antennas (like a cloverleaf or patch) that use the same RP-SMA interface for improved range and signal quality.

How many channels and bands does this 5.8GHz transmitter cover?

The transmitter provides access to 48 individual channels spread across six standard bands: A, B, C, D, H, and L, covering the full 5.6GHz to 5.9GHz spectrum. This ensures compatibility with most analog FPV goggles and receivers, including race band frequencies.

Is this VTX suitable for tiny whoop or micro drone builds?

Yes, its compact dimensions (40x20x8mm) and low weight (15g) make it an excellent choice for micro drones, tiny whoops, and other space-constrained builds where every gram and millimeter counts, without sacrificing a full 600mW of transmission power.

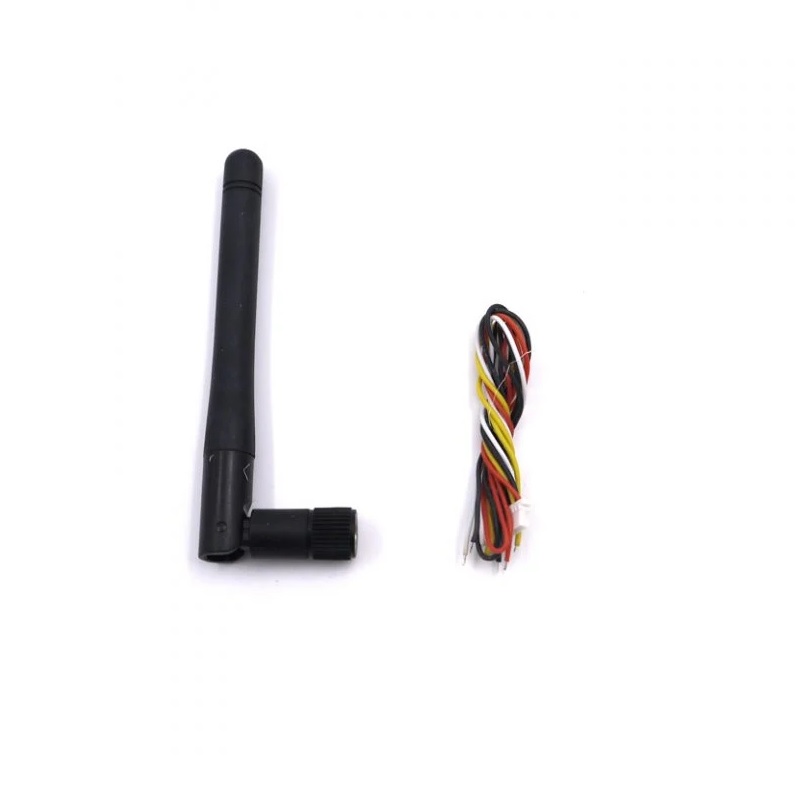

Package Includes

  • 1 x TS5828 Mini 48CH 600mW Transmitter Module
  • 1 x Threaded Detachable RP-SMA Antenna
  • 1 x AV Cable

Additional Information

Weight 0.015 kg
Dimensions 4 × 2 × 0.8 cm
