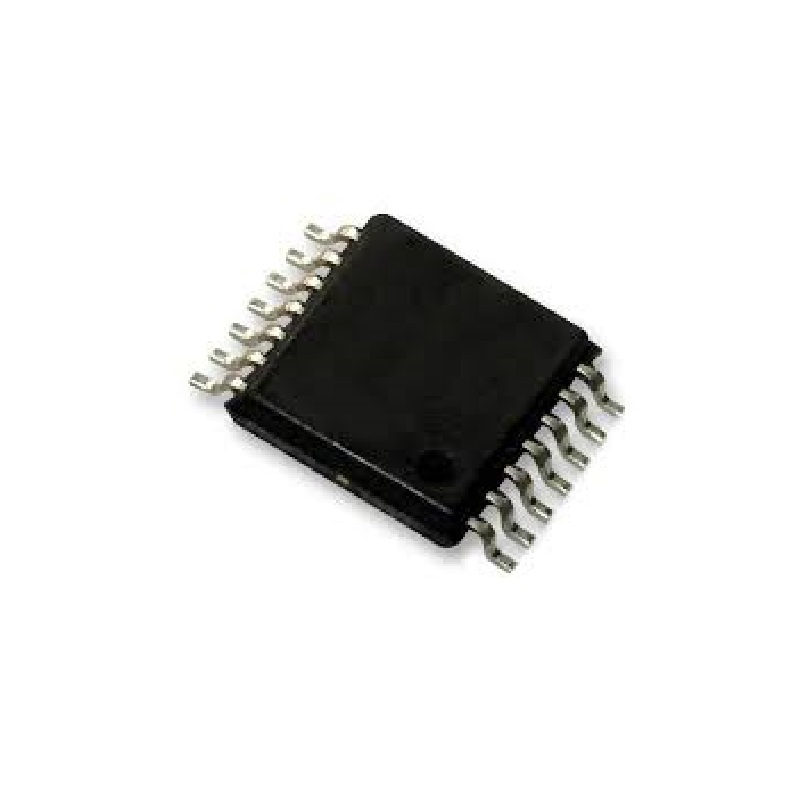

Toshiba 74VHC86FT(BE) TSSOP14B Image Sensor IC - Quad 2-Input XOR Gate
The Toshiba 74VHC86FT(BE) is a high-speed CMOS logic IC configured as a Quad 2-Input Exclusive OR (XOR) gate in a TSSOP14B package. It is designed for 2.0V to 5.5V systems, making it compatible with 3.3V and 5V logic levels for signal processing and digital image sensor interface circuits.
Features
- Quad 2-Input Exclusive OR (XOR) Gate Logic IC
- Wide Operating Voltage Range: 2.0V to 5.5V
- High-Speed CMOS (VHC) Technology
- 14-Pin TSSOP14B Surface-Mount Package
- Low Power Consumption: 180 mW (Typical)
Out of stock
The 74VHC86FT(BE) is a member of Toshiba’s advanced VHC (Very High-Speed CMOS) logic family, offering a balance of high speed and low power consumption. This IC integrates four independent 2-input XOR gates, commonly used in digital circuits for parity generation, arithmetic operations, and error detection, which are fundamental functions in digital image processing pipelines.
Encased in a compact TSSOP14B package, it is suitable for high-density PCB layouts found in modern imaging modules and embedded systems. Its wide voltage range ensures compatibility with mixed-voltage environments, while its robust design supports an industrial operating temperature range from -40°C to 125°C.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 10 × 8 × 3 cm |
