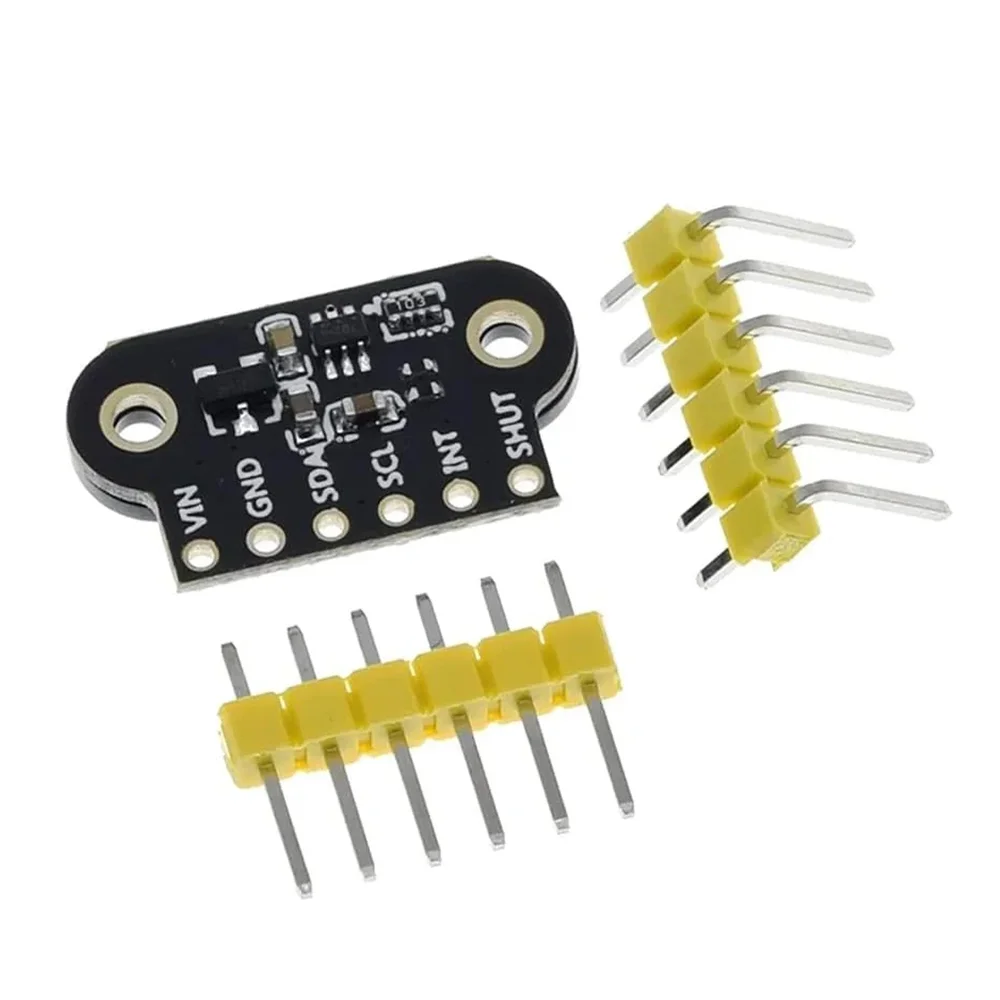

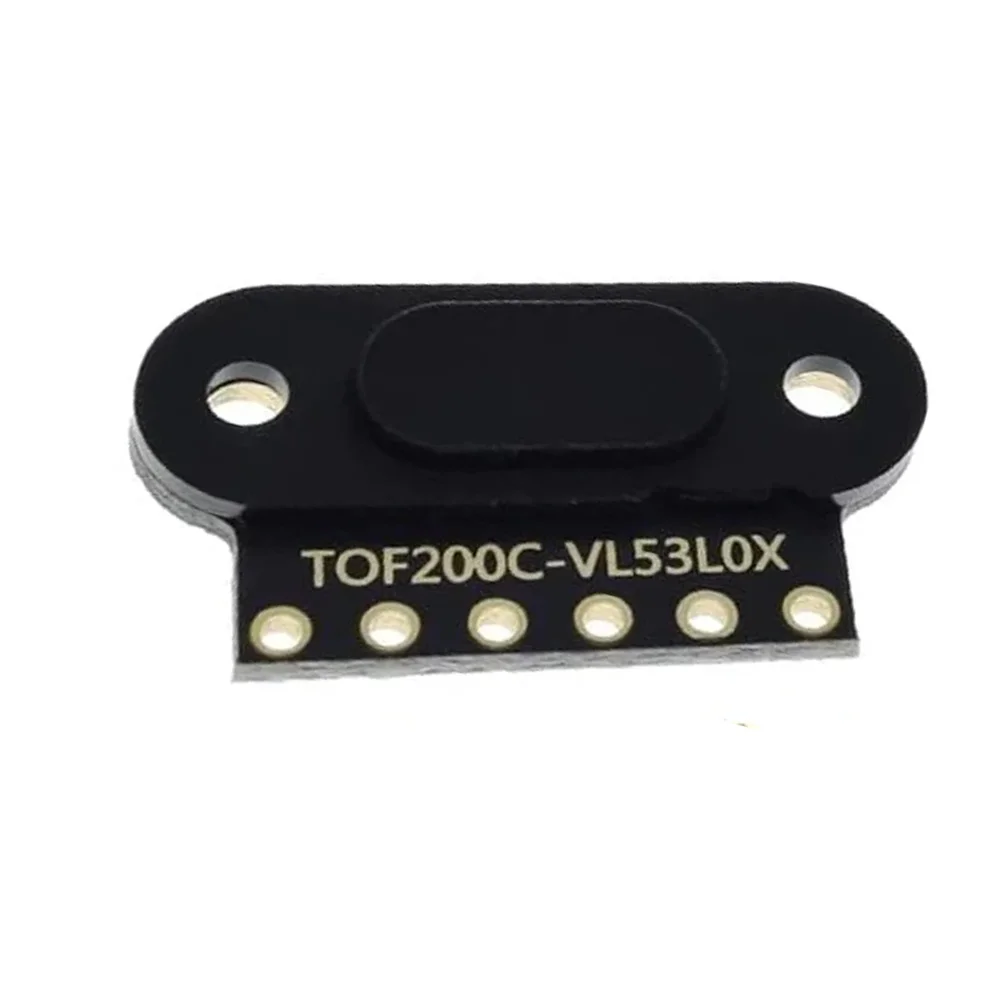

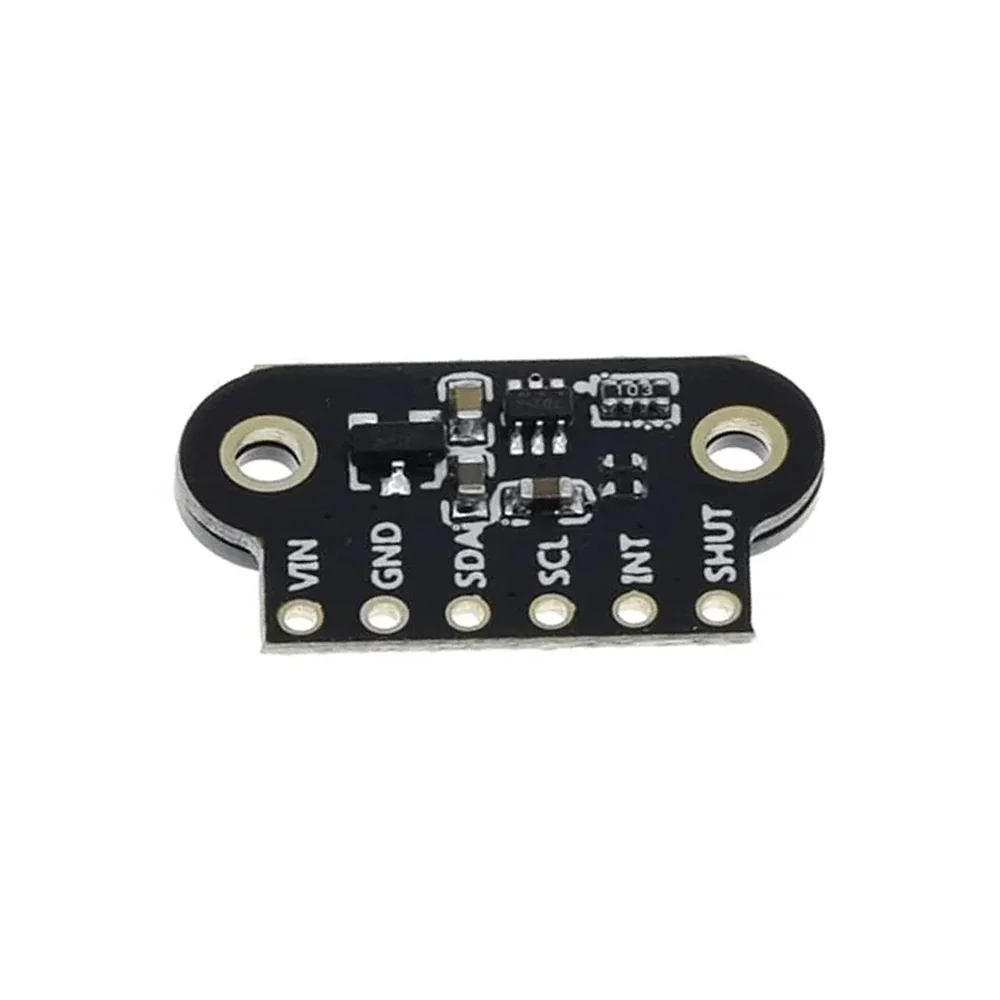

TOF200C VL53L0X Laser Ranging Sensor Module - I2C Interface, 3-200cm Range
The TOF200C VL53L0X Laser Ranging Sensor Module provides high-precision time-of-flight (ToF) distance measurement from 3 cm to 200 cm via a simple I2C interface, compatible with 3.3V/5V logic systems like Arduino, Raspberry Pi, ESP32, and STM32 for robotics, automation, and proximity sensing applications.
Features
- High-precision Time-of-Flight (ToF) laser ranging from 3 cm to 200 cm.
- I2C communication interface with programmable address support for multi-sensor setups.
- 940 nm infrared laser with optical filtering for strong ambient light rejection.
- Compact 20 x 11 mm PCB with dual M2 mounting holes for secure installation.
- Wide operating voltage range of 3V to 5V DC with low ~40 mA current consumption.
Out of stock
The TOF200C module integrates STMicroelectronics’ VL53L0X sensor, a Time-of-Flight (ToF) ranging system based on a Single-Photon Avalanche Diode (SPAD) array and FlightSense technology. It emits a 940 nm infrared laser pulse and measures the time for the reflected light to return, providing accurate distance data independent of target color and surface reflectivity. The module includes optical filtering to minimize interference from ambient light, ensuring stable performance across varying lighting conditions.
Designed for easy integration, the module features a standard I2C digital interface, allowing direct connection to microcontrollers and single-board computers. Its compact form factor, protective cover, and wide operating temperature range from -20°C to +70°C make it suitable for embedded applications in robotics, drones, and industrial automation where reliable proximity and obstacle detection are critical.
Additional Information
| Weight | 0.005 kg |
|---|---|
| Dimensions | 5 × 2 × 0.5 cm |
