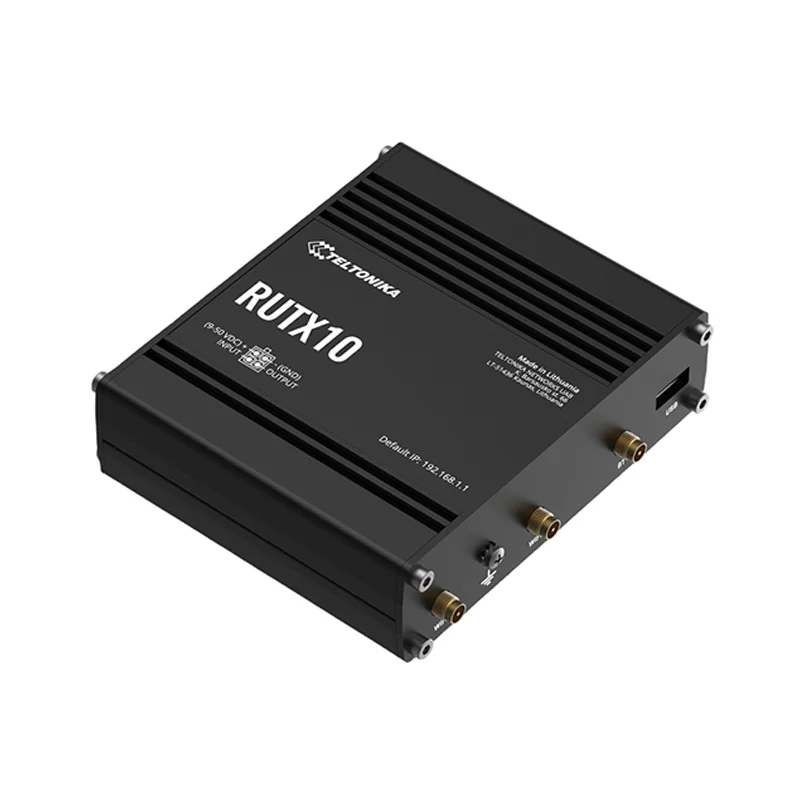

Teltonika RUTX10 Professional Ethernet Router w/ Dual-Band Wi-Fi 5

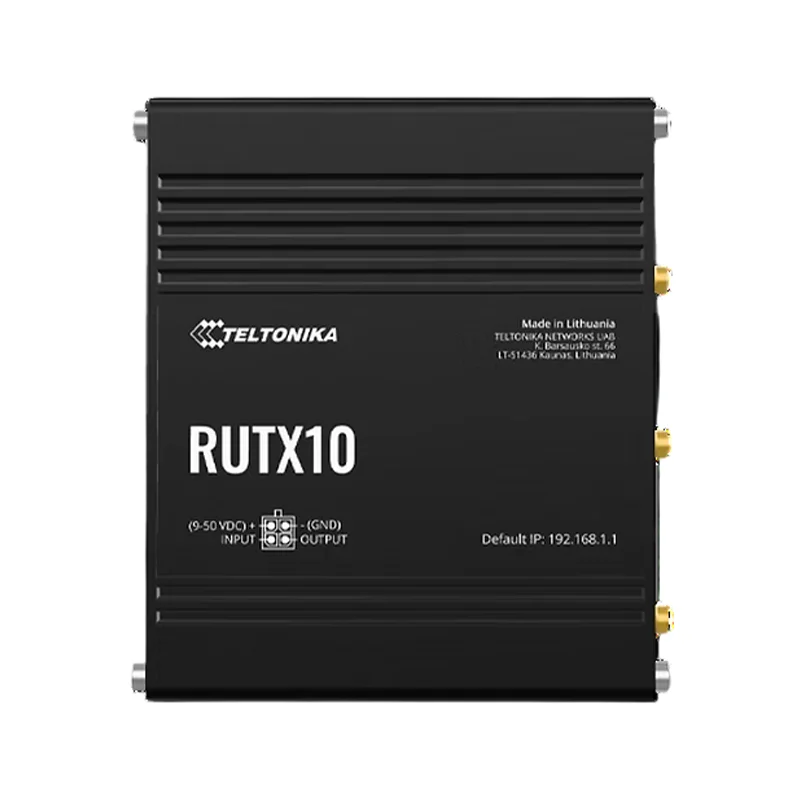

Teltonika RUTX10 Professional Ethernet Router w/ Dual-Band Wi-Fi 5 - Image 2

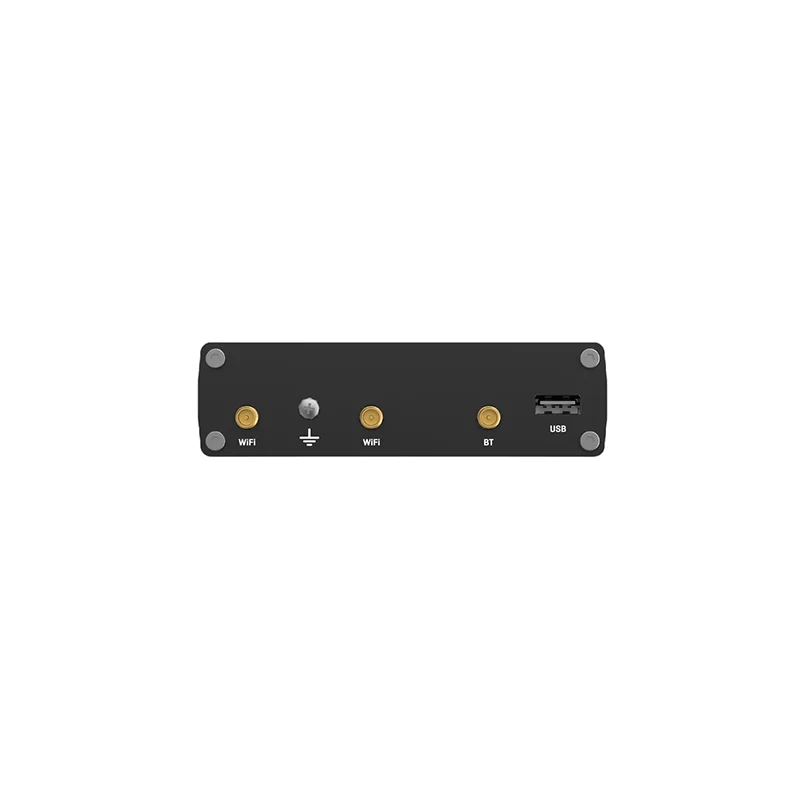

Teltonika RUTX10 Professional Ethernet Router w/ Dual-Band Wi-Fi 5 - Image 3

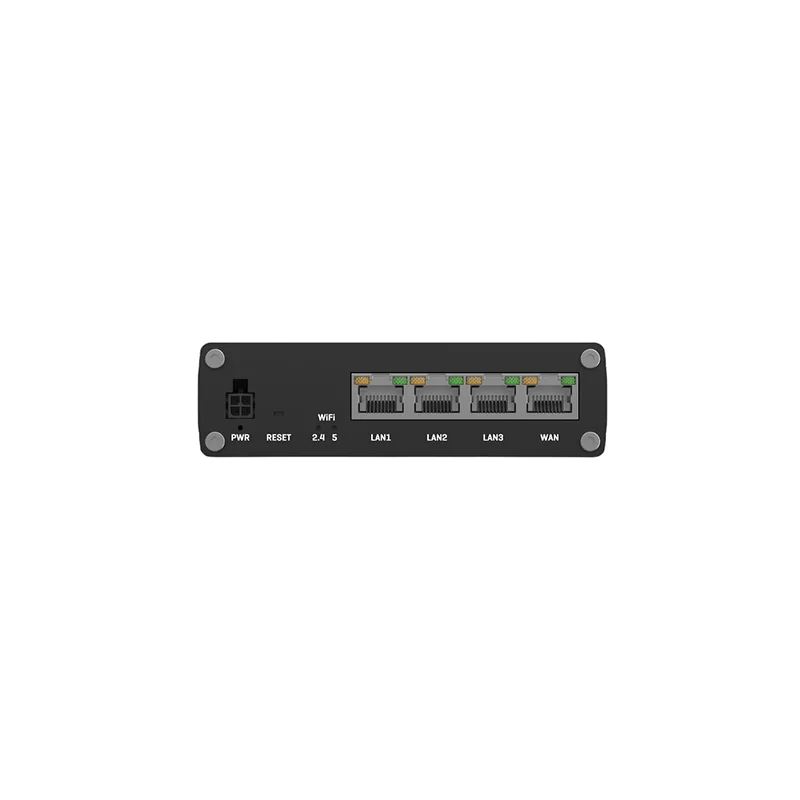

Teltonika RUTX10 Professional Ethernet Router w/ Dual-Band Wi-Fi 5 - Image 4
SKU: IOWC-1928
📋 GST Invoice Available

Teltonika RUTX10 Professional Ethernet Router w/ Dual-Band Wi-Fi 5

₹24,439.00 (Inclusive of all taxes)
Out of Stock

The Teltonika RUTX10 is an enterprise-grade Ethernet router powered by RutOS (OpenWrt Linux), featuring a quad-core ARM Cortex-A7 CPU, dual-band 802.11ac Wave-2 Wi-Fi, Bluetooth LE, and four Gigabit Ethernet ports for robust, high-speed networking in demanding business and industrial environments.

Features

  • Quad-core ARM Cortex-A7 processor (717 MHz) with 256 MB RAM/Flash for high-performance routing and VPN processing.
  • Dual-band Wave-2 Wi-Fi 5 (802.11ac) with MU-MIMO supports up to 150 simultaneous Wi-Fi clients for high-density deployments.
  • Four Gigabit Ethernet ports (1 WAN, 3 LAN) with VLAN support for flexible, secure network segmentation and management.
  • RutOS firmware based on OpenWrt Linux offers extensive VPN support (OpenVPN, IPsec, WireGuard), advanced firewall, and remote management via Teltonika RMS.
  • Rugged aluminum housing with wide operating temperature range (-40°C to +75°C) and DIN-rail mounting option for industrial reliability.

Out of stock

Description

The Teltonika RUTX10 Professional Ethernet Router is engineered for small to mid-size office and industrial networking, delivering a robust combination of processing power, wireless performance, and network security. Its RutOS operating system, built on OpenWrt Linux, provides a flexible, open-source platform for implementing complex routing protocols, VLAN configurations, and enterprise-grade VPN tunnels including OpenVPN, IPsec, and WireGuard.

With a quad-core ARM Cortex-A7 CPU and substantial memory, the router handles high-bandwidth traffic, multiple concurrent VPN connections, and advanced firewall rules without bottlenecking. The dual-band 802.11ac Wi-Fi with MU-MIMO technology ensures efficient wireless coverage for up to 150 users, while Bluetooth Low Energy enables proximity-based services and device management. The rugged aluminum enclosure and wide 9-50V DC input voltage range make the RUTX10 suitable for deployment in challenging environments, from factory floors to remote offices.

Key Features

  • High-performance quad-core ARM Cortex-A7 CPU @ 717 MHz with 256 MB RAM and 256 MB Flash storage.
  • Dual-band 802.11ac Wave-2 Wi-Fi with MU-MIMO for efficient multi-user throughput and reduced latency.
  • Four Gigabit Ethernet ports (1 configurable WAN, 3 LAN) supporting VLAN tagging and advanced routing.
  • RutOS (OpenWrt-based) firmware with full root access, package manager, and extensive protocol support.
  • Comprehensive VPN suite including OpenVPN, IPsec, WireGuard, and GRE tunnels for secure site-to-site and remote access.
  • Integrated Bluetooth Low Energy (BLE) for short-range device connectivity, beaconing, and configuration.
  • Teltonika Remote Management System (RMS) for centralized monitoring, configuration, and firmware updates.
  • Industrial-grade build with aluminum housing, DIN-rail mount option, and operating temperature from -40°C to +75°C.

Applications

  • Small to mid-size office network backbone with secure VPN tunnels for remote workers.
  • Industrial IoT (IIoT) gateway aggregating sensor data via Ethernet and Wi-Fi with rugged environmental tolerance.
  • Branch office connectivity solution with advanced routing, VLANs, and centralized RMS management.
  • Public Wi-Fi hotspot deployment in hotels, cafes, or campuses requiring high client density support.
  • Secure network segmentation for retail or enterprise environments using firewall and VLAN capabilities.

Technical Specifications

ProcessorQuad-core ARM Cortex-A7 @ 717 MHz
Memory & Storage256 MB RAM, 256 MB Flash
Wireless ProtocolsWi-Fi 5 (802.11ac Dual-Band), Bluetooth Low Energy (BLE)
Frequency Range2.4 GHz, 5 GHz
Ethernet Ports4 x Gigabit (1 WAN configurable, 3 LAN)
Supply Voltage9–50 V DC
Operating Power~9 W
Operating Current~1.5 A
Antenna ConnectorsRP-SMA (for Wi-Fi and BLE antennas)
Operating Temperature-40 °C to +75 °C
Dimensions (L x W x H)115 mm x 95.2 mm x (Height N/A)
Weight355 g

Frequently Asked Questions

What operating system does the Teltonika RUTX10 use, and can I install custom packages?

The RUTX10 runs RutOS, which is Teltonika's distribution of OpenWrt Linux. This provides full root access, a package manager (opkg), and a writable filesystem, allowing you to install custom software packages, scripts, and third-party applications to extend the router's functionality for specific networking or IoT gateway tasks.

How do I configure VPN tunnels like WireGuard or OpenVPN on the RUTX10?

VPN configuration is managed through the RUTX10's web interface or via Teltonika RMS. Navigate to the Network > VPN section. For WireGuard, generate key pairs, define peers and allowed IPs. For OpenVPN, upload client/server certificates and configure tunnel parameters. The router supports multiple simultaneous VPN tunnels, allowing secure interconnection of branch offices or remote access for employees.

What is the purpose of the Bluetooth Low Energy (BLE) feature on this router?

The integrated BLE module enables short-range wireless communication for proximity-based services. It can be used for beaconing (iBeacon/Eddystone), allowing location-aware applications, or for initial device setup and configuration via a smartphone app. It also facilitates communication with BLE-enabled sensors or peripherals in an industrial or smart building context.

Can the RUTX10 be powered via Power over Ethernet (PoE), and what is its power requirement?

No, the RUTX10 does not support Power over Ethernet (PoE) input. It requires a 9-50V DC power supply, with a typical operating power of around 9 watts. The included 18W AC/DC power adapter provides sufficient headroom. For installations requiring PoE, you would need an external PoE splitter that converts 802.3at/af power to the router's DC input voltage range.

How do I set up the RUTX10 for remote management and monitoring?

Enable the Teltonika Remote Management System (RMS) in the router's web UI under the Services section. Register the device on the RMS platform using its unique serial number. Once connected, you can perform remote configuration, real-time monitoring of status and traffic, receive alerts, and push firmware updates over the internet, all from a centralized dashboard.

Package Includes

  • 1 x Teltonika RUTX10 Professional Ethernet Router
  • 1 x 18 W Power Supply Unit (PSU)
  • 2 x Wi-Fi Antennas (RP-SMA male, swivel)
  • 1 x Bluetooth Antenna (RP-SMA male, magnetic mount, 1.5 m cable)
  • 1 x Ethernet Cable (1.5 m)
  • 1 x Quick Start Guide (QSG)
  • 1 x Packaging Box

Additional Information

Weight 0.355 kg
Dimensions 11.5 × 9.52 cm
