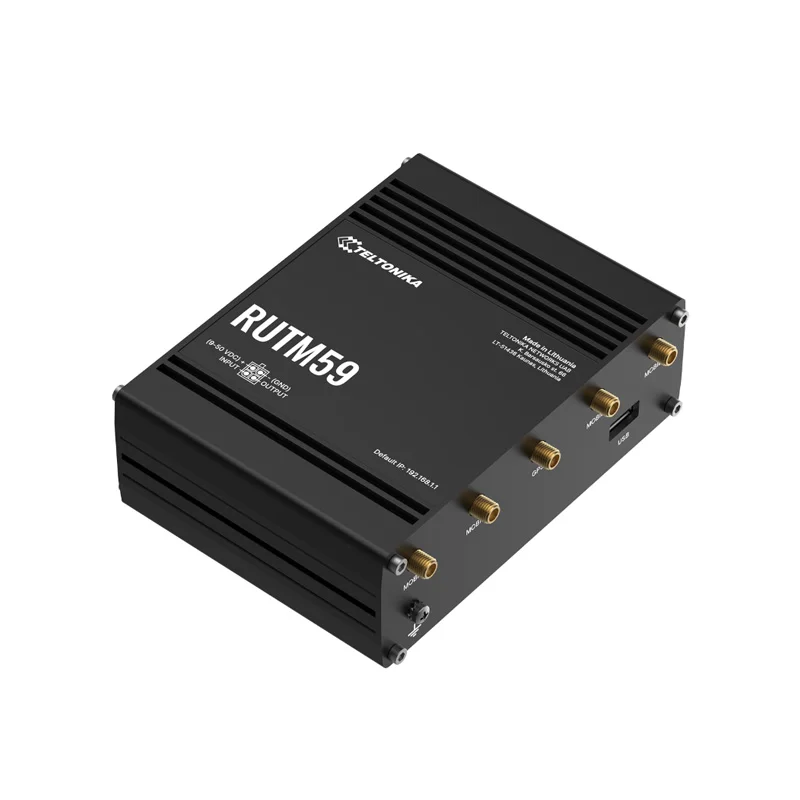

Teltonika RUTM59 Industrial 5G Cellular Router w/ 5x Gigabit LAN

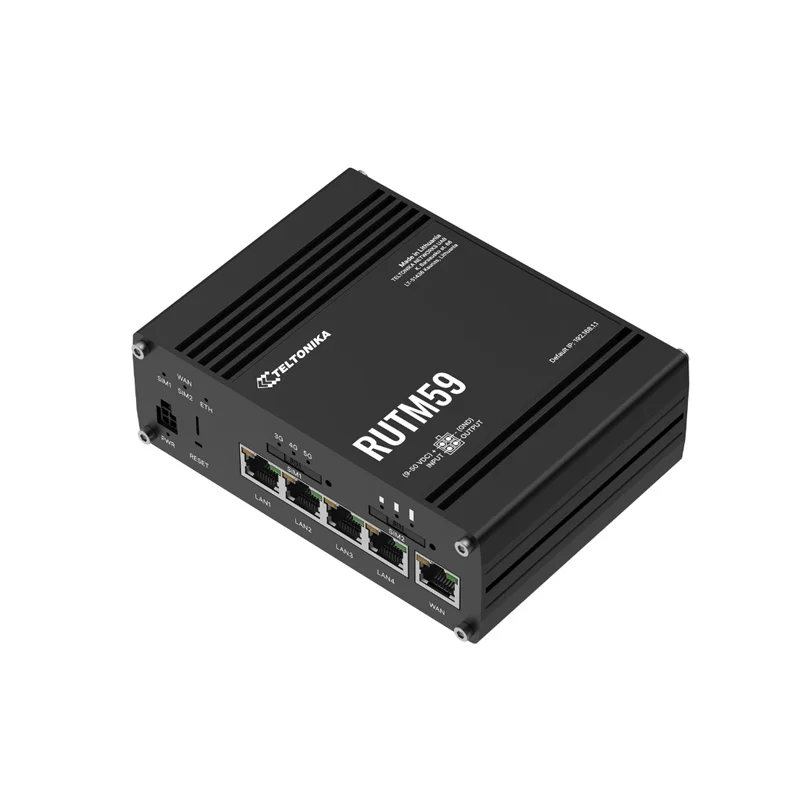

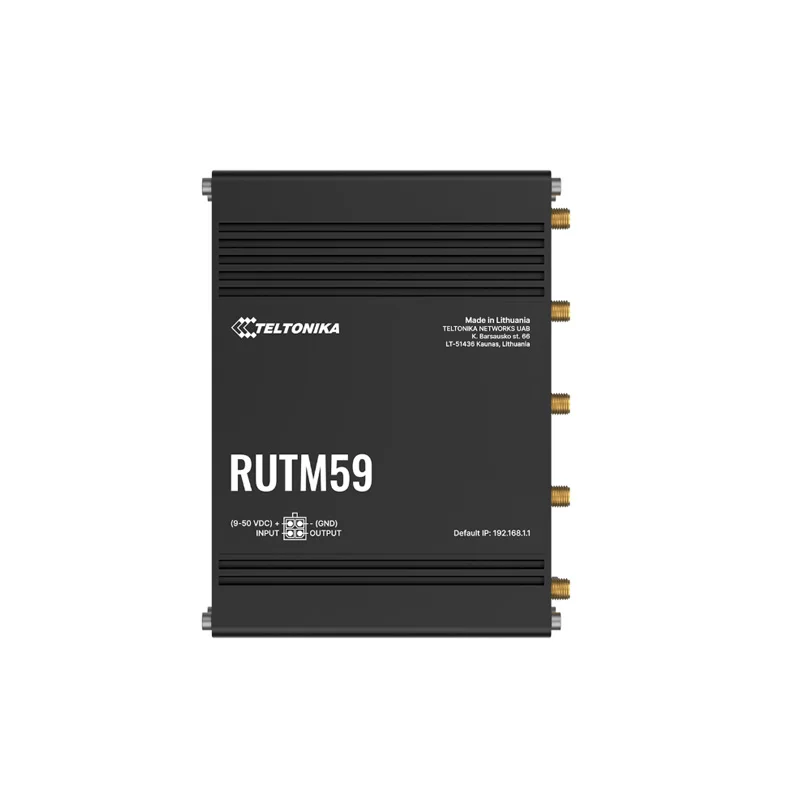

Teltonika RUTM59 Industrial 5G Cellular Router w/ 5x Gigabit LAN - Image 2
Teltonika RUTM59 Industrial 5G Cellular Router w/ 5x Gigabit LAN - Image 3

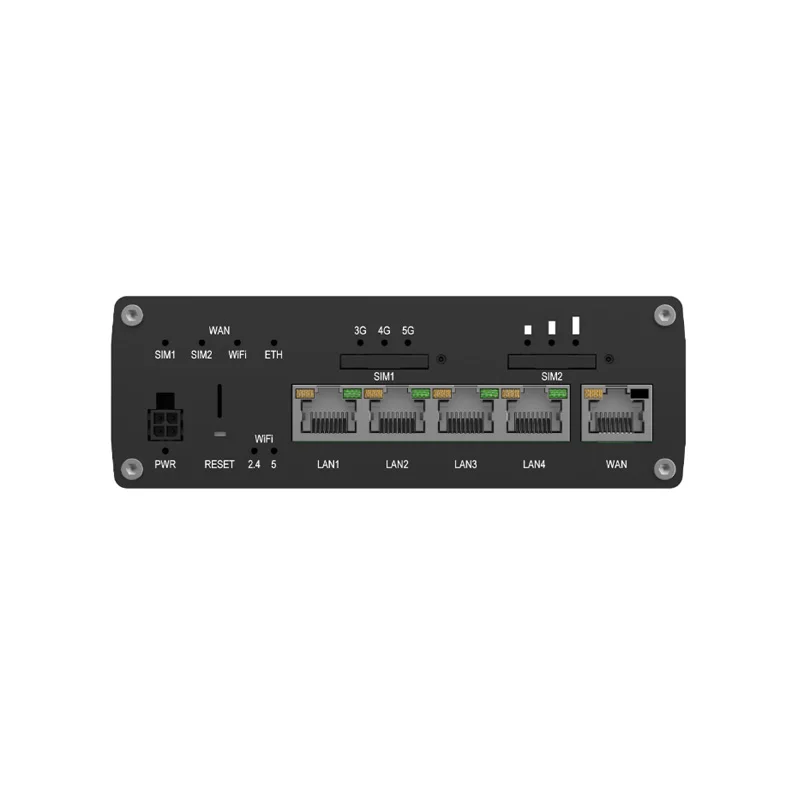

Teltonika RUTM59 Industrial 5G Cellular Router w/ 5x Gigabit LAN - Image 4

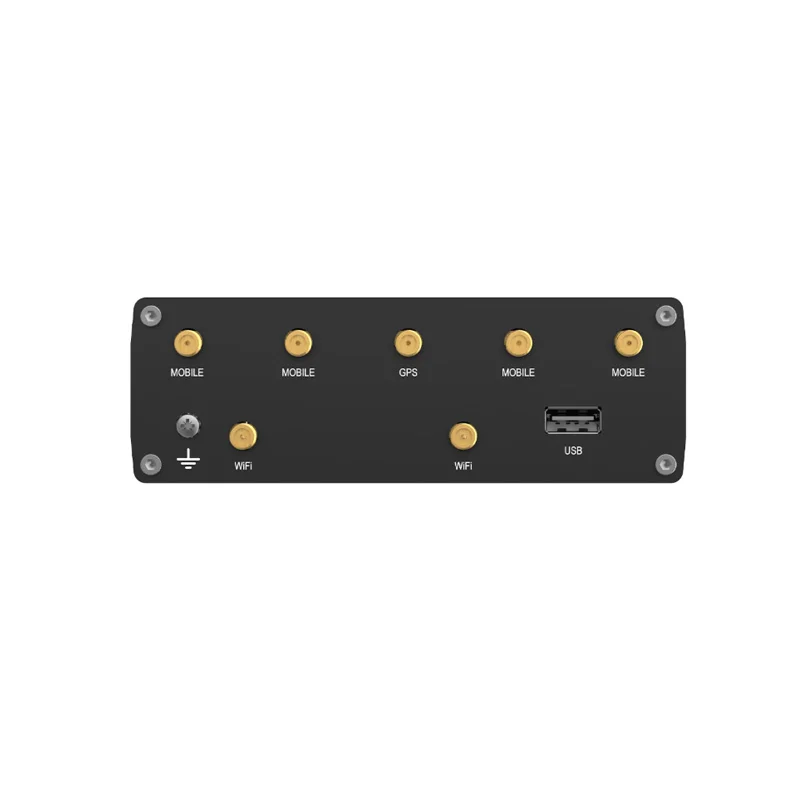

Teltonika RUTM59 Industrial 5G Cellular Router w/ 5x Gigabit LAN - Image 5
SKU: IOWC-1931
📋 GST Invoice Available

Teltonika RUTM59 Industrial 5G Cellular Router w/ 5x Gigabit LAN

₹69,569.00 (Inclusive of all taxes)
Out of Stock

The Teltonika RUTM59 is an industrial-grade 5G cellular router powered by RutOS (OpenWrt-based) for mission-critical IoT and automation. Featuring dual SIM slots with auto-failover, five Gigabit Ethernet ports, and a wide 9-50 VDC power input, it ensures robust connectivity in harsh environments from -40°C to 75°C.

Features

  • Industrial 5G SA/NSA & 4G LTE Cat 19 cellular router with dual SIM auto-failover for zero-downtime WAN connectivity.
  • Five Gigabit Ethernet ports (1 WAN + 4 LAN) for flexible network deployment and high-speed industrial data backhaul.
  • Rugged anodized aluminum housing designed for DIN-rail or wall mounting in harsh environments (-40°C to 75°C).
  • Powered by RutOS (OpenWrt-based) with advanced VPN (OpenVPN, IPsec, WireGuard) and industrial protocol support (Modbus, MQTT).
  • Integrated digital I/O (1x DI, 1x DO) for monitoring and controlling external sensors, alarms, or actuators.

Out of stock

Description

The Teltonika RUTM59 Industrial 5G Cellular Router is engineered for mission-critical connectivity in industrial automation, remote telemetry, and smart infrastructure deployments. Its dual-core 880 MHz MediaTek CPU and 256 MB RAM handle advanced routing, multiple VPN tunnels, and industrial protocol translation without bottlenecking high-throughput 5G or Gigabit Ethernet links. The router supports both 5G Standalone (SA) and Non-Standalone (NSA) architectures, ensuring forward compatibility with evolving networks while maintaining backward support for 4G LTE Cat 19 as a fallback.

Built for resilience, the RUTM59 operates from a wide 9-50 VDC input with passive PoE support, consuming just 5W idle and up to 18W under full load. Its ruggedized aluminum enclosure, DIN-rail mounting kit, and extended operating temperature range guarantee reliable performance in electrically noisy or environmentally challenging installations. The integrated configurable digital input and open-collector output enable direct interfacing with industrial sensors and control systems, eliminating the need for external gateways.

Key Features

  • Dual SIM slots with intelligent auto-failover and load balancing for uninterrupted cellular WAN connectivity.
  • Five Gigabit Ethernet ports (1 WAN, 4 LAN) provide flexible network segmentation and high-bandwidth backhaul.
  • RutOS operating system (OpenWrt-based) offers a secure, customizable platform with full CLI access and a web UI.
  • Comprehensive VPN suite supports OpenVPN, IPsec, WireGuard, and GRE for encrypted site-to-site or remote access tunnels.
  • Native industrial IoT protocol support including Modbus TCP/RTU gateway, MQTT publisher/subscriber, and OPC UA.
  • Rugged anodized aluminum housing with IP30 rating, designed for DIN-rail or wall mounting in harsh environments.
  • Integrated digital I/O (1x DI, 1x DO) for monitoring dry contacts, voltage levels, or controlling external relays.
  • Remote management and monitoring via Teltonika RMS (Remote Management System) for fleet oversight.

Applications

  • Industrial automation and SCADA systems requiring reliable, low-latency 5G backhaul for PLCs and HMIs.
  • Remote telemetry and monitoring for utilities (water, gas, electricity) in areas without wired broadband.
  • Mobile or fixed surveillance and security systems streaming high-definition video over cellular networks.
  • Smart city infrastructure connecting traffic sensors, environmental monitors, and digital signage.
  • Fleet management and in-vehicle networking for public transportation or logistics.
  • Failover and backup WAN connectivity for critical branch offices or retail sites.

Technical Specifications

ModelRUTM59
Cellular Connectivity5G SA/NSA, 4G LTE Cat 19, Dual SIM
Ethernet Ports5x Gigabit RJ45 (1 WAN + 4 LAN)
CPUMediaTek Dual-Core 880 MHz (MIPS1004Kc)
RAM / Flash256 MB DDR3 / 256 MB NAND + 16 MB NOR
Operating SystemRutOS (OpenWrt-based)
Power Input9–50 VDC, Passive PoE Support
Power ConsumptionIdle: 5W, Maximum: 18W
Digital I/O1x Configurable DI, 1x Configurable DO (Open Collector, 50V/300mA max)
Antenna Connectors4x SMA (Cellular), 1x SMA (GNSS)
Operating Temperature-40°C to +75°C
Dimensions (LxWxH)132 mm x 44.2 mm x N/A
Weight530 g

Frequently Asked Questions

How do I configure the dual SIM slots for auto-failover on the RUTM59?

Access the RUTM59 web interface under Network > Mobile. Enable the 'SIM Failover' feature and set the primary and secondary SIM profiles. You can define failure detection methods (e.g., ping loss, signal strength threshold) and switching behavior. The router will automatically switch to the secondary SIM if the primary connection degrades, ensuring continuous WAN availability. This is configured via RutOS's intuitive UI or CLI commands.

Can the RUTM59 function as a Modbus TCP to Modbus RTU gateway?

Yes, the RUTM59 with RutOS includes a Modbus gateway application. Navigate to Services > Modbus in the web UI. Configure a TCP listener port and map it to a serial port (like a connected RS485 device) with the appropriate RTU settings (baud rate, parity). The router will transparently translate between Modbus TCP requests from your SCADA host and Modbus RTU frames for your field devices, acting as a protocol converter.

What is the procedure to update the RutOS firmware on the router?

Download the latest firmware file (.bin) from the official Teltonika website. Log into the RUTM59 web UI and go to System > Firmware. Click 'Flash image' and upload the downloaded file. Do not power off the router during the process, which takes about 2-3 minutes. After a reboot, the router will run the new version. It's recommended to backup your configuration before updating.

How do I wire and use the configurable digital input and output?

The digital input (DI) accepts 0-50V. Connect a voltage source (e.g., dry contact sensor) between the DI pin and GND. In RutOS, configure the DI under I/O to trigger scripts or status changes. The digital output (DO) is an open-collector output. Connect your load (max 50V, 300mA) between an external positive supply and the DO pin. Setting the DO to 'low' in software will sink current, activating the connected relay or indicator.

Package Includes

  • 1 x Teltonika RUTM59 Industrial 5G Cellular Router
  • 1 x 18W Power Supply Unit (PSU)
  • 4 x Mobile Antennas (SMA male, swivel)
  • 1 x GNSS Antenna (SMA male, adhesive mount, 3m cable)
  • 1 x Ethernet Cable (1.5m)
  • 1 x SIM Adapter Kit
  • 1 x Quick Start Guide (QSG)
  • 1 x Packaging Box

Additional Information

Weight 0.53 kg
Dimensions 13.2 × 4.42 cm
