TE Connectivity VS803-51 Liquid Level Sensor Float Switch, SPST-NO, Polypropylene, 15W, 250VAC
The TE Connectivity VS803-51 is a vertical-mount float switch for high or low-level liquid detection in tanks and reservoirs. Featuring a SPST-NO reed switch, it is rated for 250VAC/1A and is compatible with a wide range of liquids, making it suitable for integration into industrial control panels, PLCs, and automated water management systems.
Features
- SPST-NO reed switch rated for 250VAC, 1.0A, and 15W maximum load
- Glass-filled polypropylene body for high chemical resistance and durability
- Dual mounting capability for top or bottom tank entry with included hardware
- Wide operating temperature range from -10°C to +80°C
- Normally open or normally closed operation via simple float reversal
Out of stock

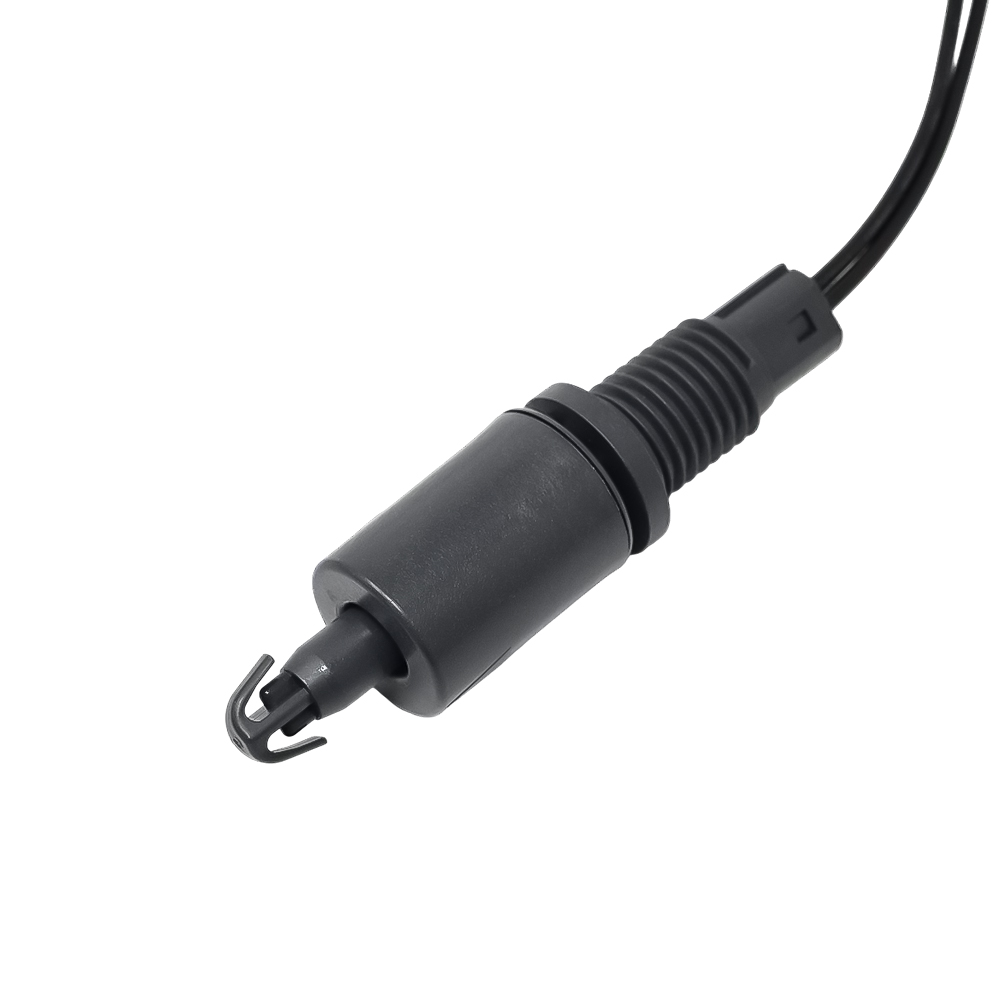

The VS803-51 liquid level sensor utilizes a hermetically sealed reed switch actuated by a magnetic float. This contactless switching mechanism ensures high reliability and long service life by isolating the electrical contacts from the measured liquid. The sensor’s glass-filled polypropylene housing and silicone-sealed internal components provide robust protection against a wide range of chemicals, coolants, and wastewater.

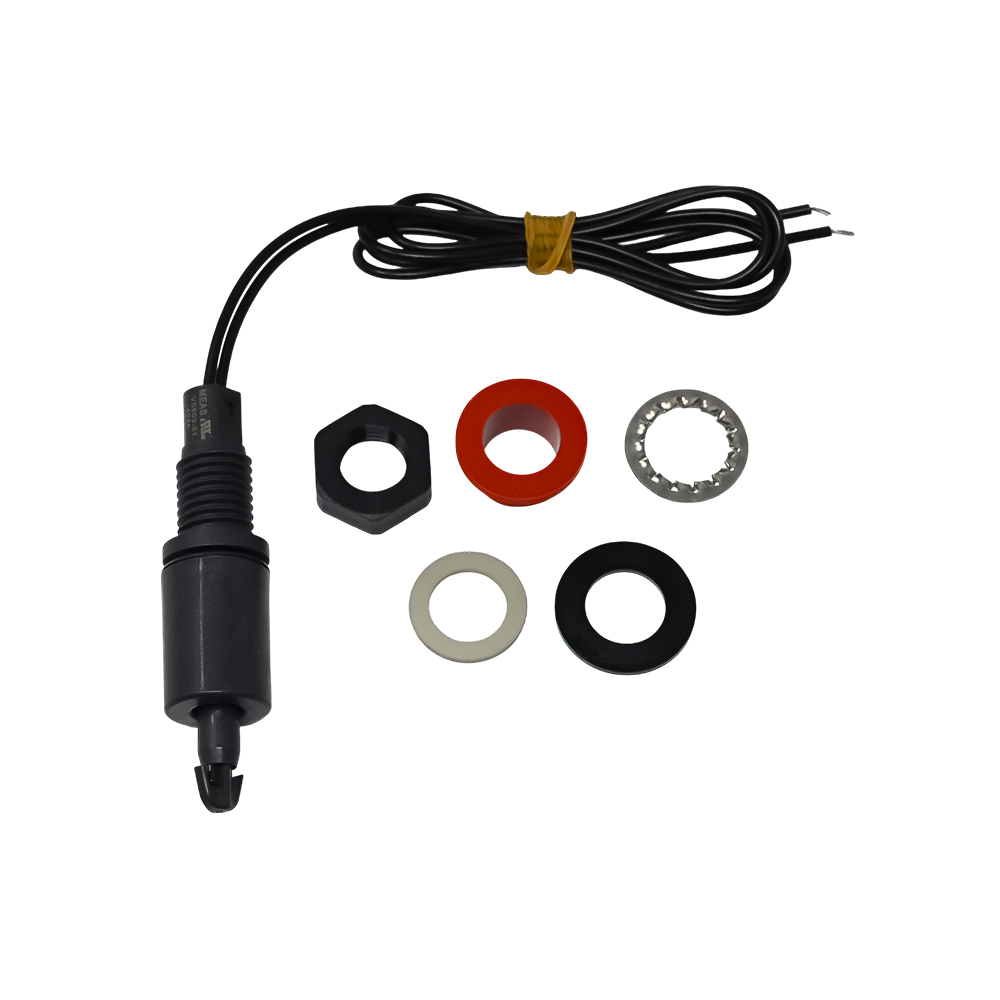

Designed for straightforward integration, the sensor includes stripped cable connections for quick wiring and a comprehensive mounting kit for secure installation. Its compact 90mm length allows for deployment in confined spaces within tanks, sumps, and reservoirs. The unit’s construction is rated to withstand significant shock and vibration, ensuring stable operation in demanding industrial environments.
Additional Information
| Weight | 0.04 kg |
|---|---|
| Dimensions | 11 × 8 × 3 cm |
