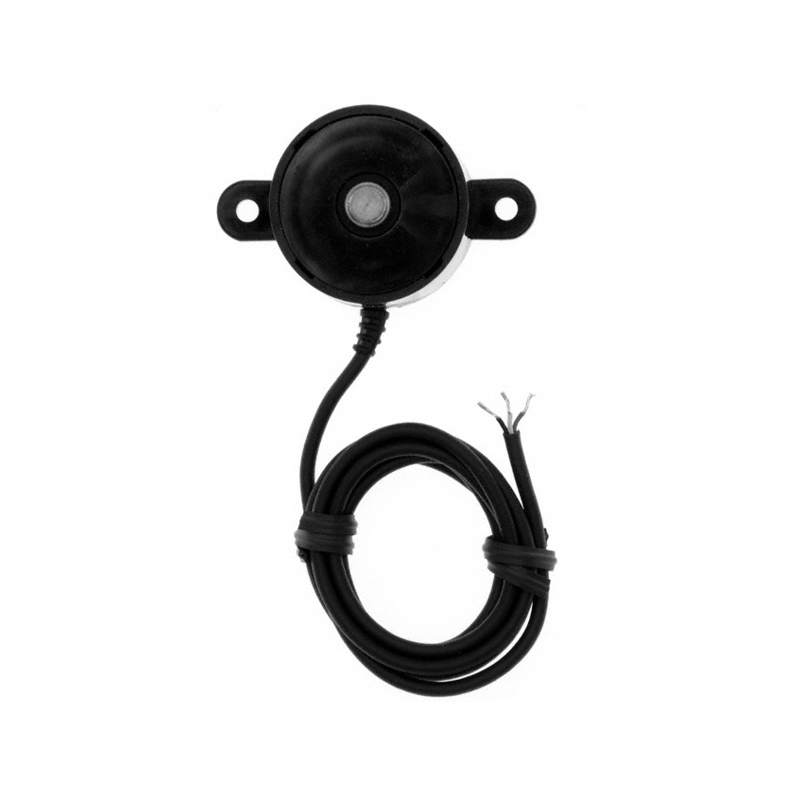

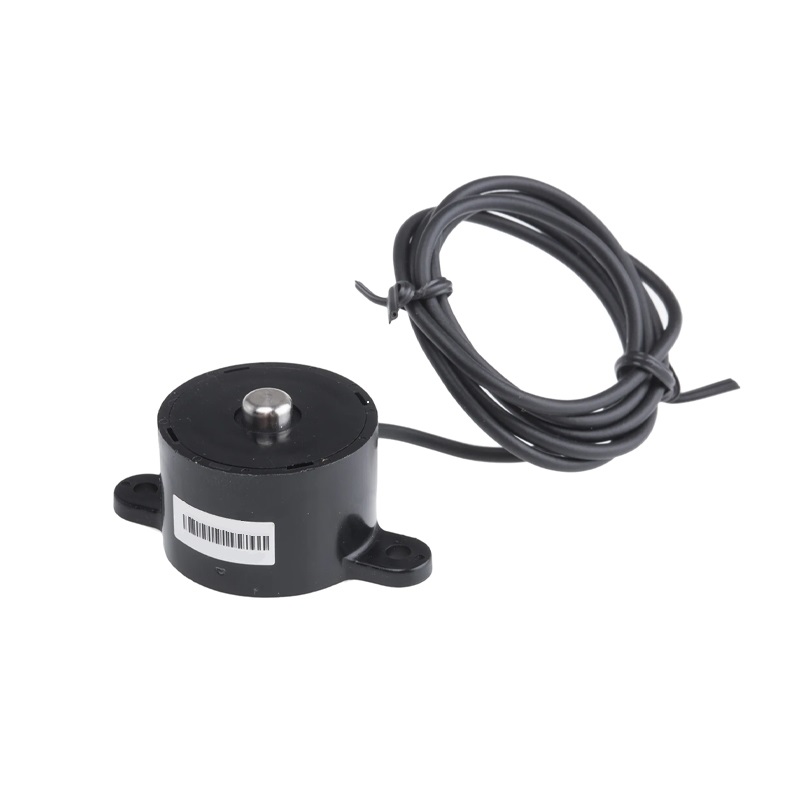

TE Connectivity FC2231-0000-0010-L Force Load Cell Sensor, FC22 Series, 10 lbf, 0.5 to 4.5 V, 2 ft Cable
The TE Connectivity FC2231-0000-0010-L is a precision compression force load cell delivering a 0.5 to 4.5 V ratiometric output for a 10 lbf range. Its robust stainless steel construction and integrated 2-foot cable make it ideal for integration into industrial automation, test & measurement, and OEM force-sensing applications requiring high reliability and long-term stability.
Features
- Compression force sensor with a calibrated range of 10 lbf (pounds-force).
- Provides a 0.5 to 4.5 V ratiometric output signal for direct ADC interfacing.
- Features TE’s proprietary Micro fused technology with micromachined silicon piezoresistive strain gauges for superior stability.
- Robust stainless steel construction ensures high over-range capability and virtually unlimited cycle life.
- Includes an integrated 2-foot cable for simplified installation and connection.
Out of stock
The FC22 Series Force Load Cell Sensor from TE Connectivity utilizes advanced Micro fused technology, where micromachined silicon piezoresistive strain gauges are fused directly to a stainless steel substrate using high-temperature glass. This process eliminates age-sensitive epoxies, resulting in exceptional long-term stability for both zero-point and span, even under demanding environmental conditions.
Designed for medium-range compression force measurement, the sensor operates on a low-strain principle, which provides high resolution, excellent overload tolerance, and minimal deflection under load. The unit is thermally compensated to maintain accuracy across its full operating temperature range from -40°C to +85°C. Its compact, low-noise design and normalized output simplify interchangeability and integration into high-volume OEM systems, test benches, and industrial monitoring equipment.
Additional Information
| Weight | 0.018 kg |
|---|---|
| Dimensions | 4 × 2.5 cm |
