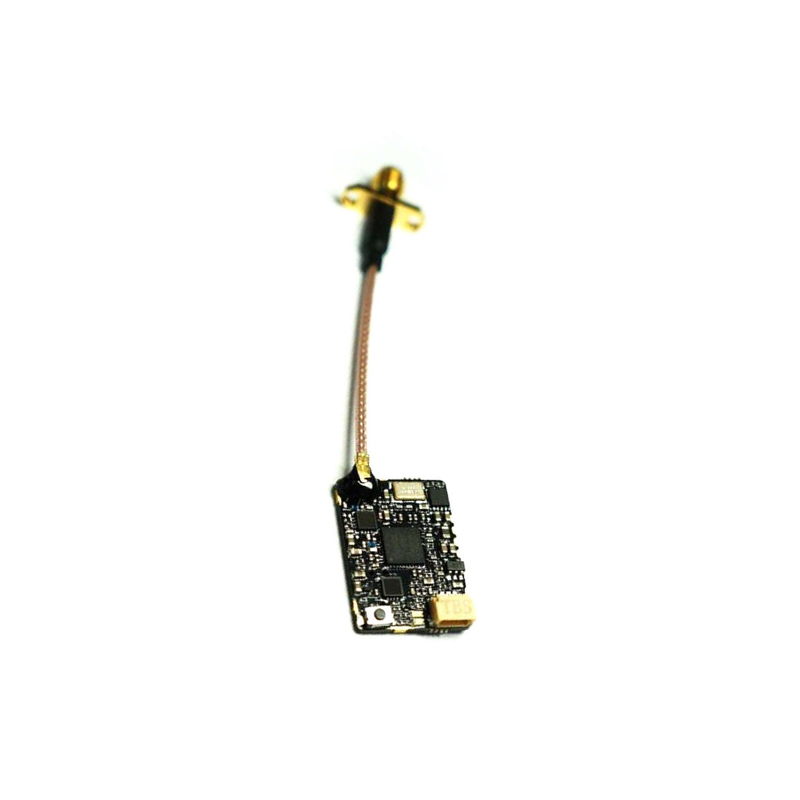

TBS TBS Unify Pro 5G8 V3 Video Transmitter - RP-SMA

Name: TBS TBS Unify Pro 5G8 V3 Video Transmitter - RP-SMA
Brand: TBS
SKU: DRFC-2147
Price: 4749.00 INR
Availability: OutOfStock

₹4,749.00 (Inclusive of all taxes)

Out of Stock

The TBS Unify Pro 5G8 V3 is a compact, high-power 5.8GHz FPV video transmitter delivering up to 800mW output, featuring PitMode for race-day safety, clean OSD integration, and compatibility with 4.5-5.5V filtered power sources like the TBS CORE PRO.

Features

Ultra-compact and lightweight design, weighing only 5g (without antenna).
High-power output up to 800mW with four selectable power levels (25mW, 200mW, 500mW, 800mW).
Integrated PitMode allows safe power-up in race pits without transmitting video signal.
Easy channel and power management via OSD, flight controller, or manual button interface.
Robust RF amplifier designed for high reliability, even under temporary antenna-less operation.

Out of stock

Get Notified When Available

Description

The TBS Unify Pro 5G8 V3 sets a benchmark for performance-to-size ratio in the FPV video transmitter market. Engineered for competitive racing and high-performance freestyle builds, its filtered 5V power input ensures clean video feed integration with modern flight controller power systems, minimizing electrical noise.

Its advanced RF design provides exceptionally clean transmission, supporting dense multi-pilot environments. The unit’s robust construction and thermal management allow for reliable operation across its full power range, making it a cornerstone component for pilots demanding both maximum range and race-day functionality.

Key Features

Industry-leading compact footprint and minimal weight for optimized drone balance.
Four programmable output power levels (25mW, 200mW, 500mW, 800mW) for adaptable flight environments.
Exclusive PitMode feature disables RF transmission for safe bench and pit area operation.
Seamless integration with Betaflight OSD for in-goggle control of channels, bands, and power.
Durable RF power amplifier with protection circuitry for enhanced operational longevity.
Supports both NTSC and PAL video input formats for global compatibility.
Designed for use with a filtered 4.5-5.5V supply, compatible with TBS CORE PRO and PowerCube systems.

Applications

Primary video transmitter for 5-inch and larger FPV racing drones requiring high power and PitMode functionality.
Freestyle and long-range FPV builds where a clean, high-power 5.8GHz video link is critical.
Integration into compact cinewhoop or micro drone builds where space and weight are at a premium.
Competition-ready builds utilizing TBS ecosystem components like the CORE PRO for a unified power and control system.

Technical Specifications

Item Type	Video Transmitter (VTX)
Connector Type	RP-SMA (Female)
Operating Voltage	4.5 - 5.5V
Supply Current	600mA
Output Power	13dBm (25mW), 23dBm (200mW), 27dBm (500mW), 29dBm (800mW)
Video Format	NTSC / PAL
Audio Carrier Frequency	6.5 MHz
Impedance	75 Ohm
Weight (without antenna)	5 g

Frequently Asked Questions

What is the input voltage range for the TBS Unify Pro 5G8 V3?

The TBS Unify Pro V3 requires a filtered 4.5V to 5.5V DC power supply. It is designed to be powered directly from a clean 5V BEC, such as those provided by the TBS CORE PRO, a flight controller's regulated 5V pad, or a dedicated voltage regulator. Exceeding this voltage range can damage the unit.

How do I activate and use the PitMode feature?

PitMode can be activated via the SmartAudio or Tramp telemetry protocol through your Betaflight OSD, or by using the manual button on the VTX itself. When enabled, the VTX powers on but does not transmit an RF signal, allowing you to work on your drone in the pit area or power it on your bench without causing interference to other pilots.

Is this VTX compatible with my flight controller's OSD for control?

Yes, the Unify Pro V3 supports both SmartAudio (v1 & v2) and Tramp telemetry protocols for full integration with Betaflight and similar flight controller firmware. You can change channels, bands, and power levels directly from your OSD menu without needing to access the physical button on the VTX, provided it is connected to a dedicated TX/RX pad on your FC.

What antenna connector type does this model use?

This specific model is equipped with a female RP-SMA connector. Ensure you use an RP-SMA compatible antenna. Using a standard SMA antenna, which has a different pin and thread configuration, will result in a poor connection and can damage both the VTX and the antenna.
