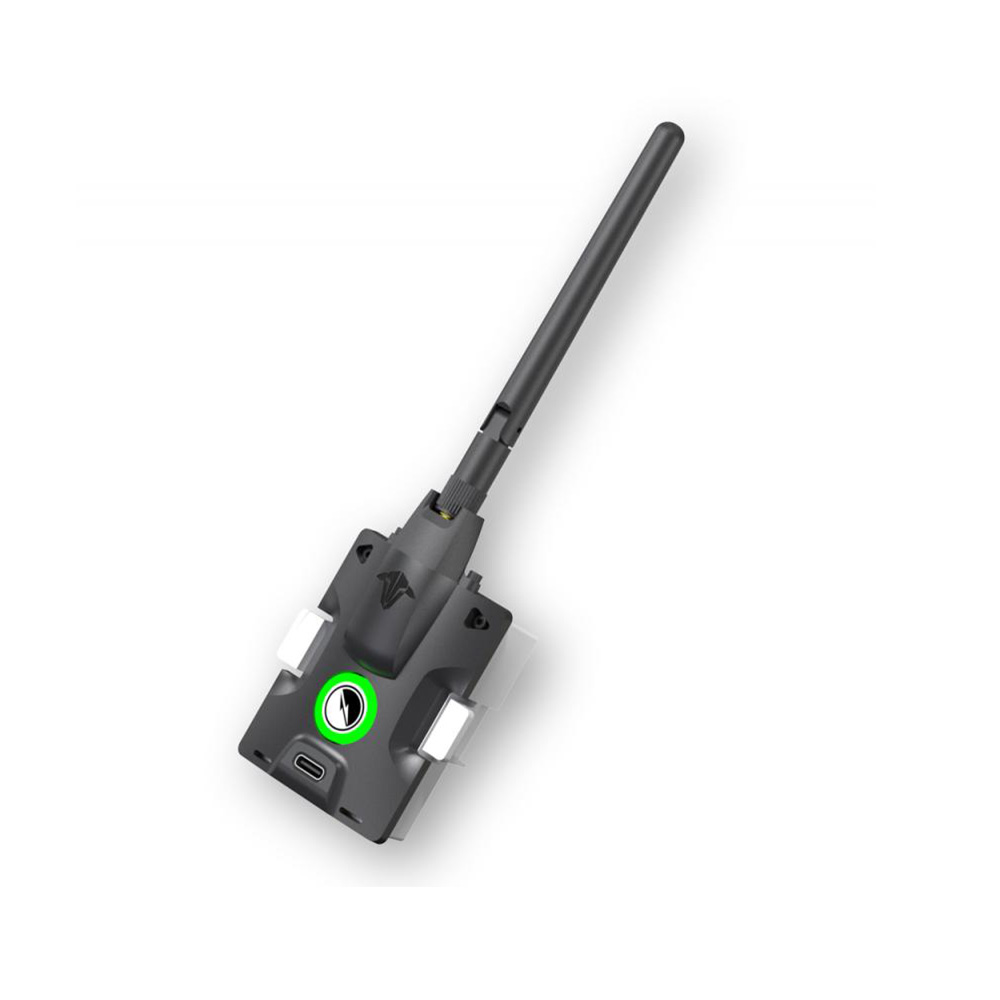

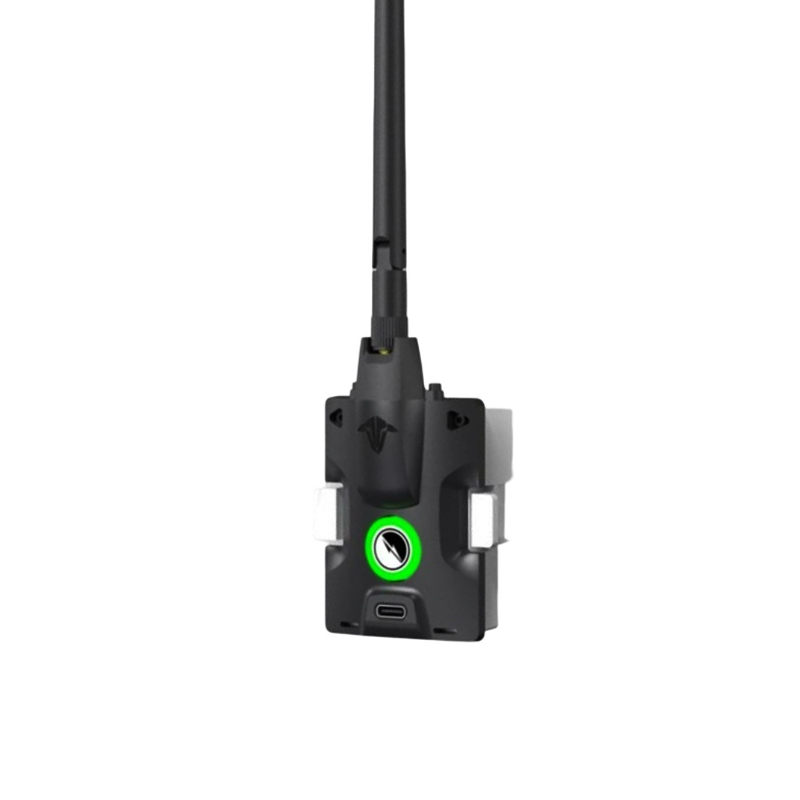

TBS TBS Tracer Micro TX - FPV Racing Drone Transmitter
The TBS Tracer Micro TX is a high-performance 2.4GHz RF module delivering a 250Hz refresh rate and 3ms end-to-end latency for FPV racing drones. Compatible with LITE and JR form factor transmitters like the TBS Tango 2, it operates on 5-13V input via USB-C and offers selectable output power from 25mW to 100mW.
Features
- Ultra-low 3ms end-to-end latency for precise control response.
- High 250Hz refresh rate ensures real-time telemetry and control data.
- Selectable RF output power from 25mW to 100mW for flexible range control.
- Compact JR/LITE module bay compatibility (e.g., TBS Tango 2, FrSky X-Lite).
- Robust 2.4GHz technology derived from the proven Crossfire radio engine.
Out of stock
The TBS Tracer Micro TX integrates next-generation 2.4GHz RF technology with the reliability of the Crossfire platform, engineered for competitive FPV racing and long-range applications. Its nano-sized receiver architecture supports antenna diversity, providing a robust link capable of exceeding 25km (15mi+) in optimal conditions.
Designed for minimal power consumption, the module draws between 1.1W and 2W, making it suitable for portable transmitter setups. The USB-C connector simplifies firmware updates and power delivery, while the wide 5-13V input range ensures compatibility with a broad spectrum of radio controller power systems.
Additional Information
| Weight | 0.098 kg |
|---|---|
| Dimensions | 6.5 × 4.8 × 2.2 cm |
