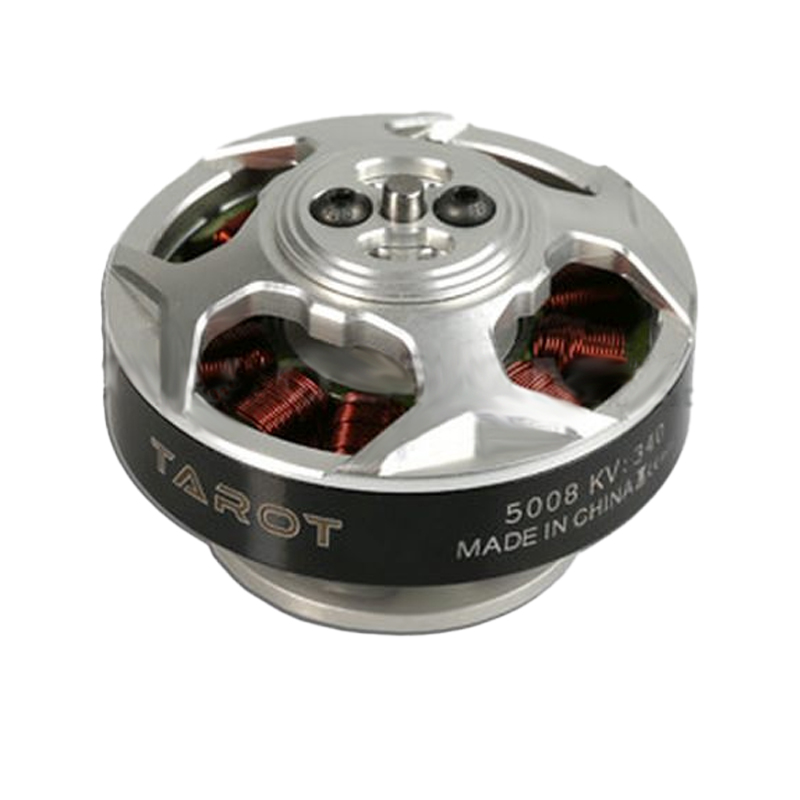

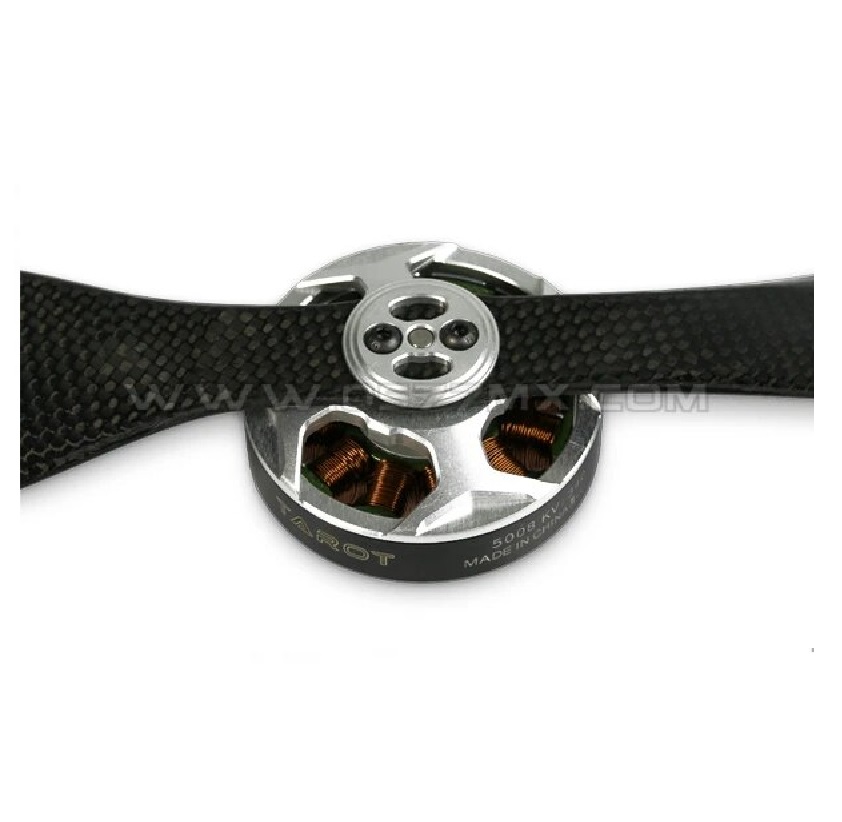

Tarot TL96020 5008 340KV High Power Brushless Motor
The Tarot TL96020 5008 340KV brushless motor is engineered for heavy-lift multirotor platforms, delivering high torque and efficiency for 17-18 inch propellers on industrial and enterprise UAVs.
Features
- High-torque 5008 (50mm stator, 8mm thickness) 340KV motor for heavy-lift applications
- Full CNC-machined housing with integrated turbofan cover for enhanced cooling
- Precision-balanced 14-pole external rotor with high-strength epoxy and NdFeB magnets
- Designed for 17-18 inch propellers on platforms like the T960 and T18 folding frames
- Features large, low-friction bearings for high radial load capacity and long service life
Out of stock
The Tarot TL96020 5008 340KV motor is a purpose-built power unit for demanding aerial work platforms. Its 50mm stator diameter and 8mm thickness provide a substantial magnetic circuit optimized for low KV, high-torque operation, essential for lifting heavy payloads with large-diameter propellers.
Constructed with a fully CNC-machined aluminum housing, the motor ensures excellent structural integrity and heat dissipation. A dedicated turbofan cover directs airflow over the stator windings, managing thermal loads during sustained high-power operation. The external rotor assembly undergoes special dynamic balancing to minimize vibration, a critical factor for flight stability and onboard sensor performance in professional UAVs.
Additional Information
| Weight | 0.207 kg |
|---|---|
| Dimensions | 7 × 7 × 5 cm |
