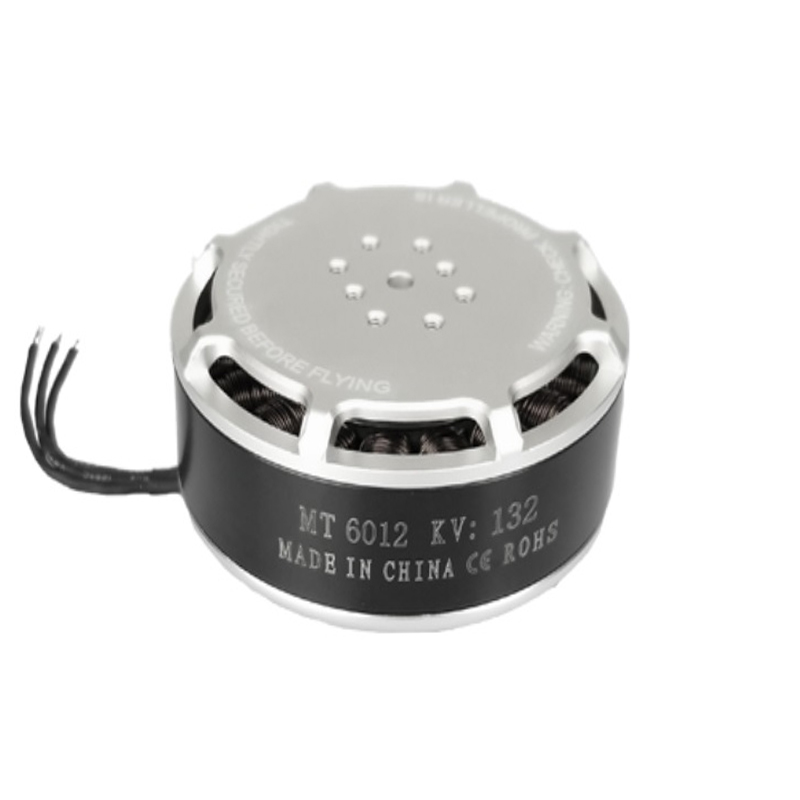

Tarot TL3009 6012/132KV Martin Brushless Motor
The Tarot TL3009 is a 6012 stator, 132KV brushless motor engineered for heavy-lift and long-endurance fixed-wing or multirotor UAVs, delivering high torque and 880W max power for demanding industrial and agricultural applications.
Features
- 6012 stator (60mm diameter, 12mm thickness) for exceptional torque and power density.
- Low 132KV rating optimized for large 21-24 inch propellers on high-voltage (6S-12S) LiPo systems.
- Robust metal construction with a 24-pole design for smooth, efficient, and reliable operation.
- Rated for continuous 20A current with a peak power output of 880W.

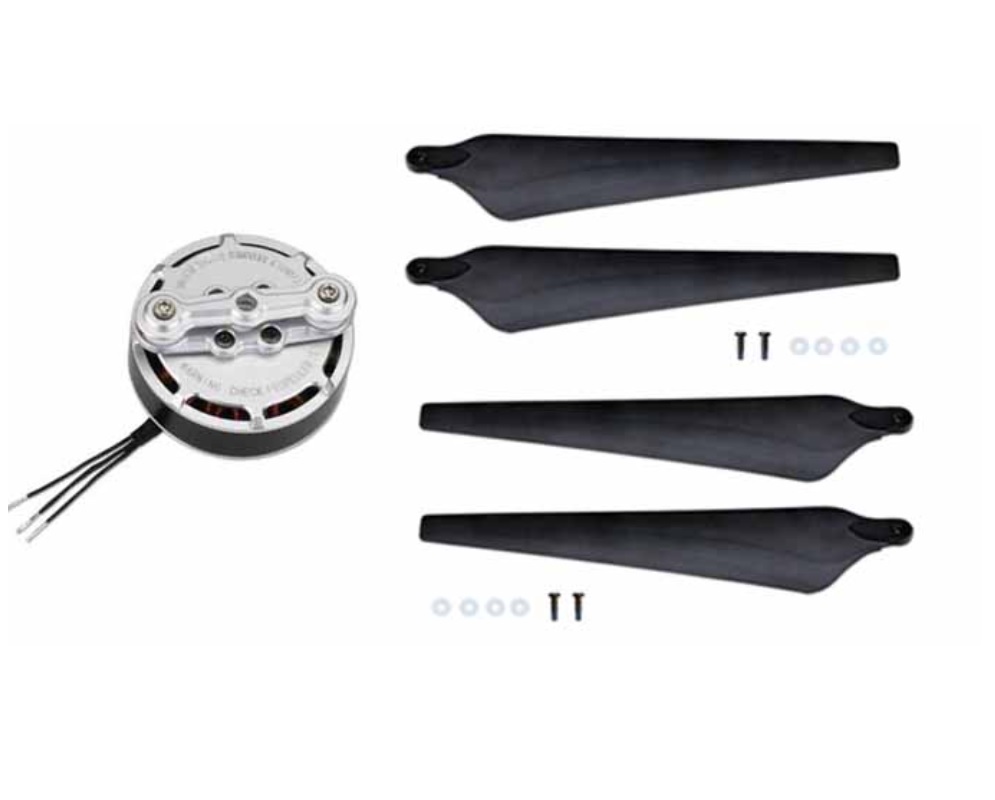

- Includes M3 and M4 mounting hardware for versatile frame integration.
Out of stock
The Tarot TL3009 Martin motor is engineered for professional-grade UAV platforms requiring extended flight times and significant payload capacity. Its 6012 stator dimensions provide a substantial magnetic area, generating the high torque necessary to efficiently spin large-diameter, high-pitch propellers. This design minimizes current draw at cruise throttle, which is critical for maximizing battery life in agricultural mapping, surveying, and heavy-lift cargo operations.
Built with a durable all-metal housing and a 24-pole internal magnet configuration, the motor ensures reliable performance under continuous load. The 8mm shaft diameter and included mounting hardware offer secure propeller attachment and straightforward installation onto compatible airframes. Its thermal management is designed to handle the sustained 20-amp current, making it a cornerstone component for builders focused on endurance and reliability over raw speed.
Additional Information
| Weight | 0.373 kg |
|---|---|
| Dimensions | 10 × 10 × 8 cm |
