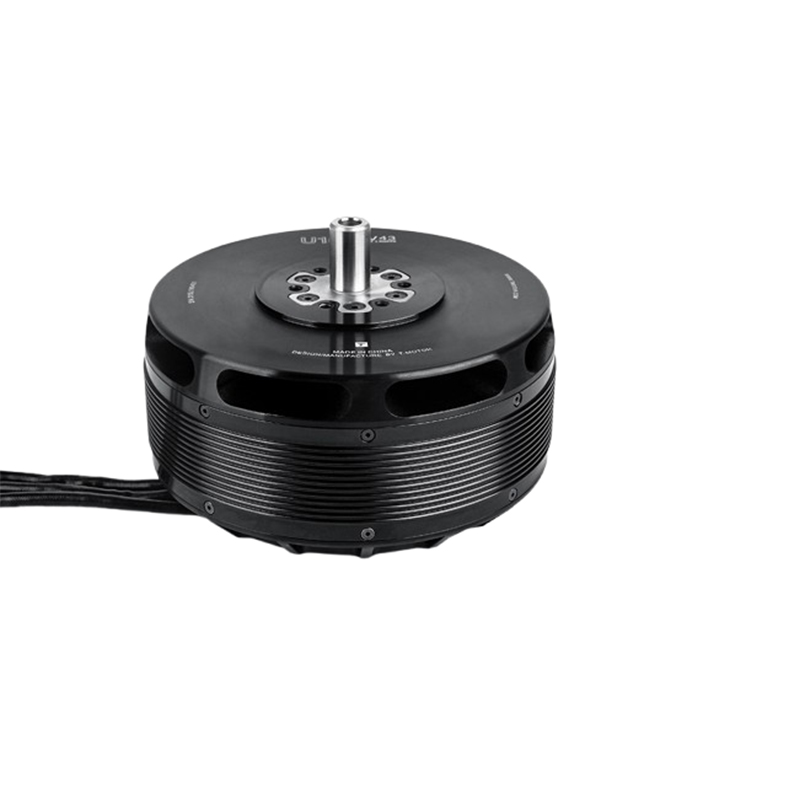

T-Motor U15L Manned Aircraft Type UAV Motor 12-24S 43KV
The T-Motor U15L is a high-torque, low-KV (43KV) brushless motor engineered for heavy-lift UAVs and manned aircraft platforms, supporting 12S to 24S LiPo battery configurations for maximum power and endurance in industrial applications.
Features
- Low KV rating of 43KV optimized for high-voltage 12S to 24S LiPo systems.
- High peak current handling of 135A for 120 seconds, delivering up to 63kg of thrust.
- Heavy-duty construction with a 36N42P magnetic configuration for smooth, high-torque operation.
- Robust design with low internal resistance (20mΩ) for efficient power delivery and thermal management.
- Large physical dimensions (Φ151.5 x 86mm) and weight (3600g) built for industrial-grade durability.
Out of stock
The T-Motor U15L motor is engineered from the ground up for mission-critical aerial platforms requiring immense lift capacity and operational reliability. Its 43KV winding is specifically tuned for high-voltage systems, allowing it to operate efficiently across a wide 12S to 24S LiPo range, which is essential for extending flight times in heavy-lift agriculture, cargo, and cinematography drones.
Built with a 36N42P stator and rotor configuration, the motor provides exceptionally smooth and consistent torque, minimizing cogging and ensuring stable performance under variable loads. The low internal resistance and robust enameled wire leads are designed to handle sustained high-current draws up to 135A, translating the electrical power into reliable mechanical thrust with minimal thermal losses.
Additional Information
| Weight | 3.6 kg |
|---|---|
| Dimensions | 17 × 13 × 13 cm |
